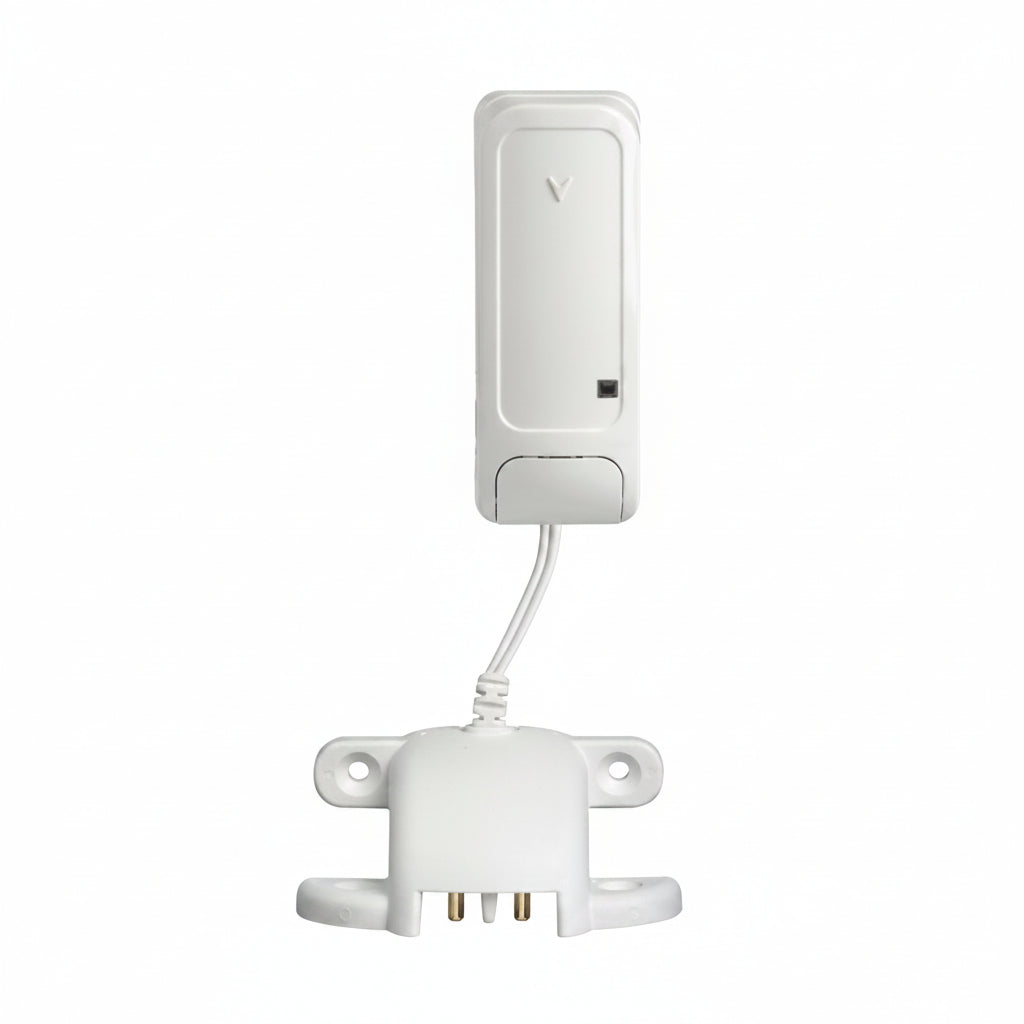

DSC PG9985 PowerG Wireless Flood Detector

The DSC PG9985 PowerG Wireless Flood Detector provides early warning of water leaks using a supervised external probe connected by a 6-foot cable. The 912-919 MHz detector communicates through the two-way PowerG protocol and reports both water alarms and probe-disconnection conditions to compatible security systems.

Designed for basements, utility rooms, mechanical spaces, appliances, and other areas vulnerable to flooding, the PG9985 separates the transmitter from the sensing point. Installers can position the transmitter higher on a wall while placing the probe where water is most likely to collect. A visible link-quality LED helps identify an appropriate wireless mounting location before permanent installation.

The PG9985 operates from a 3V CR123 lithium battery and provides up to eight years of typical battery life. Automatic low-battery reporting and four-minute supervision intervals support ongoing system monitoring, while cover and break-away tamper functions help detect interference. The North American PG9985 operates from 912-919 MHz and is compatible with supported PowerSeries Neo, PowerSeries Pro, IQ Pro, and other appropriate PowerG receiver configurations.

Key Features

• Ground-Level Water Detection: A remote flood probe detects moisture where leaking water is most likely to accumulate.
• 6-Foot Probe Cable: Separates the sensing point from the transmitter for flexible placement around appliances, plumbing, and equipment.
• Two-Way PowerG Wireless: Communicates alarm, supervision, tamper, and battery conditions through the PowerG protocol.
• Supervised Flood Probe: Reports a trouble condition if the connection between the external probe and transmitter fails.
• Visible Link-Quality Indicator: LED feedback helps installers determine a suitable wireless location before final mounting.
• Extended Battery Operation: A CR123 lithium battery provides up to eight years of typical service life.
• Panel-Based Configuration: Device settings can be managed from a compatible alarm system without hardware configuration switches.
• Tamper Monitoring: Cover and break-away tamper functions support supervised professional security installations.

Technical Specifications

• Brand: DSC
• Model: PG9985
• Product Line: PowerG
• Product Type: Wireless flood detector / liquid leak sensor
• Detectable Medium: Water
• Connectivity: Wireless
• Frequency Band: 912-919 MHz
• Communication Protocol: PowerG
• Communication Type: Fully supervised two-way wireless
• Alarm Input: External flood probe
• Probe Cable Length: 6 feet
• Probe Supervision: Probe-disconnection reporting
• Supervision Interval: Every 4 minutes
• Status Indicator: LED
• Link-Quality Indication: Visible LED signal-strength indication
• Tamper Protection: Cover and break-away tamper
• Power Source: Battery
• Battery Type: 3V CR123 lithium battery
• Specified Battery Manufacturers: Panasonic or GP
• Typical Battery Life: Up to 8 years
• Low-Battery Threshold: 2.2V
• Battery Supervision: Automatic periodic reporting and immediate low-battery reporting
• Operating Temperature: 14°F to 131°F
• UL/ULC Verified Temperature Range: 32°F to 120°F
• Maximum Relative Humidity: 93%, non-condensing
• Dimensions: 3.2 x 1.3 x 1 inches
• Weight: 0.1 lb
• Compatible PowerG Receivers: HSM2HOST9, HS2LCDRF(P)9, HS2ICNRF(P)9, PG9920
• System Compatibility: PowerSeries Neo, PowerSeries Pro, compatible Qolsys and IQ Pro systems
• Approvals: FCC, IC, UL, ULC
• UL/cUL Standard: UL2017
• Country of Origin: Canada

What's In the Box

• DSC PG9985 Wireless PowerG Flood Detector with 6-Foot Probe Cable
• CR123 Lithium Battery
