Description

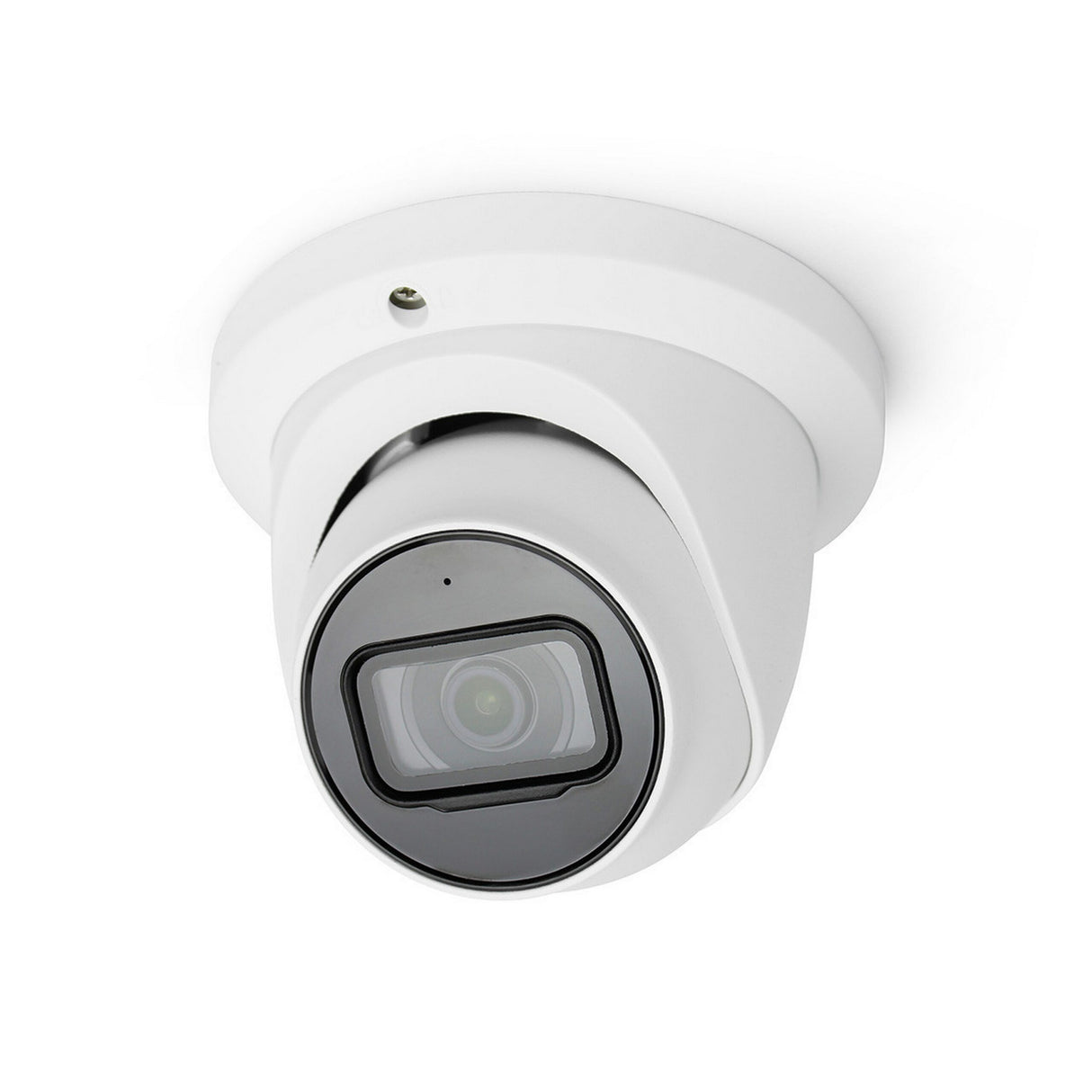

IC Realtime IPMX-E40F-IRW2 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera, White
Discover top-tier surveillance with the IC Realtime IPMX-E40F-IRW2 4MP Eyeball Dome Camera, masterfully engineered in South Korea for uncompromising quality and performance. This advanced camera is part of IC Realtime's FlexSmartAi family and features a compact, versatile design perfect for both indoor and outdoor installations. Whether you're upgrading the security of a residential property, retail space, or commercial facility, this turret dome camera combines robust durability with cutting-edge intelligence in an understated form factor.
Measuring less than 5 inches in diameter and under 4 inches in height, the IPMX-E40F-IRW2 stands out for its powerful specifications packed into a small footprint. The camera features a 4MP Starlight video chipset for stunning clarity, capturing footage even in extremely low-light conditions. Its fixed 2.8mm lens delivers a wide 103-degree angle of view, while two Smart IR LEDs illuminate subjects up to 164 feet away for impeccable night vision. The onboard microphone and high pixel density enable not only detailed audio-visual recording but also precise AI-powered detection and analysis.
The IPMX-E40F-IRW2 leverages advanced image processing technologies such as 120dB Wide Dynamic Range (WDR) and Smart IR for optimal clarity day or night. Scene-adaptive H.265 compression supports rapid streaming and efficient storage, further enhanced by the internal 256GB SD card slot for local recording. Trade Agreements Act (TAA) compliance and a rugged IP67-rated construction provide peace of mind for governmental and demanding commercial applications.
Key Features
- 4MP (2688 x 1520) Starlight CMOS sensor for clear, detailed video
- Fixed 2.8mm lens with 103° horizontal angle of view
- Smart IR LEDs for night vision up to 164 feet (50 meters)
- Integrated microphone for built-in audio recording
- Supports intelligent motion detection and advanced perimeter protection
- Compact design: less than 5 inches wide, under 4 inches tall
- Scene-adaptive H.265 compression technology
- 120dB Wide Dynamic Range (WDR) for challenging lighting environments
- Durable outdoor-ready metal/plastic housing rated IP67
- Made in South Korea and TAA compliant
Specifications
- Image Sensor: 1/3” 4MP progressive scan CMOS
- Effective Pixels: 2688(H) x 1520(V)
- RAM/ROM: 128MB / 512MB
- Minimum Illumination: 0.005 Lux@F1.6
- S/N Ratio: More than 50dB
- IR Illumination Distance: Up to 164 feet (50 meters)
- IR Wavelength: 850nm
- Lens Type: Fixed, board-in
- Focal Length: 2.8mm
- Maximum Aperture: F1.8
- Angle of View: Horizontal 103°, Vertical 55°
- Close Focus Distance: 0.9m (3.0ft)
- DORI Ranges: Detect 183ft / Observe 73ft / Recognize 36ft / Identify 18ft
- Video Compression: H.265+, H.265, H.264+, H.264
- Streaming Capabilities: 3 streams
- Supported Resolutions: 4M, 3M, 1080P, 1.3M, 720P, D1, VGA, CIF
- Frame Rate: Up to 30fps@4MP
- Bit Rate: 3 Kbps – 8192 Kbps (H.264 & H.265)
- Day/Night Mode: Auto (ICR) / Color / B/W
- Backlight Compensation: BLC / HLC / WDR (120dB)
- White Balance Options: Auto, Natural, Street Lamp, Outdoor, Manual
- Noise Reduction: 3D DNR
- Region of Interest: 4 zones selectable
- Flip & Mirror: 0°, 90°, 180°, 270° rotation; Mirror on/off
- Privacy Masking: Up to 4 rectangular areas
- Audio Compression: G.711a, G.711Mu, G726, AAC
- Ethernet: RJ-45 (10/100Base-T)
- Network Protocols: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/IPv6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
- ONVIF Profiles: S/G; CGI, P2P, Milestone compatible
- Max. Users: 10-20 (total bandwidth 64M)
- Edge Storage: NAS, SFTP, Micro SD (up to 256GB), local PC
- Compatible Software: SmartICRSS, DSS; Web viewer (IE, Chrome, Firefox, Safari)
- Smart Phone Compatibility: iOS, Android
- Power Supply: 12VDC or PoE (802.3af), max consumption 7.7W
- Operating Temperature: -30℃ to +60℃ (-22°F to +140°F), less than 95%RH
- Enclosure: IP67, metal/plastic
- Dimensions: 99.1mm x 121.9mm (3.9” x 4.8”)
- Gross Weight: 660g (1.45lb)
- Mounting Adjustment: Pan 0°-360°, tilt 0°-78°, rotation 0°-360°
Package Contents
- IC Realtime IPMX-E40F-IRW2 4MP IP Indoor/Outdoor Small Size Eyeball Dome Camera, White
