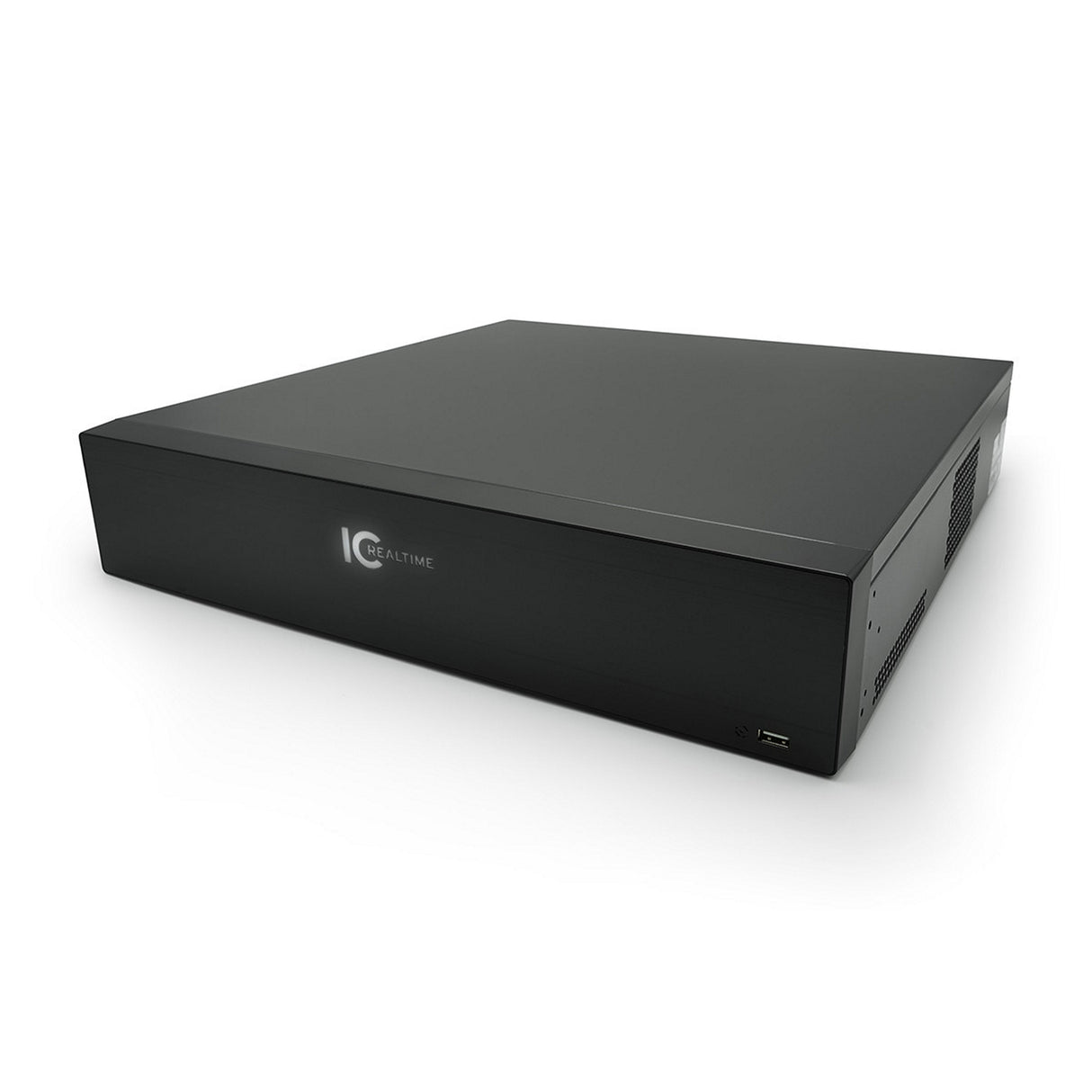

IC Realtime NVR-EL16-2U32MP1 16-Channel Rack-Mount Network Video Recorder
If you want to add Artificial Intelligence to your camera system, and your installation uses 16 or fewer cameras running on remote POE switches, IC Realtime’s new 16-channel 4K AI-NVR is now the ideal dual-network port “network appliance” solution. NVR-EL16-2U32MP1 handles cameras up to 32MP and adds vast new AI detection, internal database recognition, metadata & business intelligence skills onboard.
MASSIVE AI INSIDE FOR DETECTION + FACIAL, VEHICLE & PLATE RECOGNITION. Everyone is talking about how AI is changing the future of our civilization, and our new NVR-EL16-2U32MP1 has a built-in AI system that exemplifies that for video security. This new unit employs AI enhancements in functions ranging from H.265+/H.265/Smart H.264+/H.264/ MJPEG video compression to stream management to human, face, vehicle & license plate detection & recognition. It can handle up to 20 face databases with 20,000 images (total capacity of 2.5 GB). When combined with its massive 384bs processing thruput the new NVR-EL16-2U32MP1 literally takes Artificial Intelligence to the next level of customizable overwatch performance.
IC Realtime’s FlexSmartAi system flexibly splits AI-enhanced skills between cameras & their recorder, so the NVR-EL16 enables both camera and NVR-based Intelligent Video System (IVS), with 8 channels of NVR-based AI-enhanced iMD detection and on all 16 channels with camera-based IMD (Intelligent Motion Detection), plus perimeter protection, heat mapping, face detection & recognition, people counting to operate at full capacities.
Key Features
16 Channels | Up To 32MP | 384Mbps Bandwidth
8 HDDs | 128TB Max (Starting At 4TB HDD) | RAID 0,1,5,6,10
ICR OS 4.0 | 2 Gigabit RJ-45 | AI+ IVS Support
4 USB | Alarm 16/8 | 2 HDMI +1 VGA
ONVIF 2.4 Conformant | 2U | Rack Mountable
Specifications
Main Processor: Multi-core embedded processor
Operating System: Embedded LINUX, ICR 4.0
Display Interface: 2-channel VGA, 2-channel HDMI video output
Display Resolution: HDMI - Up to 4K, VGA - Up to 1080p
OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Intelligence: IVS, Advanced Intelligent Functions, Intelligent Motion Detection (iMD), Face Detection, Face Recognition, Video Metadata, Vehicle License Plate Comparison
Supported Camera Types: IP
IP Camera Input: 16
Trigger Events: Motion detection, video tampering, video loss, scene changing, PIR alarm, IPC external alarm, Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal fan behavior, Face detection, perimeter protection, face recognition, video metadata (human, motor vehicles, and non-motor vehicles), iMD, stereo analysis, crowd distribution, people counting, ANPR, vehicle density, heat map
Backup Mode: USB device and network
Audio Compression: G.711a, G.711u, PCM, G726
Two-way Talk: Supported
Record Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Incoming Bandwidth: 384 Mbps (AI by Camera), 200 Mbps (AI by NVR/ Object Search)
Internal HDD: 8 SATA III Ports, Up to 16 TB capacity for each HDD
Ethernet: 2 RJ-45 Ports (10/100/1000Mbps)
Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search (Supports IC Realtime IP cameras, DVR, NVS, etc.), Multicast, P2P, Auto Registration
Compatibility: ONVIF 21.12 (Profile T, Profile S, Profile G), CGI, SDK
Web Viewer: Chrome, IE 9 or later, Edge, Safari, Firefox
Management Software: Smart ICRSS, DSS
Smart Phone: Android, iOS, iPhone
USB: 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
Alarm I/O: Input - 16 channels, Output - 8 channels (1-channel 12 V 1 A output)
Power Consumption: ≤ 13 W (without HDD)
Operating Conditions: +14 Degrees F ~ +131 Degrees F (-10 Degrees C ~ +55 Degrees C), 86 ~ 106kpa
Installation: Rack mountable
Dimensions: 2U, 17.32” x 18.03” x3.50” (439.9 mm x 457.9 mm x 89.0 mm)
Package Contents
IC Realtime NVR-EL16-2U32MP1 16-Channel Rack-Mount Network Video Recorder
