Description

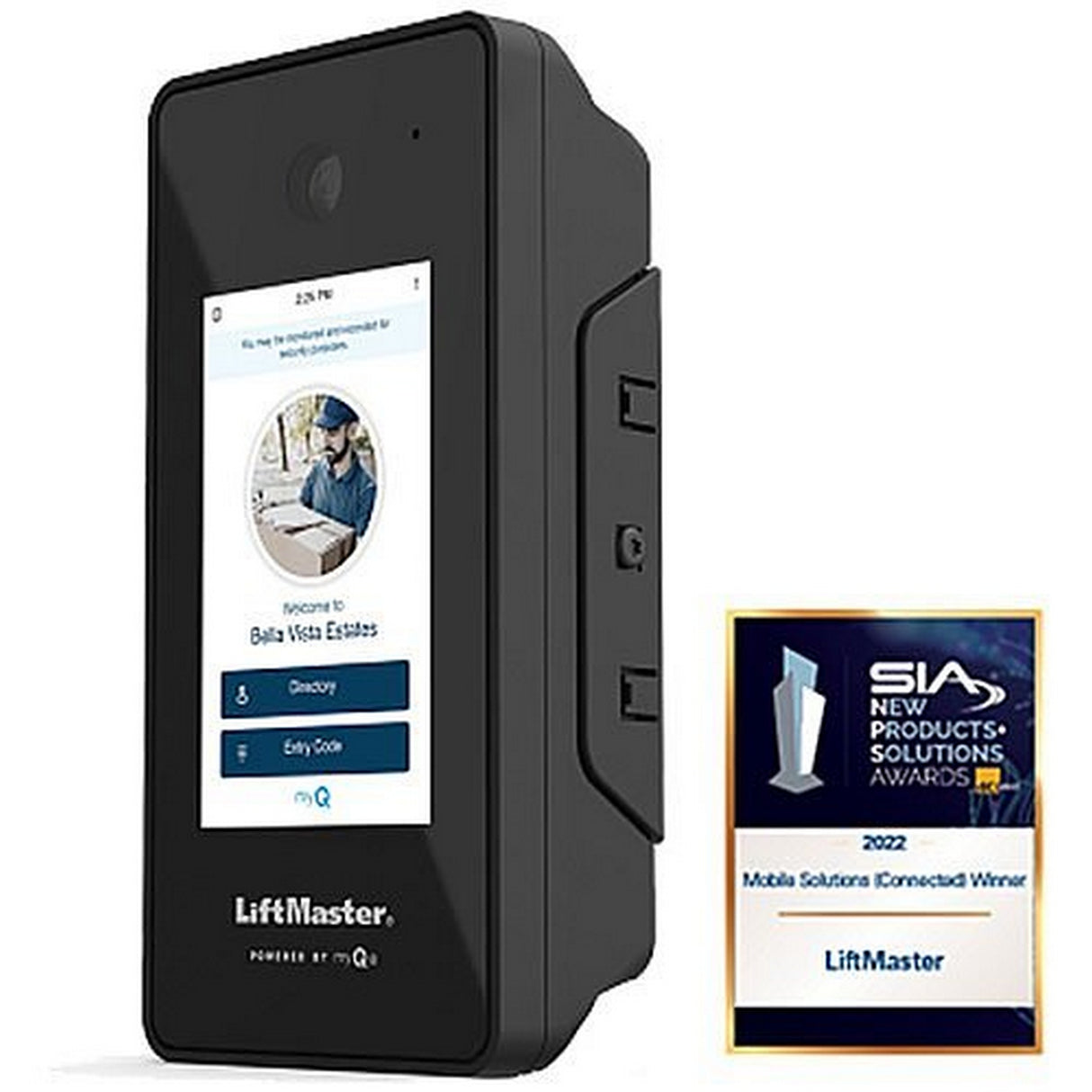

LiftMaster CAPXS Smart Video Intercom S
LiftMaster CAPXS Smart Video Intercom S is a smart video intercom designed for access control and entry management applications. It enables secure audio, video, and credential based access for property managers and facility operators, supporting controlled entry workflows. This makes it ideal for locations where monitored access and user authentication are critical.
The intercom combines touchscreen operation with voice, PIN, and credential support to manage door access and visitor interaction. It integrates with network connectivity and cloud based management tools to allow programming, monitoring, and event tracking.
Designed for both indoor and outdoor installations, the unit supports remote management and real time notifications. It is suited for properties that require centralized control, event visibility, and durable construction for long term operation.
Key Features
- Multi-Method Access: Supports touchscreen, voice, and PIN based interaction
- Remote Management: Allows programming and control through cloud based tools
- Event Monitoring: Provides real time event tracking and notification support
- Integrated Camera: Enables video communication and visual verification
- Weather Resistant Design: Built for reliable indoor and outdoor installation
Technical Specifications
Unit Interface Capabilities
Touchscreen, voice, PIN
Scheduling Capabilities
Yes
Data Connectivity
Wi-Fi and Ethernet
Voice Communication
Wi-Fi and Ethernet
Calling Connectivity
VoIP
Included Power Supply Ratings
Input: 120 VAC, 60Hz, 1A max
Output: 16 VDC, 2.5 A, 40 W
CAPXS DC input ratings: 16 VDC, 10 W max
Programming (Database Management)
Cloud (myQ Community)
Remote Programming (Database Management)
Yes
Realtime Event Monitoring (Email Notifications)
Yes
Software
myQ Community web portal
Wiegand Input Data Formats
26 BIT, 37 BIT (HID), 37 BIT (Transcore), AND 32 BIT (MiFare)
Local User Capacity Per Unit
500
Local Event History Per Unit
3,000
Max Number of Gates or Doors of Control (Each)
1 Door (Vestibule Mode capable with Aux Relay)
Wiegand Input
1 (only supports data lines, not any LEDs)
Relay Output
2 (1 primary, 1 auxiliary)
Mounting Options
Surface or gooseneck
Operating Temperature
-4Ā°F to 122Ā°F (-20Ā°C to 50Ā°C)
Display Type
5-inch full color touch screen with Picture-in-Picture
Display Resolution
720p high definition
Integrated Video Camera
Yes
Anti-Tamper Alarm Notification
Yes - shock sensor records events and notification records can be sent via email from myQ Community
Warranty
2 years
Enclosure Material
Polycarbonate
Impact Rating
IK07
Weatherproof Rating
IP54
