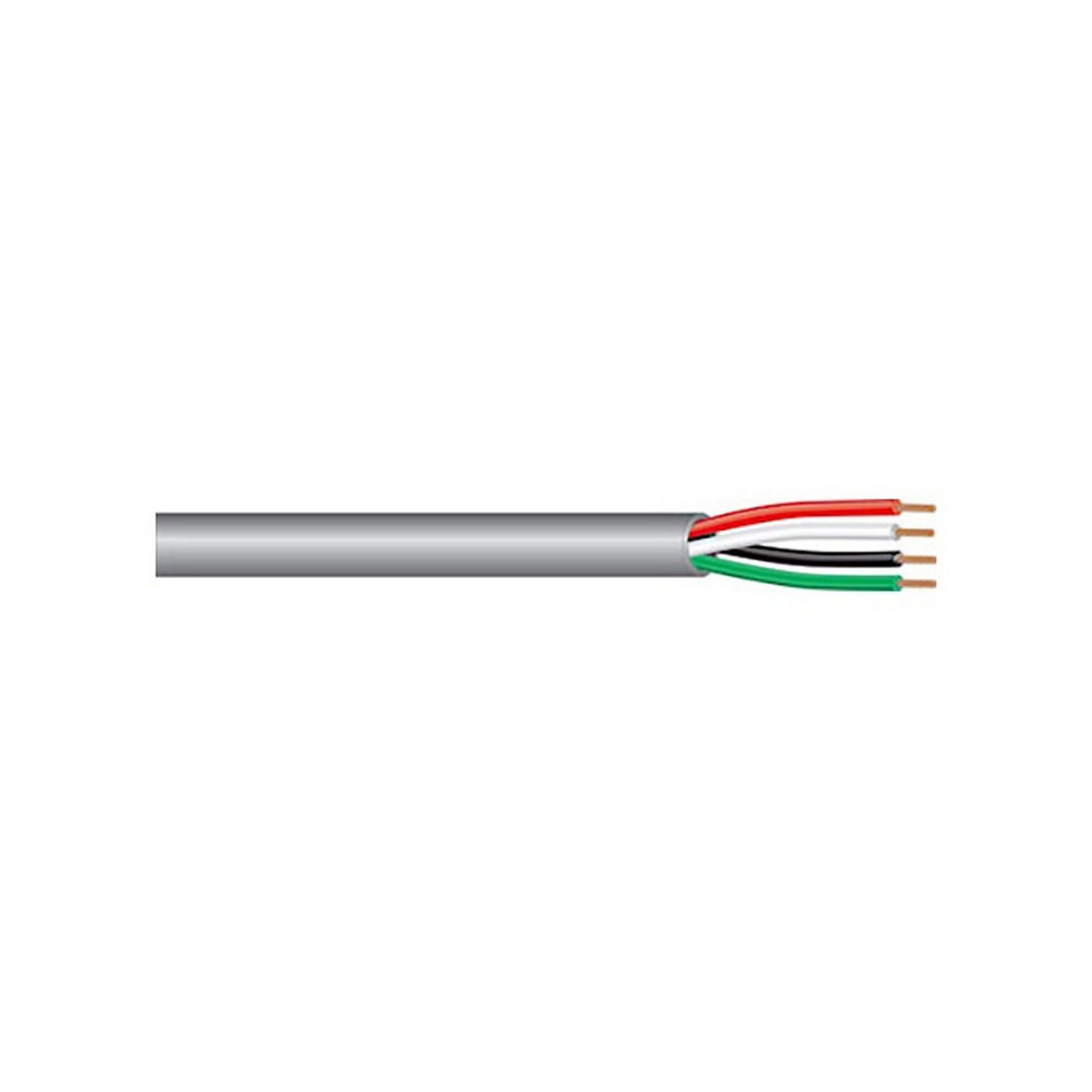

West Penn 25246B 14 AWG 4 Conductor Stranded Unshielded Plenum speakON Speaker Cable Gray Jacket, 1000 Foot
West Penn 25246B is a 14 AWG 4-conductor stranded/unshielded Plenum communication cable in grey, 1000 feet.
Technical Specifications
Conductor Parameter
Number of Conductors
4
AWG Size
14
Conductor Stranding
19x27
Conductor Type
Bare copper
Nominal DCR
2.7 Ohm/1000ft
Cabling Lay Length
4.5 in
Insulation Parameter
Insulation Type
Plenum PVC
Insulation Thickness
0.012 in
Insulation Color Code
1.Black,2.Red,3.White,4.Green
Overall Construction Parameters
Jacket Type
Flexible Plenum
Jacket Thickness
0.015 in
Nominal Cable O.D.
0.262 in
Plenum
Yes
NEC UL Rating
CL3P, FPLP
RoHS Compliant
Yes
Pull Tension1
45 lbs
Bend Radius
2.358 in
Cable Weight
67 lbs
