Chief XTM1U X-Large Fusion Micro-Adjustable Tilt Wall Mount
Authorized Dealer
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

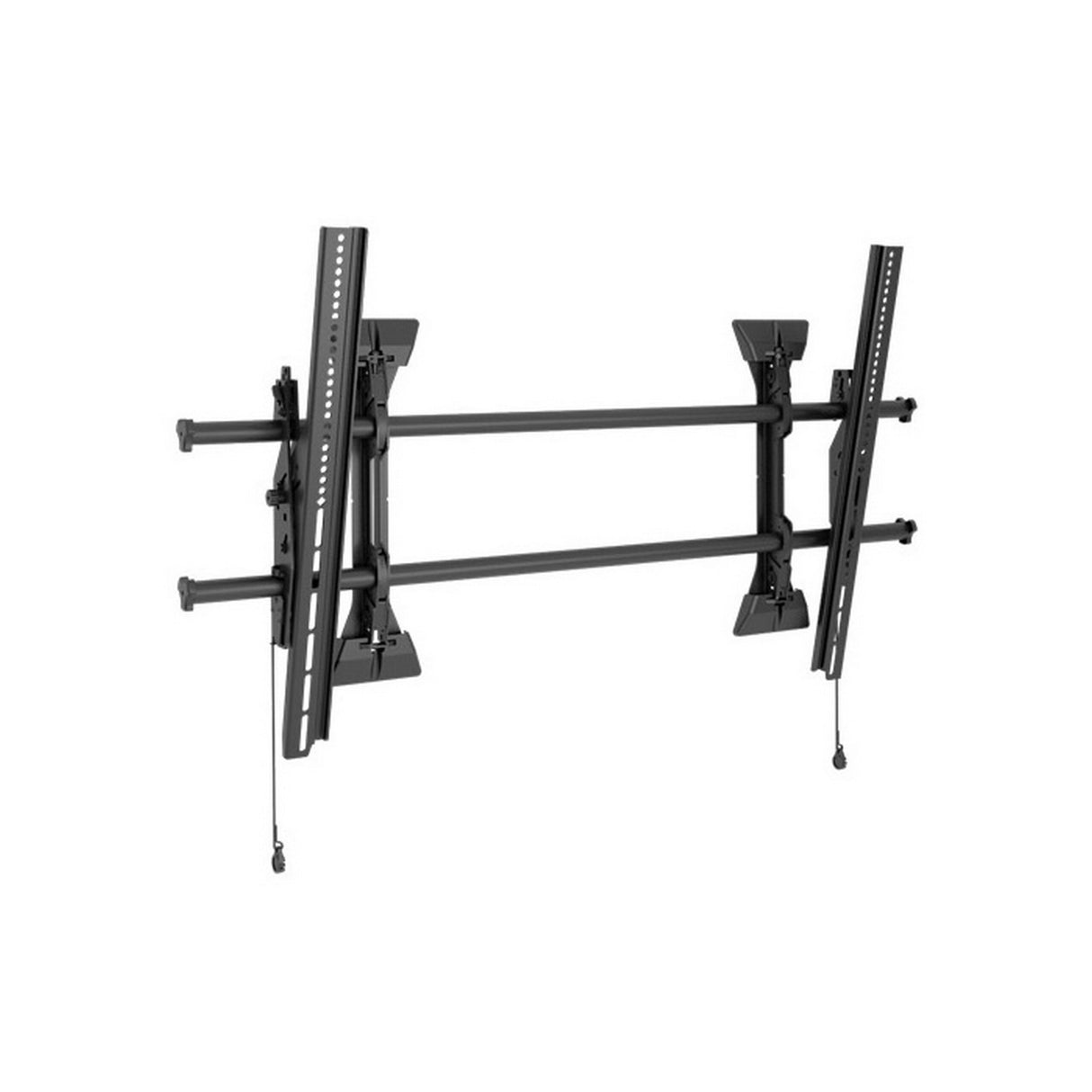

Chief XTM1U X-Large Fusion Micro-Adjustable Tilt Wall Mount
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Key Features
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Technical Specifications
Certifications
UL Listed
Color
Black
Lateral Shift
21.4" (542 mm)
Manual Height Adjustment
1" (25 mm)
Maximum Screen Thickness
6"
Minimum Depth
2.5" (64 mm)
Mounting Pattern Compatibility (Universal Versions)
100 x 100 mm - 1080 x 600 mm
Orientation
Landscape
Overall Dimensions (H x W x D)
24.5 x 42.75 x 2.5" (622 x 1086 x 64 mm)
Shipping Weight
27.24 lbs
Solution Type
Universal
Tilt
+5, -12
Typical Screen Sizes
55 - 82"
Wall Stud Compatibility (inches)
24-42
Weight Capacity
250 lbs (114 kg)
