LG LAEC015-GN 136-Inch All-In-One LED 1.5mm Pitch Display
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

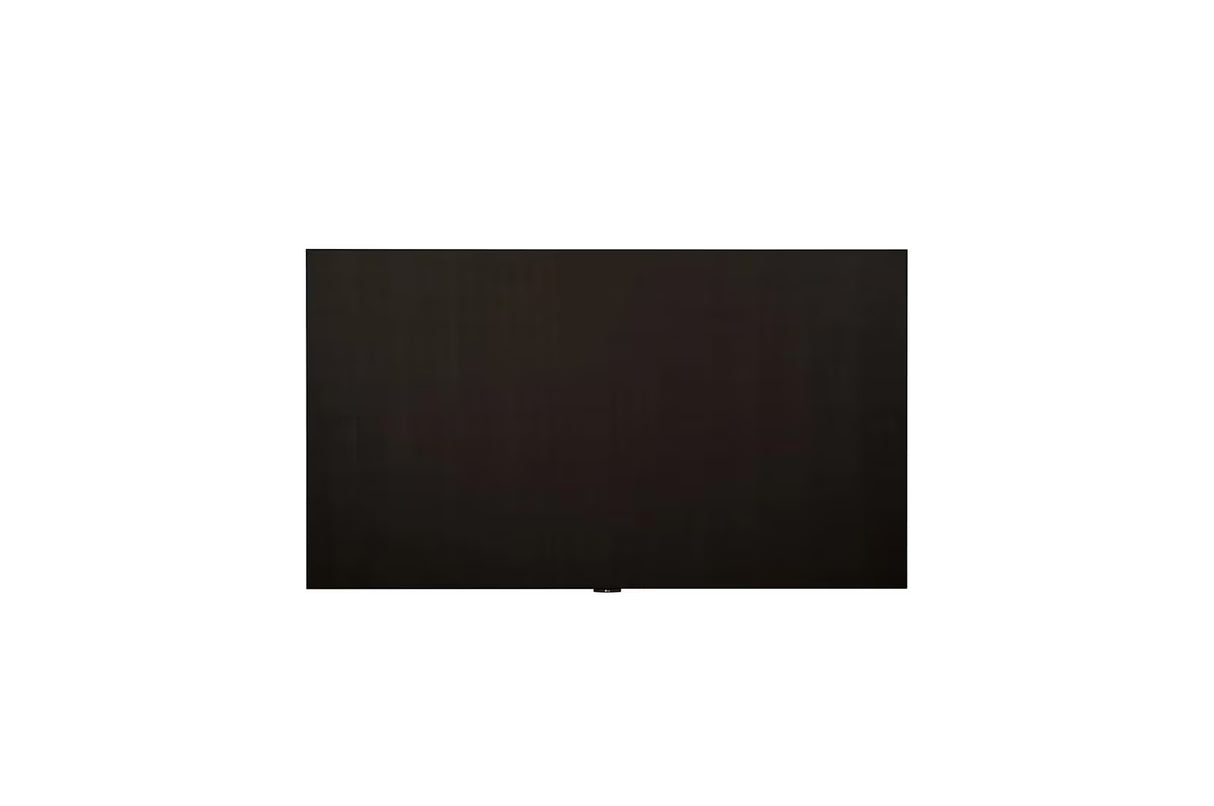

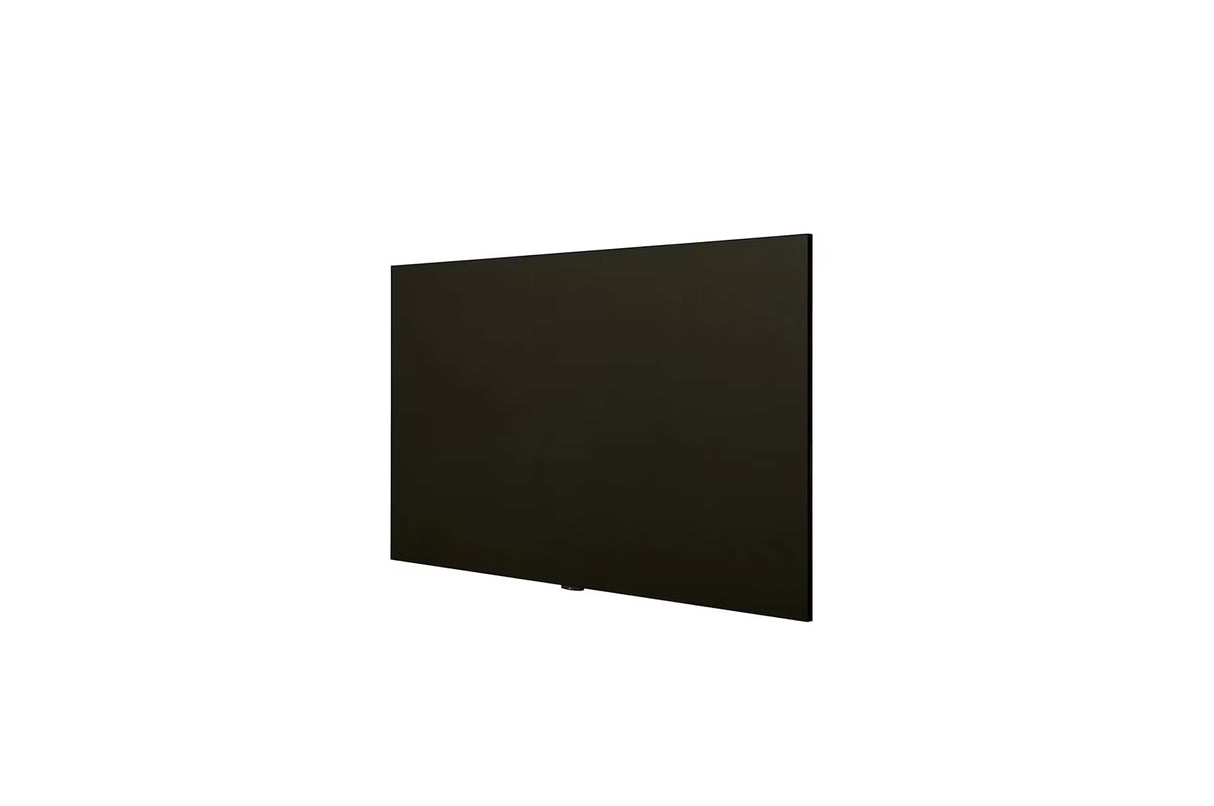

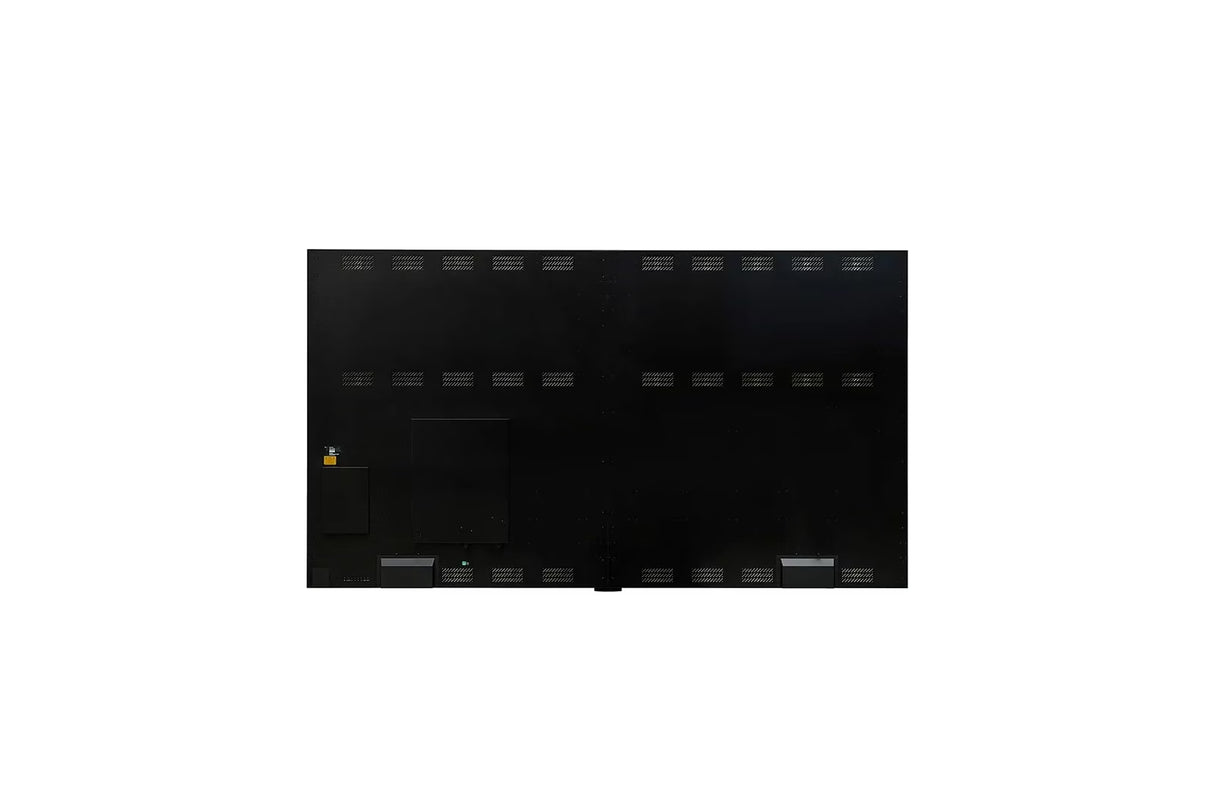

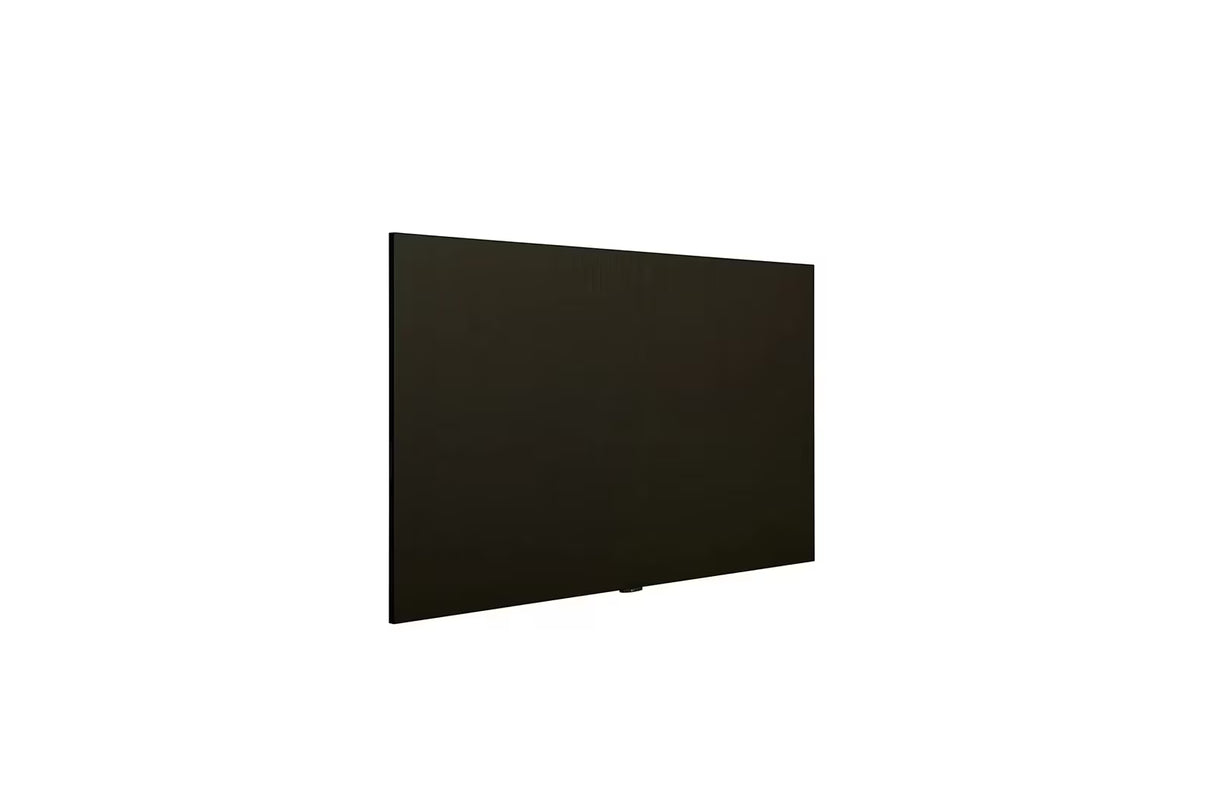

LG LAEC015-GN 136-Inch All-In-One LED 1.5mm Pitch Display
All-in-One LED Screen with Built-in Speaker
The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
LG One: Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with its USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
Simple Power Connection
The LAEC series is operated with a single or double AC cable* without the need for a complicated power connection and enables neat installation.
Key Features
- Pixel Pitch: 1.56 mm
- Screen Size: 136” (Full HD)
- Brightness: 500 nits
- Embedded System Controller
- Built-in Speaker
Technical Specifications
PHYSICAL PARAMETERS
Pixel Configuration
3 in 1 SMD
Pixel Pitch(mm)
1.5625
Screen Resolution
1,920x1,080
Module Dimensions (WxH, mm)
250x281.25
No. of Modules per Screen (W x H)
12x6 (Total 72)
Screen Dimensions (W x H x D, mm, including bezel)
3,004.6x1692.1x36.5 (Thickest 70)
Screen Surface Area (m2)
5.06
Weight of the screen
129
Physical Pixel Density (pixels/m2)
409,600
Flatness of Unit Case (mm)
0.2
Unit Case material
Aluminum
Service Access
Front
OPTICAL
Min. Brightness (After Calibration)
500
Color Temperature
7300K
Visual Viewing Angle (H x V)
160 Degrees x 160 Degrees
Brightness Uniformity
98%
Color Uniformity
0.015 Cx, Cy
Contrast Ratio
3000:1
Processing Depth (bit)
16
ELECTRICAL
Power Consumption (W/screen, Max.)
2,000
Power Consumption (W/screen, Avg.)
800
Power Consumption (W/m2, Max.)
395
Power Consumption (BTU/h/Screen, Max.)
6,824
Power Consumption (BTU/h/Screen, Avg.)
2,730
Power Consumption (BTU/h/m2, Max.)
1,348
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
>2880
OPERATION
LED Lifetime (Half brightness)
100,000
Operating Temperature (Degrees Celsius)
0 Degrees Celsius to +40 Degrees Celsius
Operating Humidity
<90%RH (without condensation)
IP rating Front
IP30
IP rating Rear
IP20
SPEAKER
Speaker
Built-in(9W+9W)
CERTIFICATION
Certification
CE, FCC, ETL, CB
Environment
RoHS, REACH
Controller
Embedded
Installation / Use Cases
- Use as a 136-inch all-in-one LED display for large presentation, meeting, and commercial display environments.
- Suitable for installations that need a Full HD LED display with 1.56 mm pixel pitch and 500 nits brightness.
- Use in spaces where an embedded controller and built-in speaker reduce the need for separate display control hardware.
- Suitable for simpler installation compared with modular LED systems because controller connections and module configuration are not required.
- Use LG One: Quick Share for wireless screen sharing with the LAEC series, USB transmission unit, and app.
- Suitable for front-service maintenance using the provided magnetic tool to detach and replace LED modules.
- Use in installations where single or double AC cable power connection helps keep setup neat.
Package Contents
- LG LAEC015-GN 136-Inch All-In-One LED 1.5mm Pitch Display
Frequently Asked Questions
What makes the LG LAEC015-GN an all-in-one LED display?
The LAEC015-GN includes a 136-inch LED screen, embedded controller, and built-in speaker, reducing the need for separate controller setup.
How large is the LG LAEC015-GN screen?
The display is 136 inches with Full HD 1920 x 1080 resolution.
What is the pixel pitch?
The pixel pitch is 1.5625 mm.
How bright is the display?
The display provides 500 nits minimum brightness after calibration.
How does front service access help maintenance?
The LED module can be detached from the front with the provided magnetic tool, allowing faster module or system board service without rear access.
Does the display include audio?
Yes. The display has a built-in speaker system rated at 9W + 9W.
What are the screen dimensions?
The screen dimensions including bezel are 3,004.6 mm wide, 1,692.1 mm high, and 36.5 mm deep, with the thickest depth at 70 mm.
What comes with the LG LAEC015-GN?
The package includes the LG LAEC015-GN 136-Inch All-In-One LED 1.5mm Pitch Display.
