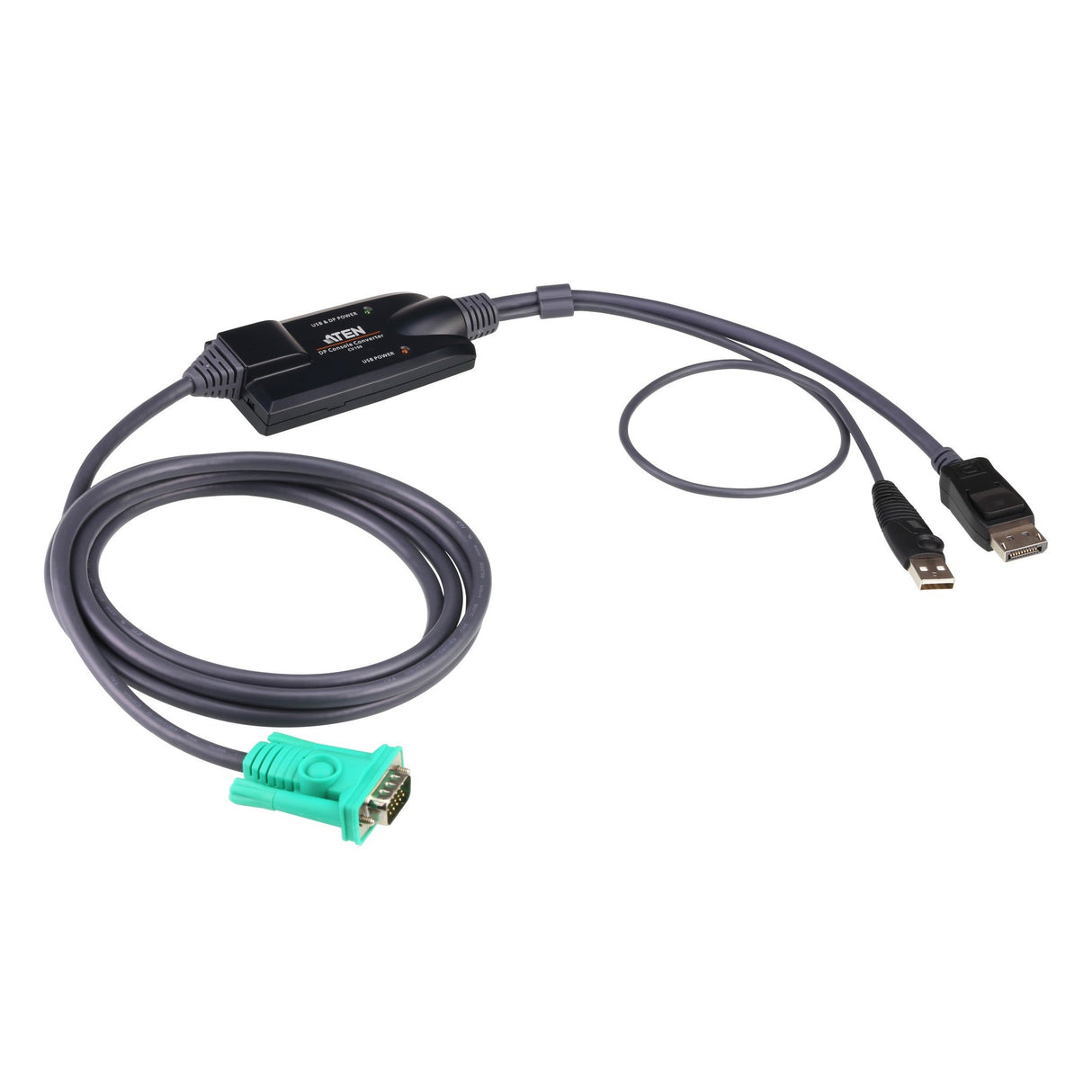

ATEN CV190 DisplayPort Console Converter
ATEN CV190 DisplayPort Console Converter
ATEN CV190 DisplayPort Console Converter
The CV190 is a DisplayPort console converter. It fully supports ATEN KVM switches, which use specially designed 15 pin Special High-Density connectors (SPHD-15) to transmit the KVM data between the switch and the computer.
By connecting to SPHD-15 switches, the CV190 takes advantage of DisplayPort and USB bus to transfer video and keyboard/mouse input to the computer quickly and reliably while providing a neat and tidy installation.
Key Features
- Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer
- Supports high video resolution - up to 1920 x 1080 @ 60Hz
- DisplayPort 1.1 compliant
- Supports USB keyboard and mouse
- Bus-powered - no external power adapter required
- Easy installation - no software required
Technical Specifications
Console Connections
1
Connectors
To Computer
1 x USB Type A Male
1 x DisplayPort Male
To Switch
1 x SPHD-15 Male
Switches
Power Selected
1 x Slide Switch
LEDs
Status
1 (Green; USB & DP Power)
1 (Orange; USB Power)
Video
1920 x 1080 @ 60 Hz
Power Consumption
DC5V:1. 01W:5BTU
Environmental
Operating Temperature
0-50 Degrees C
Storage Temperature
-20-60 Degrees C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
0.21 kg (0.46 lb)
Cable Length
1.8 m
Dimensions (L x W x H)
9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
