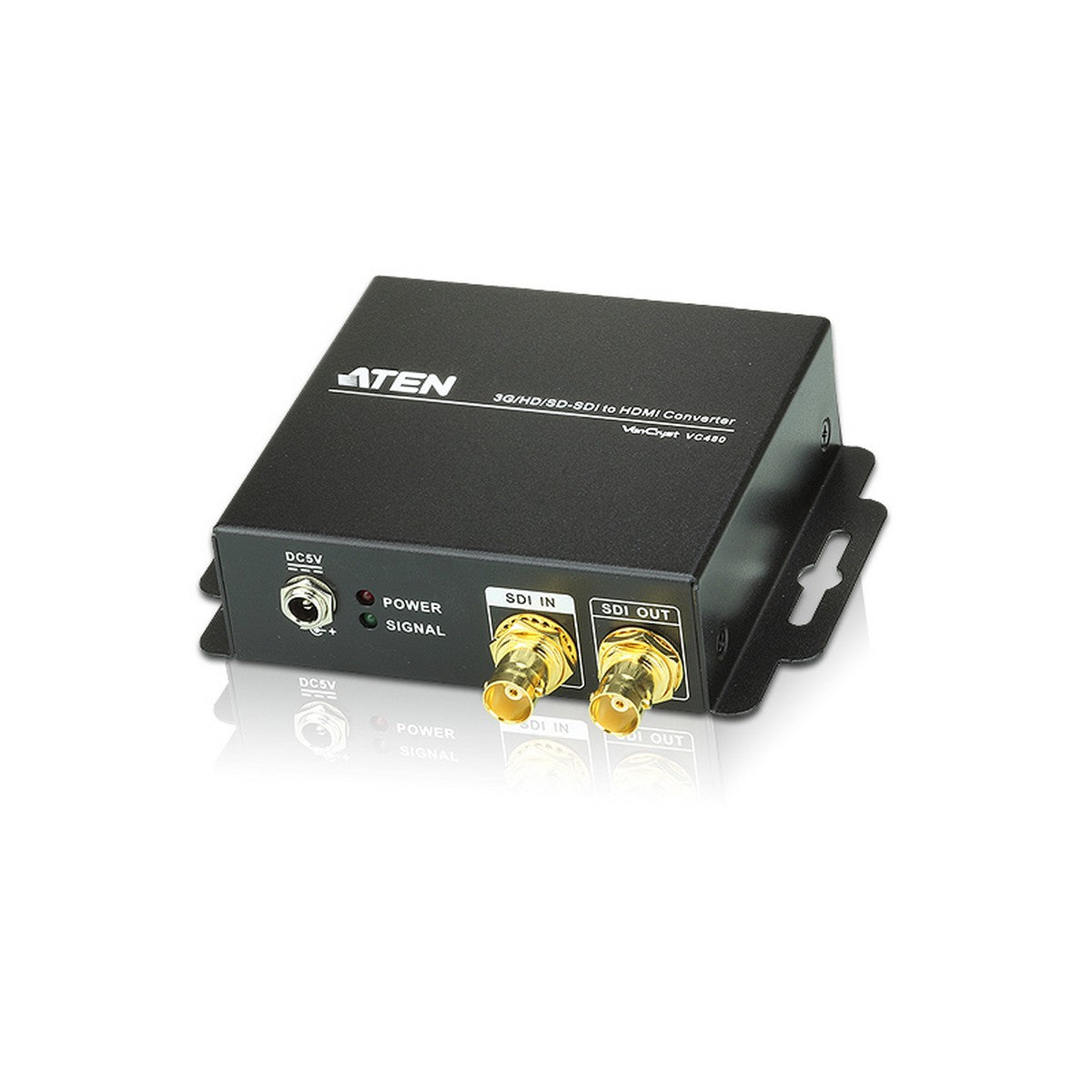

ATEN VC480 3G HD SD SDI to HDMI Converter
The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.
Key Features
- Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
- Supports additional analog stereo audio and coaxial digital audio
- HDMI (Deep Color)
- LED indication of power and signal status
- Supports an SDI distance of up to 295 ft. (90M) (3G-SDI), 492 ft. (150M) (HDSDI) or 985 ft. (300M) (SD-SDI) of RG6
- Buffered loop-through output provides extended monitoring
- Supports 8 audio channels @48kHz rate
- Features automatic detection of 3G/HD/SD-SDI signals
- Reclocking SDI signals for cascading and thus longer transmission
- Locking power connector for secure communications
Technical Specifications
Operating Temp.: 0-40Ā°C
Storage Temp. : -20-60Ā°C
Humidity: 20-90% RH, Non-condensing
Housing: Metal
Weight: 0.6 lb. (0.29 kg)
Dimensions (L x W x H) : 4.8 x 4.3 x 1.2 in. (12.30 x 10.87 x 3.05 cm)
