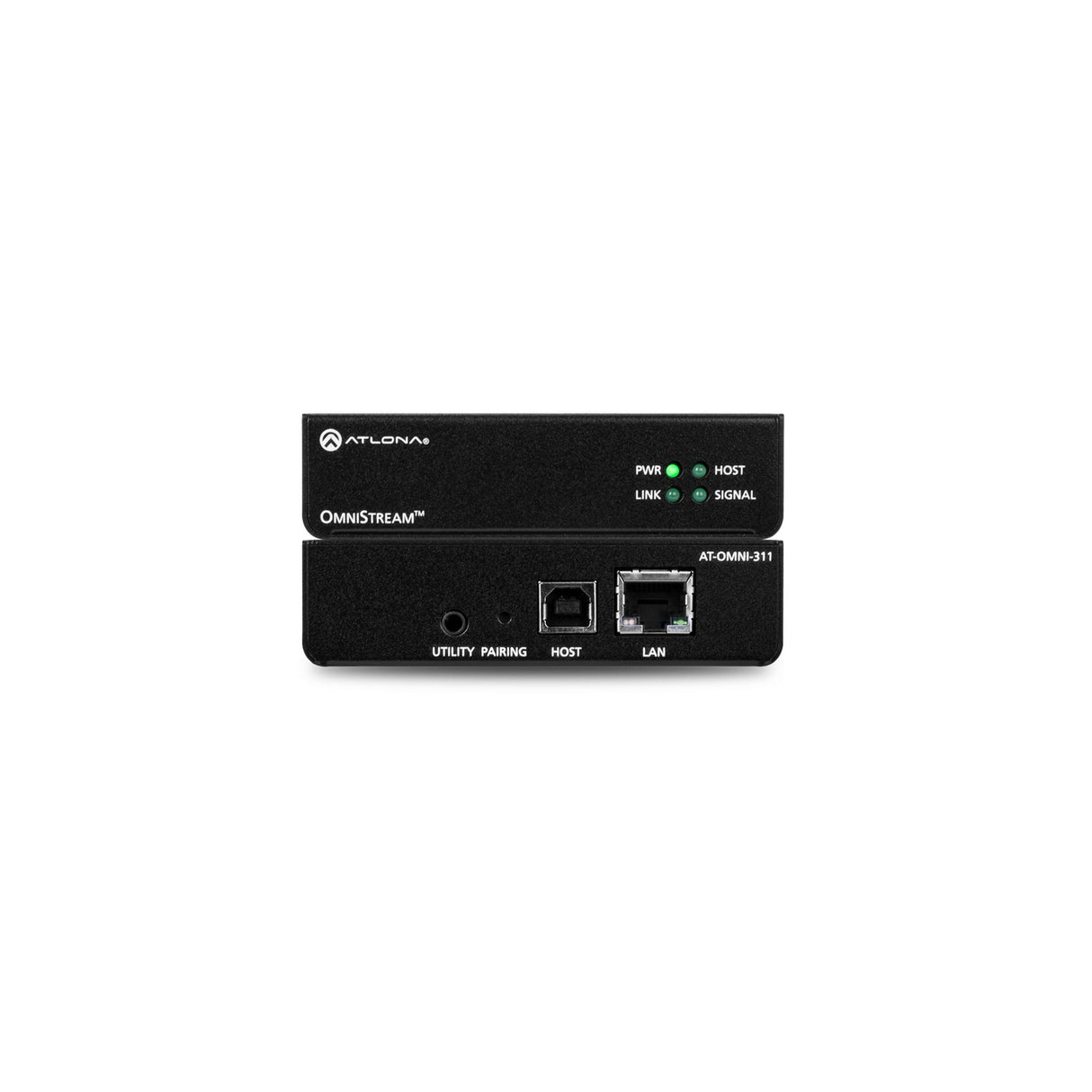

Atlona AT-OMNI-311 USB to IP Adapter
The Atlona AT-OMNI-311 is a USB-to-IP adapter designed for extending USB signals from a host device, such as a PC, over standard Gigabit Ethernet using CAT5e or CAT6 cabling. It operates as part of the Atlona OmniStream USB over IP system, working in tandem with the AT-OMNI-324 to support seamless USB transmission between host computers and multiple peripherals across networked environments. The OMNI-311 provides reliable USB 2.0 data transfer up to 480 Mbps, enabling flexible and scalable connectivity for AV and conferencing systems.
This adapter is ideal for extending USB connections in meeting rooms, huddle spaces, classrooms, and unified communication setups. It supports point-to-point operation for direct USB extension up to 330 feet (100 meters), as well as full network-based USB routing managed through Atlona Velocity Device Manager. With support for up to seven paired OMNI-324 units, the OMNI-311 provides enterprise-grade performance for modern AV-over-IP systems.

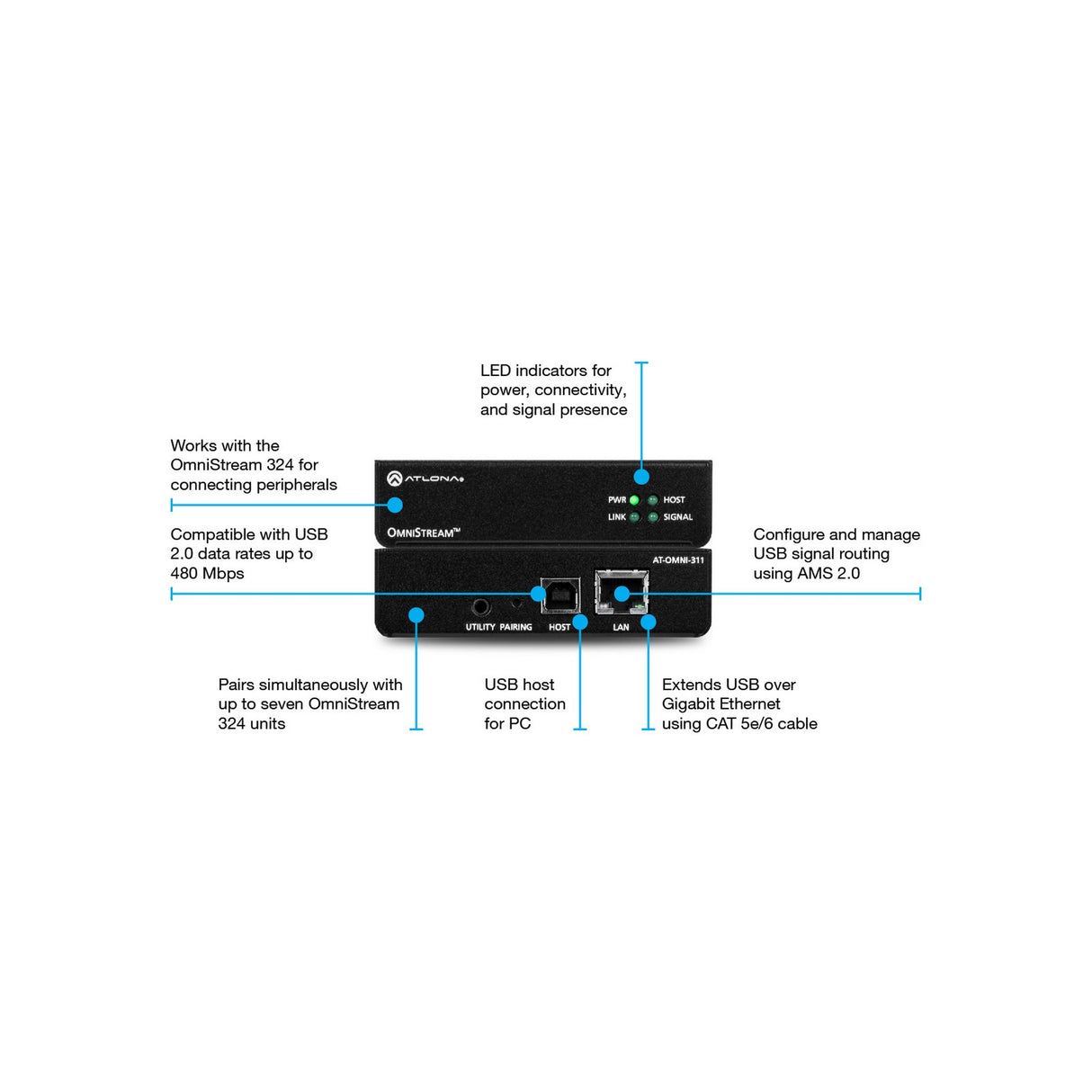

Key Features
- Extends USB over standard Gigabit Ethernet networks using CAT5e or CAT6 cable
- USB host connection for PC or other host devices
- Supports USB 2.0 data rates up to 480 Mbps
- Enables point-to-point USB extension up to 330 ft (100 m)
- Pairs with up to seven OMNI-324 USB receiver units
- Ideal for extending connections to touch displays, cameras, soundbars, speakerphones, DSPs, and more

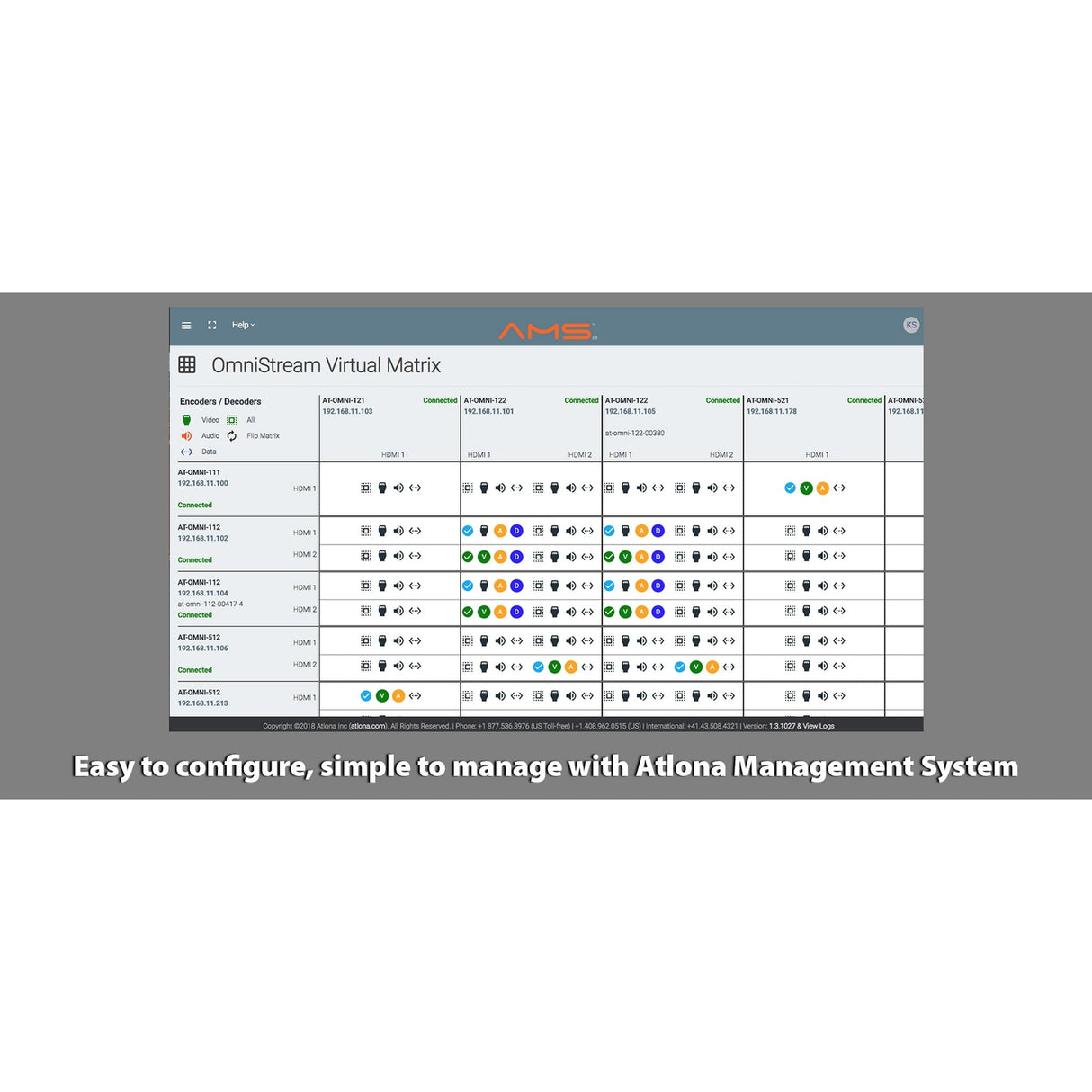

- Velocity Device Manager provides centralized USB routing configuration and monitoring
- Supports HTTPS, Telnet, SSH, WebSockets with TLS, and AES-128 encryption
- Low-profile 1-inch (25 mm) enclosure for flexible installation
- Powered directly from the USB host device – no external power supply required
Technical Specifications
- USB Standard: USB 2.0
- Maximum Data Rate: 480 Mbps
- Maximum Distance: 330 ft (100 m) per Ethernet hop
- USB Connector: 1 × Type B (4-pin female)
- LAN Connector: 1 × RJ45 (shielded)
- Utility Port: 1 × 3.5 mm mini-stereo
- Pairing Button: Recessed push-type
- Indicators: Power, Link, Host, Signal (Green LEDs)
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: −4°F to 158°F (−20°C to 70°C)
- Operating Humidity: 20% to 80%, non-condensing
- Storage Humidity: 10% to 90%, non-condensing
- Power Source: Powered by USB host device
- Dimensions (H × W × D): 1.04 × 3.92 × 3.01 in (26.40 × 99.50 × 76.45 mm)
- Weight: 0.5 lb (0.23 kg)
- Certifications: CE, FCC, CB, RoHS
