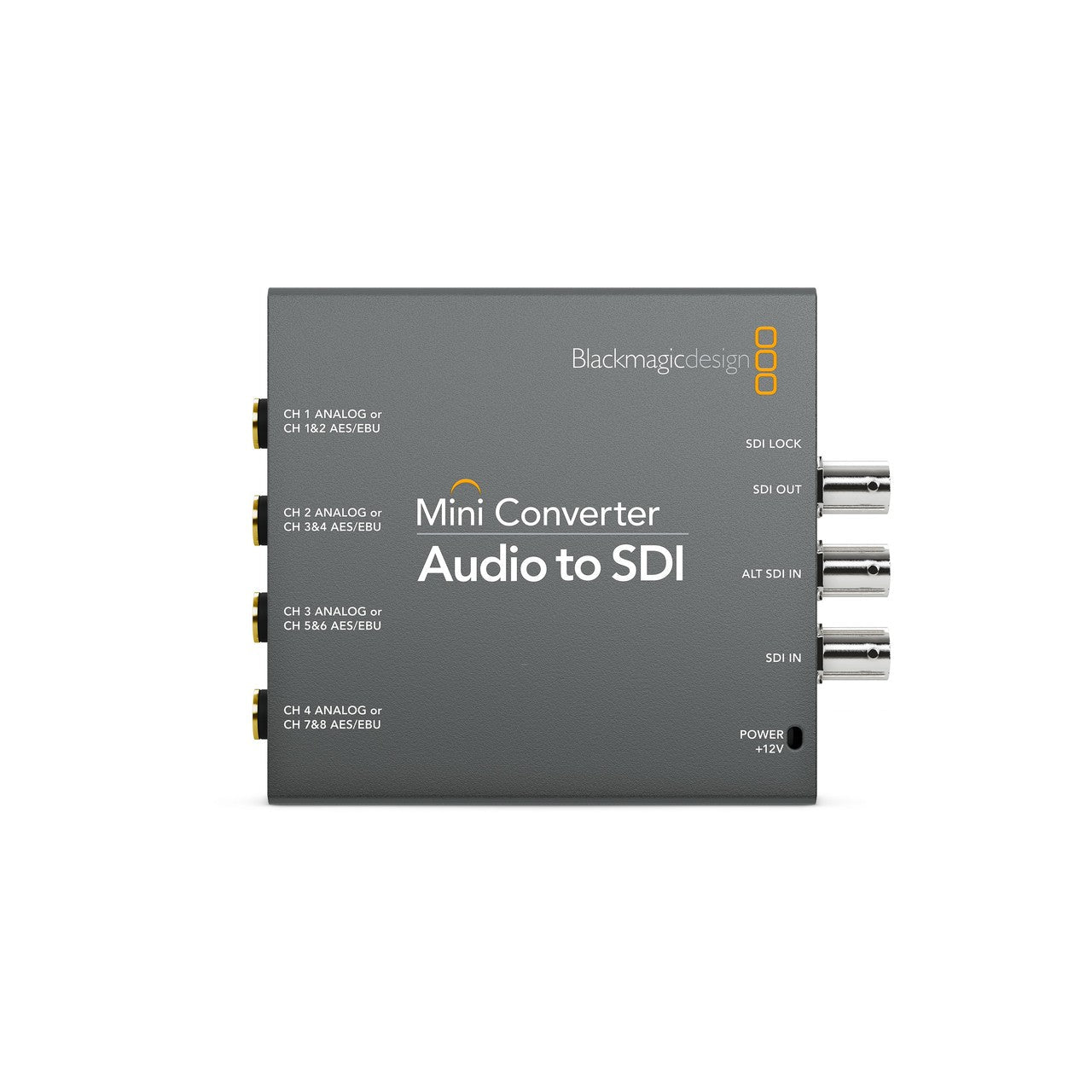

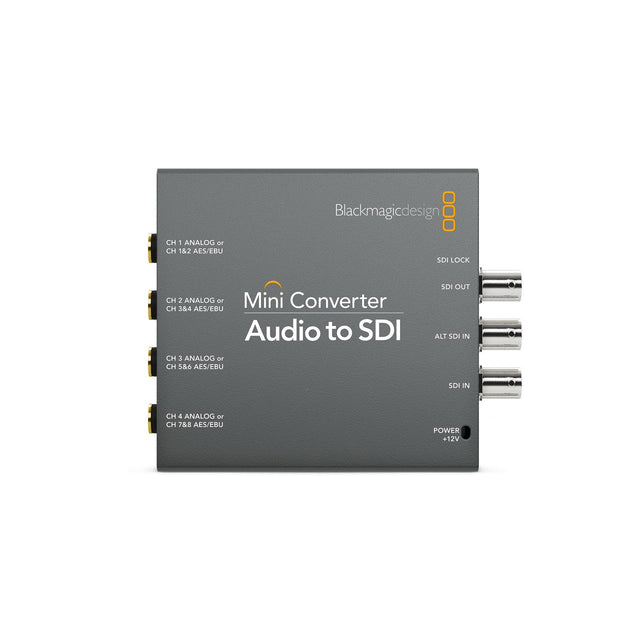

Blackmagic Design Mini Converter Audio to SDI 2

Blackmagic Design Mini Converter Audio to SDI 2

Embed audio into any SDI source with the Blackmagic Design Mini Converter Audio to SDI 2, ideal for professional broadcasting and post-production environments. This advanced converter allows you to embed either balanced analog or AES/EBU audio into SD and HD SDI formats at resolutions up to 1080p60. Perfectly suited for a myriad of professional audio and video equipment like mixers and analog decks, it is the ideal choice when the additional cost of an Ultra HD model is unnecessary. The compact design and robust feature set make this converter a versatile addition to any AV toolkit.

The Blackmagic Design Mini Converter Audio to SDI 2 offers automatic multi-rate detection for SD, HD, and 3G-SDI, ensuring compatibility with a wide range of signals. Its redundant SDI input automatically switches if the main input is lost, providing redundancy and peace of mind in mission-critical applications. Firmware updates and configuration can be easily carried out using the USB 2.0 high-speed interface, guaranteeing that your converter is always up-to-date with the latest features and improvements.

Key Features

• Embed audio into SD/HD SDI sources up to 1080p60
• Supports both balanced analog and digital AES/EBU audio inputs
• Automatic switching to redundant SDI input
• Multi-rate support for automatic detection of SD, HD, or 3G-SDI
• USB 2.0 high speed for updates and configuration

Specifications

• SDI Video Inputs: 1 x SD, HD or 3G-SDI, 1 x ALT SDI Input for automatic switch over
• SDI Video Outputs: 1 x Embedded SDI Output
• Analog Audio Inputs: 4 channels of balanced analog audio
• Digital Audio Inputs: 8 channels of balanced AES/EBU audio
• SDI Redundant Input: Automatically switches if main SDI input is lost
• Multi Rate Support: Auto detection of SD, HD or 3G-SDI
• Reclocking: Yes
• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
• SDI Video Rates: Switchable between SD, HD, and high definition
• SDI Video Sampling: 4:2:2, 4:4:4
• SDI Audio Sampling: TV standard sample rate of 48 kHz and 24 bit
• SDI Color Precision: 4:2:2, 4:4:4
• SDI Color Space: YUV, RGB
• SDI Auto Switching: Auto selection between SD, HD, and 3G-SDI
• Software Control: Mac and Windows software upgrade via USB
• Internal Software Upgrade: Via included updater application
• Operating Systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later, Windows 8.1 or Windows 10
• Power Supply: +12V universal power supply with international socket adapters
• Power Consumption: 8.40 Watts
• Operational Voltage Range: 12V DC
• Dimensions: Height: 0.90 in, Width: 3.63 in, Length: 4.52 in
• Weight: 7.58 oz
• Operating Temperature: 0 to 40C (32 to 104F)
• Storage Temperature: -20 to 45C (-4 to 113F)
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Mini Converter Audio to SDI
• 12V universal power supply with international socket adapters
