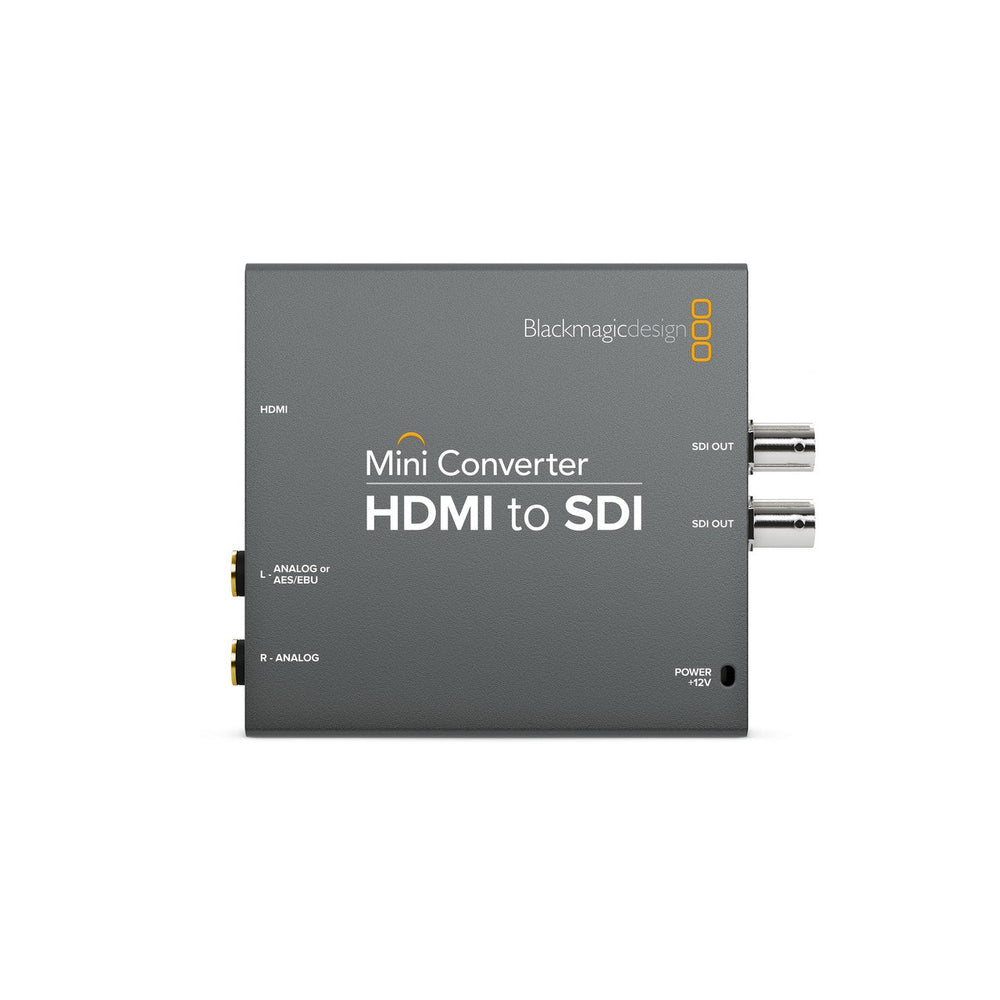

Blackmagic Design Mini Converter HDMI to SDI 6G

Blackmagic Design Mini Converter HDMI to SDI 6G

The Blackmagic Design Mini Converter HDMI to SDI 6G is an advanced solution for transforming HDMI signals into SDI video in standard, high-definition (HD), and Ultra HD formats. Perfectly engineered for professionals, this converter ensures high-quality video and audio transmission, making it indispensable in your broadcast or video production setup. With its ability to handle a variety of inputs and outputs, the Mini Converter seamlessly bridges consumer-level equipment with professional broadcast environments, ensuring compatibility and superior video quality.

This robust device automatically adjusts to SD, HD, and 6G-SDI HDMI inputs, ensuring that your video signals are seamlessly converted to match any broadcasting standard. Additionally, the Mini Converter supports both analog and digital audio inputs, allowing for versatile audio embedding. Whether connecting consumer-grade cameras or computing devices to your broadcast system, this converter provides a reliable and efficient interface.

Designed with user convenience in mind, the Blackmagic Design Mini Converter HDMI to SDI 6G includes an extensive range of features. From its dual SDI outputs to a comprehensive range of video and audio standards support, this converter is built to meet the demands of modern video production environments. The compact size and universal power supply make it an ideal choice for on-the-go production setups as well.

Key Features

• 2 x SDI Video Outputs
• Automatic matching for SD, HD, and 6G-SDI HDMI video inputs
• 4 channels of AES/EBU digital audio
• HDMI type A in
• Auto detection of SD, HD, or 6G-SDI
• 2 channels of professional balanced analog audio with standard 1/4 inch jack connections

Specifications

• SDI Video Outputs: 2 x SDI Video Outputs
• HDMI Video Inputs: HDMI type A in
• Analog Audio Inputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
• Digital Audio Inputs: 4 channels of AES/EBU digital audio
• Multi Rate Support: Auto detection of SD, HD, or 6G-SDI
• Updates and Configuration: USB
• Reclocking: Yes
• SD Video Standards: 625i25 PAL, 525i29.97 NTSC
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE standards include 259M, 292M, 296M, 372M, 424M, 425M Level A or B, ST-2081, ITU-R BT.656, and ITU-R BT.601
• SDI Video Rates: Switchable between SD, HD, Ultra HD, and DCI 4K
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: 48 kHz, 24 bit
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• HDMI Video Standards: 625i25 PAL, 525i29.97 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• HDMI Color Space: YUV and RGB
• HDMI Color Precision: 4:2:2 and 4:4:4
• Copy Protection: HDMI input is unable to capture from copy-protected HDMI sources
• Format Conversion: HD down conversion
• Software Control: Mac OS and Windows software upgrade via USB
• Internal Software Upgrade: Via included updater application
• Operating Systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later; Windows 8.1 or Windows 10
• Settings Control: Mini Switches or USB software
• Power Supply: +12V universal power supply with international socket adapters
• Power Consumption: 4.44 Watts
• Operational Voltage Range: 12-18V DC
• Height: 0.90 in
• Width: 3.63 in
• Length: 4.49 in
• Weight: 8.60 oz
• Operating Temperature: 0 to 40 C
• Storage Temperature: -20 to 45 C
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Mini Converter HDMI to SDI 6G
• 12V universal power supply with international socket adapters
