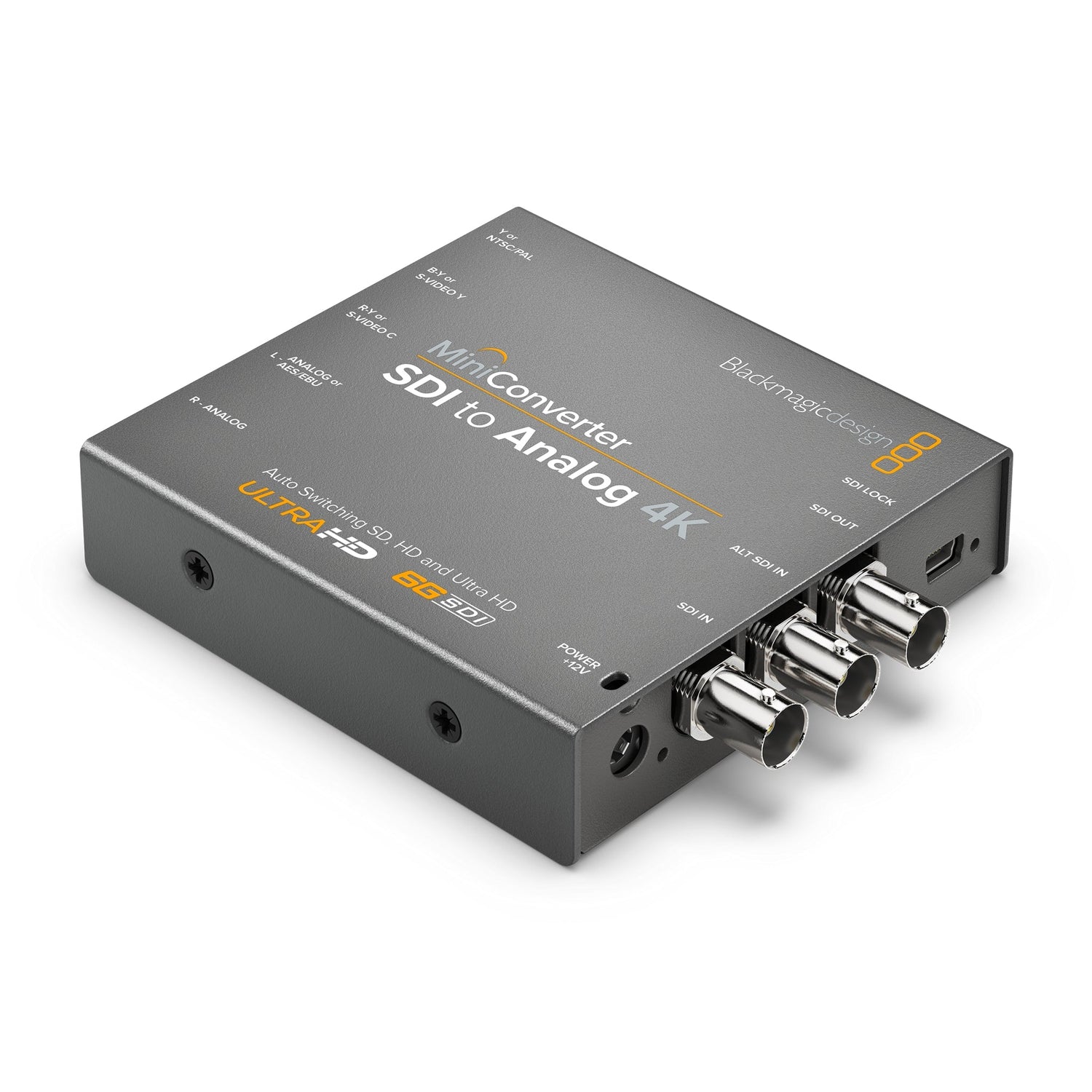

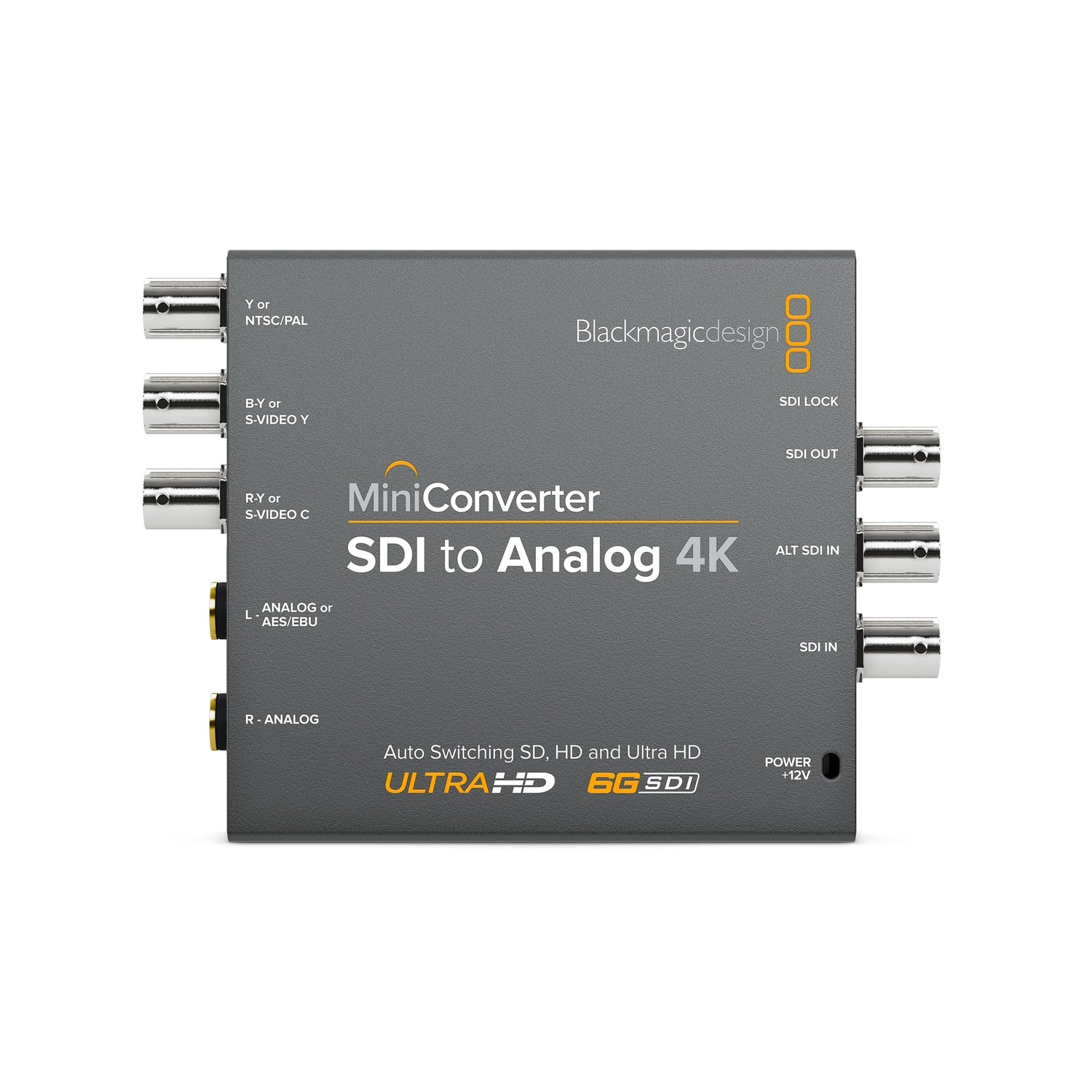

Blackmagic Design Mini Converter SDI to Analog 4K

Blackmagic Design Mini Converter | SDI to Analog 4K

Experience unparalleled video conversion with the Blackmagic Design Mini Converter SDI to Analog 4K. This cutting-edge device empowers you to seamlessly convert SD, HD, 3G, and 6G-SDI video to analog formats such as HD/SD component, NTSC, and PAL. It's the ideal solution for connecting Ultra HD sources to analog components or traditional video monitors, making it perfect for both professional studios and avid videographers. Whether you're dealing with Betacam SP, VHS, or a variety of monitoring systems, this versatile converter ensures that your equipment stays relevant and functional in a rapidly evolving video landscape.

With robust down conversion capabilities, this mini converter bridges the gap between modern digital and legacy analog equipment, allowing for crystal-clear video output regardless of format. Its advanced 6G-SDI technology guarantees compatibility with Ultra HD, providing you with a future-proof tool that's ready for upcoming advancements in video resolution. This all-in-one solution is not only powerful but also user-friendly, featuring straightforward controls and standard audio connections for a streamlined workflow.

Key Features

• Easy to use features
• Ultra HD and 6G-SDI Technology
• Standard Audio Connections
• Powerful Performance
• Optical Fiber Conversion
• Highest Quality Processing
• Easy Settings Control

Specifications

• SDI Video Input: Switchable between SD, HD, and 6G-SDI
• SDI Video Output: Automatically matches the SD, HD, and 6G-SDI video input
• Analog Video: NTSC, PAL, S-Video, and component HD from 6G-SDI input
• Analog Audio: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections
• AES/EBU Digital Audio: 2 channels of professional balanced digital audio with standard 1/4 inch jack connections
• SDI Redundant Input: Automatically switches over if main SDI input is lost
• Multi Rate Support: Auto-detection of 6G-SDI, HD, or standard definition SDI inputs
• Updates and Configuration: Via USB 2.0 high speed (480 Mb/s)
• Reclocking: Yes
• SD Format Support: 525/29.97 NTSC, 625/25 PAL
• HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
• 2K Format Support: 2048x1080PsF23.98, 2048x1080p23.98, 2048x1080PsF24, 2048x1080p24, 2048x1080PsF25, 2048x1080p25
• 4K Format Support: 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
• SDI Video Rates: Switchable between standard definition, high definition, and UHD
• SDI Video Sampling: 4:2:2
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically selects between SD SDI, HD-SDI, and 3 Gb/s SDI
• Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
• Analog Color Space: YUV
• Analog Color Precision: 4:2:2
• Software Control: Mac OS X and Windows software upgrade via USB
• Internal Software Upgrade: Via included updater application
• Power Supply: +12V universal power supply included with international socket adapters for all countries, Cable tie point
• Power Consumption: 8.04 Watts
• Operational Voltage Range: 12V
• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing
• Dimensions (W x L x H): 4.84in x 3.63in x 0.90 in
• Weight: 10.68 oz

Package Contents

• Mini Converter SDI to Analog 4K
• Software CD
• 12V universal power supply with international socket adapters
