Blackmagic Design Mini Converter Sync Generator

Blackmagic Design Mini Converter | Sync Generator

The Blackmagic Design Mini Converter Sync Generator is the ultimate solution for converting between Quad Link HD-SDI, Dual Link 3G-SDI, and Single Link 6G-SDI Ultra HD equipment. Featuring 4 x 6G-SDI inputs and 4 x 6G-SDI outputs, this converter offers seamless conversion in both directions. It also supports conversion between Dual Link HD-SDI 4:4:4 and Single Link 3G-SDI, making it a versatile tool for any broadcast or post-production setup.

Make the transition to Ultra HD effortlessly with the Mini Converter Sync Generator's advanced 6G-SDI technology. Ultra HD boasts four times the resolution of regular 1080 HD video, presenting an astonishing 3840 x 2160 frame size. This converter is not only compatible with your existing SD and HD-SDI infrastructure but also easily switches to Ultra HD via 6G-SDI. This future-proof design ensures your setup is ready for any technological advancements while maintaining high performance in SD and HD formats.

Designed with ease of use in mind, this converter features standard audio connections, powerful performance, optical fiber conversion, and highest quality processing. With easy settings control through DIP switches or Converter Utility software via USB, the Blackmagic Design Mini Converter Sync Generator stands out as a must-have tool for any professional broadcasting environment.

Key Features

• Easy to use features
• Ultra HD and 6G-SDI Technology
• Standard Audio Connections
• Powerful Performance
• Optical Fiber Conversion
• Highest Quality Processing
• Easy Settings Control

Specifications

• SDI Video Input: 4 x 1.5 Gb/s HD-SDI, 2 x 3G-SDI, 1 x 6G-SDI
• SDI Video Output: 4 x 6G-SDI
• Multi-Rate Support: Auto detection of SD, HD, or 6G-SDI on Input 1
• USB Connection: USB 2.0
• Reclocking: Yes
• SDI Format Support: SD: 525/23.98 and 525/29.97 NTSC, 625/25 PAL; HD: 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080PsF 23.98/24/25/29.97/30; 2K: 2048x1080p 23.98/24/25, 2048x1080PsF 23.98/24/25; 4K/UHD: 3840x2160p 23.98/24/25/29.97/30, 4096x2160p 24
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, and SMPTE 425M
• SDI Video Rates: Switchable between SD, HD, and 6G-SDI
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: 24 bit, 48 kHz
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD, or 6G-SDI
• Software Control: Mac OS X and Windows software upgrade via USB
• Internal Software Upgrade: Via USB 2.0 using included Converter Utility software

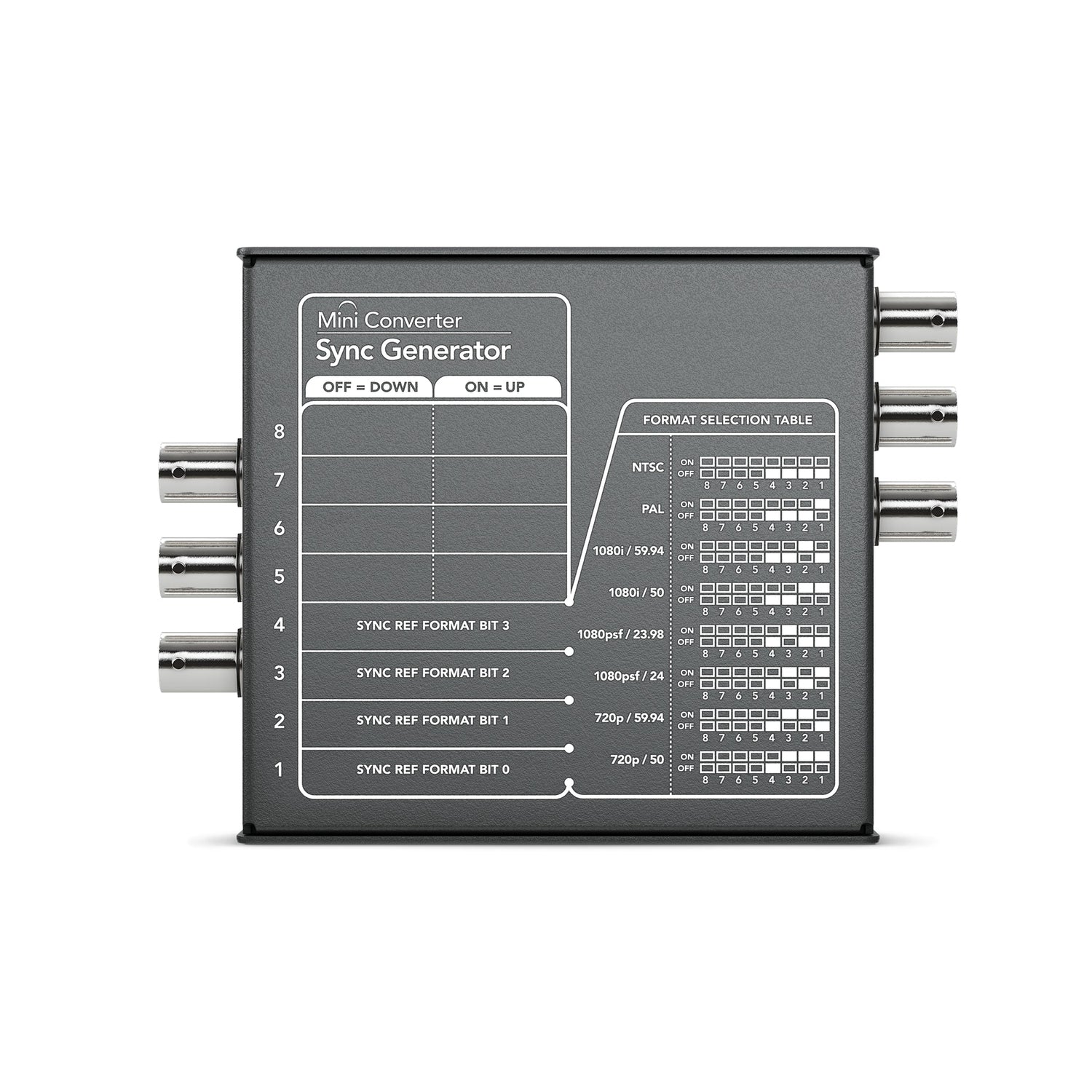

• Settings Control: DIP switches or Converter Utility software via USB
• Power Supply: 12 V
• Operational Voltage Range: 12 to 30 VDC
• Power Consumption: 5.2 W

Package Contents

• Blackmagic Design Mini Converter Sync Generator
• Power Supply
• USB Cable for Software Control
• User Manual
