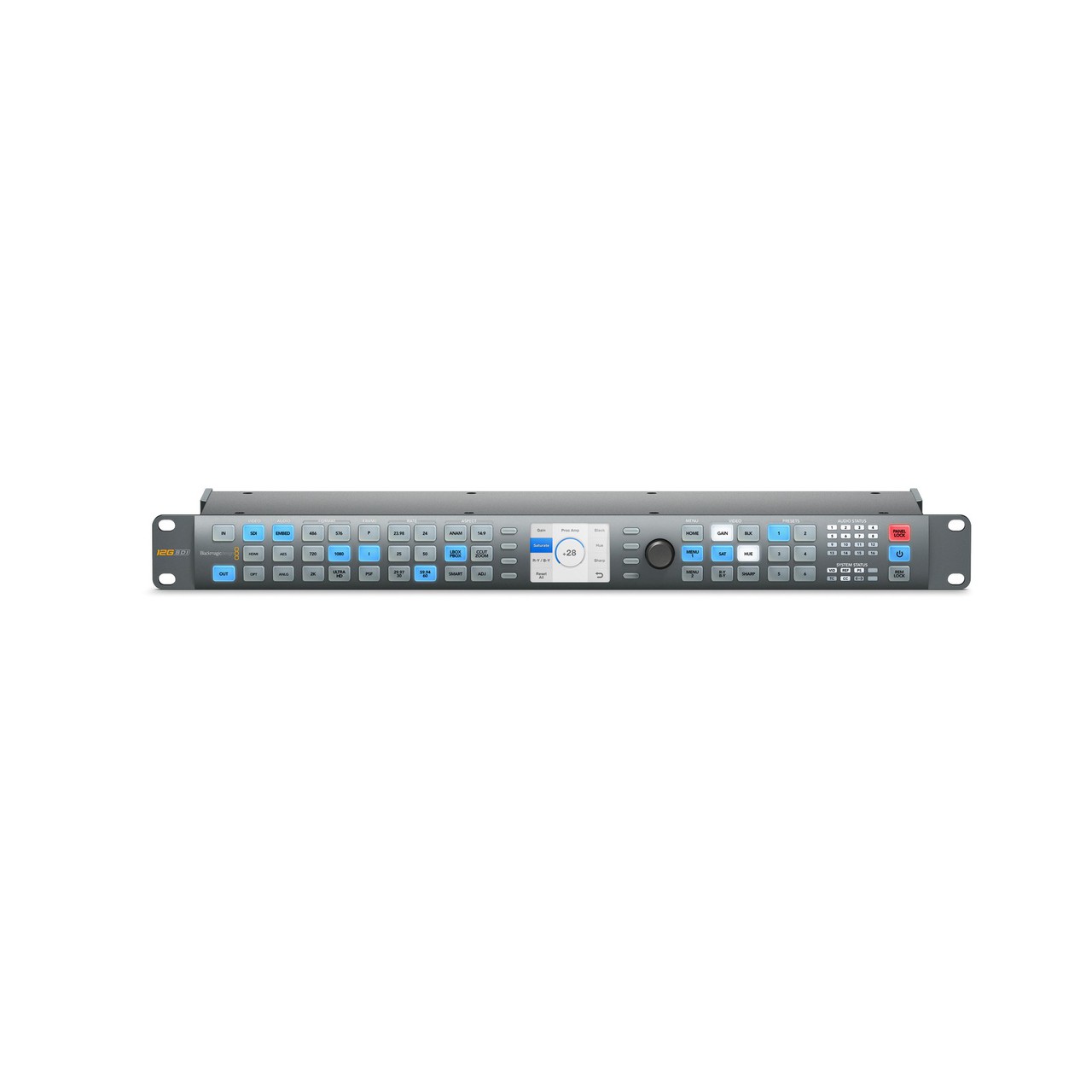

Blackmagic Design Teranex AV Broadcast Quality Standards AV Converter

Blackmagic Design Teranex AV | Broadcast Quality Standards AV Converter

The Blackmagic Design Teranex AV is the ultimate solution for those seeking high-quality standards conversion in AV installations, live events, and professional broadcast or post-production environments. Capable of handling all formats up to 2160p60, this powerful AV converter boasts a staggering 1,089 up, down, and cross conversions. With its patented algorithms, Teranex AV ensures superior image quality, low latency, and offers a range of features such as still storage, live freeze frames, and reference signal generation.

Designed with professional-grade 12G-SDI and quad SDI connections, the Teranex AV allows simultaneous use, in addition to consumer HiFi, XLR audio, HDMI inputs, and outputs. Its robust build includes metal brackets to safeguard cables and connections, making it ideal for installations in confined spaces where durability is critical. Whether it's for studio use or on the go, this AV converter meets diverse needs with uncompromised performance and reliability.

Key Features

• 1,089 up, down, cross, and standards conversions
• Supports formats up to 2160p60
• Patented Teranex image quality algorithms
• Low latency and still store for logos and graphics
• 12G-SDI and quad SDI connections for simultaneous use
• HDMI input, loop, and outputs
• Consumer HiFi, XLR audio inputs and outputs
• Metal brackets to prevent cable damage
• Live freeze frame capability
• Reference signal generation

Specifications

• SDI Video Input: 1x BNC, auto-switching
• SDI Video Output: 1x BNC, auto-switching
• Quad SDI Output: 4x BNC, 10-bit 3G-SDI
• HDMI Input/Output: 1x HDMI 2.0 type A
• SDI Audio: 16 channels in SD, HD, 3G HD, 2K, and Ultra HD
• Optical Fiber Connection: 1x SFP Optical Fiber connector
• AES/EBU Digital Audio Input: 2x XLR
• Dolby Support: Built-In Dolby AC-3 pass through
• Reference Input/Output: 1x BNC
• Computer Interface: USB type C and Gigabit Ethernet RJ45
• Supported Formats: SD, HD, 2K, Ultra HD up to 2160p60
• Operating Temperature: 5°C to 50°C
• Power Supply: 100-240V, 50-60Hz

Package Contents

• Teranex AV unit
• SD card with software and manual
• Power cable
