Description

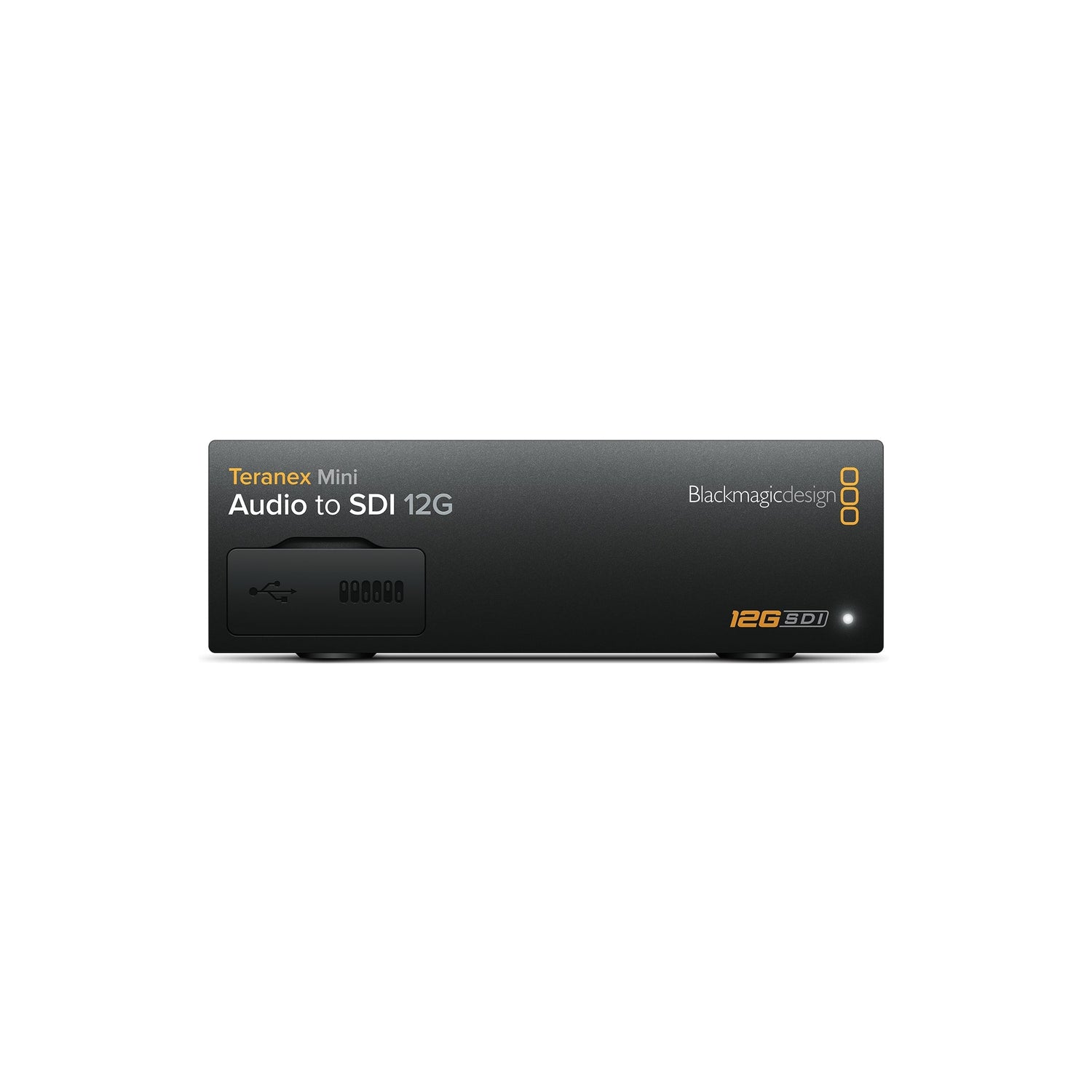

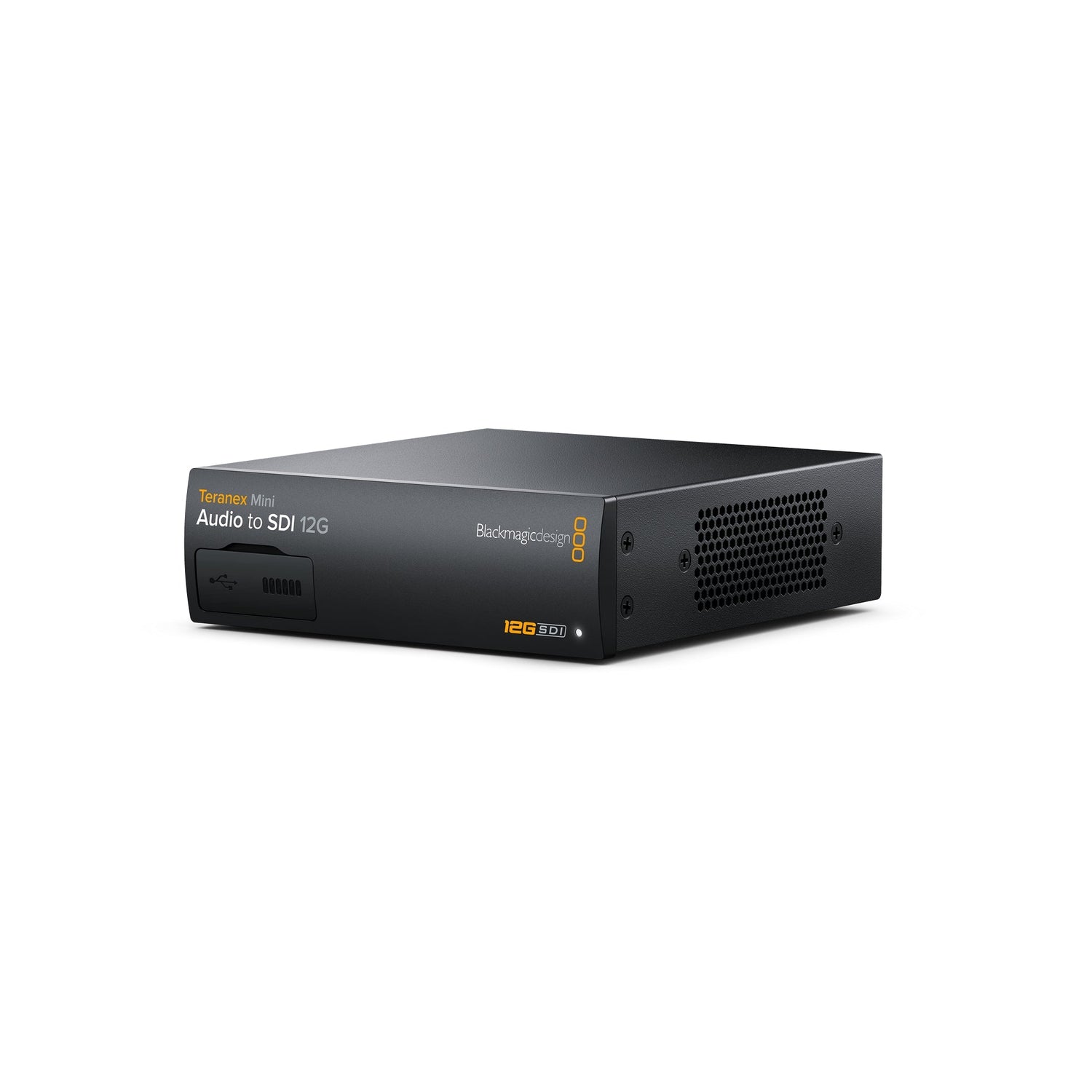

Blackmagic Design Teranex Mini Audio to SDI 12G | SD HD Ultra HD Supported Converter
The Blackmagic Design Teranex Mini Audio to SDI 12G Converter is your ultimate solution for embedding audio into any SD, HD, Ultra HD, or DCI 4K SDI video connection. Whether you’re a professional in the broadcasting industry or an enthusiast looking to expand your setup, this versatile converter allows you to integrate up to 2 channels of analog, optical or HiFi RCA, or 4 channels of AES/EBU digital audio with impeccable precision. Transform audio from mixers, iPods, and analog decks seamlessly into SDI video connections, making it invaluable for use with SDI routers and decks.
Melding advanced engineering with user-friendly design, the Teranex Mini Audio to SDI 12G supports a wide array of formats and resolutions, including the latest 4K standards. Thanks to automatic switching between SD, HD, 2K, and 4K, it provides great flexibility and ease of use. Coupled with multi-rate support, dynamic re-clocking, and essential audio and video sampling standards, this converter ensures high-quality output for professional-grade productions.
Designed with comprehensive software control for both Mac OS X and Windows and basic settings accessible via mini switches, USB, or Ethernet, this device offers complete operational control. With built-in international AC power supply and Power over Ethernet capabilities, the Teranex Mini is not only powerful but also incredibly convenient, making it a must-have for any serious video-audio integration setup.
Key Features
- Embed up to 2 channels of balanced analog or HiFi RCA, or 4 channels of AES/EBU digital audio
- Supports embedding audio into SD, HD, Ultra HD, and DCI 4K SDI video connections
- Automatic switching between SD, HD, 2K, and 4K formats
- Dynamic re-clocking for improved signal reliability
- Comprehensive software control for Mac OS X and Windows
- Basic settings control via mini switches, USB, and Ethernet
- Power over Ethernet (PoE+) and built-in international AC power supply
Specifications

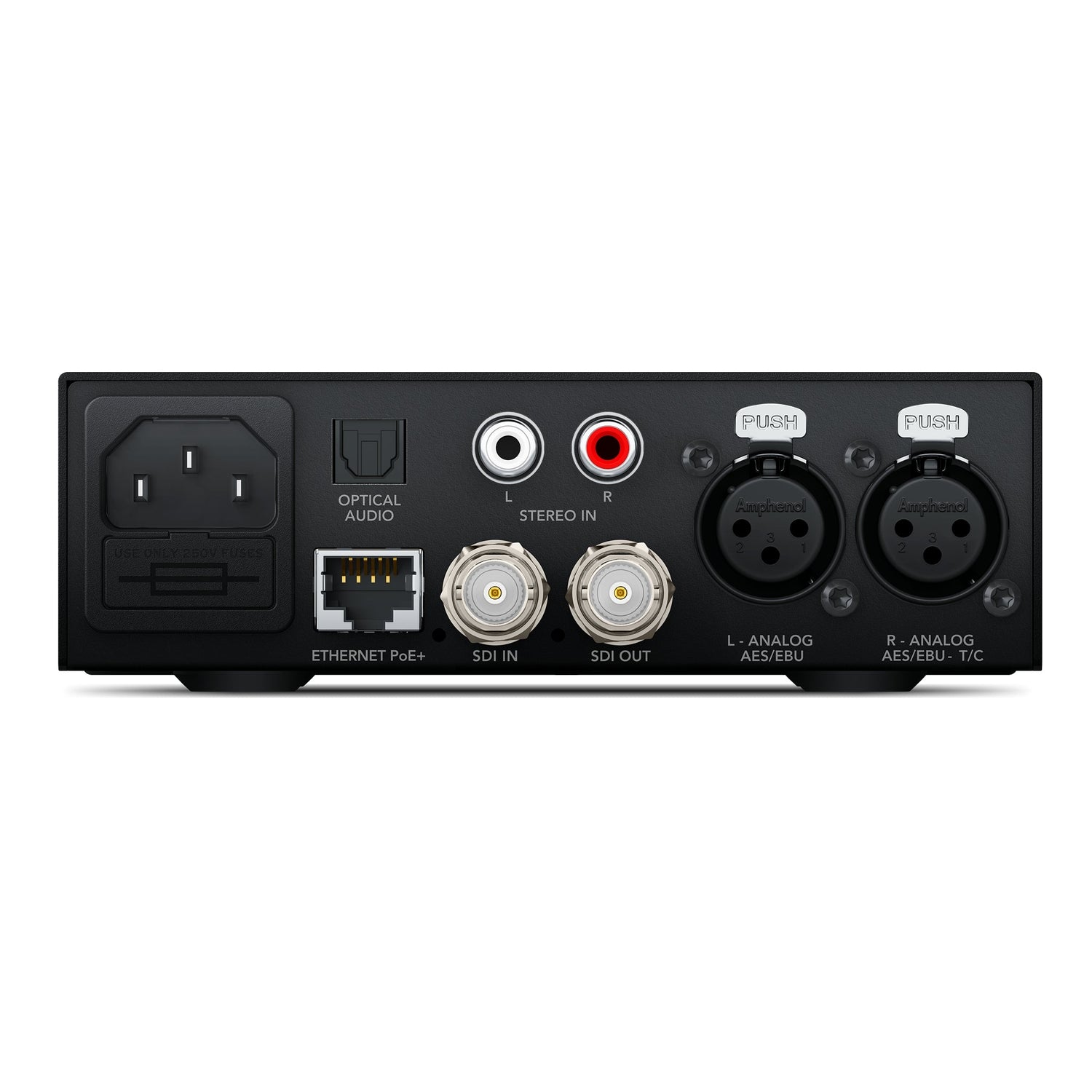

- SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching
- SDI Video Output: 1 x 12G-SDI output
- Analog Audio Input: 2 channels professional balanced via XLR, or 2 channel unbalanced via RCA
- AES/EBU Audio Input: 4 channels professional 110 ohm balanced digital audio via XLR connectors
- Optical Audio Input: S/PDIF signal through TOSLINK connector
- SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
- HD Format Support: 1280 x 720p50 - 1920 x 1080p60
- 2K Format Support: 2048 x 1080p23.98 – 2048 x 1080p25
- 4K Format Support: 3840 x 2160p23.98 – 4096 x 2160p60
- Power Supply: Built-in AC, 90 - 240V
- Power Over Ethernet: 48V DC using PoE+
- Power Consumption: 15 Watts
Package Contents
- Blackmagic Design Teranex Mini Audio to SDI 12G Converter
- AC Power Cable
- Software Installer CD
- Quick Start Guide
