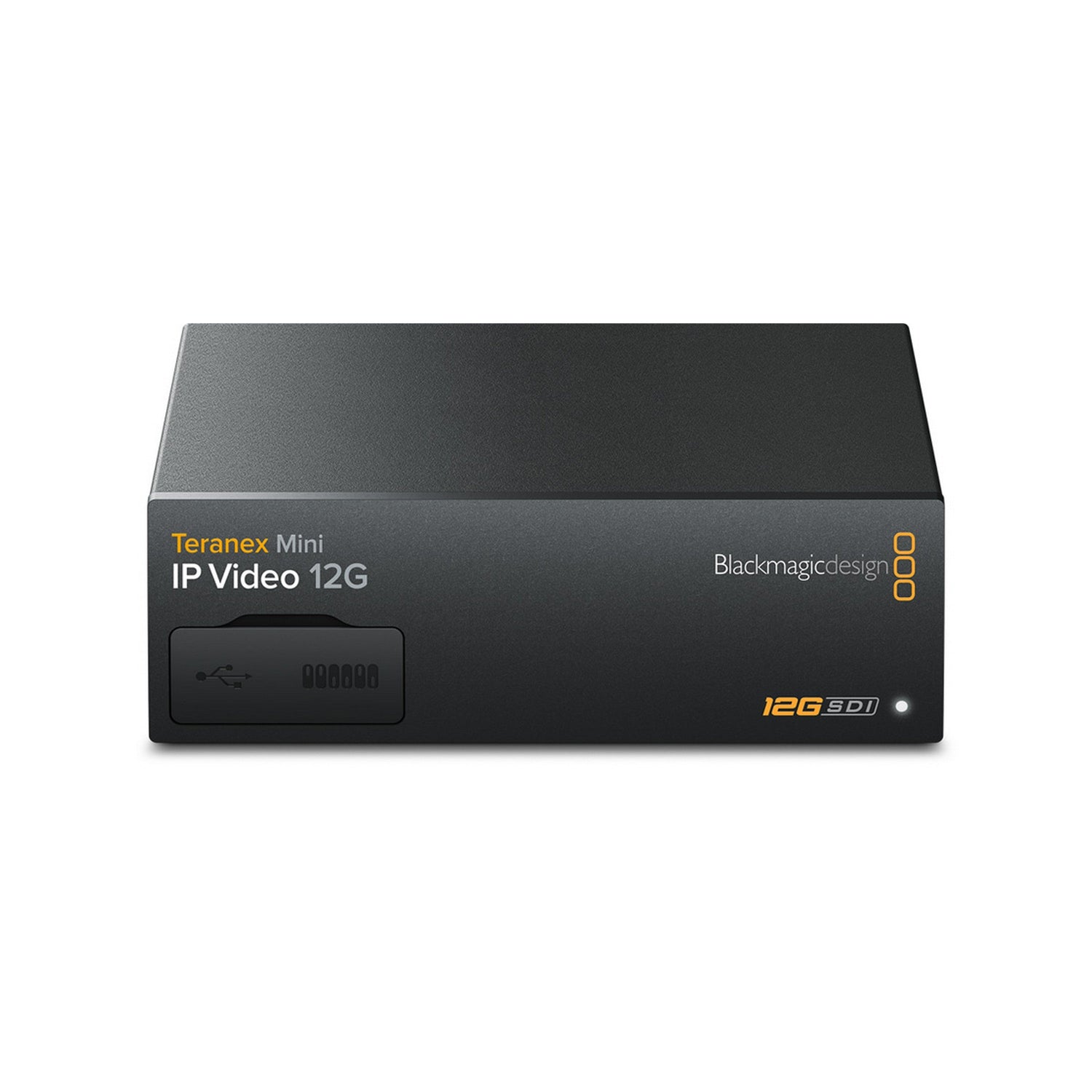

Blackmagic Design Teranex Mini IP Video 12G Converter

Blackmagic Design Teranex Mini IP Video 12G Converter

The Blackmagic Design Teranex Mini IP Video 12G Converter is a groundbreaking solution that takes video conversion and routing to the next level. This state-of-the-art device allows you to convert video to IP and seamlessly route it over your existing ethernet network, or alternatively, convert IP video back to SDI. This makes it an incredibly versatile tool for broadcast professionals, live event producers, and AV specialists who are looking to streamline their video workflows.

Utilizing standard Blackmagic Videohub software and hardware control panels, the Teranex Mini IP Video 12G Converter makes configuring and switching IP video over ethernet as simple as handling SDI signals. Featuring 12G-SDI and the low latency broadcast-quality TICO codec, this converter allows you to route HD over the built-in gigabit ethernet connection. It also supports Ultra HD over 10G ethernet with an optional 10G SFP, making it highly adaptable to various broadcasting needs.

Designed with a high-speed USB 2.0 interface and ethernet capability for firmware updates and IP address settings, the Teranex Mini IP Video 12G Converter ensures long-term reliability and future-proofing. Whether you are working with 720p, 1080p, 2K DCI, or 4K DCI video standards, this converter automatically detects and adjusts to the appropriate SDI formats. This machine brings sophisticated, professional-grade technology to your fingertips, setting new standards in video conversion and routing.

Key Features

• Convert video to IP and route over ethernet
• 12G-SDI and low latency TICO codec
• Supports HD over gigabit ethernet and Ultra HD over 10G ethernet
• Automatic detection of HD-SDI, 6G-SDI, and 12G-SDI
• USB 2.0 interface for high-speed updates
• Ethernet or USB configuration options
• Reclocking on all SDI outputs
• Standard Blackmagic Videohub software for easy configuration
• Optional Teranex Mini Smart Panel with 2.2 inch LCD
• 3-year limited manufacturer’s warranty

Specifications

• SDI Video Inputs: 1 x 10-bit HD-SDI, 6G-SDI, 12G-SDI
• SDI Video Outputs: 2 x 10-bit HD-SDI, 6G-SDI, 12G-SDI
• Ethernet: Gigabit ethernet, optional 10G optical data ethernet
• HD Video Standards: Supports multiple HD formats including 1080p60
• Ultra HD Video Standards: 2160p60
• 4K Video Standards: 4K DCI 25p
• SDI Compliance: SMPTE and ITU-R standards
• Reclocking: Automatic switching between HD, 6G-SDI, 12G-SDI
• Software Control: Blackmagic IP Video Setup and Videohub Router Control Software included
• Operating Systems: Mac 10.14 Mojave or later, Windows 8.1 and 10
• Power Supply: IEC power cable required, Power over Ethernet
• Operating Temperature: 0° to 40°C
• Storage Temperature: -20° to 60°C
• Relative Humidity: 0% to 90% non-condensing

Package Contents

• Teranex Mini IP Video 12G Converter
• SD card with software and manual
