Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR

The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR is an advanced 8K DisplayPort monitoring solution designed to seamlessly convert SDI sources to DisplayPort in a variety of formats including HD, Ultra HD, and 8K up to 4320p60. This powerful device is perfect for professionals looking to achieve high-quality display results with enhanced resolution and superior color precision. Equipped with 2 full-size DisplayPort outputs, 1 USB-C DisplayPort output, built-in down converter, HDR formats, and 33 point 10-bit RGB LUTs, this unit is engineered to meet the demanding needs of modern video production. Additionally, the built-in waveform, parade, vector, and histogram scopes provide critical monitoring and analysis tools while the monitor calibration feature ensures accurate and reliable color representation.

Designed for versatility and performance, the Teranex Mini SDI is compatible with a wide range of video standards and offers multi-rate support. Its compact form factor and robust connectivity options, including 4x 12G-SDI loop outputs and analog audio outputs, make it an ideal solution for studios, post-production facilities, and live events. Featuring easy updates and configuration through front USB-C or Ethernet, this device is user-friendly and adaptable to various setups. Moreover, the Teranex Mini SDI's ability to support embedded audio and reclocking ensures quality and stability, making it a reliable addition to any professional's toolkit.

Whether you are working on HD, 4K, or 8K content, the Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR delivers exceptional performance and unparalleled flexibility. With a comprehensive set of features and specifications, this device is an invaluable asset for anyone aiming to achieve professional-grade results in their video production workflow.

Key Features

• Converts SDI sources to DisplayPort in HD, Ultra HD, and 8K up to 4320p60
• Includes 2 full-size DisplayPort and 1 USB-C DisplayPort output connections
• Supports HDR formats and 33 point 10-bit RGB LUTs
• Built-in waveform, parade, vector, and histogram scopes
• Enables monitor calibration for accurate color representation
• 4x 12G-SDI loop outputs and 2 channels analog audio via RCA connectors
• Supports 16 channels of embedded audio on SDI outputs and 8 channels on DisplayPort outputs
• Multi-rate support and auto-switching between different video formats
• User-friendly updates and configuration via USB-C or Ethernet
• Compatible with Mac OS X and Windows for software control and updates

Specifications

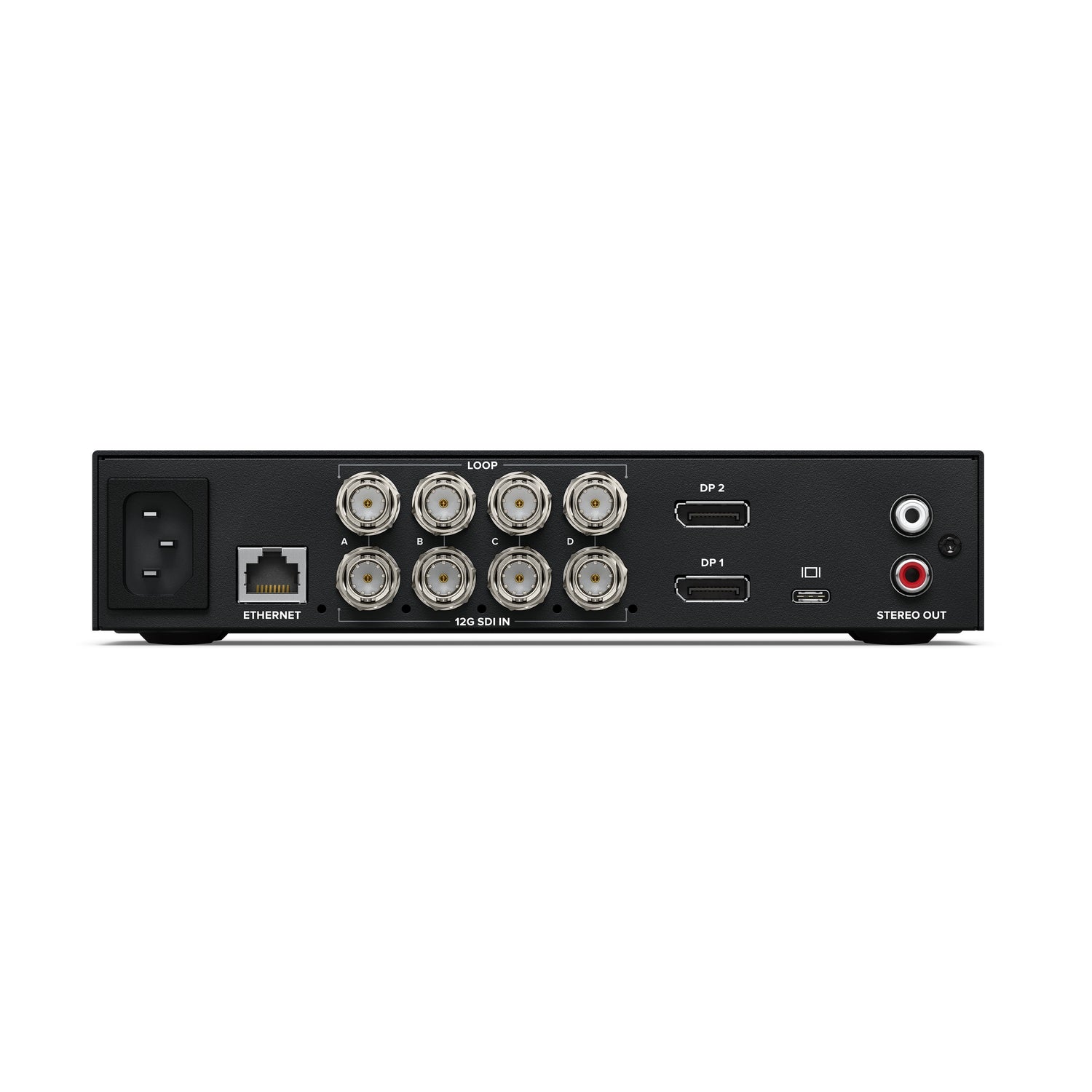

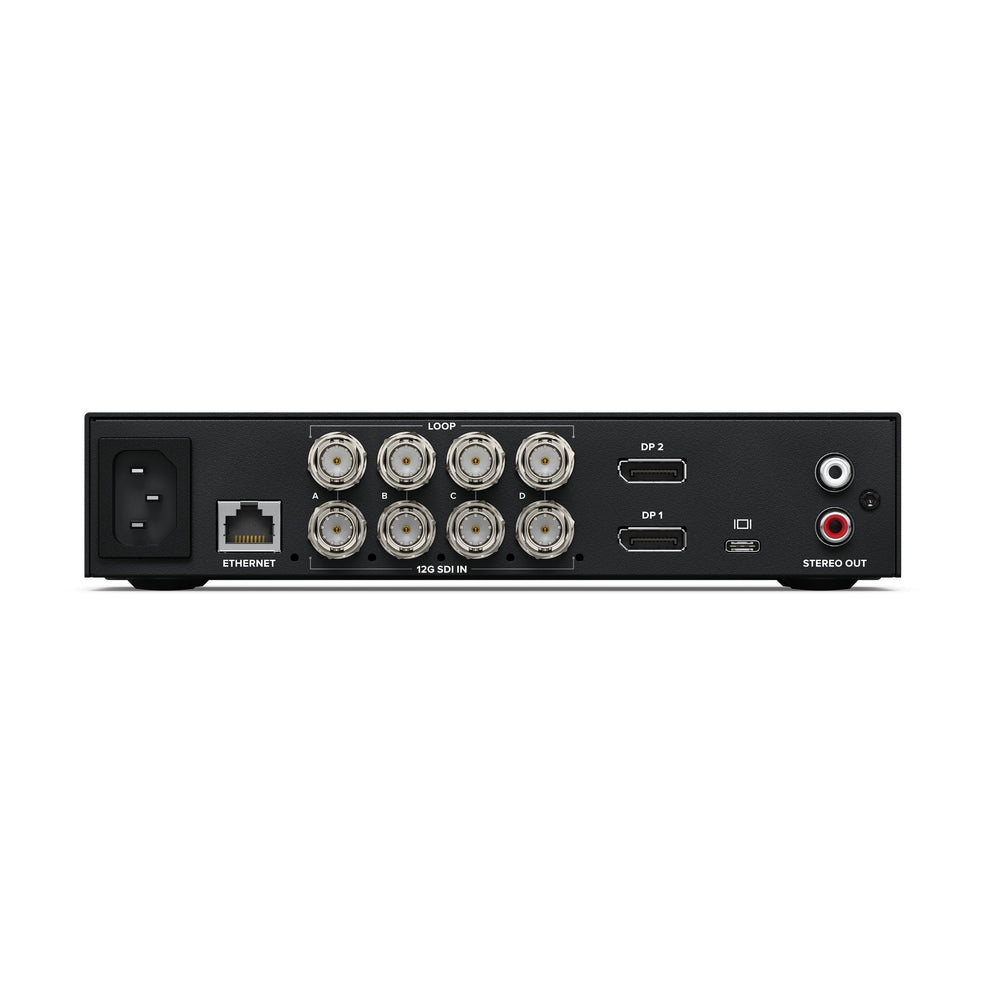

• SDI Video Inputs: 4 x 12G-SDI HD/2K/4K/8K auto switching
• SDI Video Outputs: 4 x 12G-SDI loop output
• DisplayPort Video Outputs: 2 x full-size DisplayPort, 1 x USB-C DisplayPort
• Analog Audio Outputs: 2 channels via RCA connectors
• Embedded Audio: 16 channels on SDI outputs, 8 channels on DisplayPort outputs
• Multi Rate Support: 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G-SDI, 2SI Quad Link 12G-SDI
• Video Standards: HD, 2K, Ultra HD, 4K DCI, 8K DCI
• Color Precision: 10-bit RGB
• Scopes: Waveform, Parade, Vector, Histogram
• Calibration: Monitor calibration for compatible monitors
• Power Supply: 100-240V AC input, 35 Watts power consumption
• Operating Systems: Compatible with Mac 10.14 Mojave or later, Windows 10

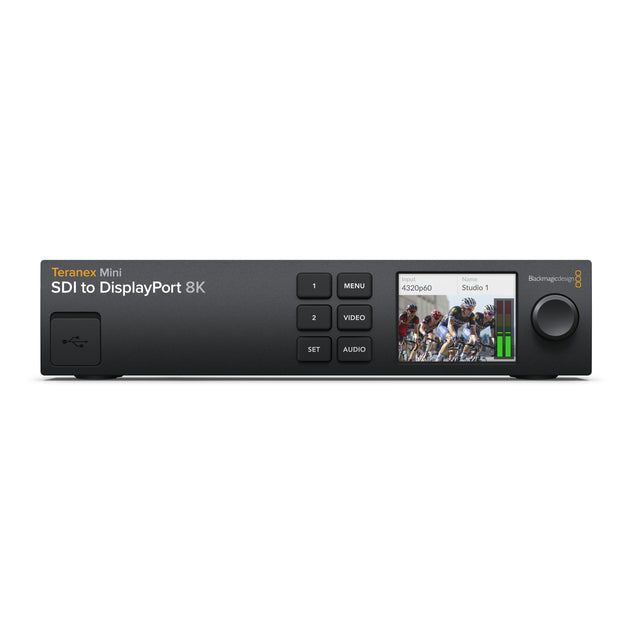

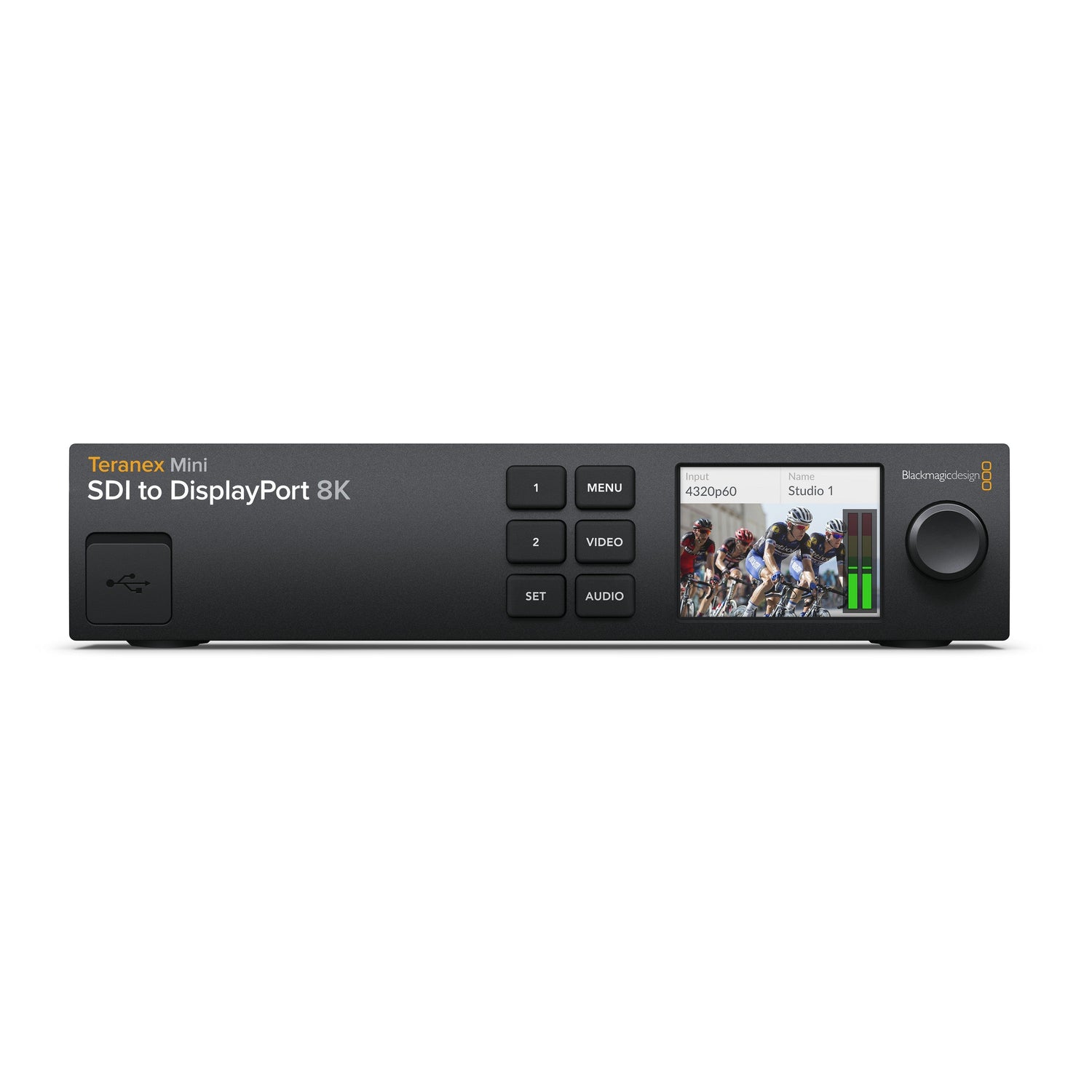

• Settings Control: 6 buttons with spin knob and 2.2 inch color LCD display

Package Contents

• Teranex Mini SDI to DisplayPort 8K HDR
• SD card with software and manual
• 1-year limited manufacturer’s warranty
