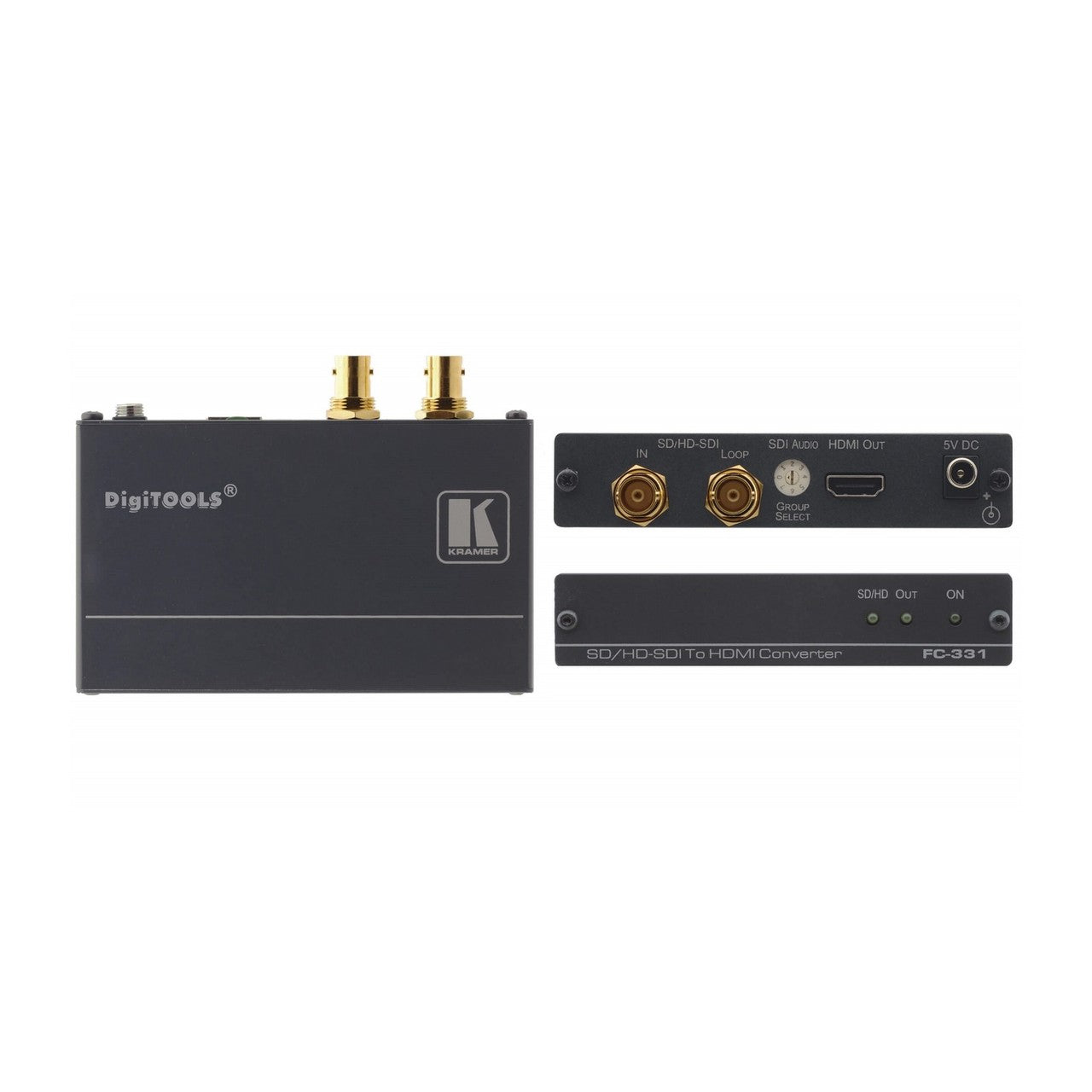

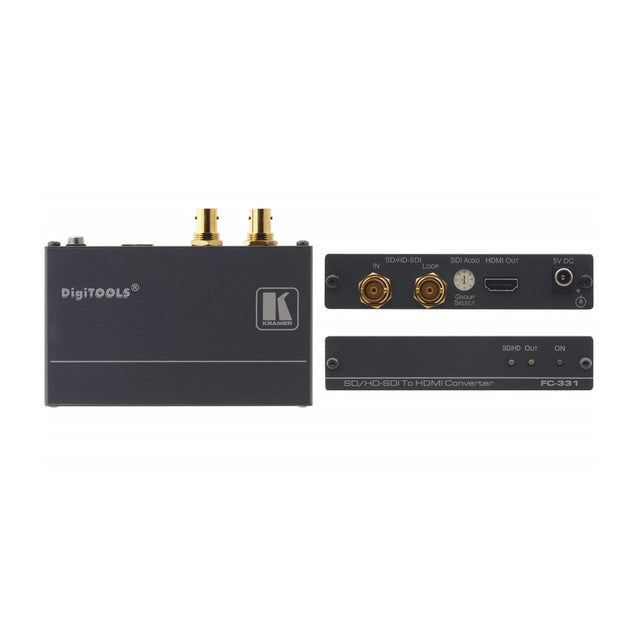

Kramer FC-331 3G HD-SDI to HDMI Format Converter
The FC-331 is a high-performance format converter for video signals up to 3G HD-SDI (Level A). It converts the input video format (with embedded audio) to an HDMI output signal. The FC-331-MD is certified for medical applications.
Key Features
- MultiStandard Operation - SDI (SMPTE 259M and SMPTE 344M), HDSDI (SMPTE 292M) and 3G HDSDI (SMPTE 424M).
- SDI Level A Support.
- Certified for Medical Applications - According to IEC 60601-1-2 (Electromagnetic Compatibility), (FC-331MD).
- Looping Input with Reclocking.
- HDTV Compatible.
- Audio Group Deembedded Selection.
- Active Input & Output LED Indicators.
Technical Specifications
INPUT
1 SD/HD/3G HDSDI (Level A) with loop on BNC connectors
OUTPUTS
1 HDMI connector
MAX. DATA RATE
Up to 3Gbps
STANDARD COMPLIANCE
HDMI
INDICATOR LEDS
SD/HD, OUT, ON
POWER CONSUMPTION
5V DC, 400mA
INCLUDED ACCESSORIES
Power supply
OPTIONS
RK-3T 19” rack adapter
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx
SHIPPING DIMENSION
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.1lbs) approx
