Magewell SDI to USB 3.0 Video Capture

Magewell SDI to USB 3.0 Video Capture

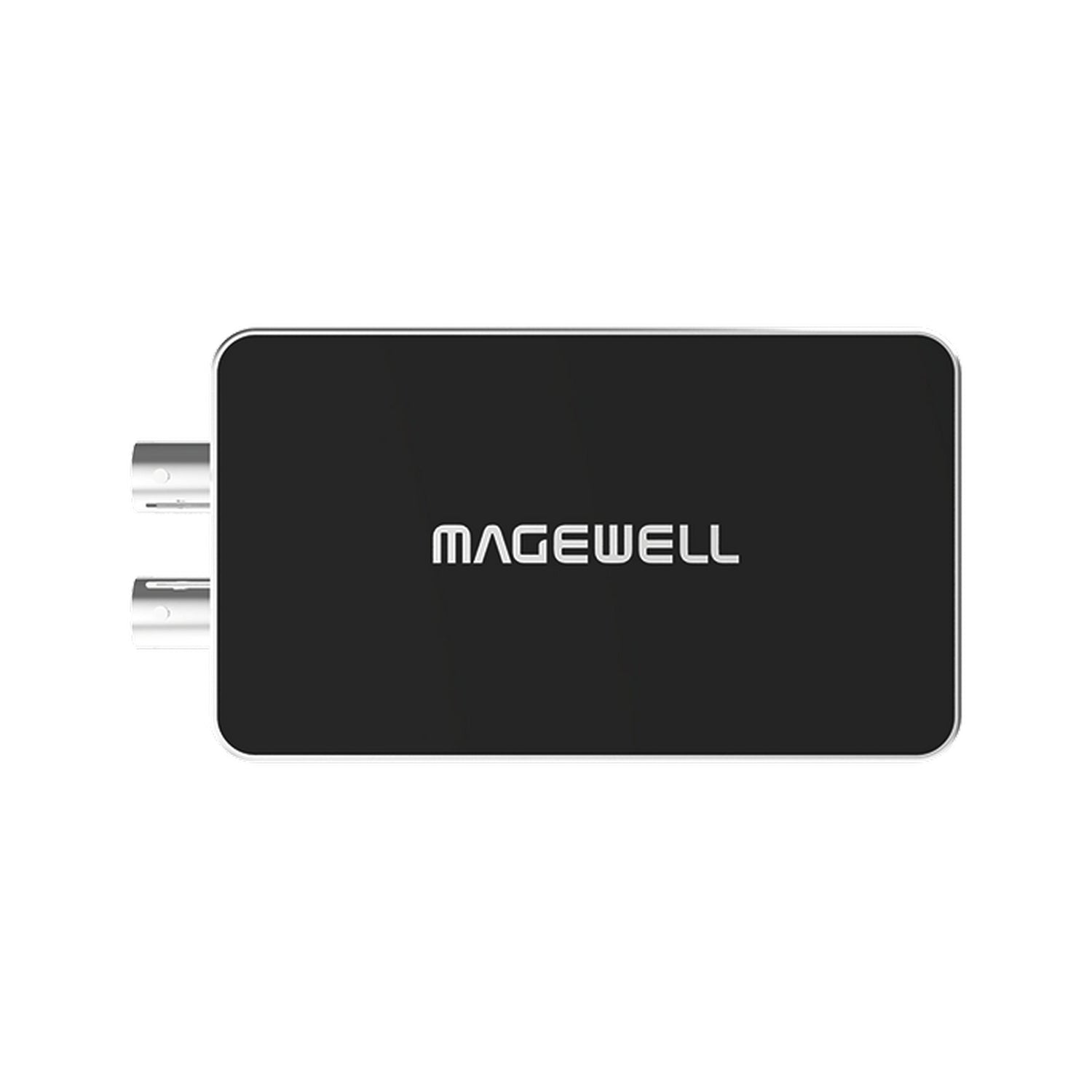

The Magewell USB Capture SDI Plus is a compact and versatile video capture device designed for seamless integration into professional workflows. Supporting single-channel 2K SDI input at resolutions up to 2048x1080 pixels and frame rates up to 120fps, it delivers smooth, high-quality video for live streaming, video conferencing, broadcasting, and other applications. Featuring an SDI input with embedded audio and an SDI loop-through output, the device allows flexible signal routing and easy monitoring during capture sessions.

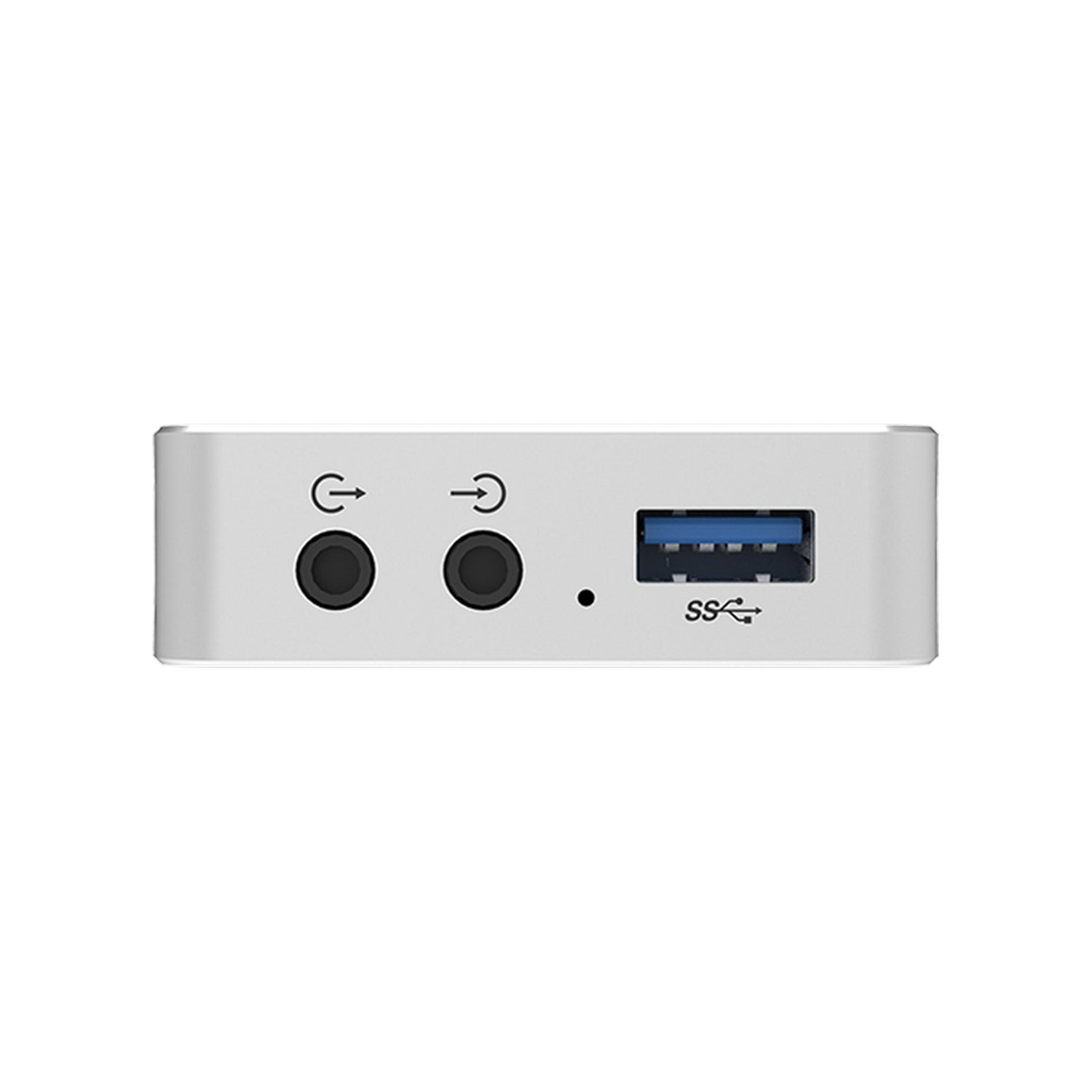

Equipped with a 3.5mm unbalanced Line In jack and a 3.5mm Line Out jack, the device supports audio input and output to extract and monitor embedded audio signals effortlessly. Compatible with major operating systems including Windows, macOS, Linux, and Chrome OS, and supporting popular software like OBS Studio, VLC, and Zoom Rooms, the USB Capture SDI Plus is an excellent solution for professionals seeking reliable, high-quality video capture in a compact form factor.

The package includes the USB Capture SDI Plus device, a USB 3.0 cable for data transfer, and an MCX to SDI cable for video input, providing everything needed to start capturing video immediately.

Key Features

• Single-channel 2K SDI capture up to 2048x1080 at 120fps
• SDI input with embedded audio and SDI loop-through output
• 3.5mm unbalanced Line In and Line Out for audio input/output
• Compatible with Windows, macOS, Linux, and Chrome OS
• Works with popular applications like OBS Studio, VLC, and Zoom Rooms
• Compact and lightweight design for easy integration

Technical Specifications

• Dimensions: 4.36 inches (L) x 2.24 inches (W) x 0.67 inches (H)
• Weight: Approximately 0.2 lbs
• Video Input: Single 3G-SDI input supporting up to 2K resolution
• Video Output: SDI loop-through output
• Audio Input/Output: 3.5mm unbalanced Line In and Line Out jacks
• Interface: USB 3.0 Type-C
• Supported OS: Windows, macOS, Linux, Chrome OS

What's Included in the Box

• USB Capture SDI Plus device
• USB 3.0 cable
• MCX to SDI cable
