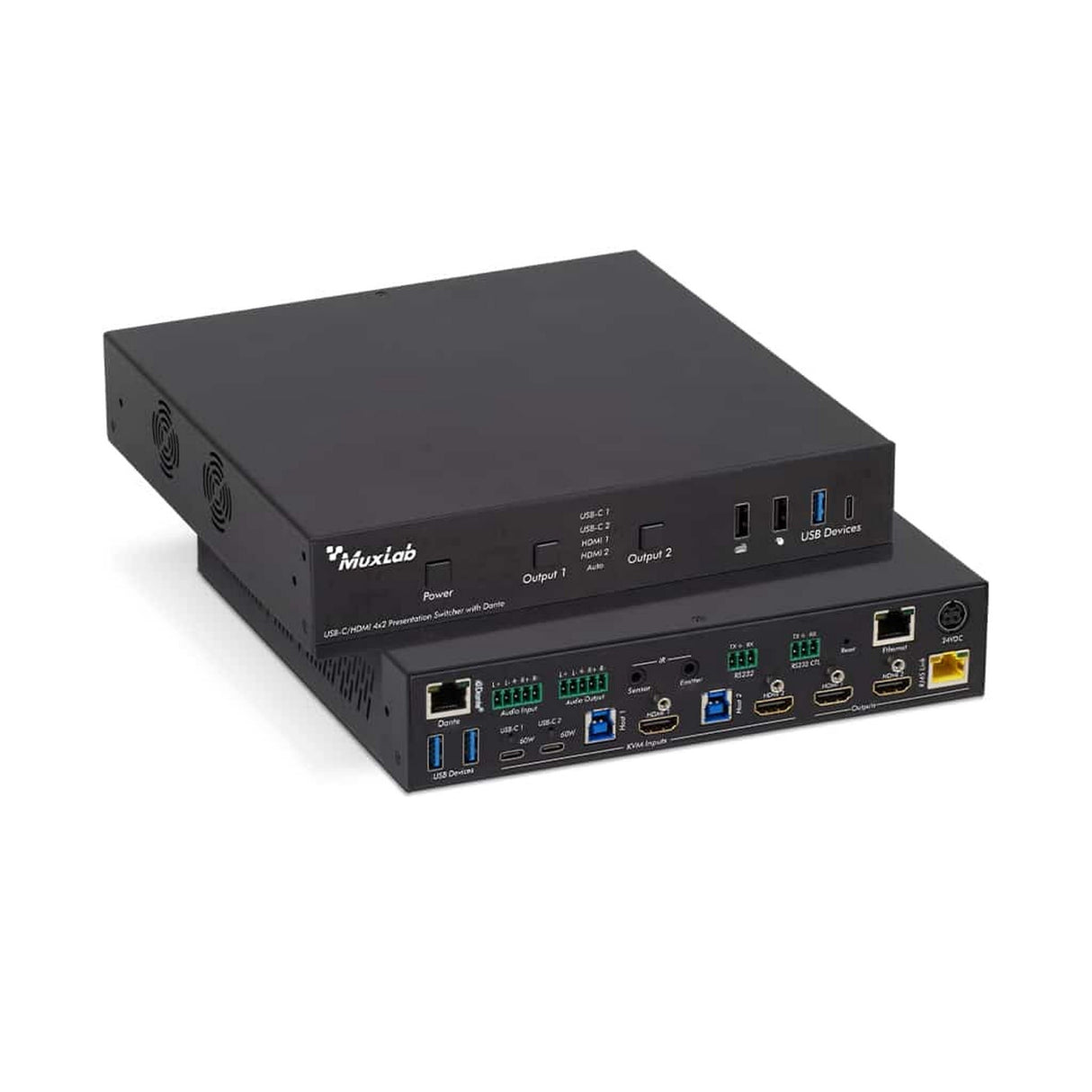

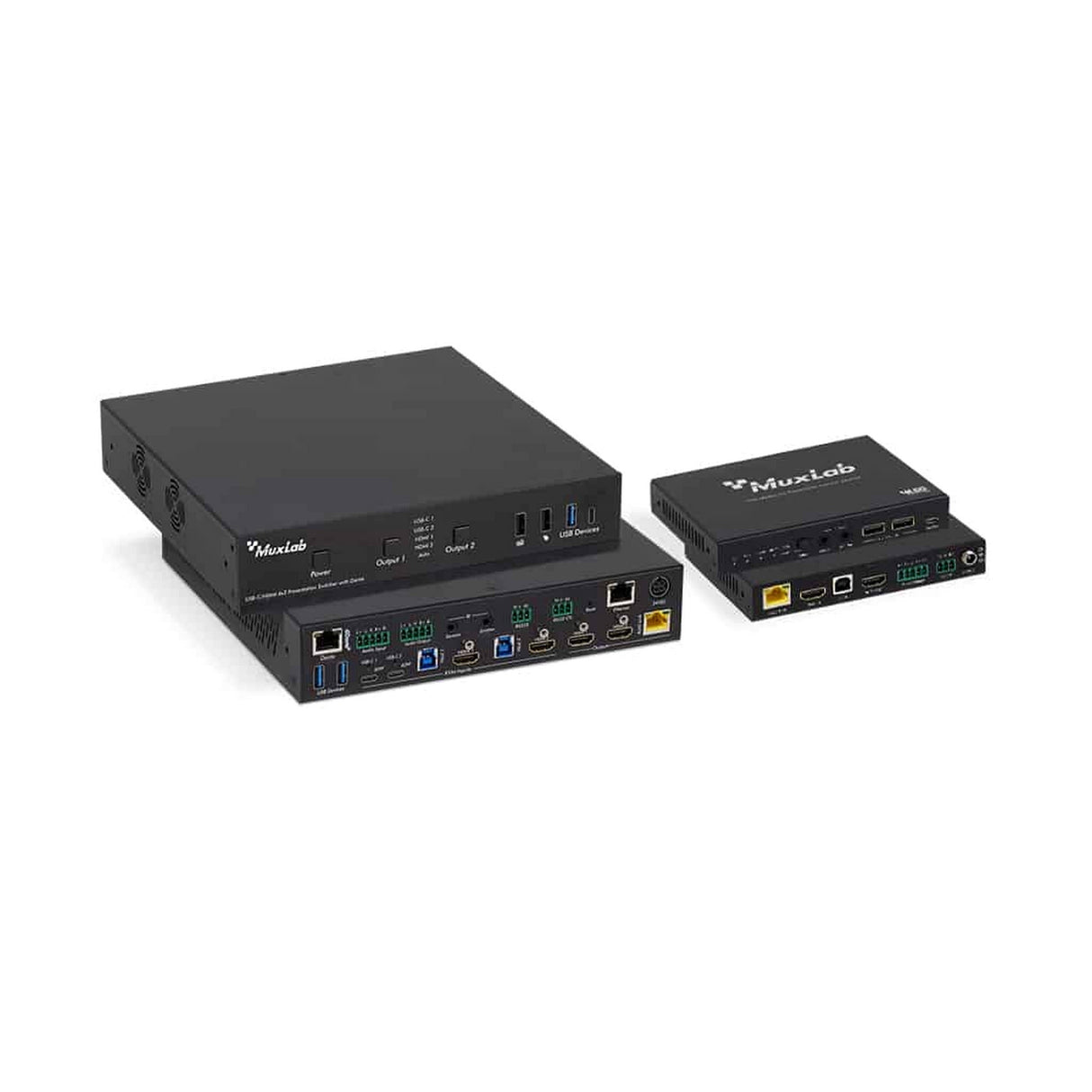

MuxLab 500532 USB-C HDMI 4x2 Presentation Switcher with Dante
The MuxLab USB-C HDMI 4x2 Presentation Switcher with Dante is a professional presentation switching solution designed for advanced multimedia environments. It enables seamless switching between USB-C and HDMI sources with integrated video, audio, and networked Dante audio support. This system is built to meet the demands of modern conference rooms and control applications.
Supporting video bandwidth up to 18Gbps, the switcher delivers resolutions up to 4K60Hz 4:4:4 with multi-view display modes and seamless switching. It supports HDBaseT 3.0 with PoE, Dante audio embedding and de-embedding, and USB KVM extension over HDBaseT. Flexible connectivity allows integration with complex AV infrastructures.
The system supports manual and automatic switching with control via front panel buttons, IR remote, RS-232, TCP IP, and web GUI. Designed for reliability and scalability, it is ideal for conference centers, boardrooms, education facilities, and command and control environments requiring robust presentation switching and Dante audio networking.
Key Features
- USB-C and HDMI Presentation Switching: Supports seamless 4x2 switching for USB-C and HDMI sources
- High Resolution Video Performance: Supports video resolution up to 4K60Hz 4:4:4
- Dante Audio Integration: Supports Dante 2x2 audio embedding and output
- Multi-View Display Modes: Provides five multiview display modes
- Advanced Control Options: Supports front panel, IR remote, RS-232, TCP IP, and web GUI control
Technical Specifications
HDMI ComplianceHDMI 2.0b
HDCP Compliance
HDCP 2.2 compliant
Video Bandwidth
18Gbps
Input Video Resolution
480i
1080p50 60Hz
4Kx2K24 30Hz
4Kx2K50Hz 60Hz 4:4:4
Output Video Resolution
Auto
3840x2160p60
3840x2160p50
4096x2160p60
4096x2160p50
3840x2160p30
3840x2160p25
1920x1080p60
1920x1080p50
1360x768p60
1280x800p60
1280x720p60
1280x720p50
1024x768p60
Color Space
Input 8 10 12 bit 4K60Hz
4:4:4 Output 8 bit
Color Depth
RGB
YCbCr
4:4:4
4:2:2
4:2:0
Audio Formats
LPCM 2.0
Audio Sample Rate
48KHz
Transmission Distance
1080p60 230ft 70m
4K60 131ft 40m
HDR
Input supports HDR output does not support HDR
ESD Protection
Human body model ±8kV Air-gap discharge ±4kV Contact discharge
TX Analog Audio Base
Input Impedance: 10K Ohms
Output Impedance: 330 Ohms
Line Input Level: Max 8.2dBu 2Vrms balanced or unbalanced audio
Line Output Level: Max 8.2dBu 2Vrms balanced 2.2dBu 1Vrms unbalanced audio
Frequency Response: plus or minus 0.5 dB 20 Hz to 20 kHz
Audio Output Sync: Delay less than 1ms
Audio S/N Ratio: 93dB at 2Vrms 1kHz A weighted
Audio THD+N: less than 0.1 percent at 0dBV, 1kHz
RX Analog Audio HDBaseT
Output Impedance: 330 Ohms
Line Input Level Max: 8.2dBu 2Vrms balanced or unbalanced audio
Line Output Level Max: 8.2dBu 2Vrms balanced 2.2dBu 1Vrms unbalanced audio
Frequency Response: plus or minus 0.5 dB 20 Hz to 20 kHz
Audio Output Sync Delay: 0 to 50ms Audio S N Ratio 93dB at 2Vrms 1kHz A weighted
Audio THD+N: less than 0.1 percent at 0dBV 1kHz
Dante Audio Format
LPCM 2.0
Dante Sample Rate
44.1, 48, 88.2 and 96KHz at 24 bits
Dante Audio Delay
2ms, 3ms, 4ms, 5ms, 10ms
Dante Network Bandwidth
100Mbps
Transmitter Inputs
2 x HDMI INPUT (Type A, 19-pin female)
2 x USB-C (24-pin female)
1 x LINE IN (5pin-3.5mm phoenix connector)
1 x DANTE (RJ45)
Transmitter Outputs
2 x HDMI OUTPUT (Type A, 19-pin female)
1 x HDBT OUTPUT (RJ45)
1 x LINE OUT (5pin-3.5mm phoenix connector)
Transmitter Controls
1 x RS-232 (3pin-3.5mm phoenix connector)
1 x LAN (RJ45)
1 x USB HOST (USB Type B)
3 x USB DEVICES (USB Type A)
2 x USB KVM (USB Type A)
1 x USB-C DEVICE (USB Type C)
1 x IR IN (3.5mm stereo mini-jack)
1 x IR OUT (3.5mm stereo mini-jack)
Receiver Inputs
1 x HDMI IN (Type A, 19-pin female)
1 x HDBT IN (RJ45)
Receiver Outputs
1 x HDMI OUT (Type A, 19-pin female)
1 x LINE OUT (5pin-3.5mm phoenix connector)
Receiver Controls
1 x RS-232 (3pin-3.5mm phoenix connector)
1 x USB HOST (USB Type B)
1 x USB DEVICES (USB Type A)
1 x SERVICE (Micro USB)
1 x IR IN (3.5mm stereo mini-jack)
1 x IR OUT (3.5mm stereo mini-jack)
Housing
Metal enclosure with Aluminum front panel
Color
Black
Dimensions
Transmitter 220mm W x 124mm D x 44mm H
Receiver 140mm W x 100mm D x 23mm H
Weight
Transmitter 1.78Kg
Receiver 424g
Power Supply
Input 100-240VAC 50 60Hz Output 24VDC 8A
Power Consumption
170W Max
Operating Temperature
0°C to 40°C 32°F to 104°F
Storage Temperature
-20°C to 60°C -4°F to 140°F
Relative Humidity
20 to 90 percent RH non-condensing
Compliance
Regulatory FCC CE RoHS
Warranty
2 years
