Theatrixx 12G-SDI to Fiber Converter with Embedded Audio, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUADTheatrixx 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with Embedded Audio, Single-Mode or Multi Mode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

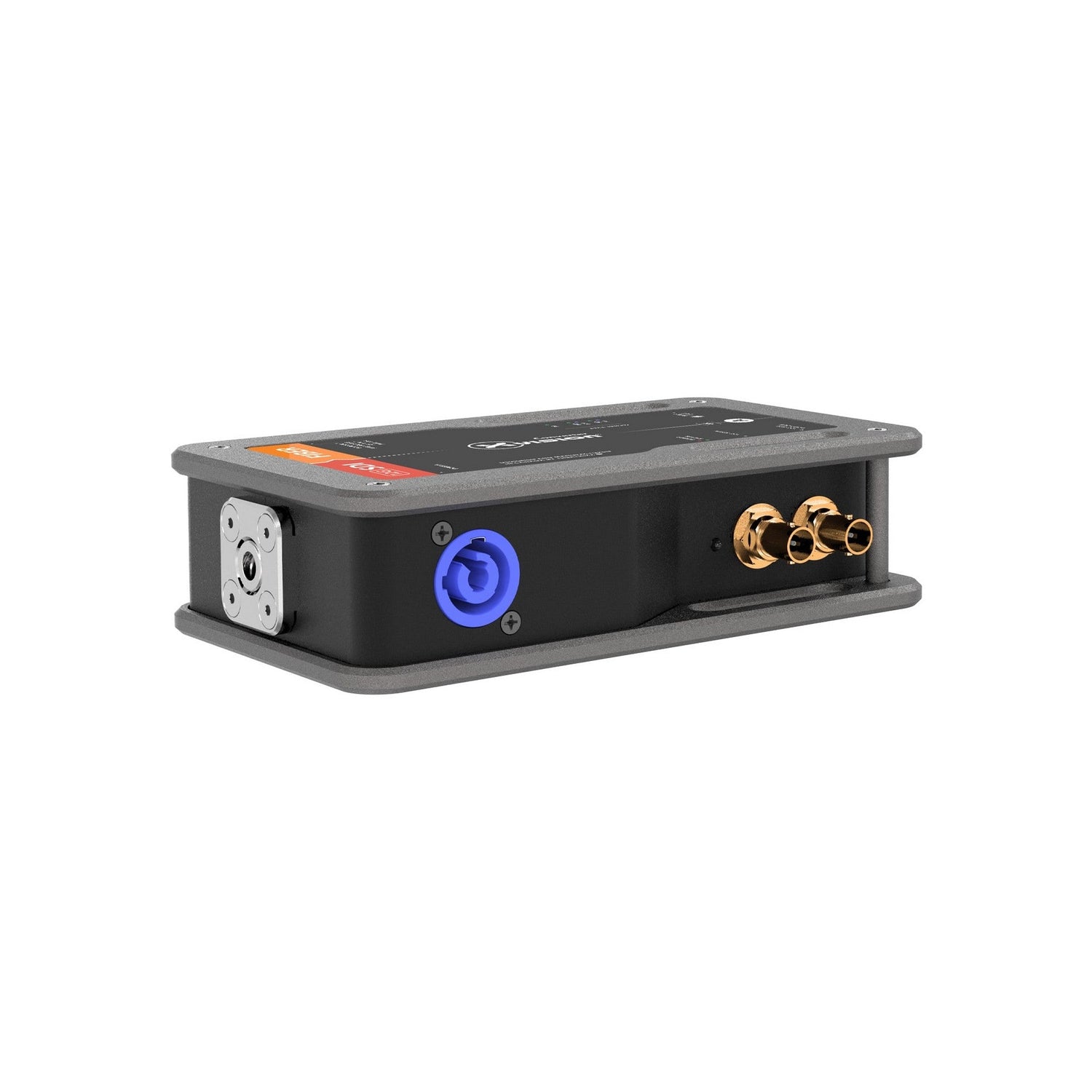

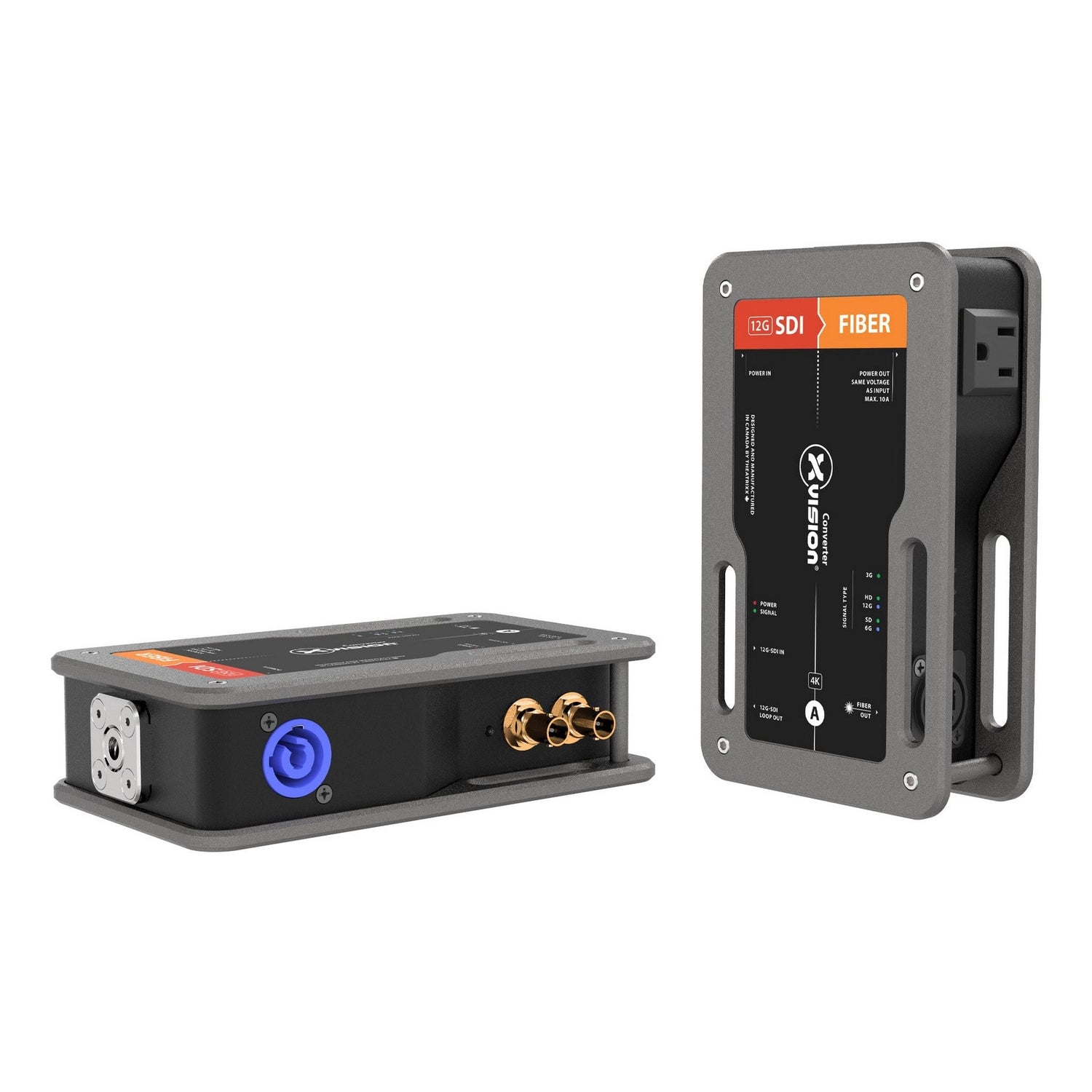

The Theatrixx SDI2Fiber 12G is a versatile video converter designed for professional video applications. It supports a wide range of SDI formats including 12G, 6G, 3G, HD, and SD, ensuring compatibility with various video equipment. The device features both multimode and singlemode optical outputs, providing flexibility in connectivity options. With a robust build quality and a compact design, the SDI2Fiber 12G is perfect for use in studios, live events, and broadcasting environments.

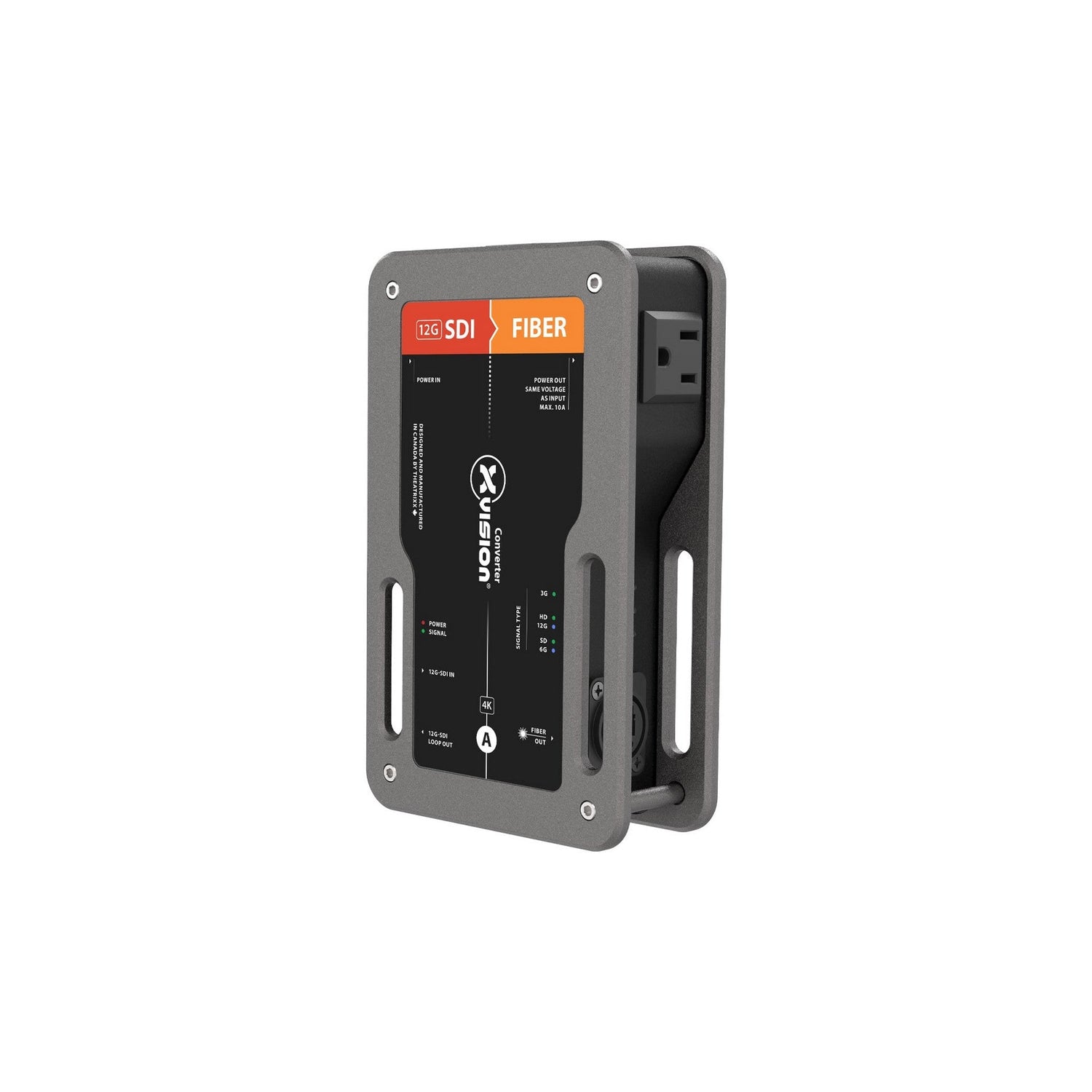

This converter adheres to multiple SMPTE standards, ensuring reliable performance and signal integrity. Its built-in power supply and powerCON input make it easy to integrate into existing setups, while the loop-thru feature allows for seamless signal distribution. The SDI2Fiber 12G is also available in a reversible module form factor, catering to different installation needs.
Key Features:
- Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
- Loop-thru: 1 x 12G/6G/3G/HD/SD SDI BNC
- Video Output: Choice of Multimode or Singlemode, Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
- Supported Signals: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
- SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Technical Specifications
- Measuring System: Metric
- Dimensions: 50 mm (H) x 180 mm (D) x 107 mm (W)
- Weight: 1 kg (2.2 lbs)
- Relative Humidity: 0% to 90% non-condensing
- Operating Temperature: 0-40 °C

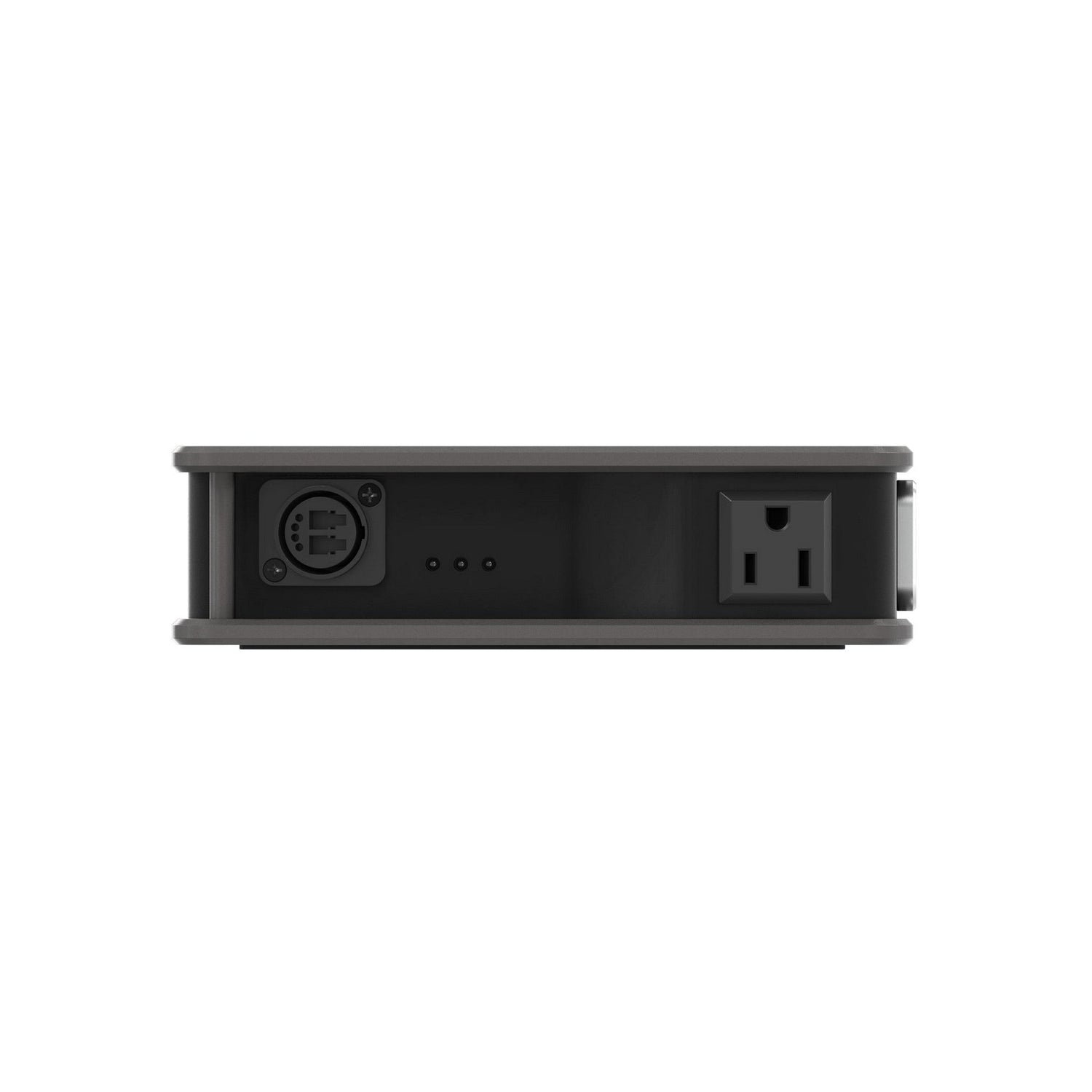

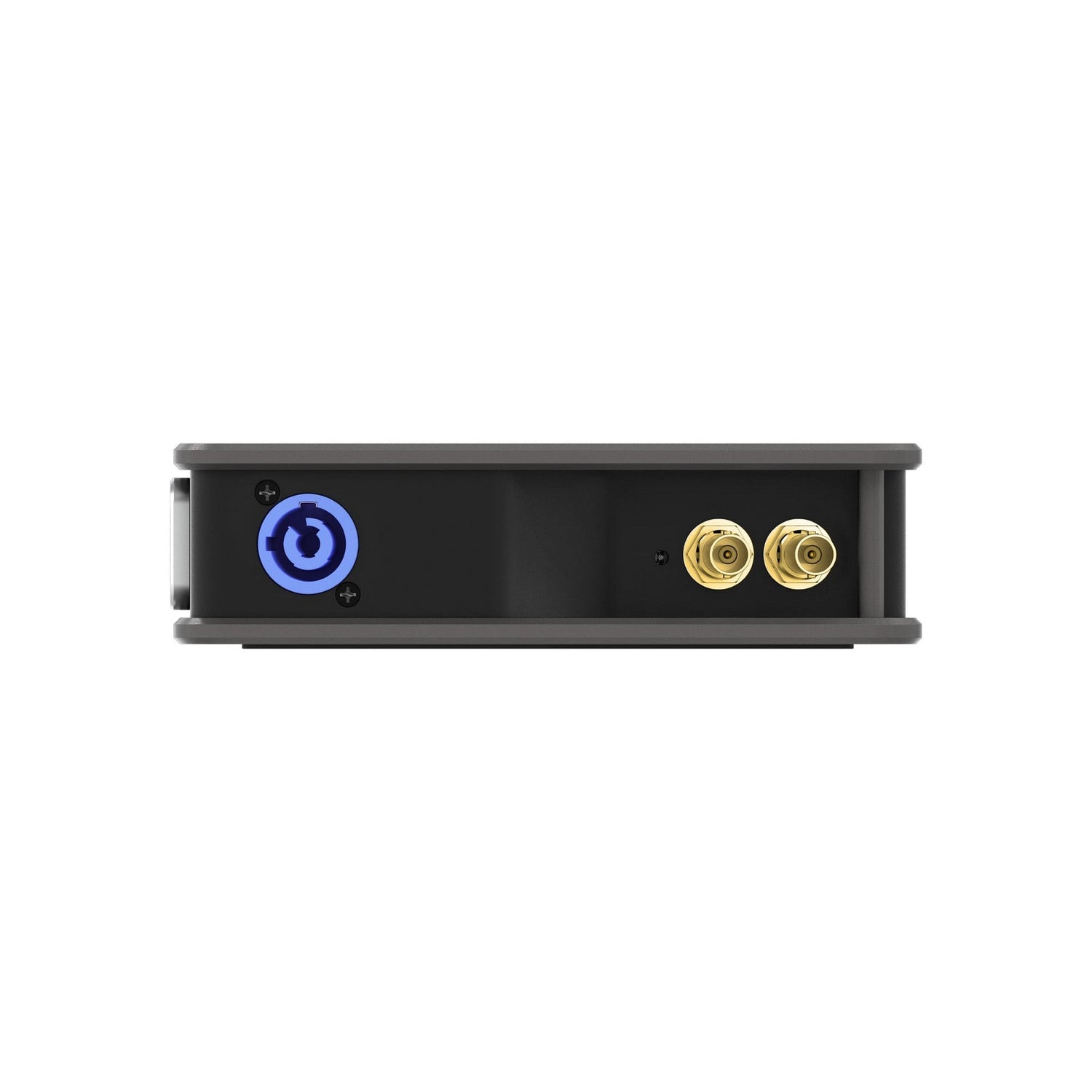

- Power Supply: Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru)
- Power Consumption: 15W
- Voltage Range: 100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
- Courtesy Outlet: Max 10A, same voltage as input
What's in the Box
- xVision Converter 12-SDI to Fiber
- AC Mains to PowerCON cable (1.5m, specify plug type at ordering)
