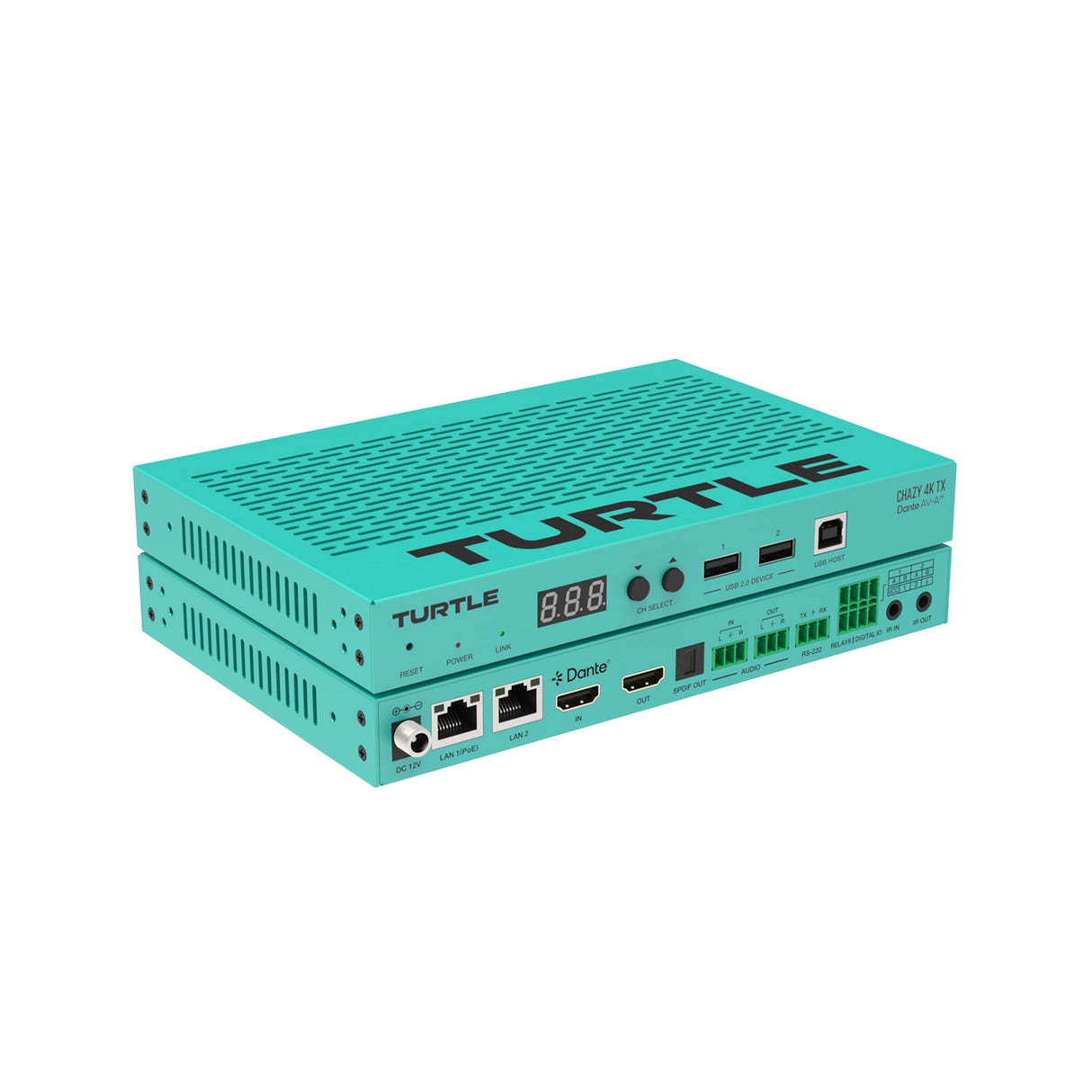

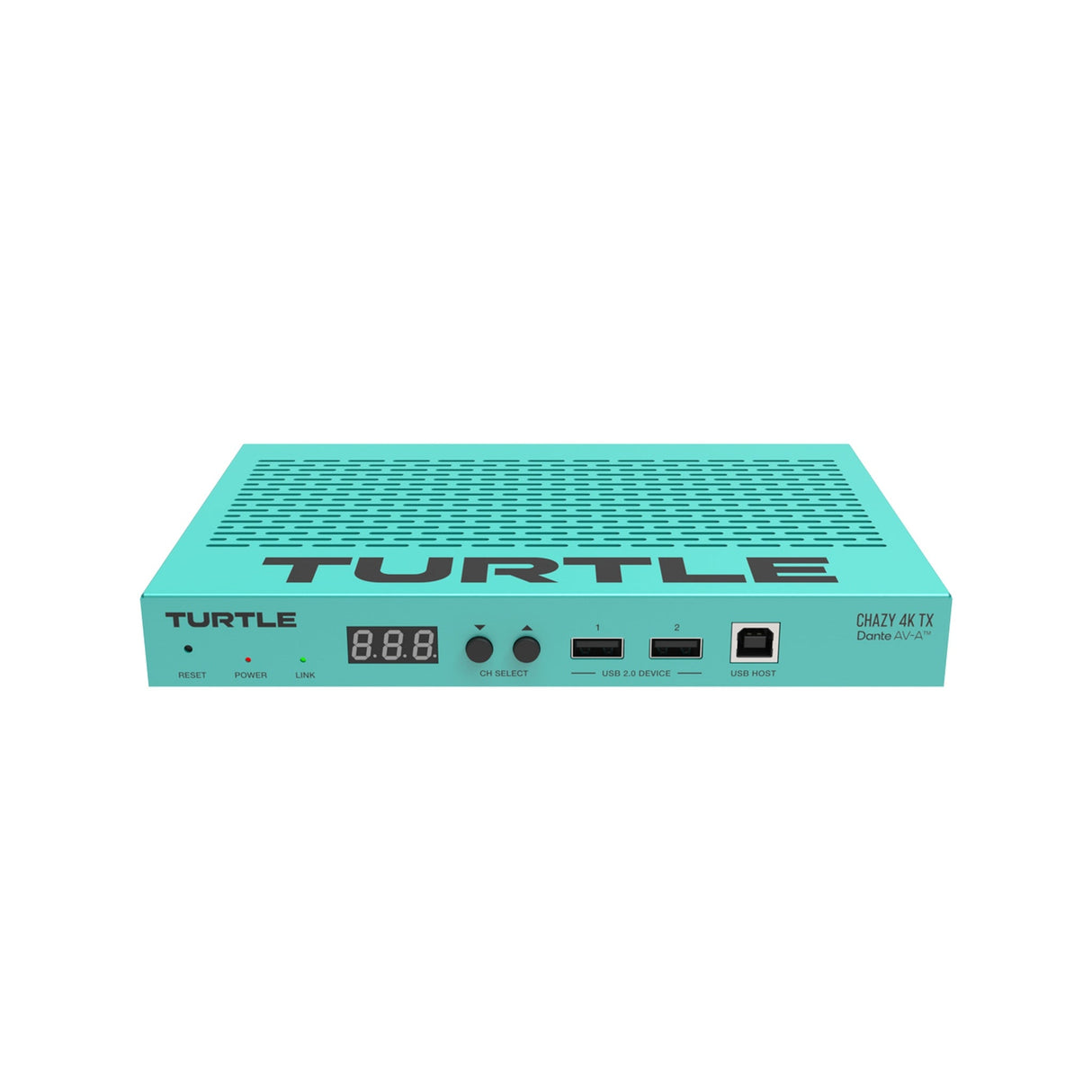

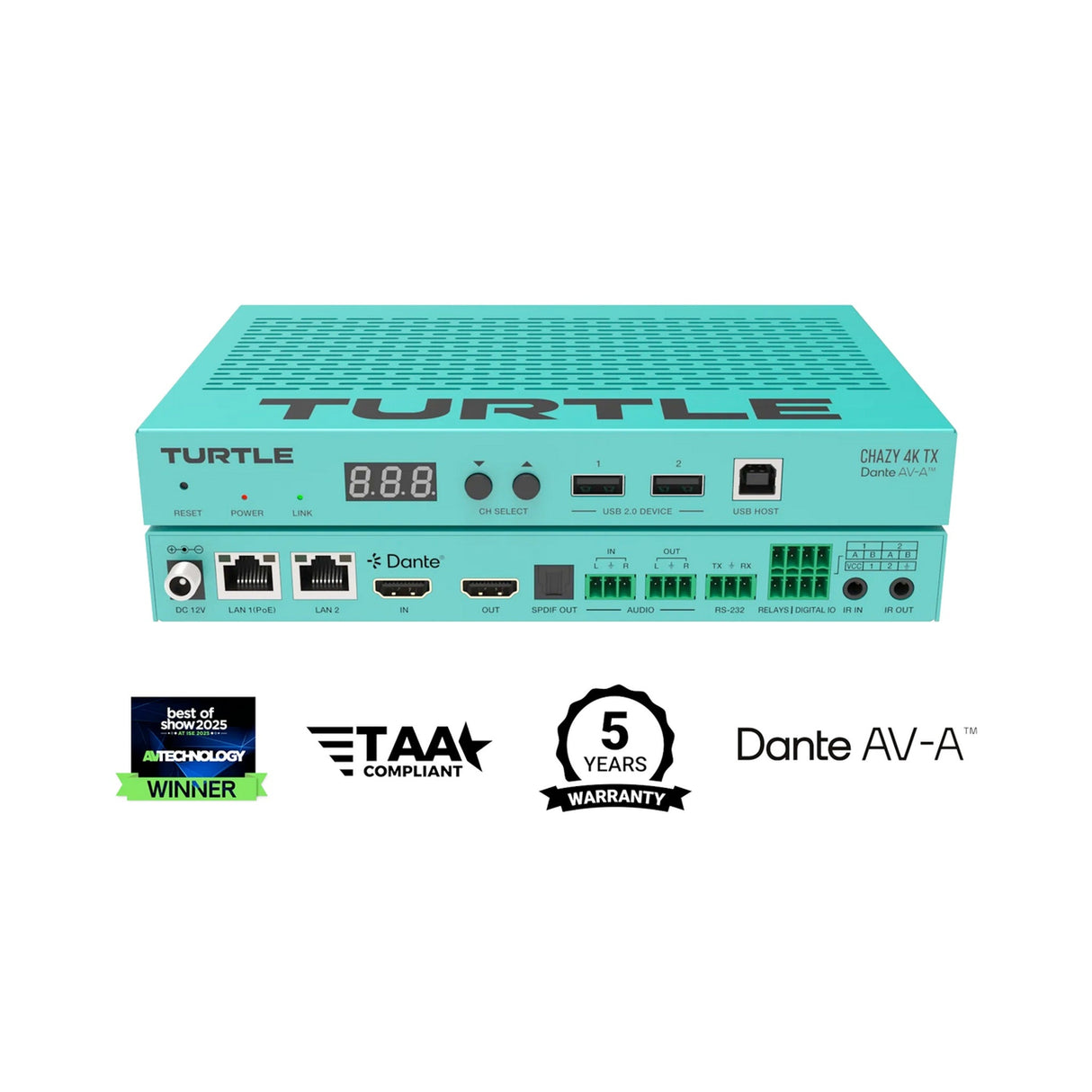

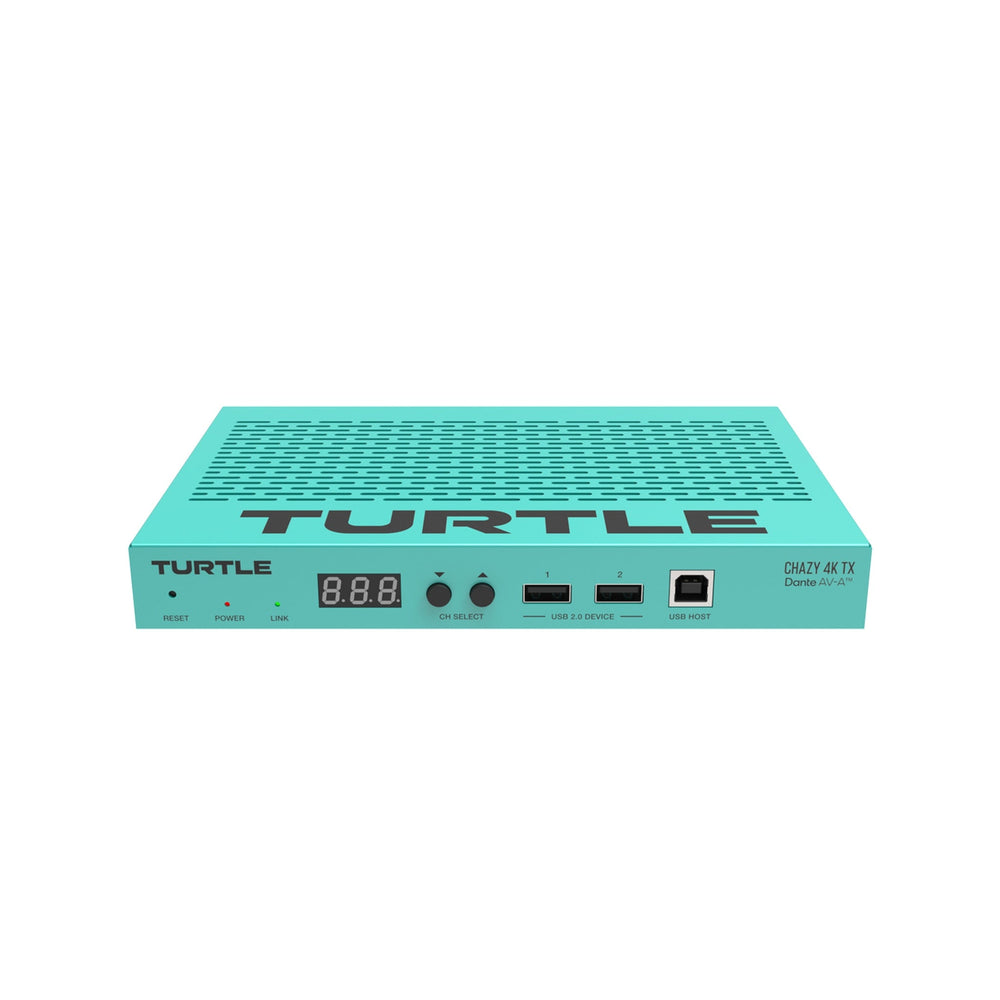

Turtle AV Chazy 4K TX Dante AV-A HDMI Encoder
The Turtle AV Chazy 4K TX is a professional-grade Dante AV A HDMI encoder designed for high-performance AV over IP installations. It delivers UHD 4K60 video with 4:4:4 HDR and includes a Dante AV A license, making it an ideal choice for system integrators, corporate AV, and digital signage deployments. This encoder provides rock-solid performance for secure, low-latency video distribution over standard Ethernet networks.
With support for Dante AV A and JPEG 2000 protocols, Chazy 4K TX can compress HDMI (and optionally USB-C) signals while preserving video quality and delivering efficient network transport. It supports a full suite of audio formats — including 7.1-channel Dolby Atmos, Dolby TrueHD, DTS-HD, LPCM and more — making it flexible for professional audio-visual setups. Dual network ports separate AV and control traffic to ensure stability and security, and its fanless metal housing is built for reliable long-term use.
This encoder supports advanced features like KVM control, hardware scaling, EDID management, multicast video wall configurations up to 9×9 displays, and full HDCP 2.2 compliance. Powered via PoE or 12 V DC, the Chazy 4K TX is well suited for rack installations, boardrooms, broadcast setups, and anywhere robust AV distribution is needed.
Key Features
- UHD 4K60 4:4:4 HDR Output: Delivers high-fidelity video for professional displays and digital signage.
- Dante AV A and JPEG 2000 Compression: Efficient AV over IP with included license and no hidden costs.
- Wide Audio Support: 7.1-channel Dolby Atmos, Dolby TrueHD, DTS-HD, LPCM, SPDIF and analog audio I/O.
- Dual Network Ports: Keeps AV and control streams separate for performance and security.
- Multicast and Video Wall Ready: Supports up to 9×9 displays for large-scale video walls.
- KVM, EDID Management, Hardware Scaling: Ensures compatibility and control across varied systems.
- Fanless Metal Housing & PoE Power: Durable, rack-mountable and energy-efficient for continuous operation.
Technical Specifications
- HDMI Standard: HDMI 2.0b, HDCP 2.2 compliant
- Video Output: Up to UHD 4K60 3840×2160, 4:4:4 HDR
- Compression Protocols: Dante AV A and JPEG 2000
- Network Bandwidth: 1 Gbps per port
- USB Bandwidth (if used): 480 Mbps
- Color Depth Input / Output: 8/10/12-bit input; 8-bit output
- Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Audio Formats: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master, DTS-96/24, DTS-X, DSD, etc.
- Mechanical: Metal enclosure, fanless design
- Dimensions (W × D × H): 8.03 in × 5.35 in × 1.00 in
- Weight: 1.39 lbs
- Power Supply: PoE (IEEE 802.3af) or 12 V DC, 2.5 A
- Operating Conditions: 32–104°F, relative humidity 20–90% (non-condensing)
