Turtle AV Chazy 4K USB-C TX Dante AV-A HDMI Encoder
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

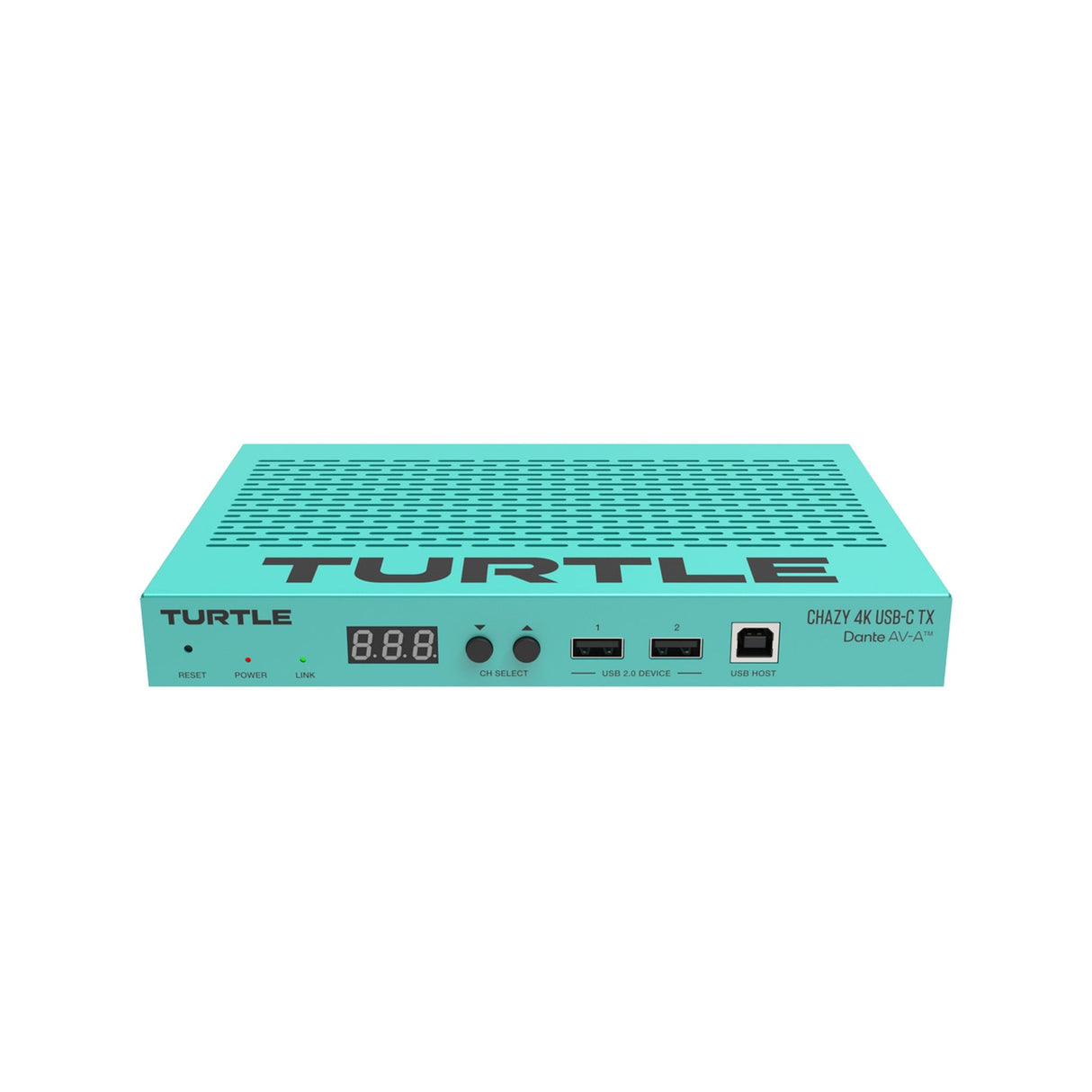

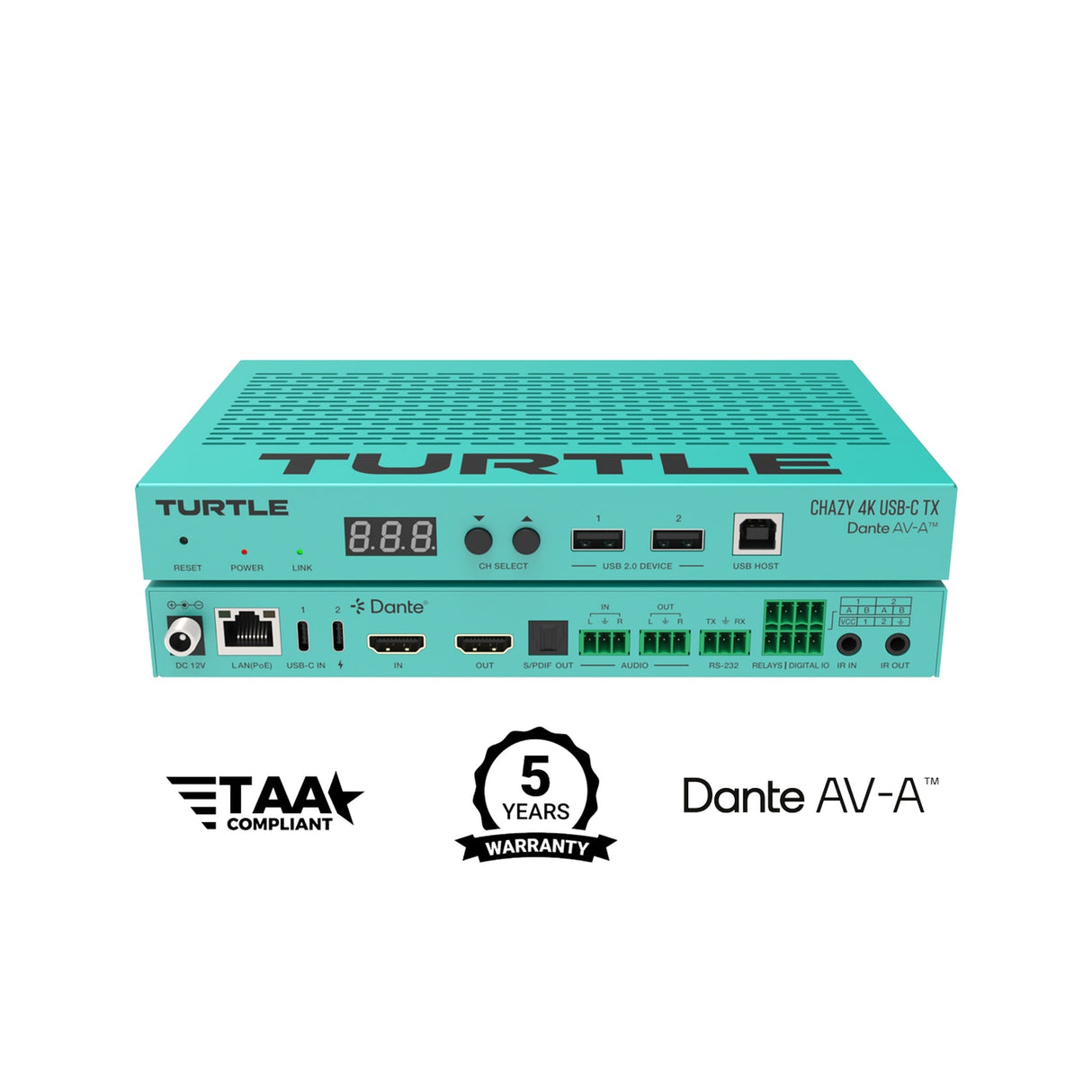

Turtle AV Chazy 4K USB-C TX Dante AV-A HDMI Encoder
The Turtle AV Chazy 4K USB-C TX is a high-performance AV over IP encoder that delivers UHD 4K60 video with 4:4:4 HDR directly from USB-C or HDMI sources. Designed for professional AV systems, conferencing, digital signage, and media distribution, it integrates seamlessly with Dante AV-A and JPEG 2000 protocols for low-latency, high-fidelity video and audio transport. The included Dante AV-A license (with 2×2 Dante audio) means no extra license is needed to deploy.
This encoder supports dual input options: USB-C for laptops/tablets and HDMI 2.0b for standard video sources, giving installation flexibility across many use cases. It supports advanced features such as 7.1-channel Dolby Atmos audio, KVM support, hardware scaling, EDID management, HDCP 2.2 compliance, multicast and video-wall configurations (up to 9×9), and dual network ports for separate AV and control streams. Power is supplied by PoE or optional 12 V DC, simplifying installation in racks or mounted setups.
Compact and rack-ready, the Chazy 4K USB-C TX encoder is ideal for corporate boardrooms, digital signage networks, broadcast systems, or any environment where robust, scalable AV over IP infrastructure is needed. Its silent fan-less metal housing and 5-year warranty ensure reliable long-term operation and low maintenance.
Key Features
- Dual Input Flexibility: Accepts video via USB-C or HDMI 2.0b.
- UHD 4K60 4:4:4 HDR Output: High resolution and color fidelity for professional displays.
- Dante AV-A & JPEG 2000 Encoding: Low-latency AV over IP distribution with included Dante license and audio support.
- Advanced Audio Support: 7.1-channel Dolby Atmos, Dolby TrueHD, DTS-HD, LPCM and other professional audio formats.
- Video Wall & Multicast Ready: Supports video wall configurations up to 9×9 and multicast streaming.
- PoE or 12 V DC Powering: Flexible installation without heavy wiring requirements.
- KVM, Hardware Scaling, EDID Management: Full control over video/audio routing and display compatibility.
- Fanless Metal Enclosure: Quiet, durable, and rack-mountable for long-term use.
Technical Specifications
- HDMI Standard: HDMI 2.0b compliant, HDCP 2.2 compatible
- Video Output: Up to 4K60 (2160p 60Hz), 4:4:4 HDR
- Compression Codecs: Dante AV-A or JPEG 2000
- Network Bandwidth: 1 Gbps Ethernet
- USB Bandwidth: 480 Mbps for USB-C input
- Color Depth & Space: Input 8/10/12-bit; output 8-bit. RGB 4:4:4 or YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Audio Formats Supported: LPCM 2.0/5.1/7.1, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS / DTS-HD variants, DSD, DTS High Res

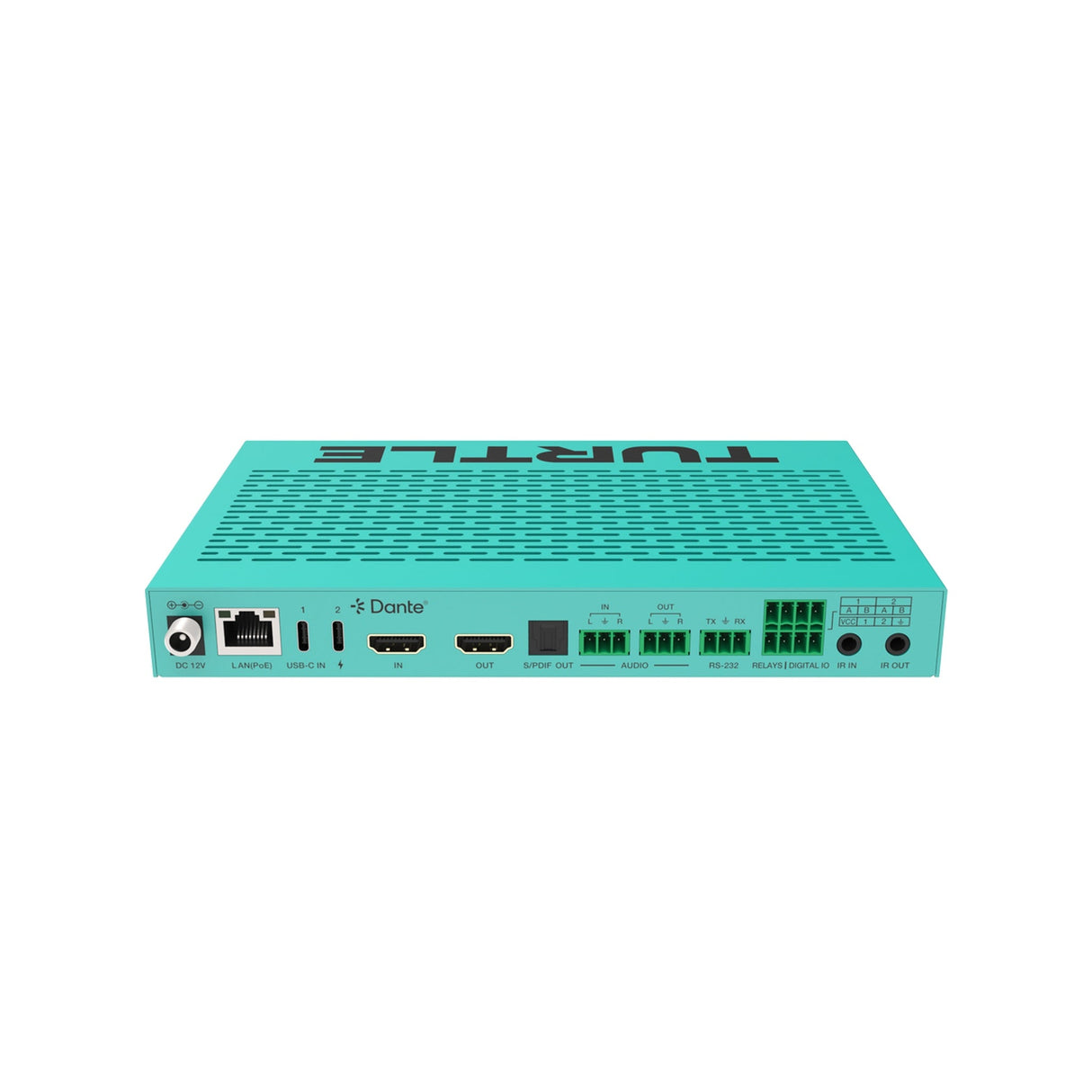

- Connections (Input): 1 × HDMI, 2 × USB-C, 1 × Audio In (Phoenix 3-pin)
- Connections (Output): 1 × HDMI, 1 × SPDIF Optical Out, 1 × Analog Audio Out (Phoenix block)
- Control & Extras: Dual LAN (PoE + data), RS-232 (Phoenix), USB 2.0 host and device ports, IR In/Out, relay outputs, support for KVM and control integration
- Dimensions (W × D × H): 8.03 in × 5.35 in × 1.00 in
- Weight: 1.39 lbs
- Power Supply: PoE (IEEE 802.3af) or 12 V DC 2.5 A
- Power Consumption: ~8.5 W
- Operating Range: 32 – 104 °F, 20 – 90% relative humidity (non-condensing)
