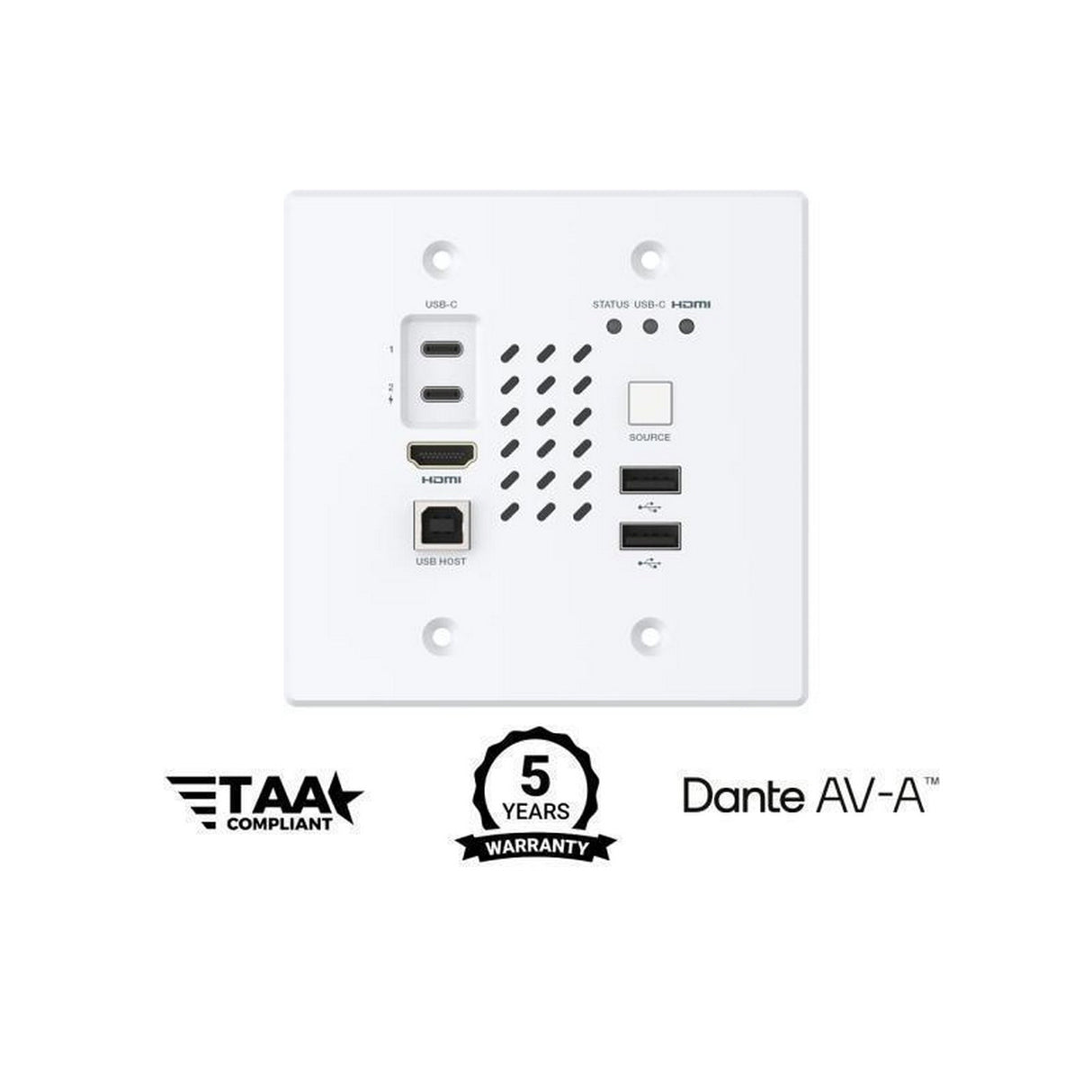

Turtle AV Chazy 4K Wall Plate TX Dante AV-A HDMI and USB-C Encoder
The Turtle AV Chazy 4K Wall Plate TX is a professional-grade AV over IP transmitter built to fit seamlessly into a 2-gang Decora-style wall plate — ideal for boardrooms, lecterns, conference rooms, and meeting spaces. It enables easy transmission of UHD 4K60 video with 4:4:4 HDR over standard network infrastructure, supporting HDMI and USB-C input for maximum source flexibility.
With built-in Dante AV-A and JPEG 2000 encoding (license included), this wall plate encoder delivers low-latency video and high-fidelity audio over IP. It supports a full suite of advanced features including 7.1-channel Dolby Atmos audio, hardware scaling, EDID management, KVM, multicast video wall configurations up to 9×9, HDCP 2.2 compliance and dual-LAN support. PoE or 12 V DC powering simplifies installation and reduces clutter — perfect for modern AV deployments where clean cabling and reliability matter.
Compact, discreet, and ready for professional environments, the Chazy 4K Wall Plate TX brings high-end AV distribution to wall-mounted setups, making it an excellent choice for conference rooms, classrooms, corporate offices, and any space requiring a streamlined, high-performance AV interface.
Key Features
- 2-Gang Decora-Style Wall Plate Form Factor: Fits standard wall boxes for a clean, integrated install.
- Dual Input Options: Accepts video via HDMI 2.0b or USB-C, covering laptops, tablets, and traditional HDMI sources.
- Supports UHD 4K60 4:4:4 HDR: High resolution video for professional displays or projectors.
- Dante AV-A and JPEG 2000 Encoding: Low-latency, network-ready video and audio distribution with included Dante license and 2×2 Dante audio channel support.
- Wide Audio Support: 7.1-channel Dolby Atmos, Dolby TrueHD, DTS-HD and other major audio codecs supported.
- Flexible Power Options: PoE (IEEE 802.3af) or 12 V DC powering — ideal for retrofit or new-construction installs.
- Advanced AV Control Features: Hardware scaling, EDID management, KVM, video wall up to 9×9, multicast, dual LAN ports for AV/control separation.
- HDCP 2.2 Compliant: Compatible with protected content and secure playback systems.
Technical Specifications
- HDMI Version: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- Video Resolution: Up to 4K @ 60 Hz, 4:4:4 HDR
- Video Bandwidth: 18 Gbps
- Compression Protocols: Dante AV-A or JPEG 2000
- Network Bandwidth: 1 Gbps Ethernet (PoE or DC powered)
- USB Bandwidth: 480 Mbps (for USB-C input)
- Color Depth (Input): 8/10/12-bit; Color Depth (Output): 8-bit
- Color Space: RGB 4:4:4 or YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Audio Formats Supported: LPCM 2.0 / 5.1 / 7.1 CH, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master, DTS-96/24, DTS-X, DTS High Res, DSD, others
- IR Control: IR input/output supported, default 12 V (optional 5 V)
- ESD Protection: IEC 61000-4-2 ±8 kV (air), ±4 kV (contact)
- Power Options: PoE (IEEE 802.3af) or 12 V DC supply
- Additional Features: KVM support, EDID management, video wall (up to 9×9), multicast/unicast streaming, hardware scaling, dual LAN for AV/control separation
