VigilLink Audio De-Embedder HDMI, 2.1, 40Gbps

VLHA-H21DEM HDMI Audio Extractor - Advanced Video and Audio Solution

The VLHA-H21DEM HDMI Audio Extractor provides an ideal solution for users needing superior audio extraction from HDMI signals while maintaining high-quality video performance. It supports HDMI 2.1 compliance and up to 8K resolution at 60Hz with HDR support, making it perfect for high-end home theaters, gaming setups, and professional AV environments. With a compact design, it offers seamless integration into any AV setup without compromising on performance or quality.

This audio extractor is engineered to handle a wide array of audio formats including LPCM, Dolby Atmos, DTS-HD, and more. Whether you're streaming movies or gaming, this device ensures your sound is as immersive as your video. The advanced ESD protection and robust power supply ensure that the VLHA-H21DEM performs reliably under various conditions, delivering both high-definition visuals and dynamic sound.

Its HDR support for formats such as HDR10+, Dolby Vision, and HLG enhances the viewing experience by optimizing color and contrast, especially in modern 4K and 8K displays. With a sleek black metal housing and minimal footprint, this unit fits neatly into any AV system, providing the versatility and power needed for the most demanding applications.

Key Features

• HDMI 2.1 Compliance with 8K Resolution Support
• Supports Audio Formats such as Dolby Atmos, DTS-HD, LPCM, and more
• HDR Support including HDR10+, Dolby Vision, and HLG
• Reliable ESD Protection for Maximum Durability
• Compact and Stylish Black Metal Enclosure

Technical Specifications

HDMI Compliance: HDMI 2.1
HDCP Compliance: HDCP 2.3
Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Color Depth: 8/10/12bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
Audio Formats: HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
AUDIO BREAKOUT: OPTICAL OUT: PCM 2.0CH, Dolby, DTS, L/R OUT: PCM 2.0CH
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

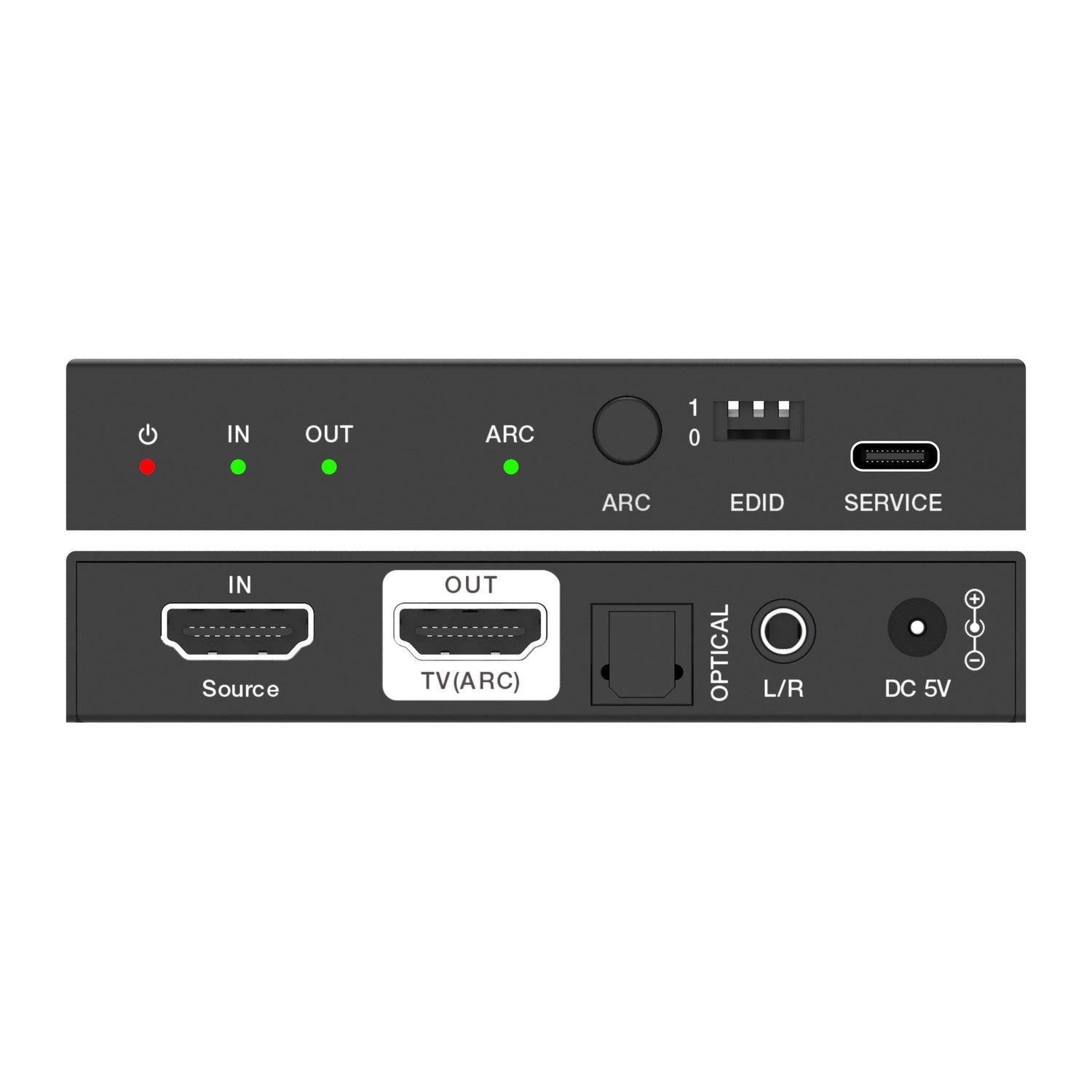

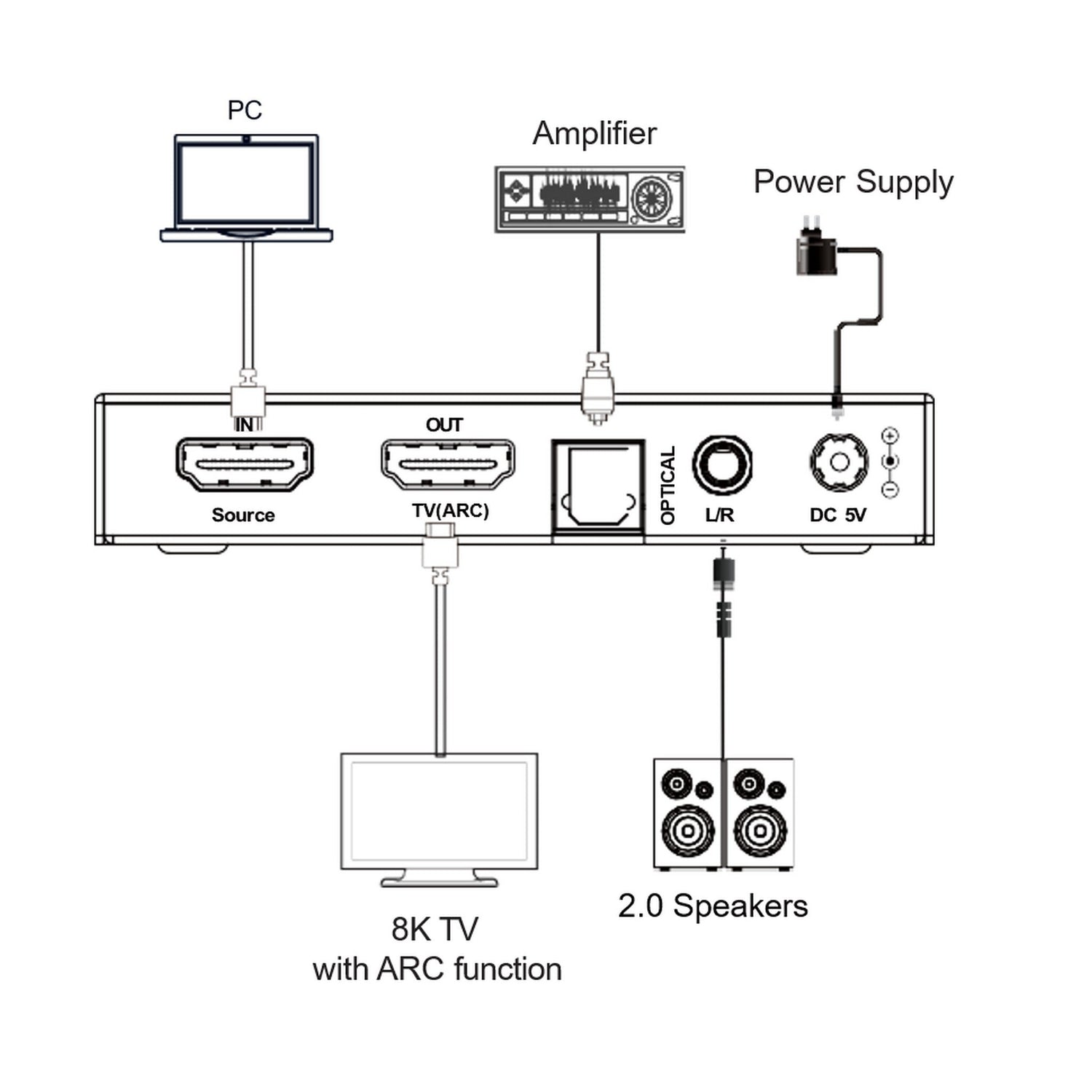

Connection

Inputs: 1 × Source IN [HDMI Type A, 19-pin female]
Outputs: 1 × TV(ARC) OUT [HDMI Type A, 19-pin female]
1 × L/R [3.5mm Stereo mini-jack]
1 × OPTICAL [S/PDIF, female]
Control: 1 × SERVICE [USB Type C, Update port]

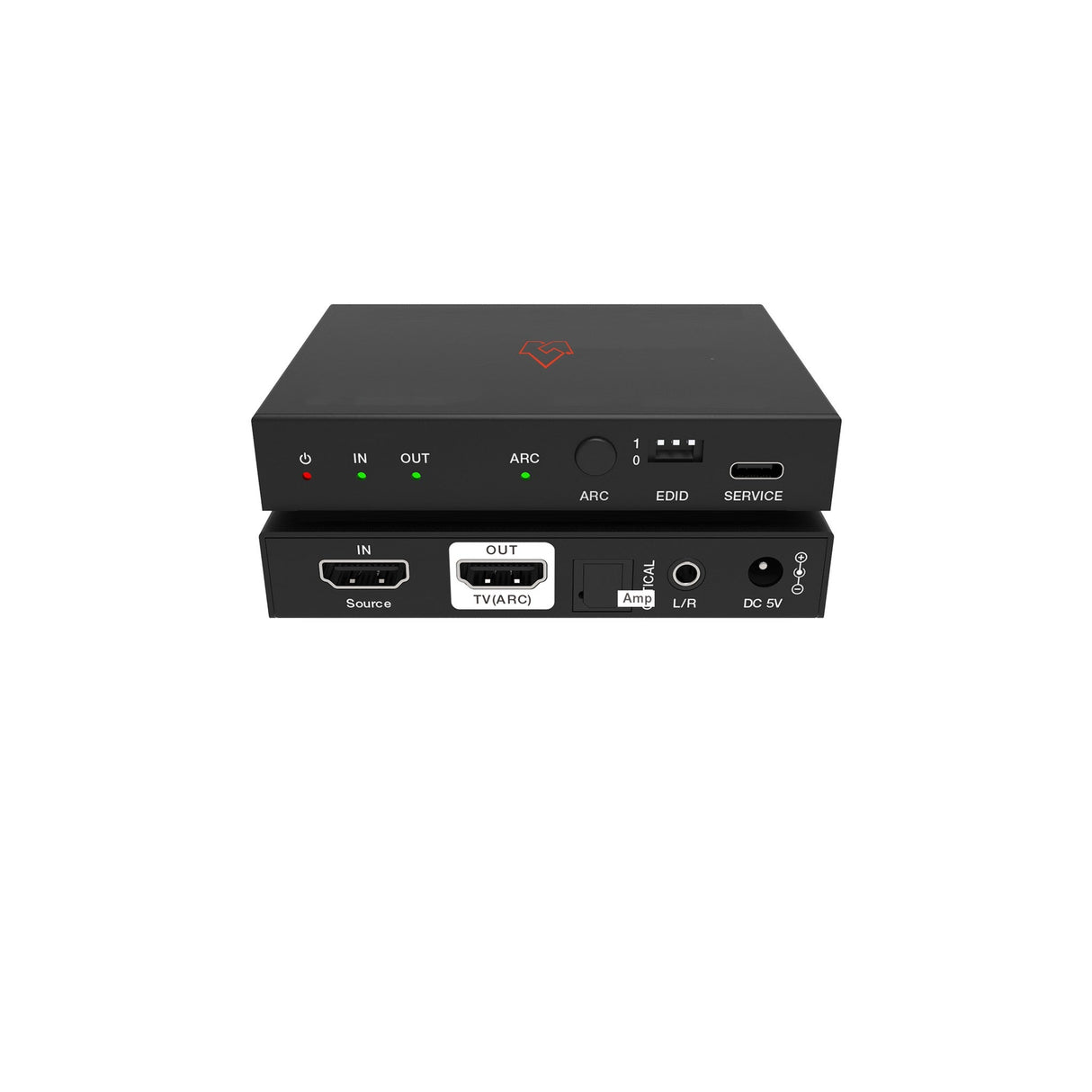

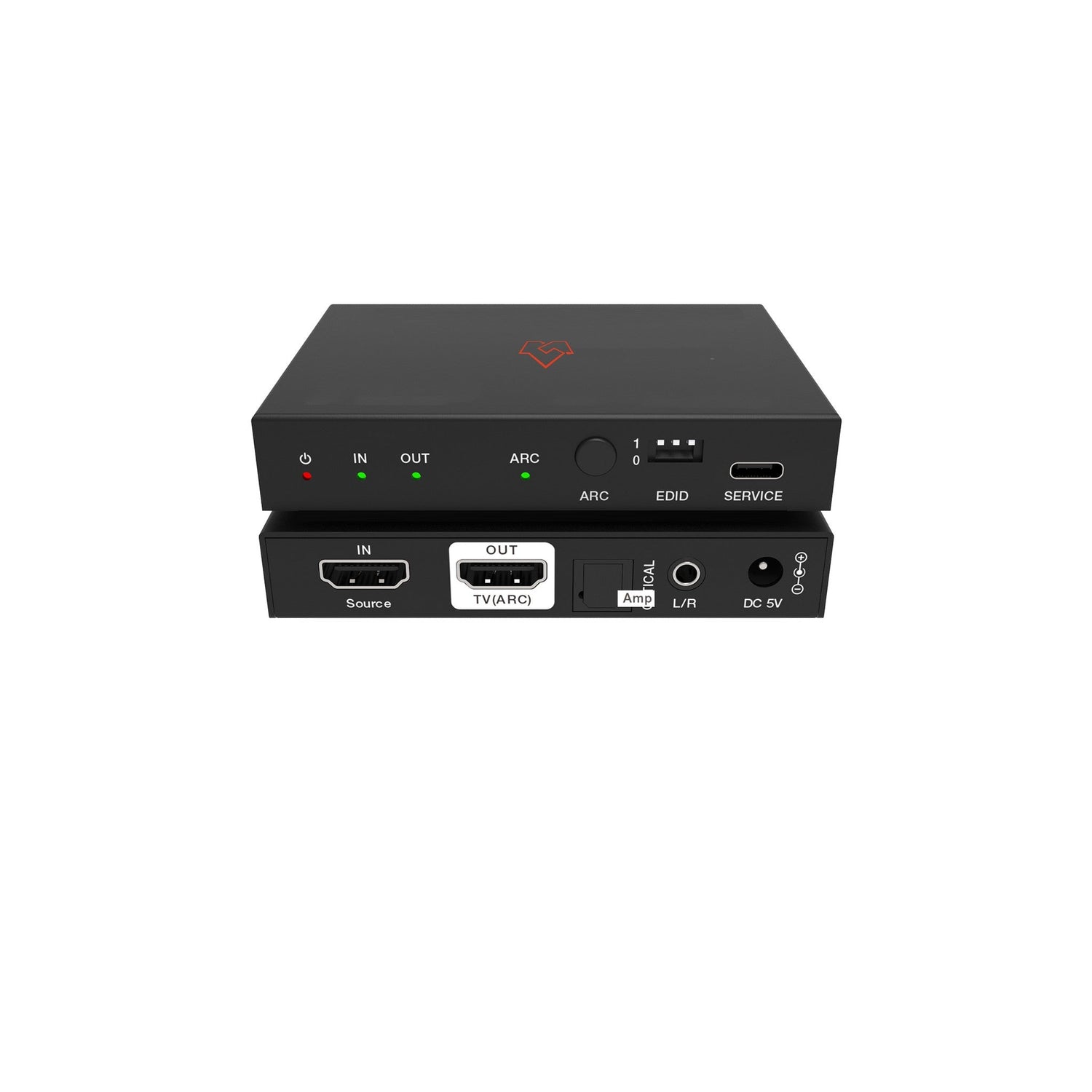

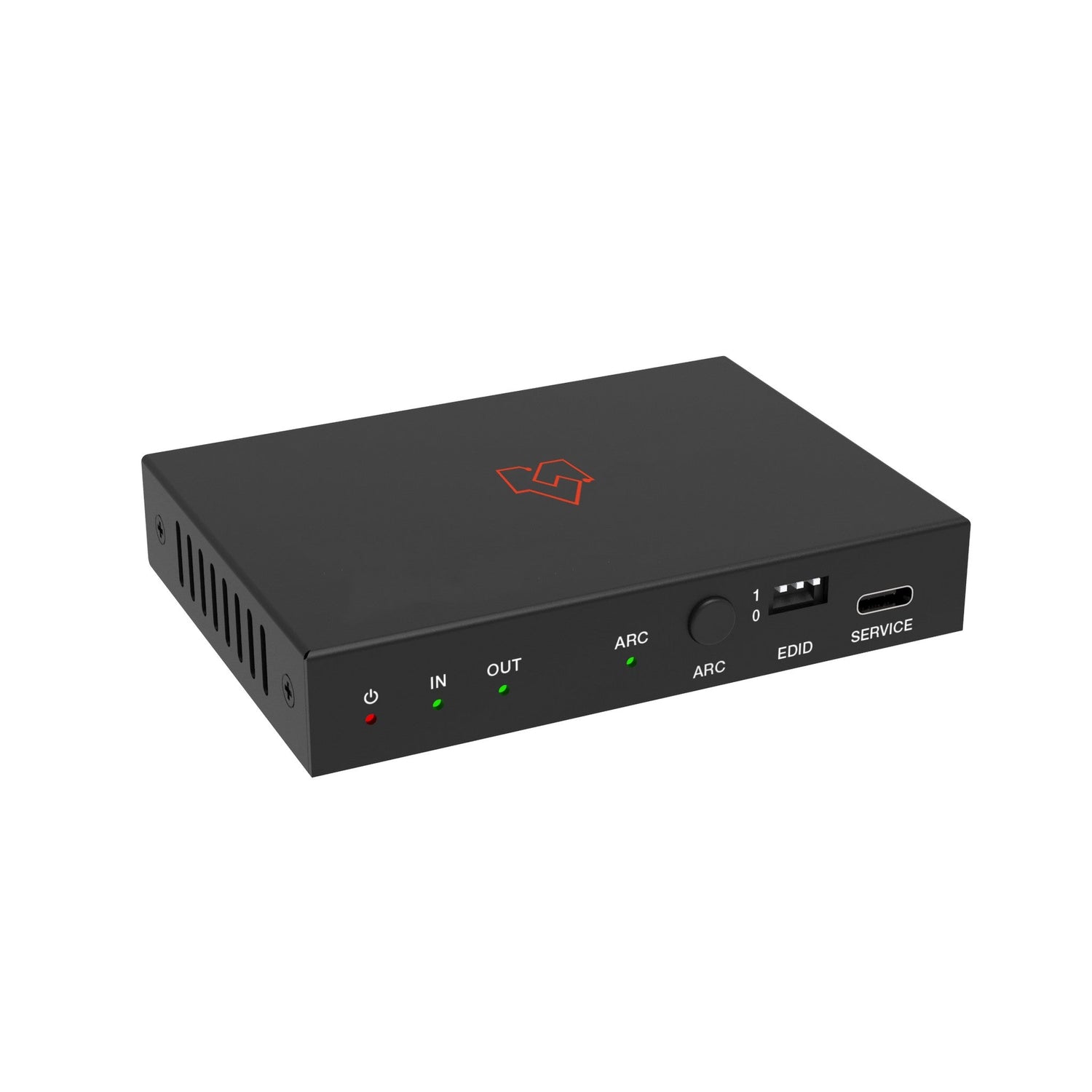

Mechanical

Housing: Metal Enclosure
Color: Black
Dimensions: 3.7" [W] × 2.7" [D] × 0.7" [H]
Weight: 0.39 lbs
Power Supply: Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption: 4W (Max)
Operating Temperature: 32°F ~ 104°F
Storage Temperature: -4°F ~ 140°F
Relative Humidity: 20 - 90% RH (No condensation)

What's Included

• VLHA-H21DEM HDMI Audio Extractor
• Power Adapter
• User Manual
