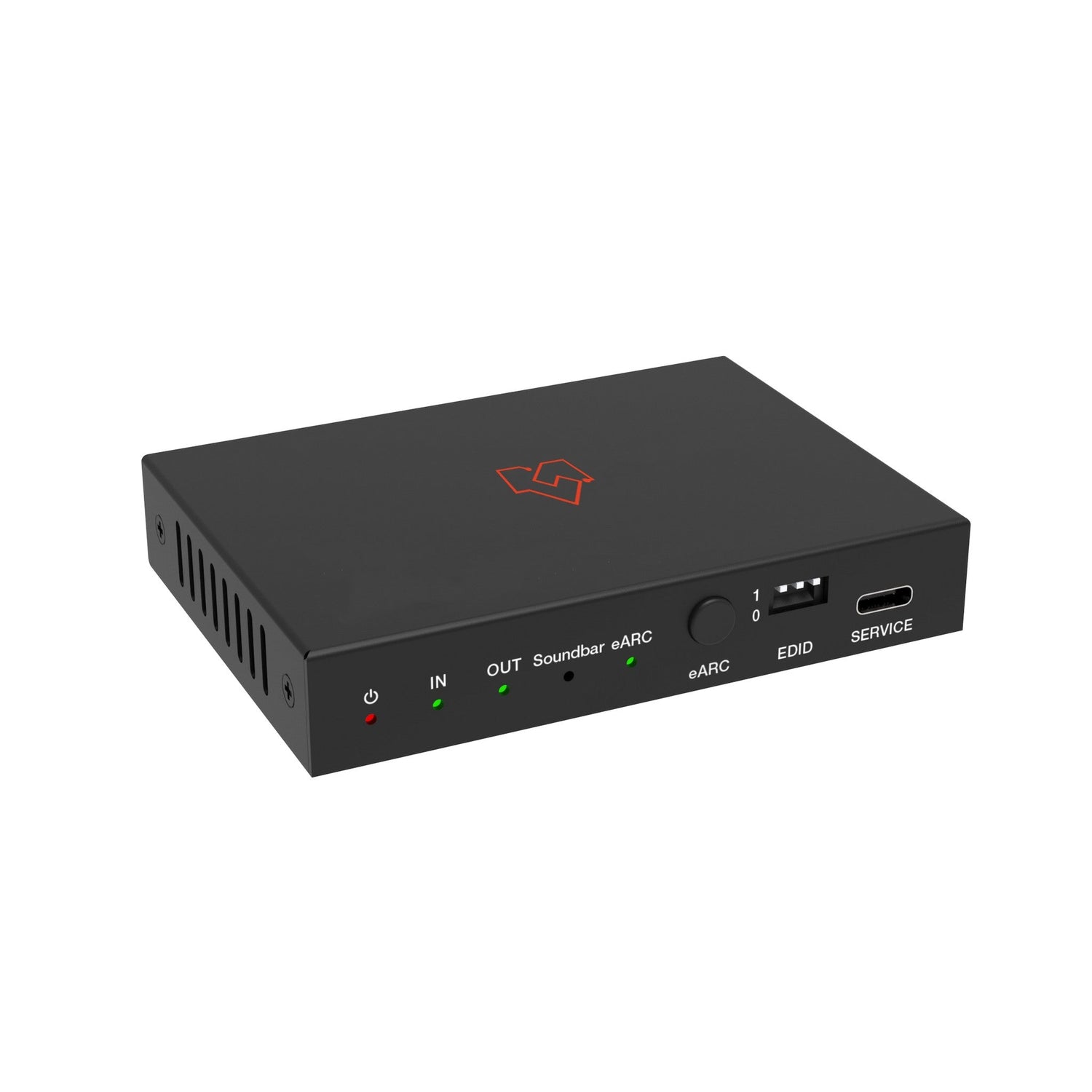

VigilLink Audio Embedder, HDMI, 40Gbps

HDMI eARC Audio to Soundbar Adapter

Introducing our HDMI eARC Audio to Soundbar Adapter, meticulously crafted to seamlessly extract audio signals from HDMI sources or ARC/eARC-enabled TVs to transmit HDMI audio to your Soundbar. Supporting data rates up to 48Gbps and compliant with HDMI 2.1 and HDCP 2.3 standards, this adapter effortlessly manages UHDTV 8K at 60Hz resolutions, ensuring a superior audio-visual experience.

Designed with user convenience in mind, this adapter boasts features like EDID management and cable equalization, facilitating effortless integration into your HDMI setup. It offers a straightforward solution for routing audio signals to your Soundbar, simplifying HDMI installations. Additionally, enjoy seamless CEC control from your TV to the source and Soundbar, enhancing your overall entertainment experience.

Whether you're a home theater enthusiast or a professional installer, this adapter provides the reliability and performance needed for high-quality audio transmission, making it an essential component in modern HDMI configurations.

Key Features

• HDMI 2.1 and HDCP 2.3 compliant
• Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
• Handles video resolutions up to 8K at 60Hz 4:2:0 12bit, 4K at 120Hz 4:4:4 12bit
• No audio or video latency
• Supports 8/10/12bit color depths and RGB, YCbCr 4:4:4, YCbCr 4:2:0 color spaces
• Compatible with various audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
• Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
• Features EDID management and cable equalization
• Seamless CEC control from TV to source and Soundbar

Technical Specifications

HDMI Compliance: HDMI 2.1
HDCP Compliance: HDCP 2.3
Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
Video Resolution: Up to 8K at 60Hz 4:2:0 12bit, 4K at 120Hz 4:4:4 12bit
Audio Latency: No Latency
Video Latency: No Latency
Color Depth: 8/10/12bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
Audio Formats: HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X; eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

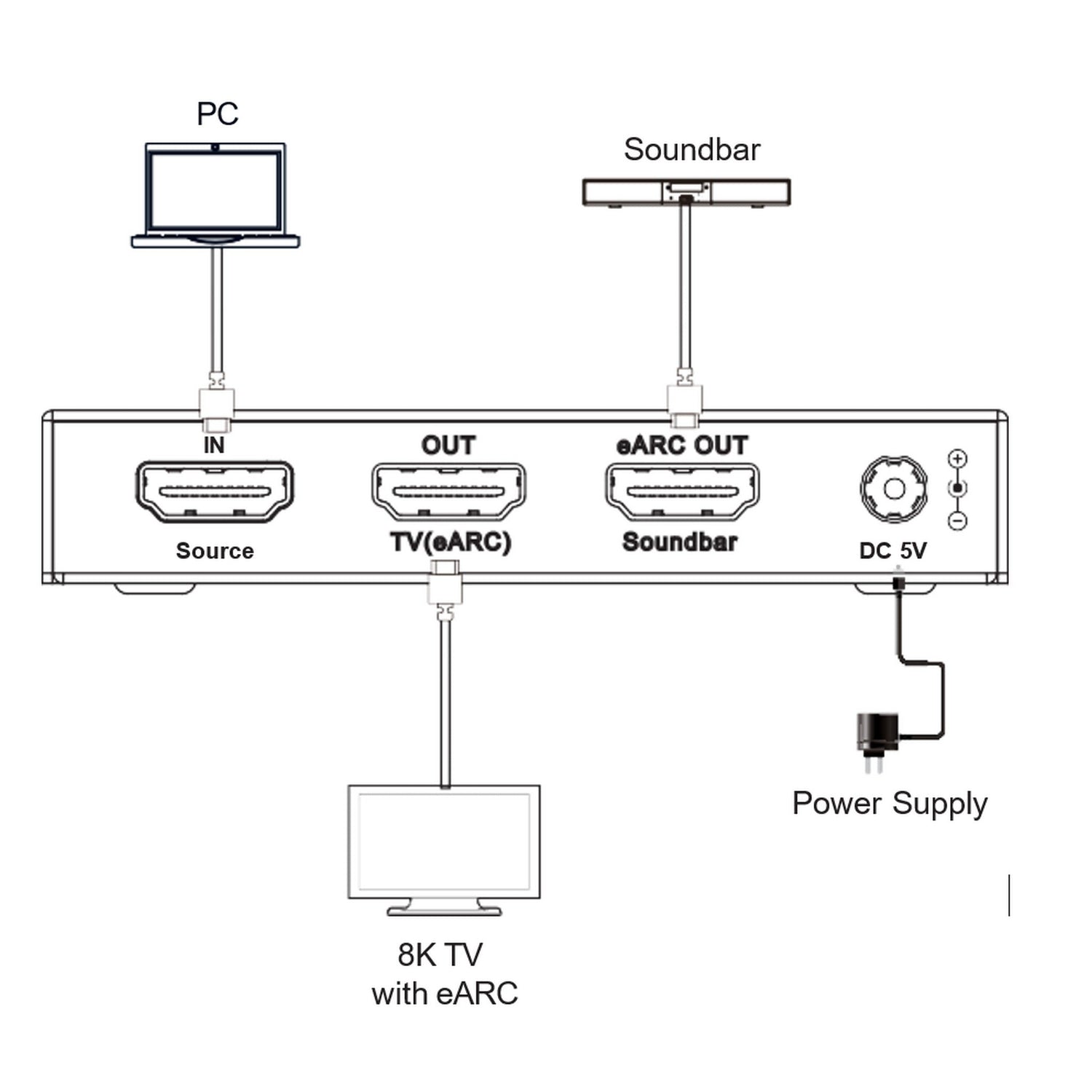

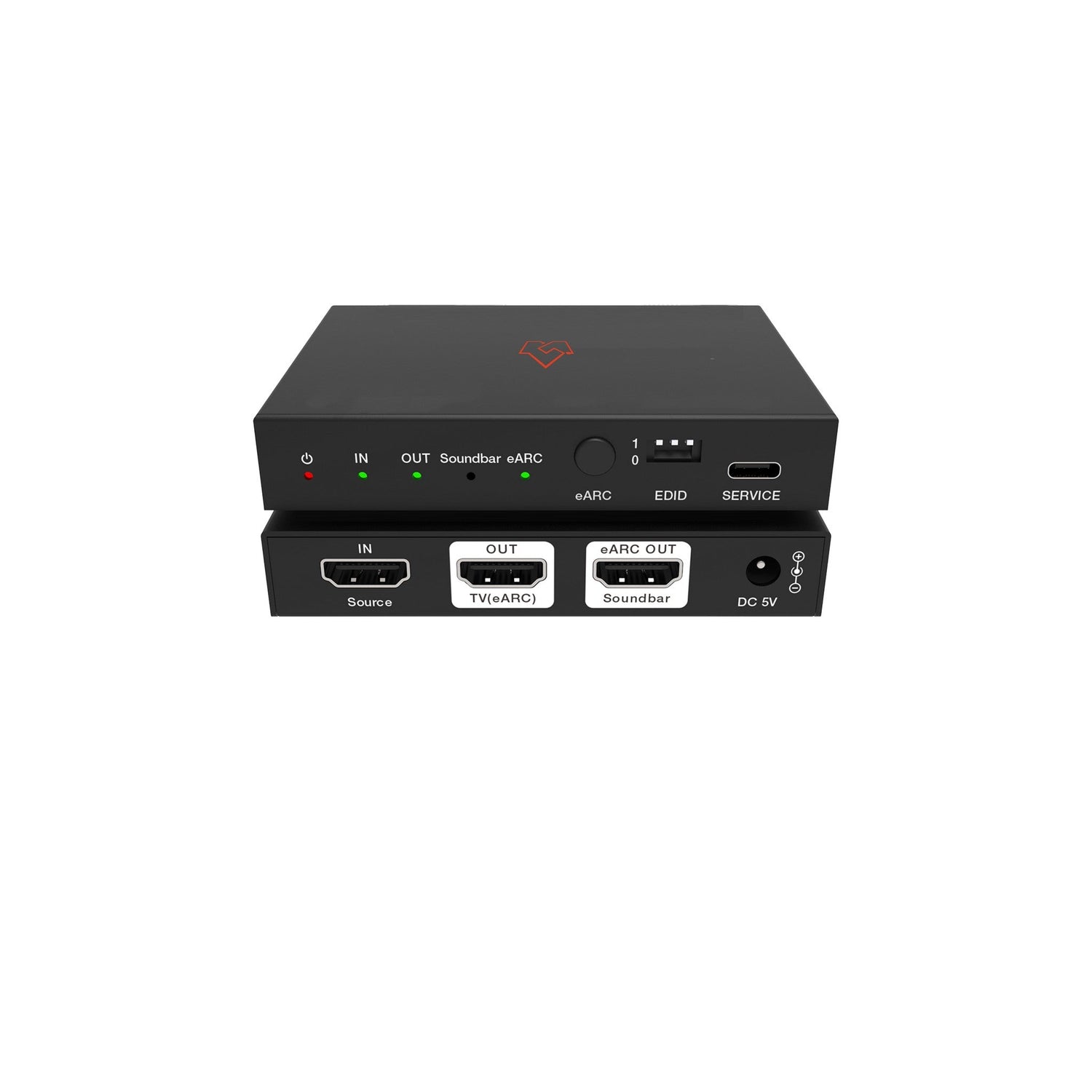

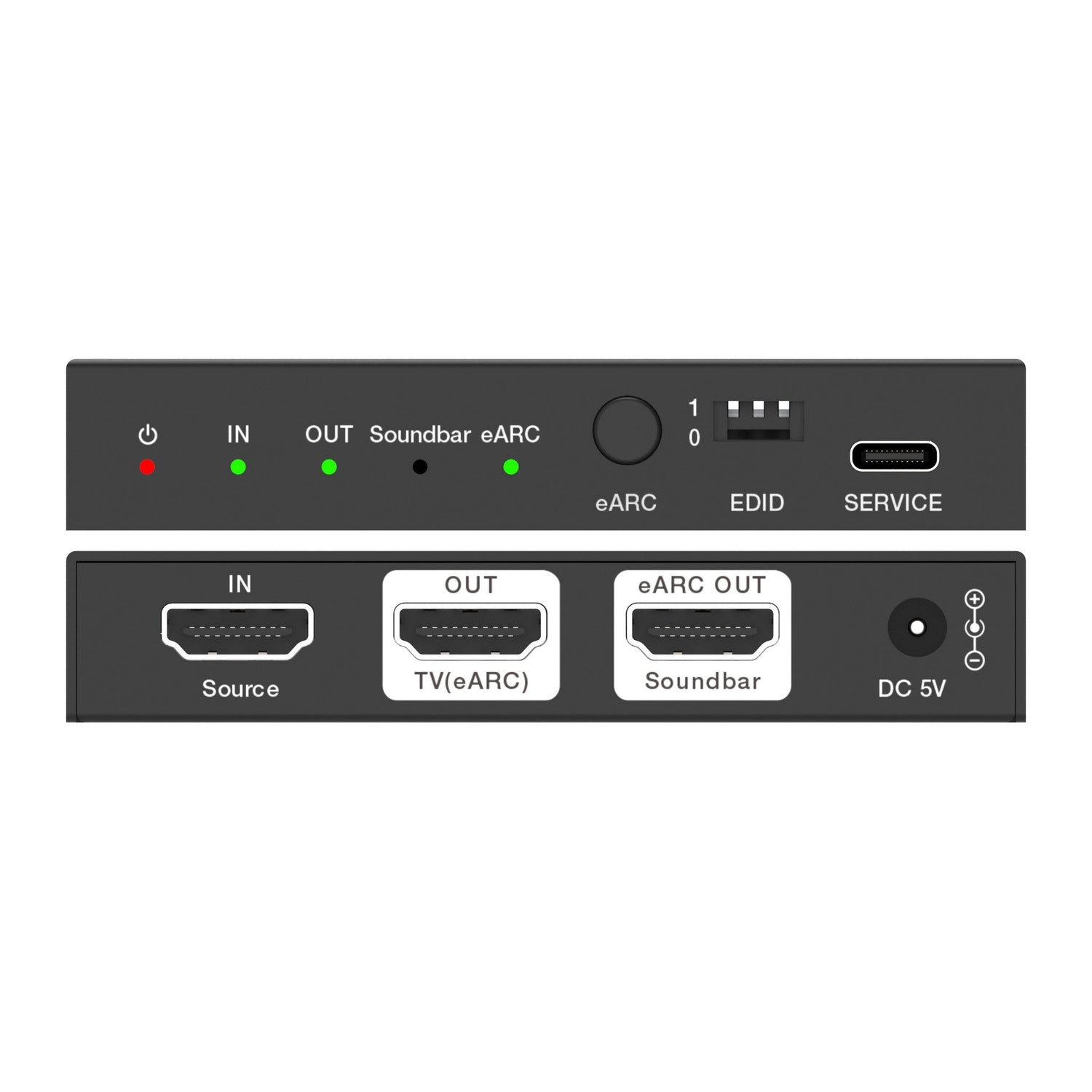

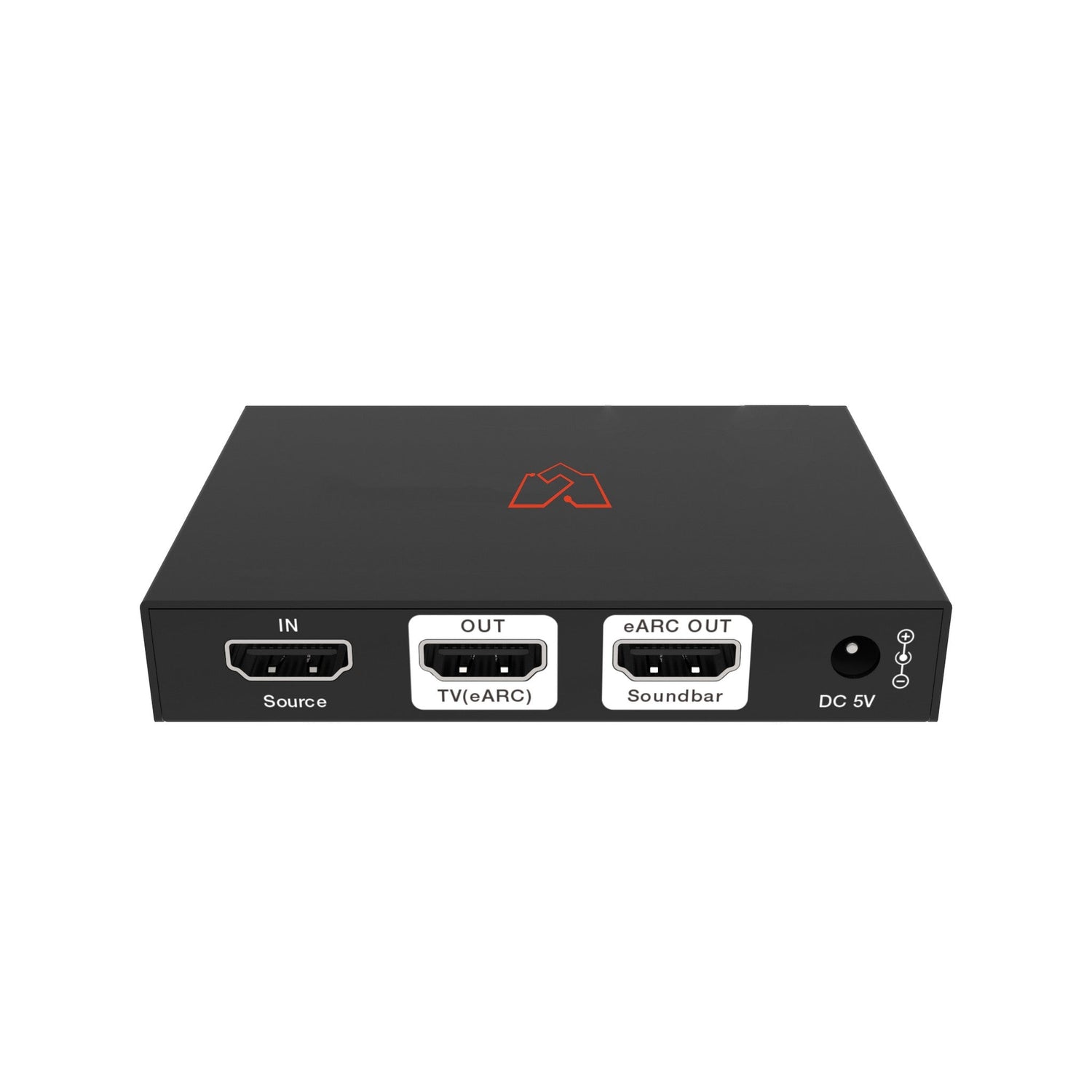

Inputs: 1 × Source IN [HDMI Type A, 19-pin female]
Outputs: 1 × TV(eARC) OUT [HDMI Type A, 19-pin female]; 1 × Soundbar eARC OUT [HDMI Type A, 19-pin female]
Control: 1 × SERVICE [USB Type C, Update port]

Housing: Metal Enclosure
Color: Black
Dimensions: 3.74" [W] × 2.68" [D] × 0.71" [H]
Weight: 0.39 lbs

Power Supply: Input: AC100 - 240V 50/60Hz; Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption: 4.13W

Operating Temperature: 32°F ~ 104°F
Storage Temperature: -4°F ~ 140°F
Relative Humidity: 20 - 90% RH (No condensation)

What's Included

• HDMI eARC Audio to Soundbar Adapter
• DC 5V/1A Power Adapter
• User Manual
