ADDER ALDV100R Digital AV HDMI Extender, Single Receiver
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

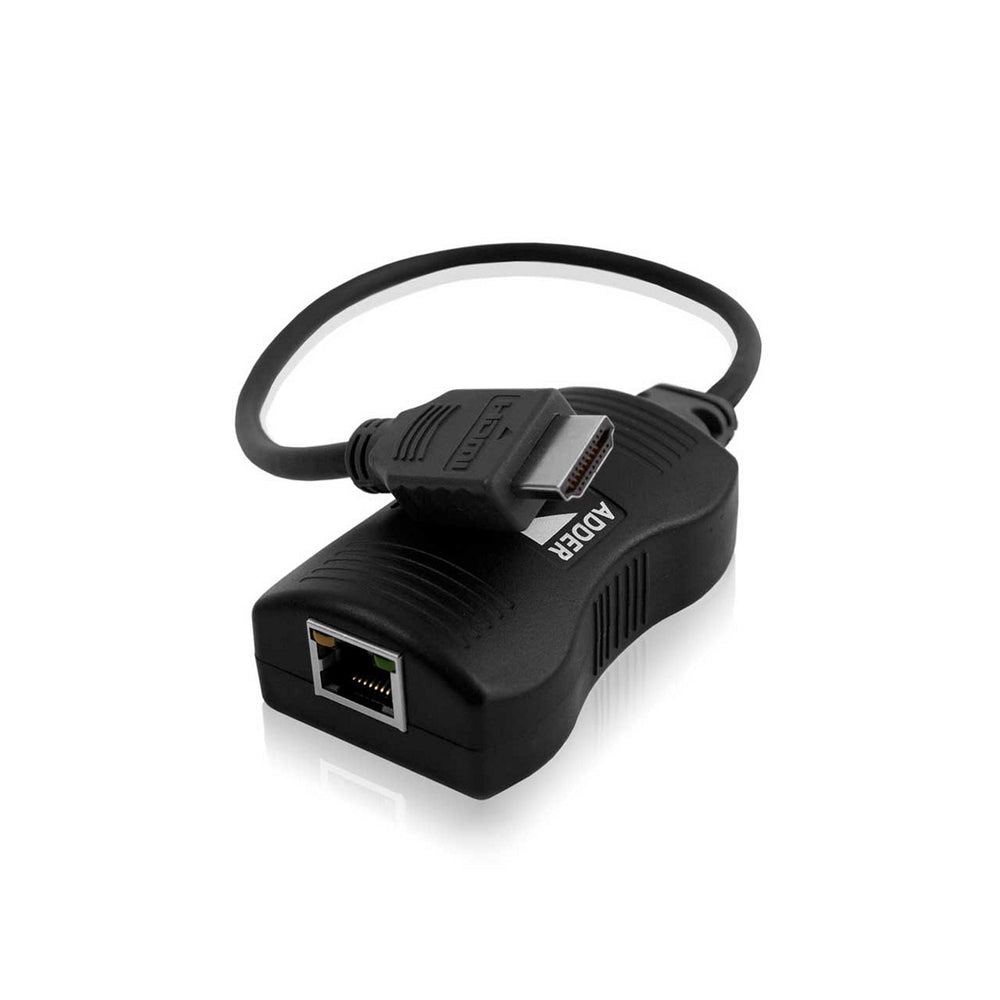

ADDERLink ALDV100R Digital AV HDMI Extender Single Receiver
The ADDERLink ALDV100R is a compact and efficient receiver unit designed for a seamless video extension experience. It allows for the transmission of high-definition video streams over a single CATx cable, ensuring that your media playback hardware can be securely housed in a controlled environment. This receiver is part of a larger system that enhances the user experience by keeping valuable equipment away from unsecure areas while maintaining high-quality video output.
With its ability to support resolutions up to 1920x1200 at 60Hz, the ALDV100R ensures pixel-perfect digital video without loss. It is powered via USB, eliminating the need for external power supplies and making it an energy-efficient solution for video extension. The device is designed for easy installation and operation, making it a reliable choice for both professional and personal use.
Key Features:
- Pixel perfect digital video with uncompressed communication, supporting resolutions up to 1920x1200 @60Hz (WUXGA).
- Extends video, audio, and power up to 50 meters over a single CATx cable.
- Highly energy efficient, powered by USB (5VDC - 2.5W for both RX and TX units combined).
- Supports eight channels of HDMI audio with various bit rates and sample rates.
- Intelligent EDID management for optimal display characteristics.
- Plug and Play functionality with no drivers or software required.
- Durable ABS enclosure designed to withstand everyday use.
Technical Specifications:
Operating Temperature: 0-40Ā°C (32 to 104Ā°F)
Power: USB Powered: 5VDC - 2.5W for both RX and TX units combined
Receiver Unit Connector: HDMI Type A Male
Supported Resolutions: 480p, 720p, 1080p, WUXGA (1920x1200) @60Hz, 24-bit color depth
Audio Support: Eight channels of HDMI audio; 16, 20, or 24 bit; 32kHz to 192kHz
Compatibility: All computers with HDMI and USB connections; all major operating systems
Regulatory Approvals: CE, FCC
Dimensions: Height: 0.8 in. (21 mm), Width: 1.8 in. (45 mm), Depth: 2.5 in. (63 mm)
Weight: Per pair: 0.6 lb (250g)
Package Contents:
- 1 x ADDERLink ALDV100R Receiver Unit
Warranty:
2 Year Limited
