AJA DANTE-12GAM 12G-SDI AoIP Converter with Dante, AES67 & ST 2110-30

AJA DANTE-12GAM 12G-SDI Audio Over IP Converter for Dante, AES67 & ST 2110-30

The AJA DANTE-12GAM is a high-performance Audio over IP (AoIP) converter built to embed and disembed SDI audio to a Dante network—and return Dante audio back to SDI—in a compact, rugged Mini-Converter form factor. Designed for professional broadcast and Pro AV workflows, it supports a single 12G-SDI video channel with independent 12G-SDI input and output, enabling simultaneous audio embedding and disembedding for up to 32 total Dante audio channels (up to 16 channels in and up to 16 channels out).

Built for modern IP audio integration, DANTE-12GAM supports Dante alongside AES67 interoperability and SMPTE ST 2110-30 AoIP, making it a practical bridge between SDI infrastructures and standards-based IP audio environments. With dual etherCON GigE ports for primary/secondary redundancy and PoE+ support on the primary port, it simplifies deployment while maintaining the resilience expected in mission-critical live production and facility installs.

For scalable systems, the platform can be expanded to dual-channel capability via an optional license and the addition of a compatible SFP option, increasing total Dante capacity up to 64 channels. Front-panel status and configuration controls, plus web-based monitoring, provide clear operational visibility whether the unit is installed in a rack, flypack, or remote production kit.

Key Features of the AJA DANTE-12GAM AoIP SDI-to-Dante Converter

• 12G-SDI Audio Embed/Disembed Bridge: Converts SDI embedded audio to/from Dante for seamless integration of SDI sources with IP audio networks.
• Up to 32 Channels Total (Single Channel Mode): Supports up to 16 audio channels in and up to 16 audio channels out simultaneously for a total of 32 channels.
• Dante, AES67, and SMPTE ST 2110-30 Support: Works within Dante environments while enabling interoperability with AES67 and ST 2110-30 audio workflows.

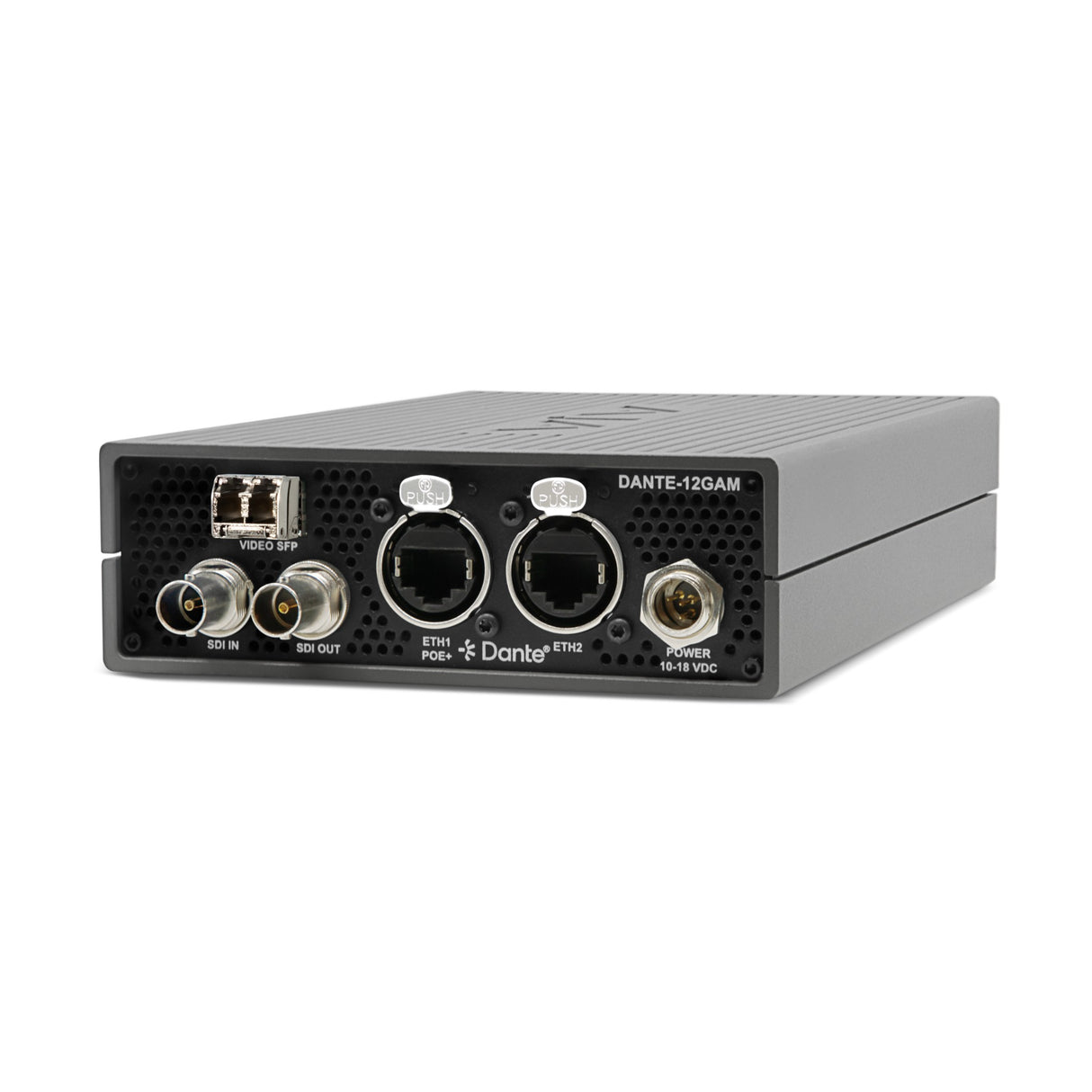

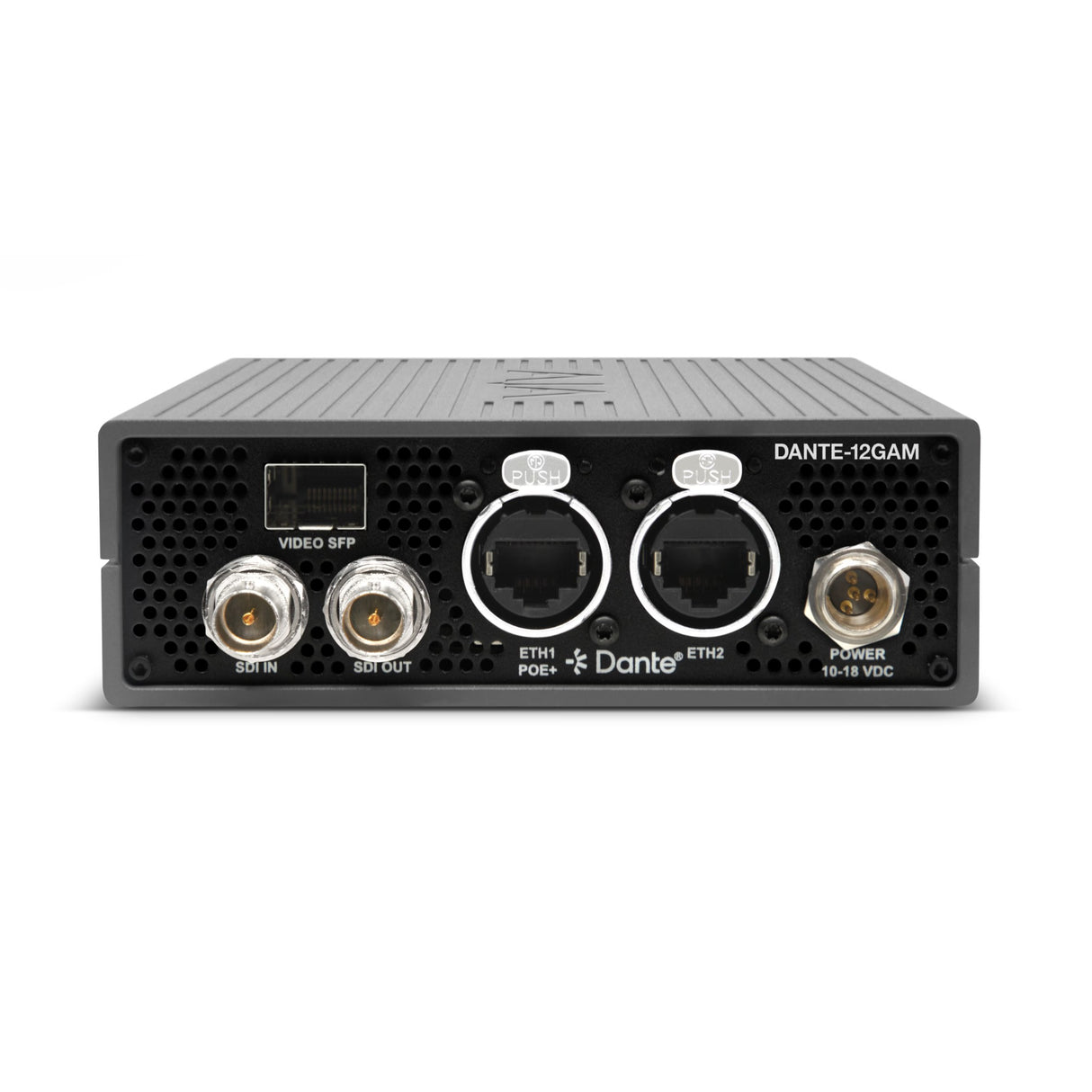

• Redundant Networking with Dual etherCON Ports: Includes primary and secondary 1 GigE etherCON ports for Dante network redundancy.
• PoE+ on Primary Ethernet: Powers the unit via PoE+ on the primary port to reduce cabling complexity where supported.
• Internal SDI Signal Generator: Enables transmitting Dante audio channels over SDI without an external SDI source signal.

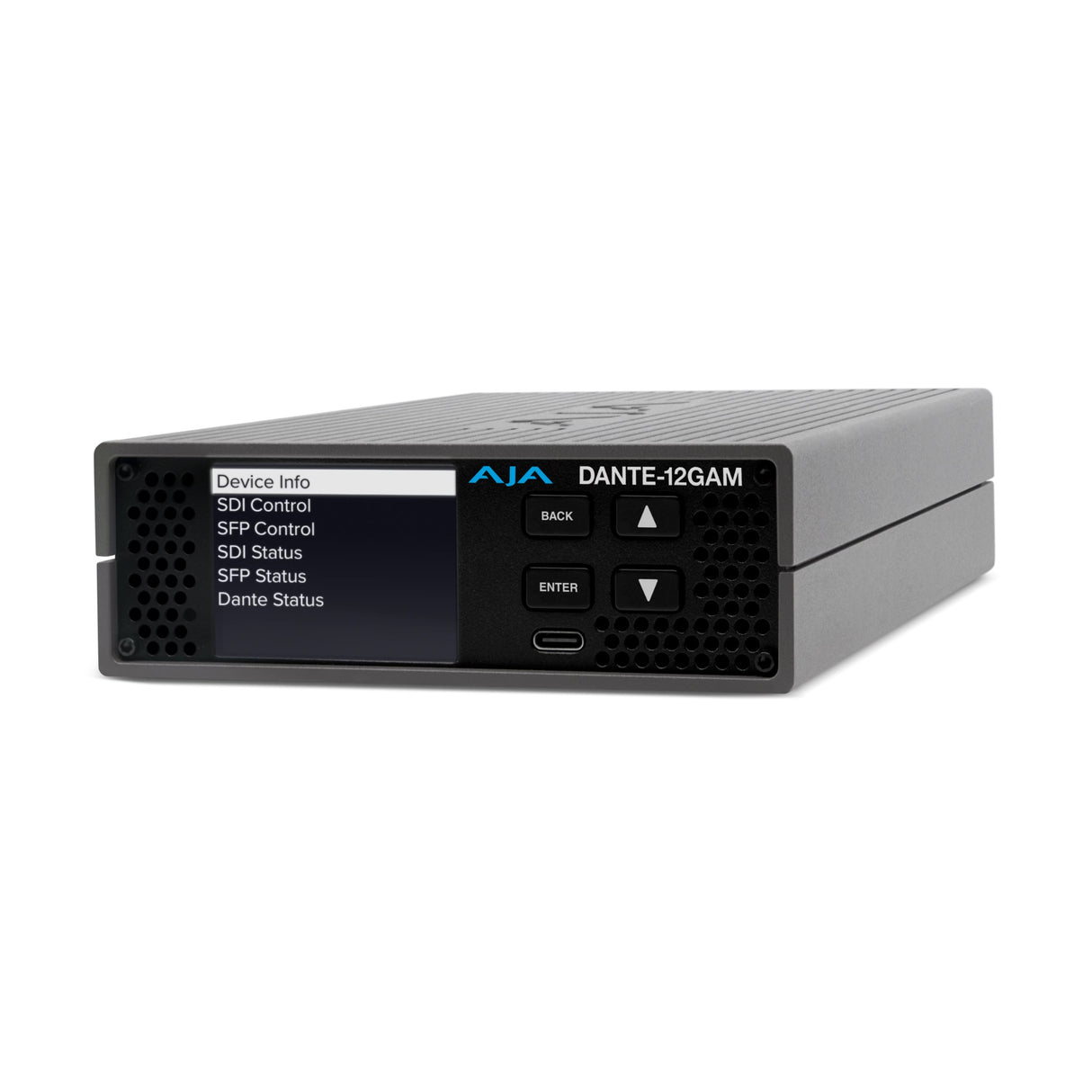

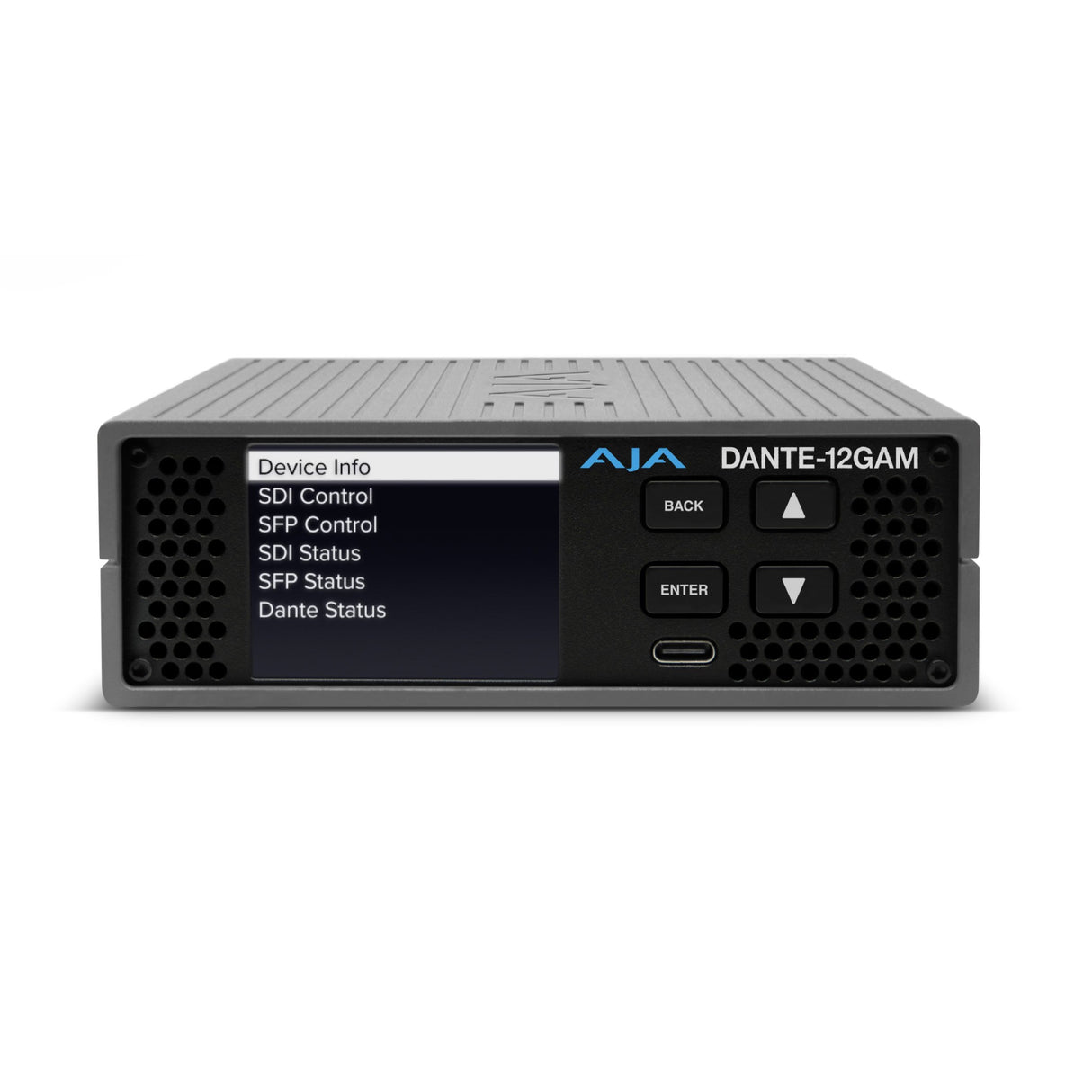

• Front-Panel LCD and Physical Controls: Onboard display with Back/Enter/Up/Down buttons for standalone configuration and quick status checks.
• USB-C for Initial Static IP Setup: USB-C connectivity supports initial Static IP configuration using AJA eMini-Setup software.
• Remote Monitoring via AJA Web UI: Integrated web server provides user-friendly monitoring, configuration, and firmware update access.
• Upgradeable to Dual Channel Capacity: Optional license plus compatible SFP expands support up to 64 channels in dual-channel configurations.
• Included Power Supply and Long Warranty: 12V, 60W power supply included and covered by a five-year warranty.

Technical Specifications

Video Formats Supported

• 4K (4096x2160p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• UltraHD (3840x2160p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 2K (2048x1080p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
• 2K (2048x1080PsF): 23.98, 24, 25, 29.97, 30
• HD (1920x1080p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• HD (1920x1080PsF): 23.98, 24, 25, 29.97, 30
• HD (1920x1080i): 50, 59.94, 60
• HD (1280x720p): 50, 59.94, 60
• Color Sampling/Depth: RGB and YCbCr, 4:4:4 / 4:2:2, 10-bit or 12-bit

Video I/O

• Video Input (Digital): 1-channel independent 12G-SDI BNC, SMPTE 292/424/2081/2082 (Single Link HD/2K/UltraHD/4K)
• Video Output (Digital): 1-channel independent 12G-SDI BNC, SMPTE 292/424/2081/2082 (Single Link HD/2K/UltraHD/4K)
• Video Path Delay (Latency): 12G = 3.6 µsec; 6G = 7.2 µsec; 3G Level B Dual Link = 7.2 µsec; 3G Level A = 3.6 µsec; HD (1.5G) = 7.2 µsec

Audio and Network

• SDI Embedded Audio: SMPTE 299M (12G/6G/3G/1.5G), 24-bit, 48 kHz synchronous; incoming audio can be passed, removed, or overridden
• Embedded Audio Capacity: 4 groups (16 channels) per SDI path; note: 2048x1080p/PsF 29.97 and 30 support max 8 embedded channels
• Dante Audio Channels: Up to 32 channels total via Dante (single channel mode)
• Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Audio Encoding: PCM 16, PCM 24, PCM 32
• Audio Latency: Embed path 1500 µsec; disembed path 1410 µsec
• Network Ports: 2x Neutrik etherCON RJ-45, 100/1000 Ethernet (Primary + Secondary)
• PoE+: IEEE 802.3at Class 4, Type 2 (25.5W max) on Primary Ethernet port
• IP Audio Standards: PTPv2, AES67, SMPTE ST 2110-30 compatible

Control and Setup

• User Interface: Onboard LCD with buttons (Enter/Back/Up/Down), AJA Web UI
• Software Control: Dante Controller, Dante Domain Manager, and network management applications
• USB: USB-C port for initial Static IP configuration using AJA eMini-Setup

Power and Environmental

• Power Input: 10–18VDC regulated, 4-pin mini-XLR
• Power Consumption: 16W typical (3G-SDI), 21W typical (12G-SDI), 25W max
• AC Adapter Included: 100–240VAC, 50/60 Hz universal input, 60W
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Storage Temperature (Power Off): -40 to 140°F (-40 to 60°C)
• Operating Humidity: 10–90% non-condensing
• Operating Altitude: < 10,000 feet (< 3,000 meters)

Physical

• Size (W x D x H): 5.0 x 8.09 x 1.65 in
• Weight: 1.92 lb
