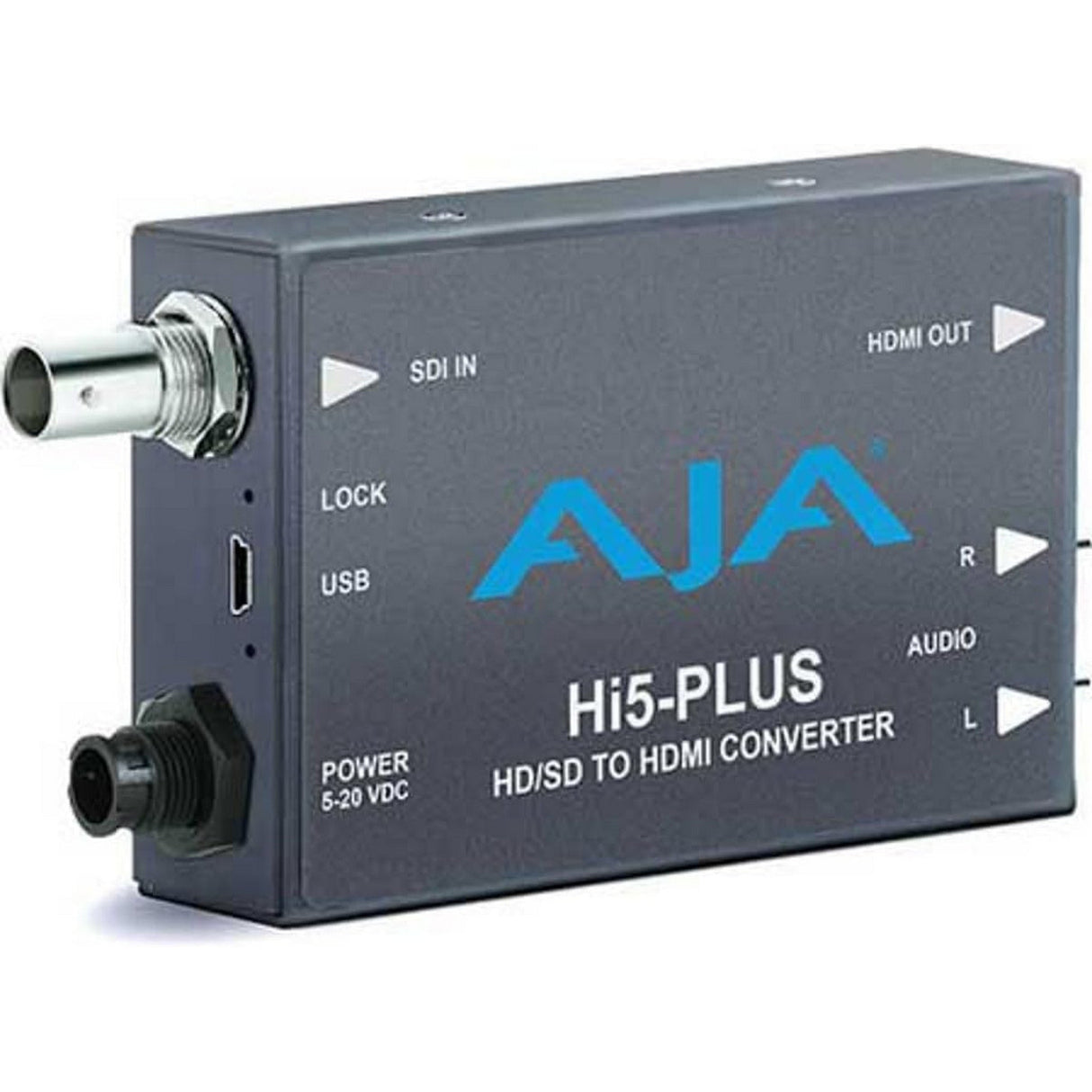

AJA Hi5-Plus HD SD 3G-SDI to HDMI Converter
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
AJA Hi5-Plus HD SD 3G-SDI to HDMI Converter
AJA Hi5-Plus is a compact video converter designed for professional monitoring and recording environments. It enables conversion of HD, SD, and 3G-SDI signals to HDMI for engineers and operators, supporting broadcast, production, and live event workflows. This makes it ideal for situations where integrating HDMI displays into SDI-based systems is critical.
The converter processes SDI inputs and outputs HDMI signals compatible with professional monitors. It supports embedded SDI audio handling and allows configuration through a USB connection using supported software. The unit operates as a standalone converter suitable for fixed or portable deployments.
This converter allows reliable monitoring of SDI sources on HDMI displays across production environments. It supports flexible audio handling and signal compatibility for common professional workflows. Users can deploy it in studios, OB trucks, or on-location setups requiring dependable SDI-to-HDMI conversion.
Key Features
- 3G-SDI to HDMI Conversion: Converts professional SDI signals for HDMI monitoring
- HD and SD Support: Handles multiple SDI signal formats
- Embedded Audio Handling: Supports embedded SDI audio on HDMI output
- USB Configuration Interface: Allows setup and control via USB connection
- Compact Standalone Design: Suitable for portable and fixed installations
Technical Specifications
Video Formats(2K) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 1080PsF* 23.98, 24, 25, 29.97, 30
(HD) 1080i 50, 59.94, 60
(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1080PsF* 23.98, 24, 25, 29.97, 30
(HD) 720p 50, 59.94, 60
(SD) 625i
(SD) 525i
*Converts to progressive
Video Input
3G-SDI with embedded audio
Video Outputs HDMI with embedded audio up to 8-channels (selectable by Mini-Config)
8-bit RGB 4:4:4
10-bit YCbCr 4:2:2
12-bit
Audio Input
SDI embedded audio, select from 16-channels
Audio Output
2-channel RCA style (-10dBu nominal)
Size (w x d x h)
4.6ā Ć 2.4ā Ć 1.0ā (117 Ć 61 Ć 25mm)
Weight
0.3 lb (0.2 kg)
Power
Universal power supply included
100-240V, 50/60 Hz universal input
+5V DC regulated, 7.5 watt capacity
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
Whatās in the Box
(1) AJA Hi5-Plus SDI to HDMI Converter(1) Power Supply
Limited 5-Year Manufacturer Warranty
