AJA UDC-4K 12G-SDI and HDMI Up/Down/Cross Converter with Frame Sync
The AJA UDC-4K is a compact, professional-grade Mini-Converter designed to handle 4K, UHD, 2K, and HD signal conversion. It offers up, down, and cross-conversion between formats with frame synchronization and a built-in 1x4 12G-SDI distribution amplifier. Equipped with 12G-SDI and HDMI 2.0 inputs and outputs, the UDC-4K delivers seamless raster and frame rate conversions while maintaining superior broadcast image quality.
Key Features
- Up, down, and cross-conversion between 4K/UHD/2K/HD formats

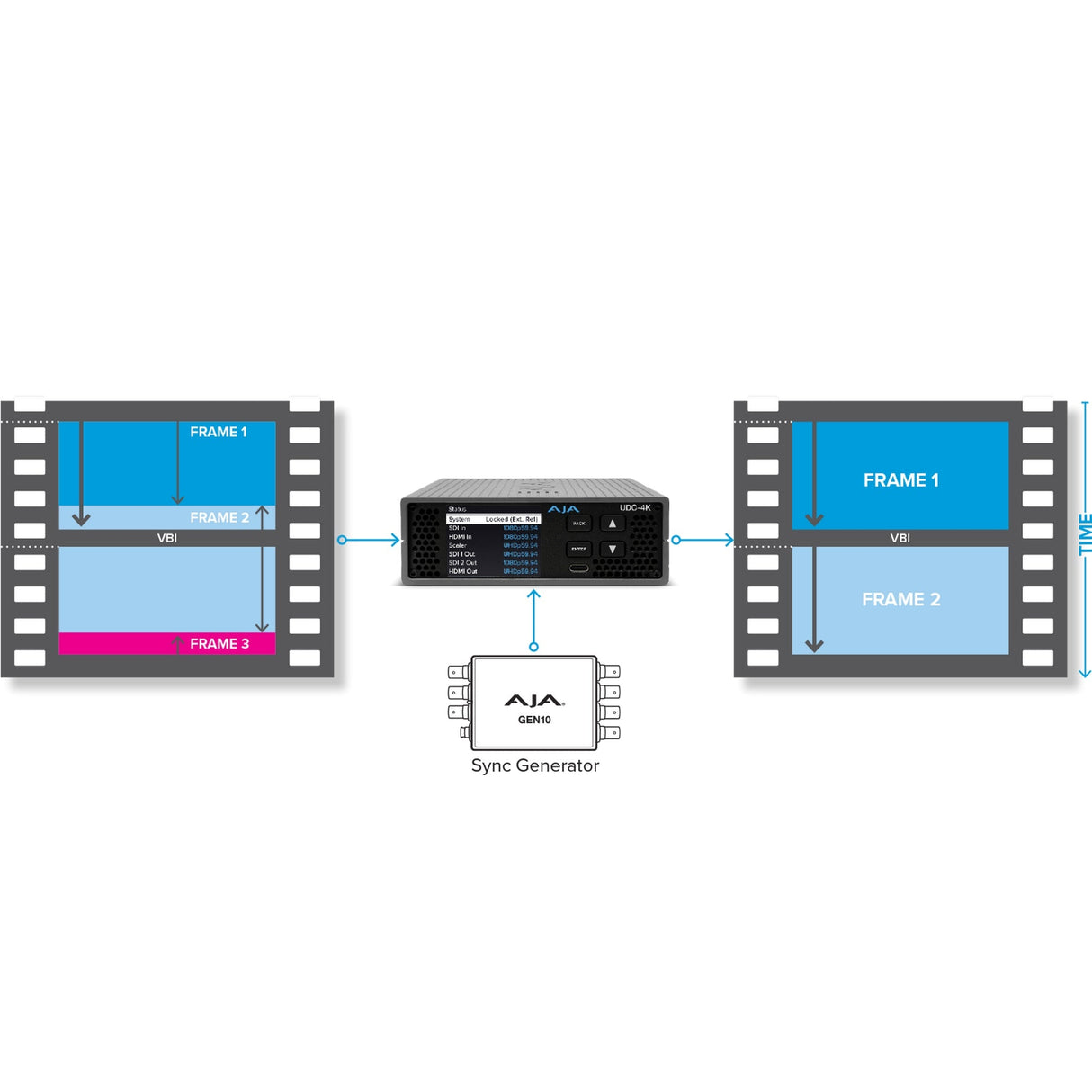

- Frame synchronization and frame rate conversion
- Supports up to 4Kp60 with 12-bit processing
- Converts between 12G-SDI and HDMI 2.0 signals
- Integrated 1x4 12G-SDI Distribution Amplifier
- HDR metadata pass-through and optional override
- Embedded 16-channel SDI and 8-channel HDMI audio support
- High-quality 12-bit AJA scaling technology with multi-tap polyphase algorithm
- External reference, SDI, HDMI, or free-run genlock options

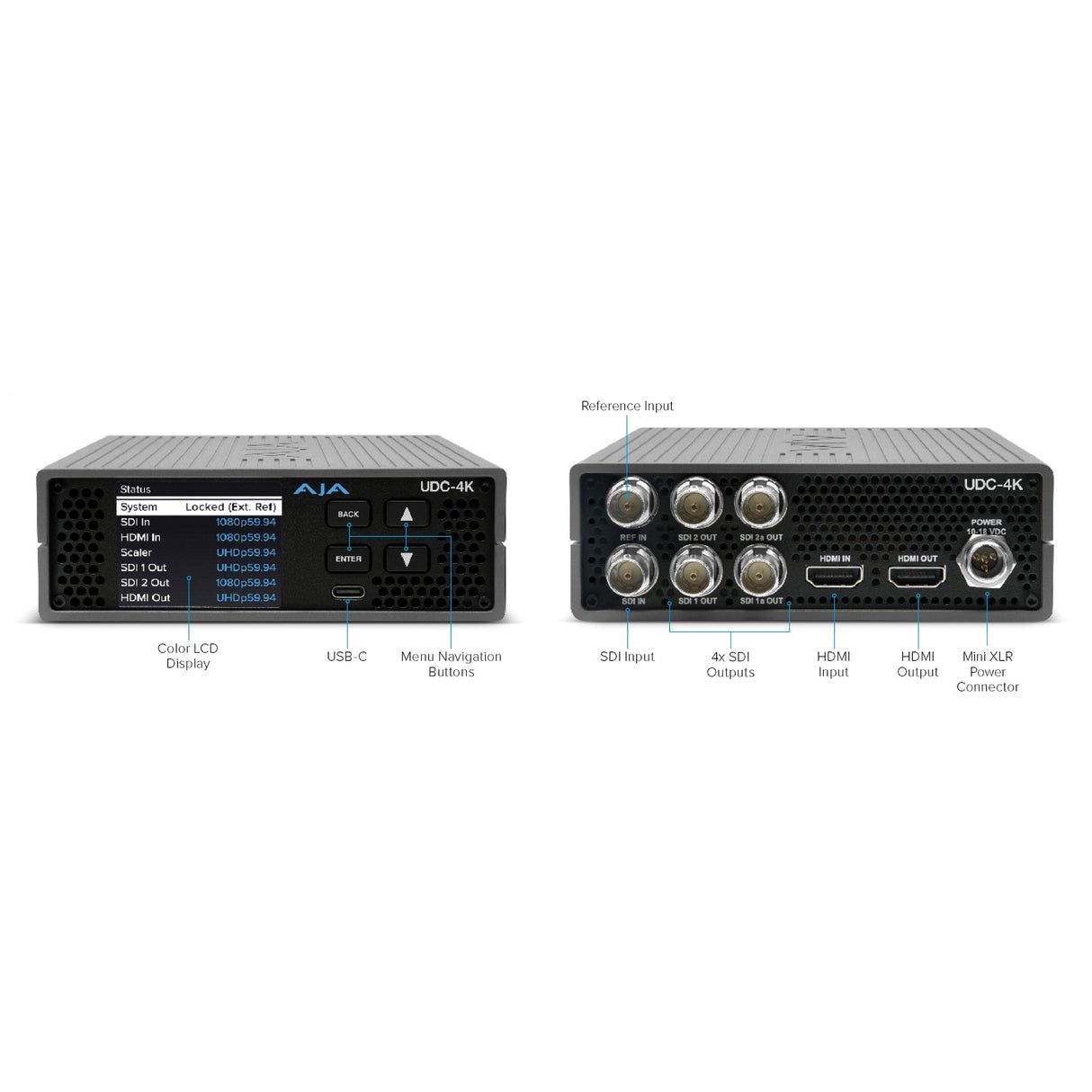

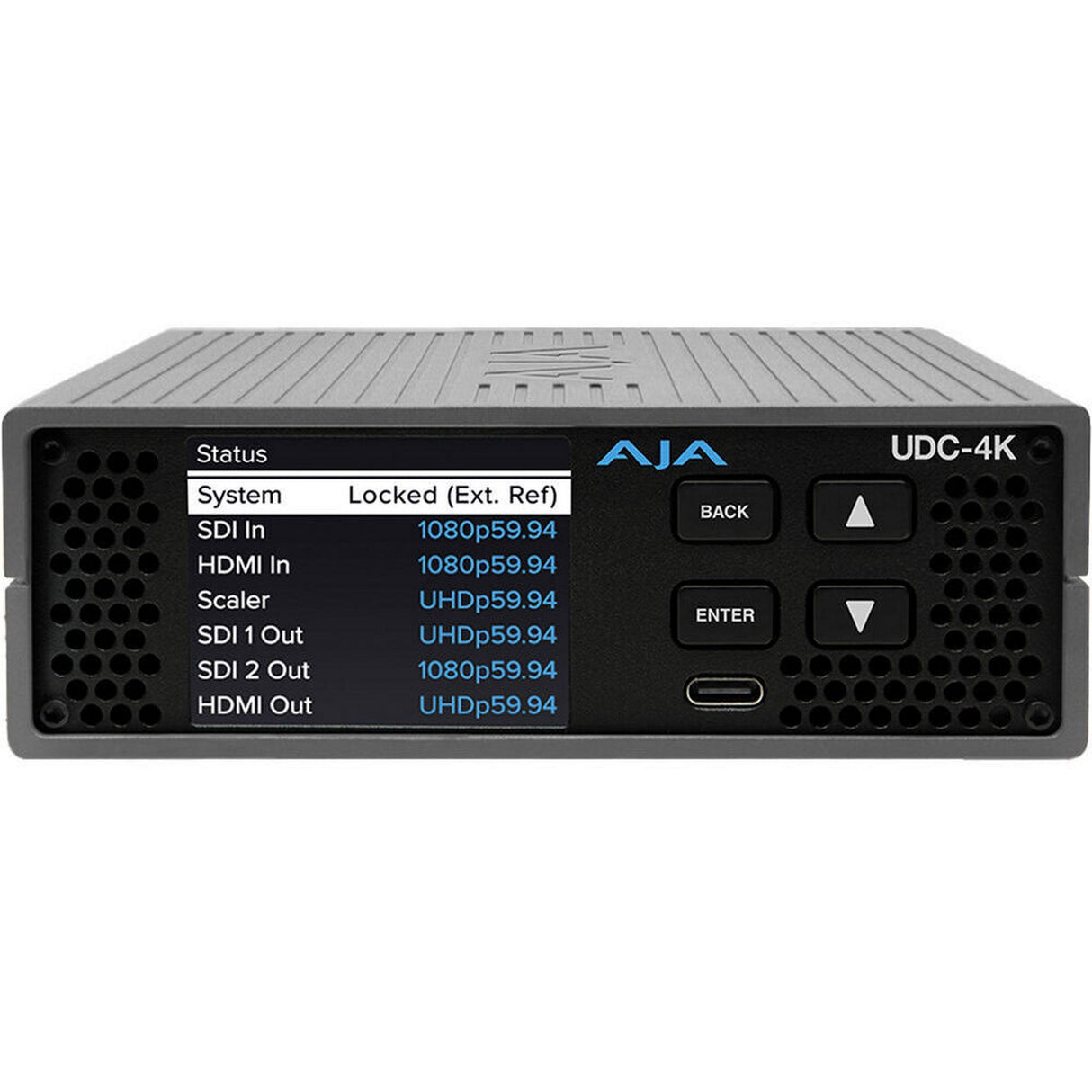

- Onboard LCD display with button controls and USB-C Mini-Config support
- Rugged aluminum chassis with quiet cooling system
- Universal 100ā240V AC power adapter included
- 5-year warranty
Technical Specifications
- Video Formats: 4K/UHD/2K/HD up to 60p
- Video Inputs: 1x 12G-SDI BNC, 1x HDMI 2.0 Type A
- Video Outputs: 4x 12G-SDI BNC, 1x HDMI 2.0 Type A
- Audio: 24-bit, 16-channel SDI and 8-channel HDMI embedded audio
- Audio Delay: Adjustable up to 100 frames
- Processing: 12-bit hardware conversion
- Size (W x D x H): 5.0 x 8.09 x 1.65 in
- Weight: 2.0 lb (0.9 kg)
- Power: 10ā18VDC via 4-pin mini-XLR (25W max)
- Operating Temperature: 0 to 40Ā°C (32 to 104Ā°F)
- Storage Temperature: -40 to 60Ā°C (-40 to 140Ā°F)
