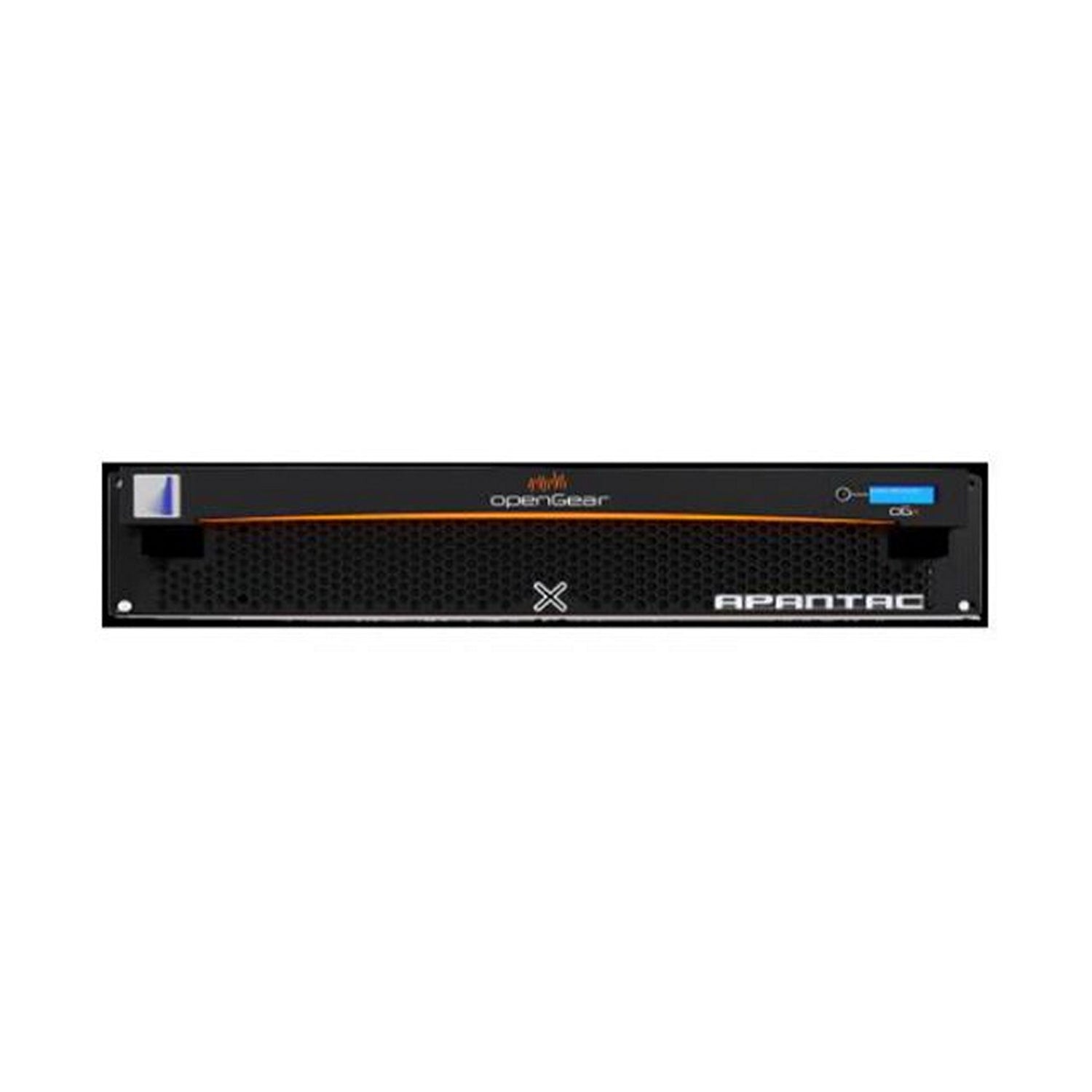

Apantac 22-Slot openGear X High Power Frame with Network Controller

Apantac 22-Slot openGear X High Power Frame with Network Controller

The Apantac 22-Slot openGear X High Power Frame is engineered to meet the demanding requirements of modern broadcast and production environments. Featuring a high-powered 600W power supply and an advanced cooling system, this frame ensures optimal performance and reliability. Its modular architecture accommodates up to 20 openGear card slots, with dedicated slots for network control and internal reference distribution, providing unparalleled flexibility for various signal processing needs.

Equipped with Gigabit Ethernet access to every slot and an intuitive front LCD screen for easy frame, IP address, and fault identification, the OGX-FR-CN-P streamlines system management and monitoring. The intelligent fan controller adjusts fan speed based on power supply loading and temperature, enhancing energy efficiency and prolonging equipment lifespan. Designed for seamless integration, this frame supports a wide range of I/O modules, making it an indispensable asset for professionals seeking a robust and adaptable solution.

Key Features

• High-Powered 600W Power Supply: Provides robust and reliable power to support all installed modules.
• Advanced Cooling System: Ensures optimal operating temperatures with front door-mounted cooling fans and intelligent fan control.
• Gigabit Ethernet Access: Offers high-speed network connectivity to every card slot for seamless data transmission.
• Modular Architecture: Accommodates up to 20 openGear card slots, with additional slots for network control and reference distribution.
• Front LCD Display: Facilitates easy identification of frame status, IP address, and fault notifications.
• Redundant Power Supply Option: Enhances reliability with support for an optional second power supply.
• Tool-Free Maintenance: Removable front door assembly allows quick and easy access for maintenance without tools.
• DashBoard Control System: Enables comprehensive setup, control, and monitoring of the frame and installed modules.

Technical Specifications

• Frame Capacity: Supports up to 20 openGear card slots, plus dedicated slots for network control and reference distribution.
• Power Supply: 600W with optional redundancy.
• Ethernet: Gigabit Ethernet access to each card slot.
• Cooling: Front door-mounted fans with intelligent speed control.
• Display: Integrated front LCD for status monitoring.
• Dimensions: Standard 2RU rackmount; specific dimensions not provided.
• Weight: Approximately 15 lbs (without modules).
• Compatibility: Supports a wide range of I/O modules for various signal processing applications.

Package Contents

• 1x Apantac OGX-FR-CN-P openGear X High Power Frame
• 1x Advanced Network Controller with GigE access
• 1x PS-OGX 600W Power Supply
• 1x Cooling System
• 1x Reference Card
