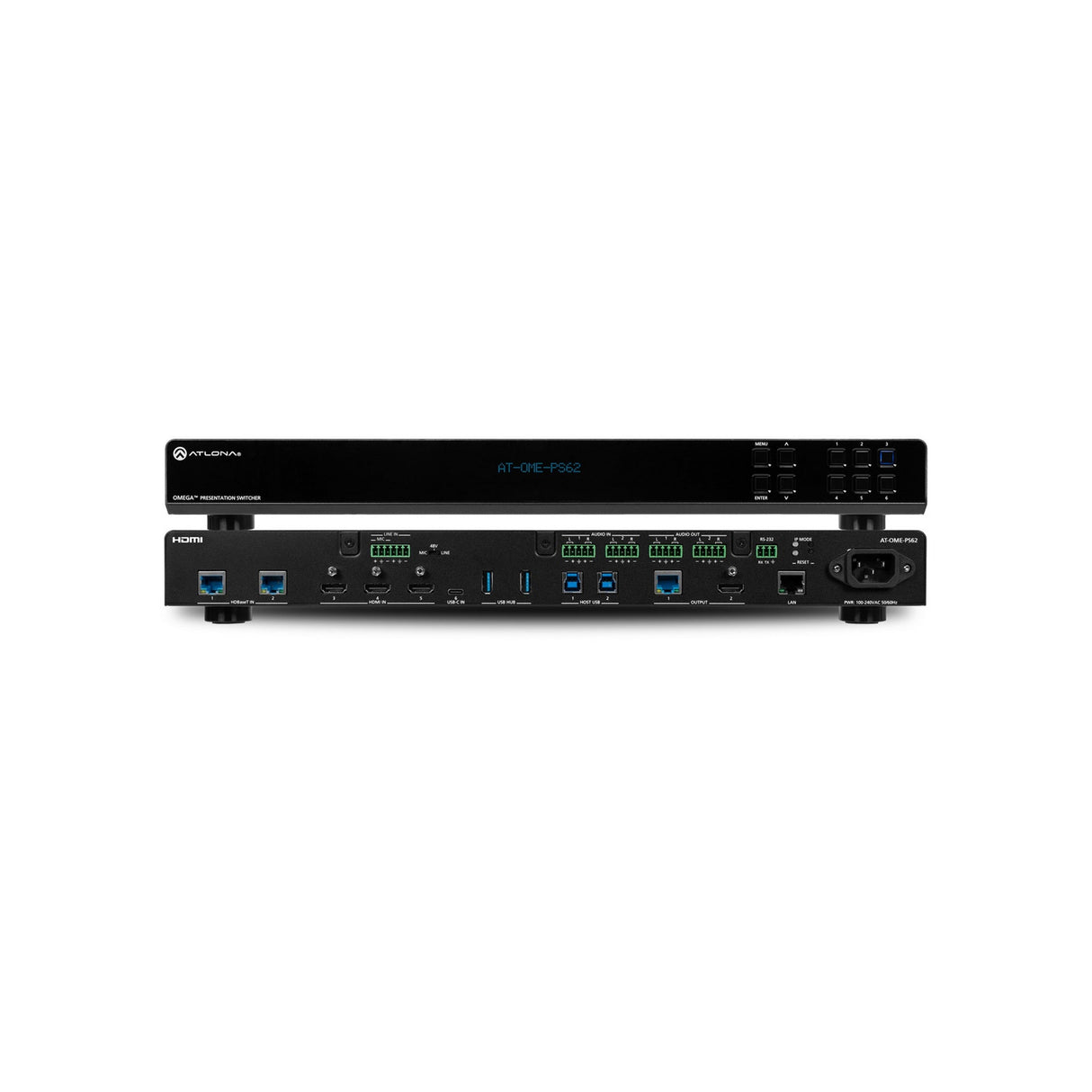

Atlona AT-OME-PS62 6x2 Matrix Presentation Switcher with USB Hub
The Atlona AT-OME-PS62 is a 6x2 matrix presentation switcher designed for modern AV systems, offering flexible HDMI, HDBaseT, and USB-C connectivity. This versatile device combines powerful video switching, USB extension, and audio processing in a compact 1U rack-mountable design—ideal for conference rooms, classrooms, and collaborative spaces requiring multi-format presentation control.
With support for 4K/UHD at 60 Hz and 4:4:4 chroma sampling (on local ports), the OME-PS62 ensures exceptional video quality across HDMI and USB-C sources. It integrates USB 2.0 data handling for video conferencing peripherals, and features automatic input selection and switching for effortless operation. HDBaseT connectivity extends video, audio, control, Ethernet, and USB signals up to 330 feet (100 meters).
Engineered for professional AV environments, the AT-OME-PS62 includes comprehensive control via RS-232, IP, CEC, and web interface. It also provides advanced audio processing, microphone support with phantom power, and flexible output routing—making it an all-in-one hub for presentation systems in business, education, and government settings.

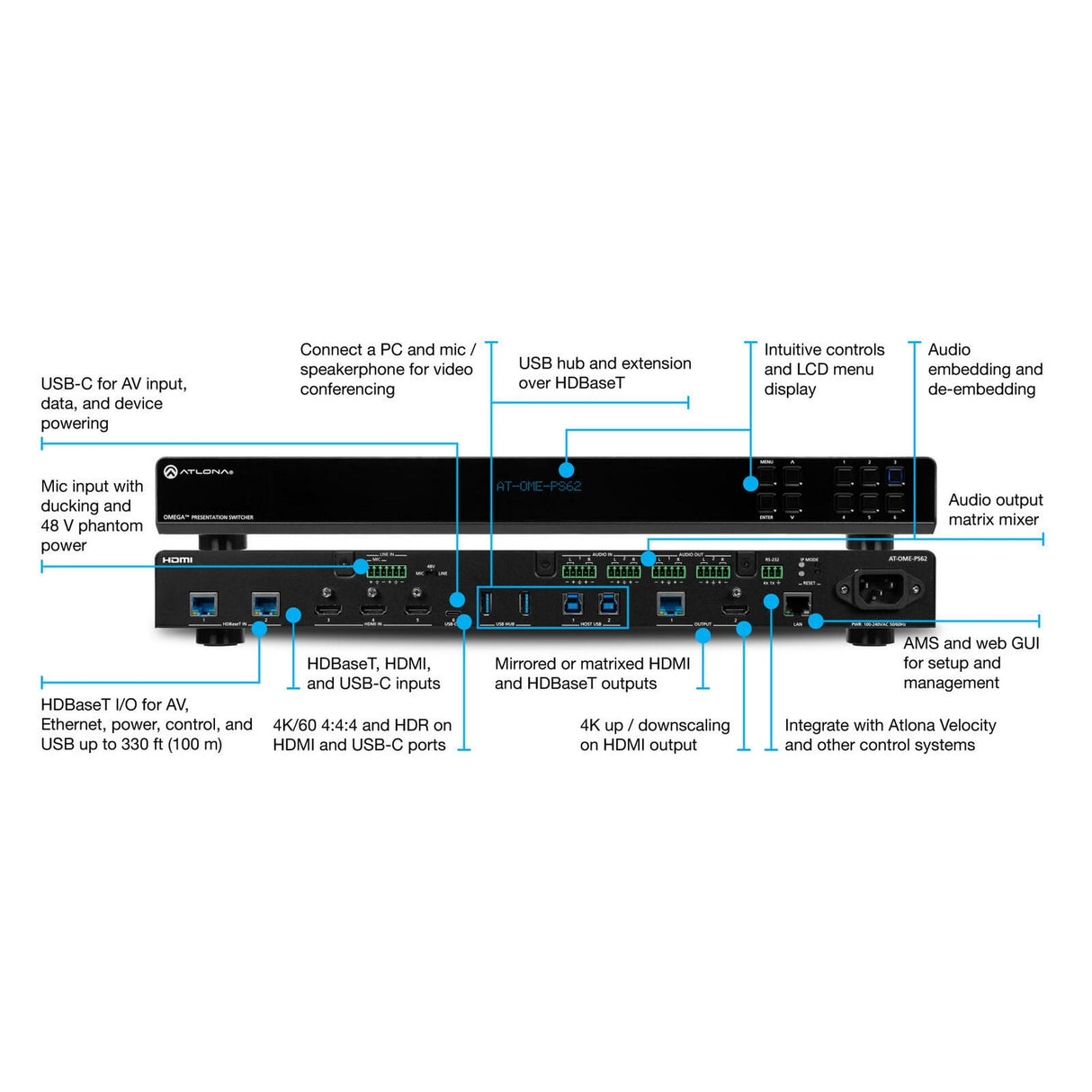

Key Features
- 6x2 Matrix Switching: Routes up to six AV inputs (HDMI, HDBaseT, USB-C) to two independent outputs.
- USB-C Input: Supports AV, USB data, and device charging up to 60 watts.
- HDBaseT Extension: Transmits AV, control, and USB up to 330 ft (100 m) over category cable.
- 4K/UHD Video Support: Up to 4096×2160 @ 60 Hz with 4:4:4 chroma (local HDMI and USB-C ports).
- Audio Processing: Built-in 5-band EQ, microphone ducking, and phantom power support.
- Professional Control Options: RS-232, IP, CEC, and web-based configuration.
- Comprehensive Compatibility: Supports Dolby Vision, HDR10, HLG, and multiple Dolby/DTS audio formats.
Technical Specifications
- Video Inputs: 3 × HDMI, 2 × HDBaseT, 1 × USB-C
- Video Outputs: 1 × HDMI, 1 × HDBaseT
- Video Formats: Up to 4096×2160 @ 60Hz (4:4:4, 4:2:2, 4:2:0)
- HDR Support: HDR10, HLG, Dolby Vision @ up to 60Hz
- Audio Inputs: HDMI, HDBaseT, analog line/mic (balanced/unbalanced)
- Audio Outputs: HDMI, HDBaseT, analog stereo (balanced/unbalanced)
- Audio Formats: PCM 2.0, LPCM 5.1/7.1, Dolby Atmos, DTS:X
- Analog Audio: +4 dBu nominal gain, 20 Hz–20 kHz, ±0.5 dB, THD+N < 0.004%
- USB: USB 2.0, max data rate 120 Mbps; host/device via USB-B and USB-C ports
- Control: RS-232, IP (HTTPS, Telnet, mDNS), CEC
- Power Supply: 100–240 VAC, 50/60 Hz internal supply
- Power Consumption: 58W typical; 170W with full USB-C and HDBaseT power draw
- Operating Temperature: 32–122°F (0–50°C)
- Dimensions (H×W×D): 1.73 × 17.24 × 10 in (44 × 438 × 254 mm)
- Weight: 7.76 lb (3.52 kg)
- Certifications: CE, FCC, UL
