Autel Robotics Autel Alpha Bundle

Autel Robotics Autel Alpha Bundle

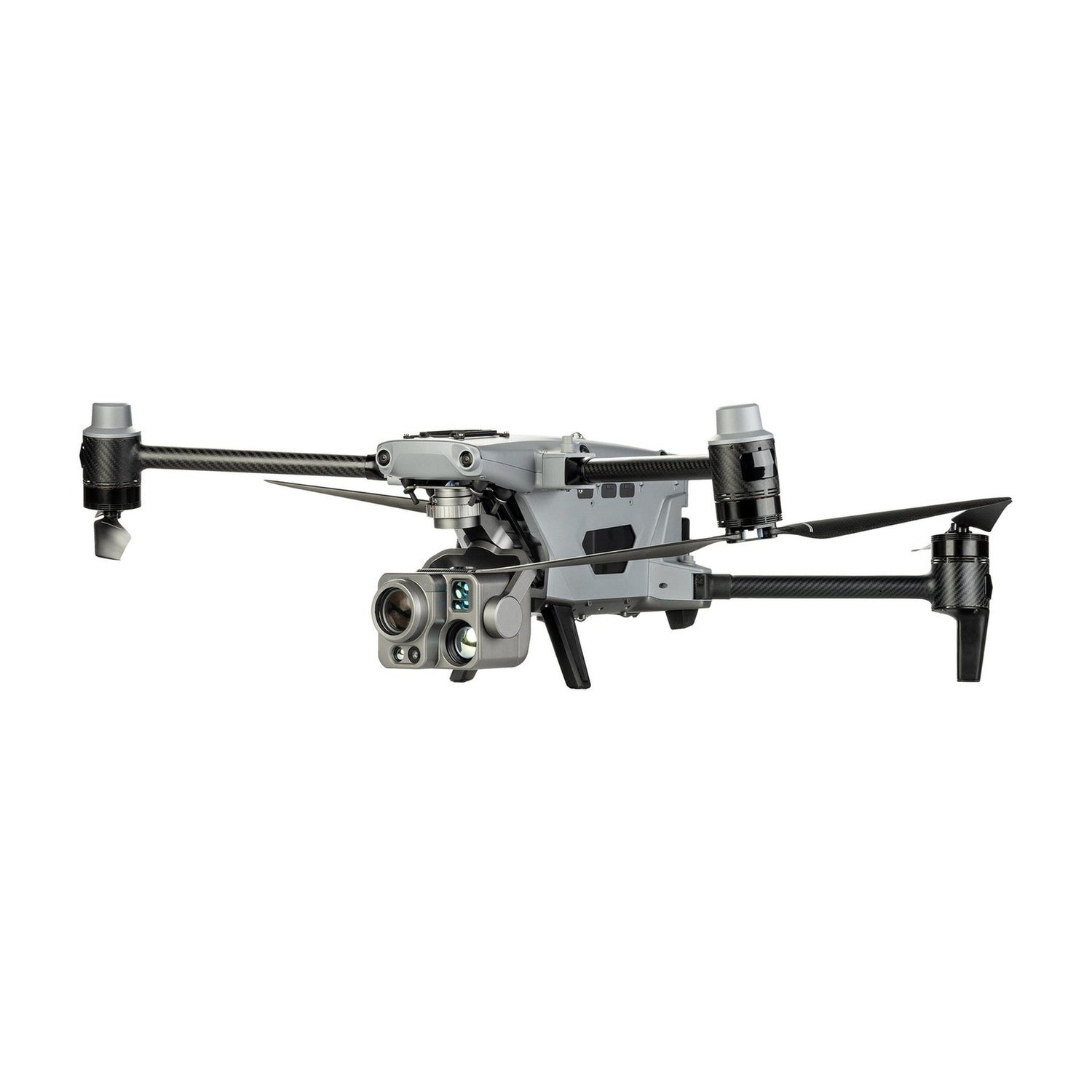

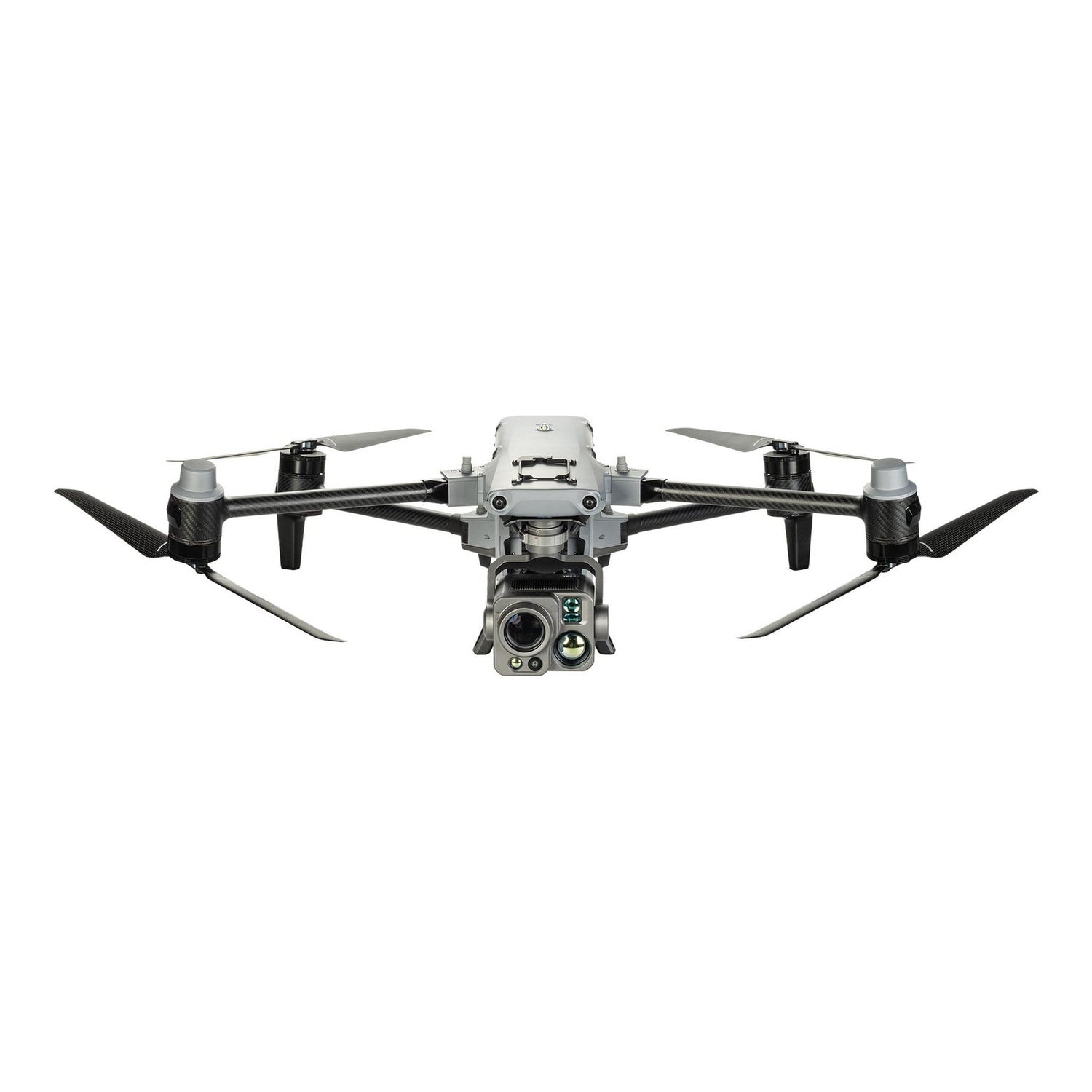

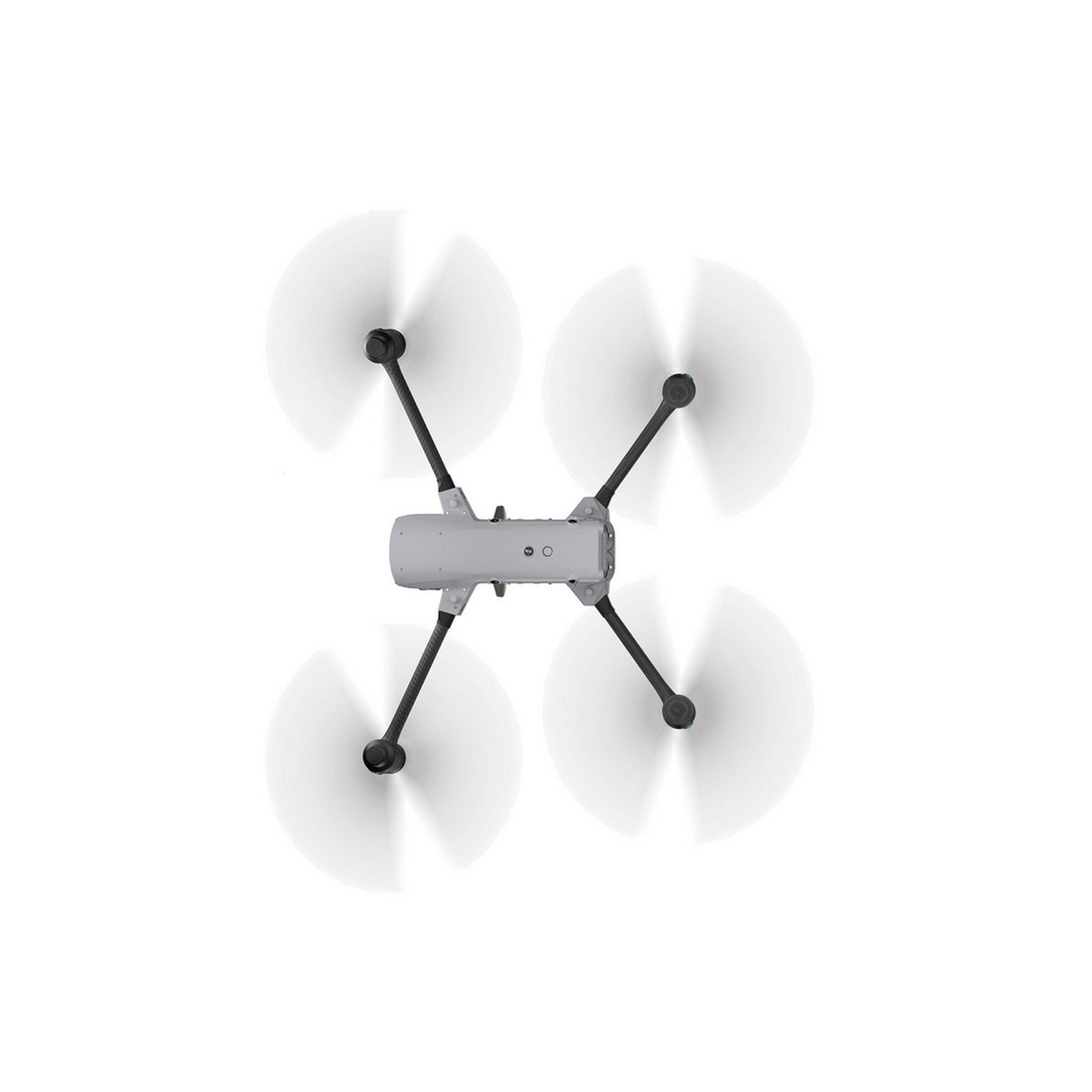

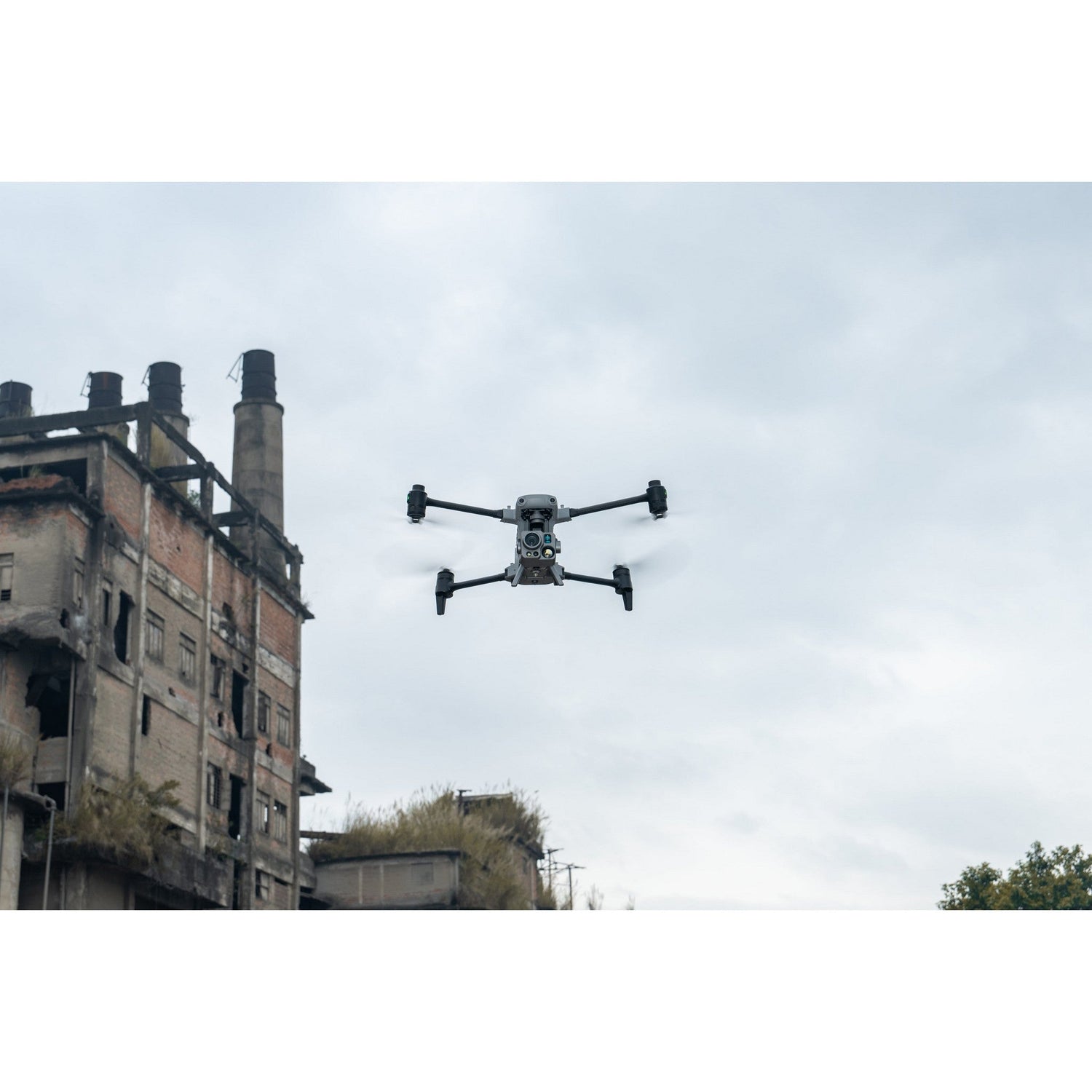

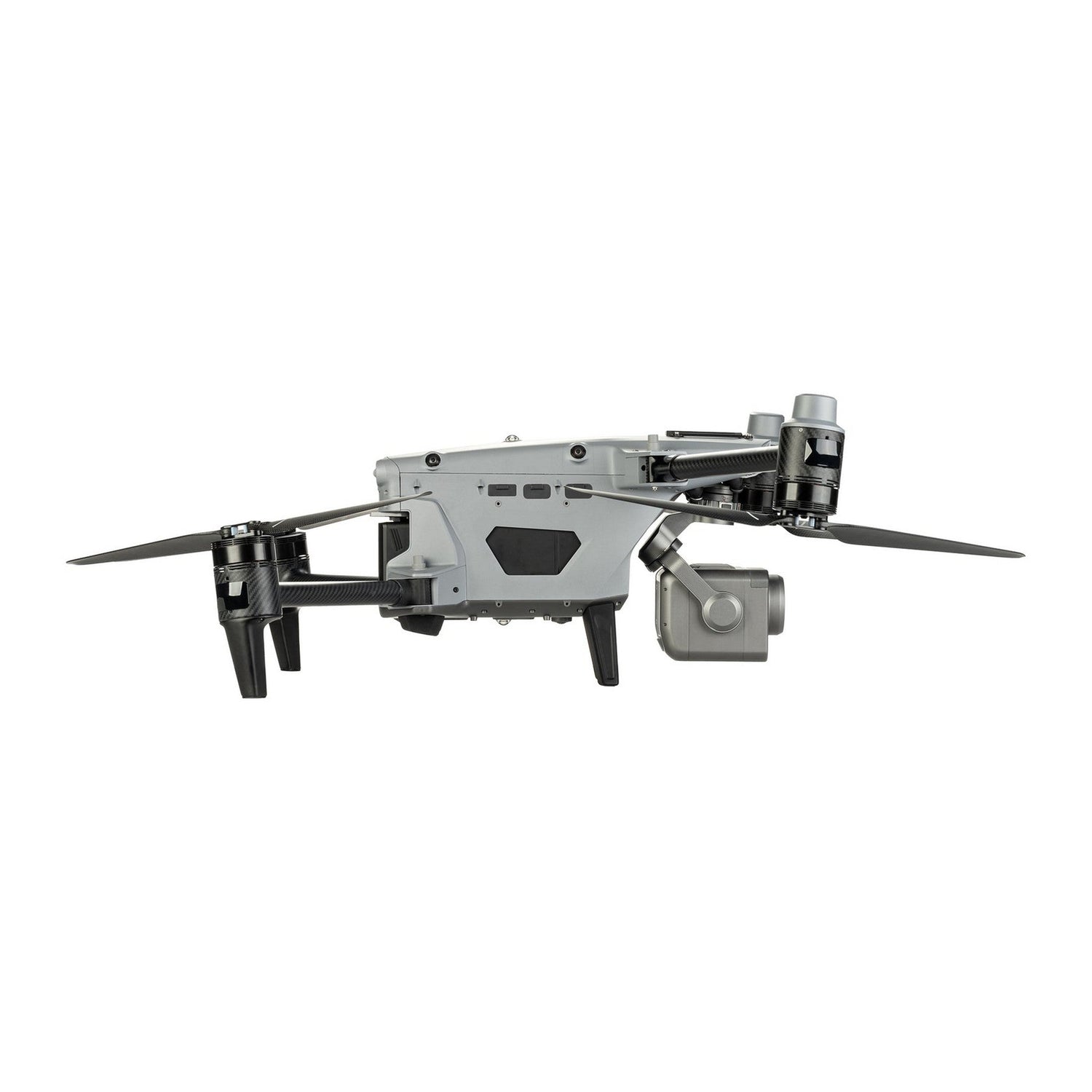

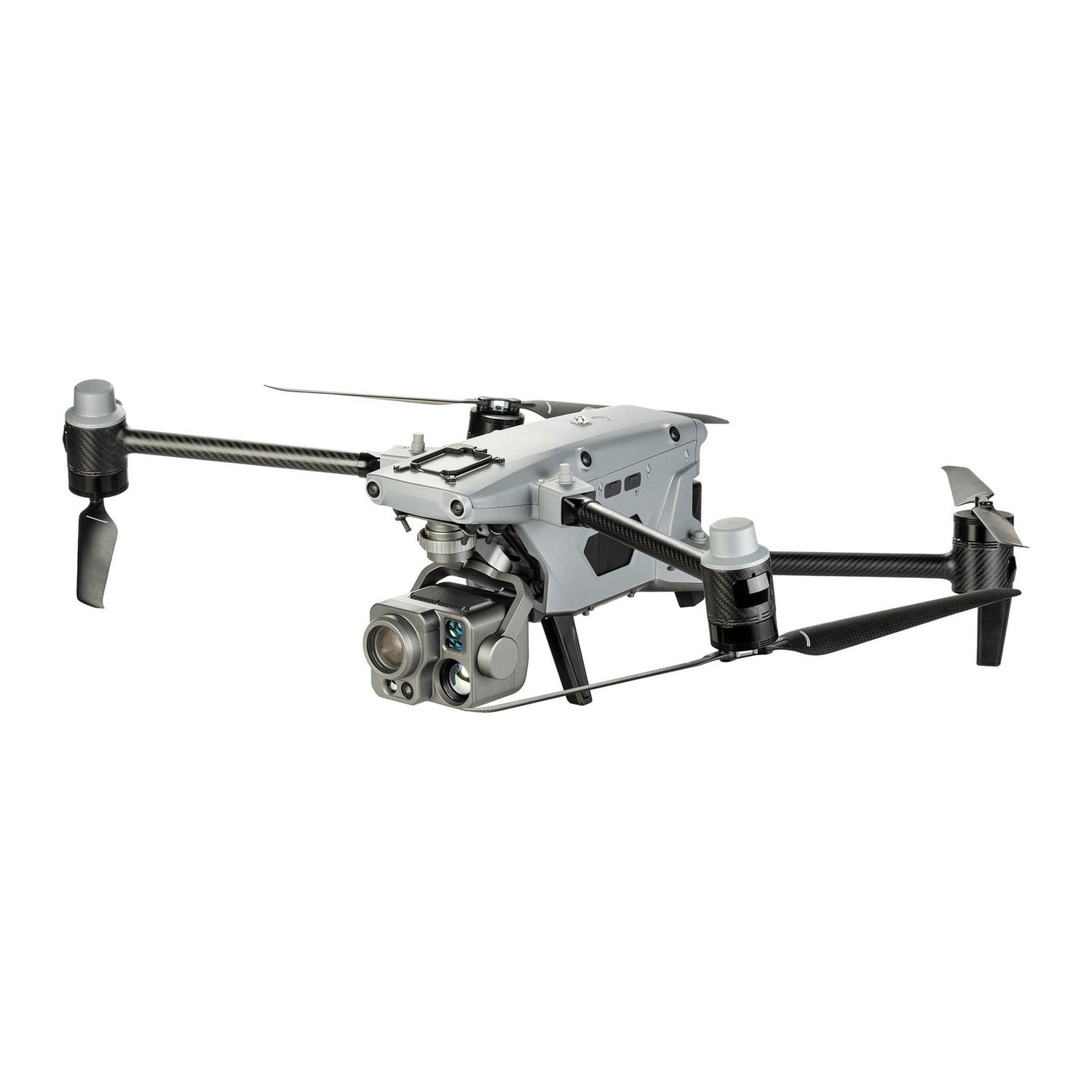

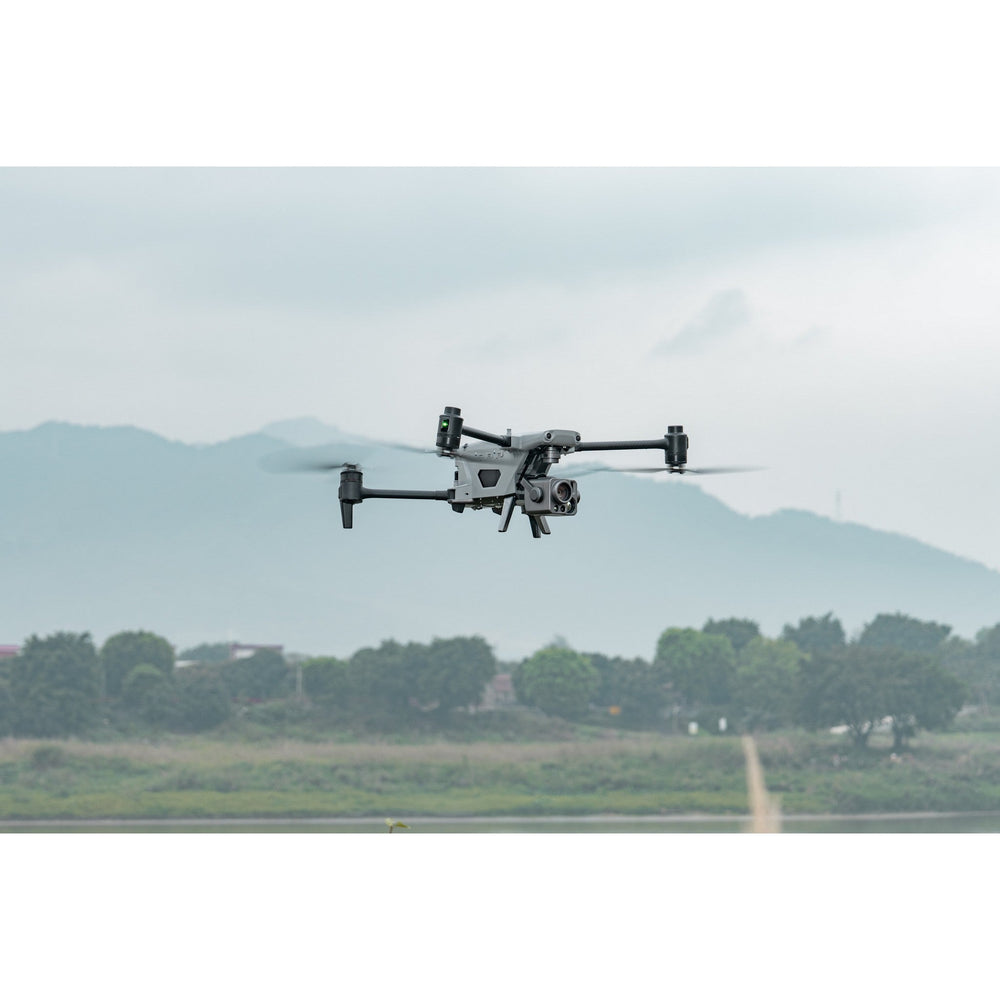

The Autel Robotics EVO Alpha is a high-performance industrial drone designed for a wide range of professional applications, including public safety, search and rescue, infrastructure inspection, and agriculture. Engineered for versatility and reliability, the EVO Alpha integrates advanced imaging systems, precise navigation capabilities, and robust construction to meet the demanding needs of professionals in various fields. Its compact design ensures portability without compromising on performance, making it an ideal choice for both urban and rural operations.

Equipped with a suite of imaging technologies, the EVO Alpha features a wide-angle camera, a zoom camera with extensive optical and digital zoom capabilities, dual thermal cameras for comprehensive temperature measurement, and a laser rangefinder for accurate distance assessments. These features enable users to capture detailed visuals and thermal data in diverse conditions. The drone's RTK dual-antenna system ensures millimeter-level positioning accuracy, while its IP55 rating provides protection against dust and water, allowing operation in challenging environments. With a maximum flight time of 40 minutes and a maximum horizontal speed of 24 m/s, the EVO Alpha offers both endurance and agility for demanding missions.

Key Features:

• Imaging Systems: Wide-angle camera, zoom camera (1–35x optical, 35–560x digital), dual thermal cameras (wide and telephoto), laser rangefinder
• RTK Dual-Antenna System: Provides millimeter-level positioning accuracy
• Flight Time: Up to 40 minutes in windless conditions
• Maximum Horizontal Speed: 24 m/s (windless near sea level)
• Wind Resistance: Up to 15 m/s
• Ingress Protection: IP55 rating for dust and water resistance
• Operating Temperature Range: -20°C to +50°C (-4°F to 122°F)
• GNSS Support: GPS, GLONASS, BeiDou, Galileo

Technical Specifications:

• Weight: 6100 g (with battery and gimbal)
• Max Payload: 3000 g
• Dimensions (Unfolded, including propellers): 1185 x 942 x 262 mm
• Dimensions (Unfolded, excluding propellers): 788 x 551 x 255 mm
• Dimensions (Folded, excluding propellers): 453 x 262 x 245 mm
• Diagonal Wheelbase: 810 mm
• Hovering Accuracy (Vertical): ±0.1 m (vision systems), ±0.3 m (GNSS)
• Hovering Accuracy (Horizontal): ±0.15 m (vision systems), ±0.3 m (GNSS)
• Operating Frequency: 2.4 GHz, 5.2 GHz, 5.8 GHz, 900 MHz
• Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC), 20 dBm (CE/SRRC/MIC); 5.8 GHz: 33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE); 5.15–5.25 GHz: <23 dBm (FCC/SRRC/MIC)
• Transmitter I/O: 1x HDMI (Video), 1x USB-C (Data, Power), 1x USB-A (Data, Power)
• Battery Type: Built-In Lithium-Ion (5800 mAh)
• Built-In Display: 7.9-inch LCD, 2048 x 1536 resolution, 2000 nits brightness
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Operating Frequency: 2.400–2.4835 GHz; 5.150–5.250 GHz; 5.725–5.850 GHz
• Transmitter Power (EIRP): 2.400–2.4835 GHz: FCC/CE: ≤20 dBm; 5.150–5.250 GHz: FCC: ≤17 dBm; 5.725–5.850 GHz: FCC: ≤17 dBm, CE: ≤14 dBm

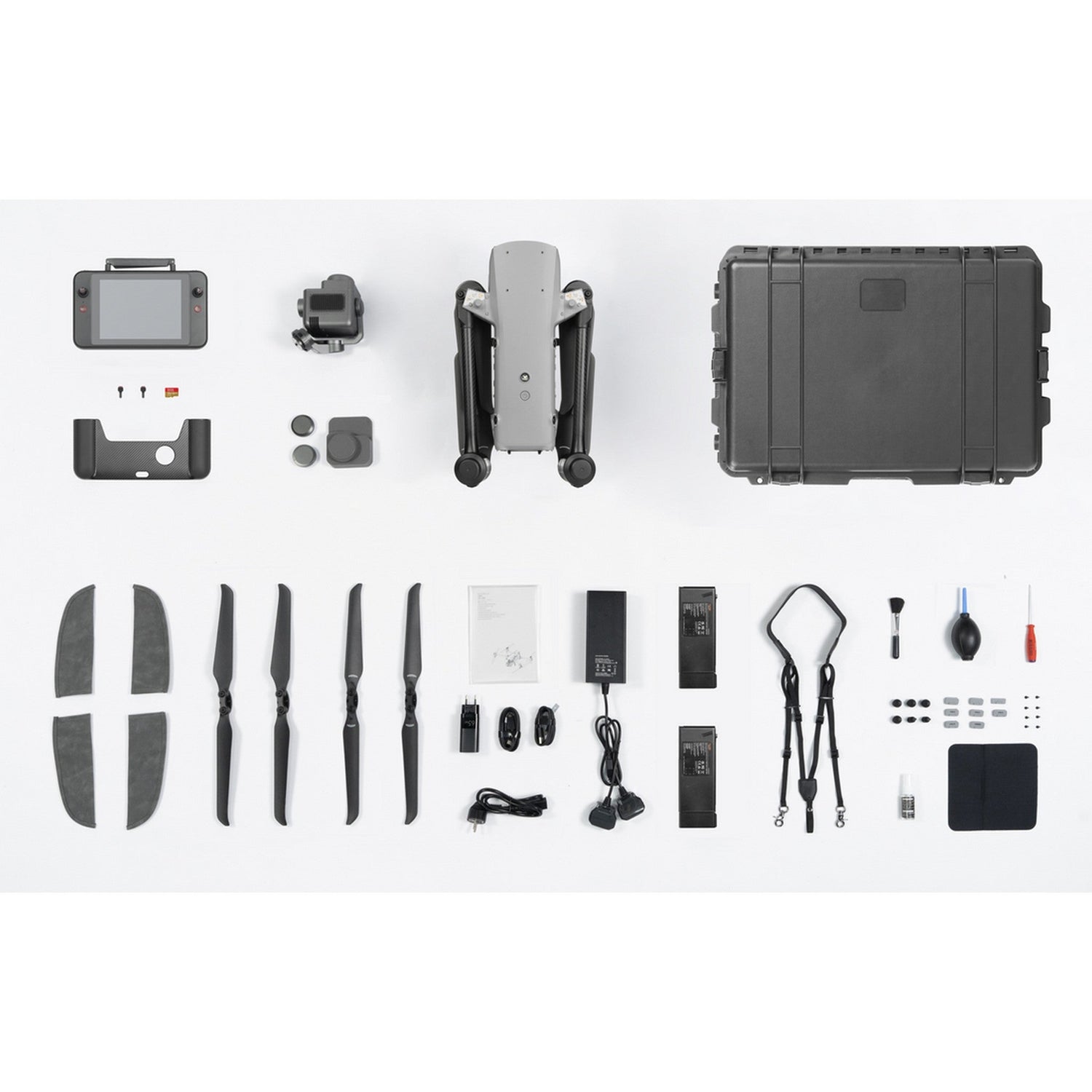

Package Contents:

• 1× Autel Robotics EVO Alpha Drone
• 1× Smart Controller V3
• 2× Batteries
• 1× Battery Charger and Power Cable
• 1× 64GB SD Card
• 1× Gimbal
• 1× Gimbal Cover
• 2× Pair of Spare Propellers
• 1× Screwdriver
• 4× Screws
• 1× Smart Controller Lanyard
• 1× Smart Controller Cover
• 2× Smart Controller Spare Joysticks
• 1× RC Charger
• 1× RC Charging Cable
• 1× Data Cable
• 1× Rugged Case
• 1× Manual
