Description

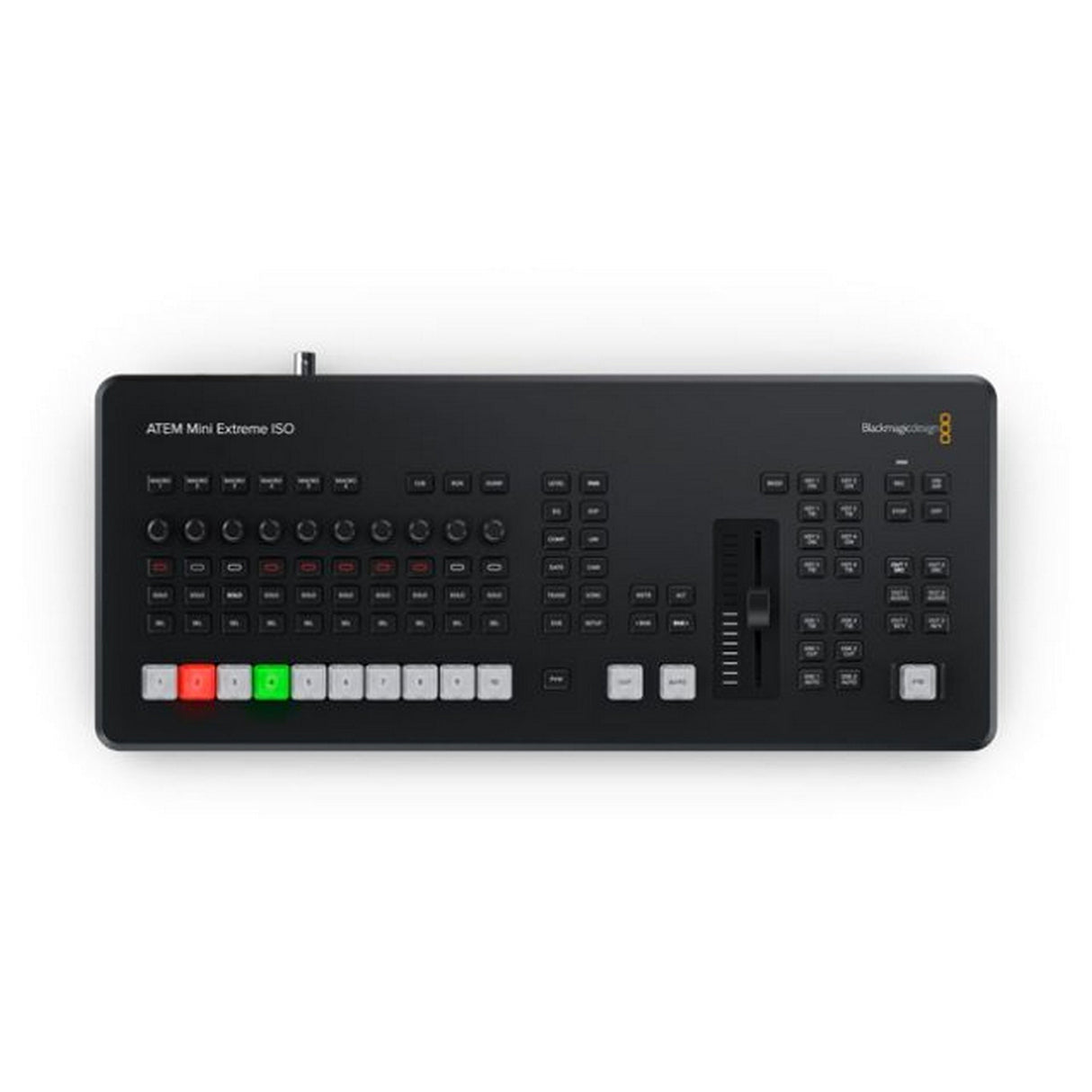

Blackmagic Design ATEM Mini Extreme ISO G2 Professional Live Production Switcher
The Blackmagic Design ATEM Mini Extreme ISO G2 is a powerful, all-in-one live production switcher engineered for broadcasters, streamers, houses of worship, educators, and professional AV environments that demand uncompromising performance. Designed to handle complex multi-camera productions, this advanced switcher delivers professional-grade switching, recording, streaming, and monitoring in a compact desktop form factor.
With support for up to eight HDMI video inputs, integrated ISO recording, and advanced audio processing powered by Fairlight technology, the ATEM Mini Extreme ISO G2 is built to scale with demanding workflows. It seamlessly integrates live streaming, multi-view monitoring, direct recording, and DaVinci Resolve project generation, enabling fast turnaround for post-production without sacrificing quality.
Connectivity is at the core of the ATEM Mini Extreme ISO G2. Featuring 10G Ethernet, Thunderbolt, USB-C recording, and webcam outputs, it easily fits into modern IP-based workflows. From live events and studio production to hybrid streaming environments, this switcher provides the reliability, flexibility, and professional control expected from Blackmagic Design.
Key Features
- 8 HDMI video inputs with full re-sync and format conversion
- ISO recording of all inputs plus program output
- Direct RTMP and SRT live streaming support
- Advanced Fairlight audio mixer with dynamics and EQ
- Multi View monitoring with flexible layouts
- Thunderbolt, USB-C, and 10G Ethernet connectivity
- Built-in control panel with optional hardware panel support
Technical Specifications
Connections: Ethernet, USB-C, Thunderbolt, HDMI, XLR, BNC
Total Video Inputs: 9
Total Outputs: 4
Total Aux Outputs: 4
SDI Rates: 1.5G, 3G
HDMI Video Inputs: 8 x HDMI Type A, 10-bit HD switchable, 2-channel embedded audio
HDMI Video Outputs: 3
HDMI Program Outputs: 3
Total Audio Inputs: 2 x XLR combo with +48V phantom power, 1 x BNC 32-channel MADI digital audio
Total Audio Outputs: 1 x 1/4" (6.35 mm) headphone jack
Timecode Connection: None
Reference Input: None
Video Input Re-Sync: On all 8 HDMI inputs and remote sources
Frame Rate and Format Converters: On all 8 HDMI inputs and remote sources
Webcam Output: 2 x USB-C supporting 720p or 1080p at program frame rate
Total Multi Views: 1 (routable to HDMI, USB-C, or Thunderbolt outputs)
Control Panel Connection: Ethernet (direct or networked)
Internal Timecode Generator: Yes
Tally Output: On Blackmagic HDMI and remote cameras
Ethernet: 1 x 1G Ethernet, 1 x 10G Ethernet for recording
Computer Interface: 2 x USB-C 3.1 Gen 1, 1 x Thunderbolt
Standards
HD Video Input Standards: 720p50, 720p59.94, 720p60, 1080p23.98–60, 1080i50–60
HD Video Output Standards: 1080p23.98–60
Video Streaming Standards: 1080p23.98–60
Video Sampling: 4:2:2 YUV
Color Precision: 10-bit
Color Space: Rec. 709
HDMI Input Resolutions (Computers): 1280 x 720p (50–60 Hz), 1920 x 1080p (23.98–60 Hz), 1920 x 1080i (50–60 Hz)
Colorspace Conversion: Hardware-based, real-time
Audio
Audio Mixer: 26 input x 2-channel Fairlight mixer (HDMI, MADI, XLR, Thunderbolt)
Analog Input: Balanced stereo XLR combo connectors
Analog Input Delay: Up to 8 frames
Mic Plug-In Power: +48V phantom power
Streaming & Recording
Total Streaming Sources: Up to 8
Streaming Format: RTMP / SRT with audio
Direct Streaming: Ethernet or shared internet via USB-C
Video Recording: 8 x HDMI ISO inputs and 1 x program output as H.264 MP4 up to 70 Mb/s
Audio Recording: 26 x 2-channel WAV files, 24-bit / 48 kHz
Switching Record: DaVinci Resolve .drp project file
Media Format: ExFAT (Windows/Mac), APFS or HFS+ (Mac)
Multi View Monitoring
Layouts: 16, 13, 10, 7, or 4 views
Multi View Video Standard: HD
Media Player
Media Players: 2
Still Image Capacity: 20 with fill and key
Still Image Formats: PNG, TGA, BMP, GIF, JPEG, TIFF
Video File Format: TGA sequence
Audio File Formats: WAV, MP3, AIFF
Control & Processing
Control Panel: Built-in panel, optional hardware panels supported
Audio Processing: 58-channel mixer with EQ, dynamics, compressor, gate, limiter
Camera Control: Focus, iris, zoom, color correction, tally, and record control with compatible Blackmagic cameras
Software
Included Software: ATEM Software Control for macOS 14.0+ and Windows 10/11
Software Updates: Via USB or Ethernet
Power & Environmental
Power Supply: External 12V DC
Power Usage: Up to 120 W
Operating Temperature: 41° F to 104° F
Storage Temperature: 14° F to 140° F
Relative Humidity: 0% to 90% non-condensing
What’s Included
Included Item: ATEM Mini Extreme ISO G2
Power Supply: External 12V DC power supply
