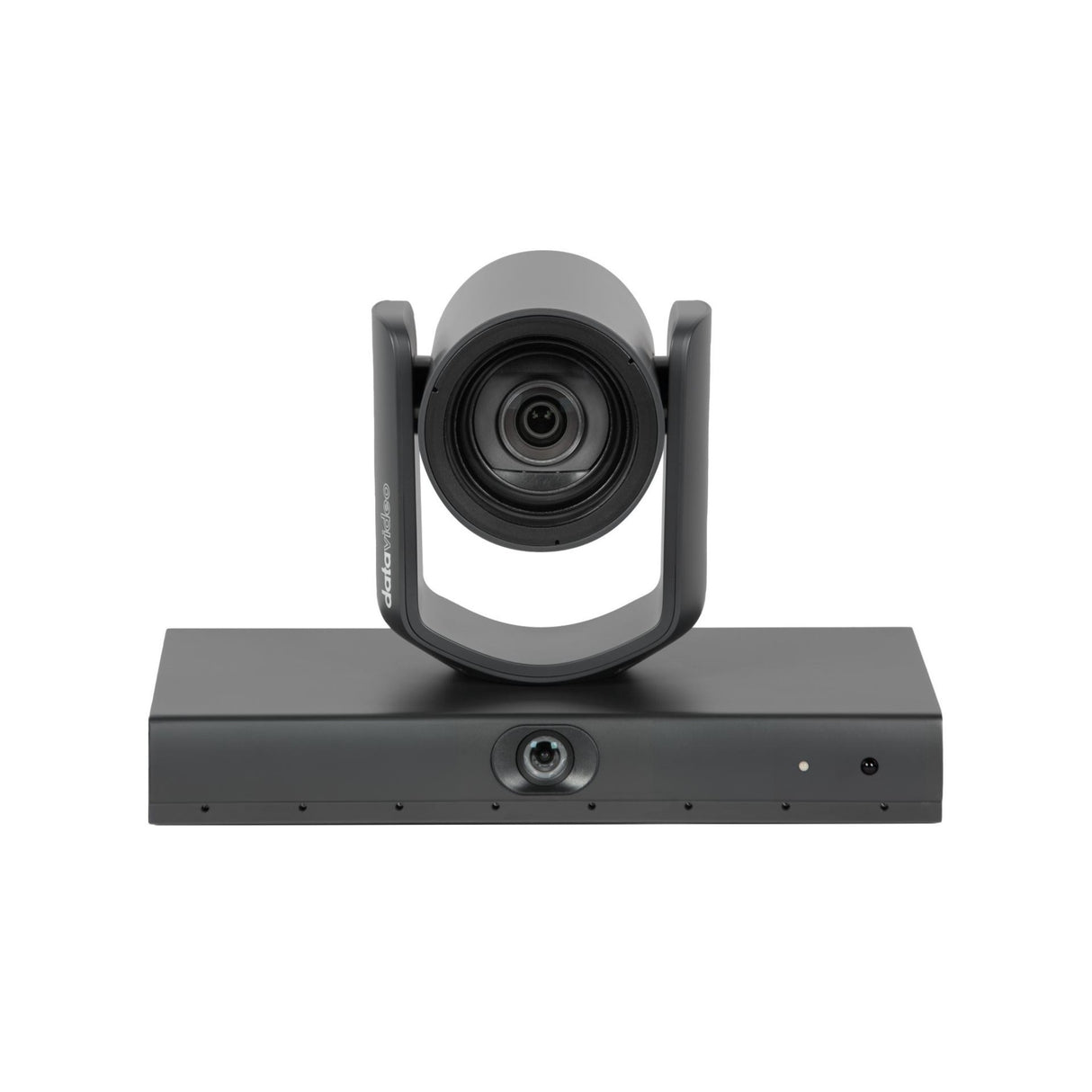

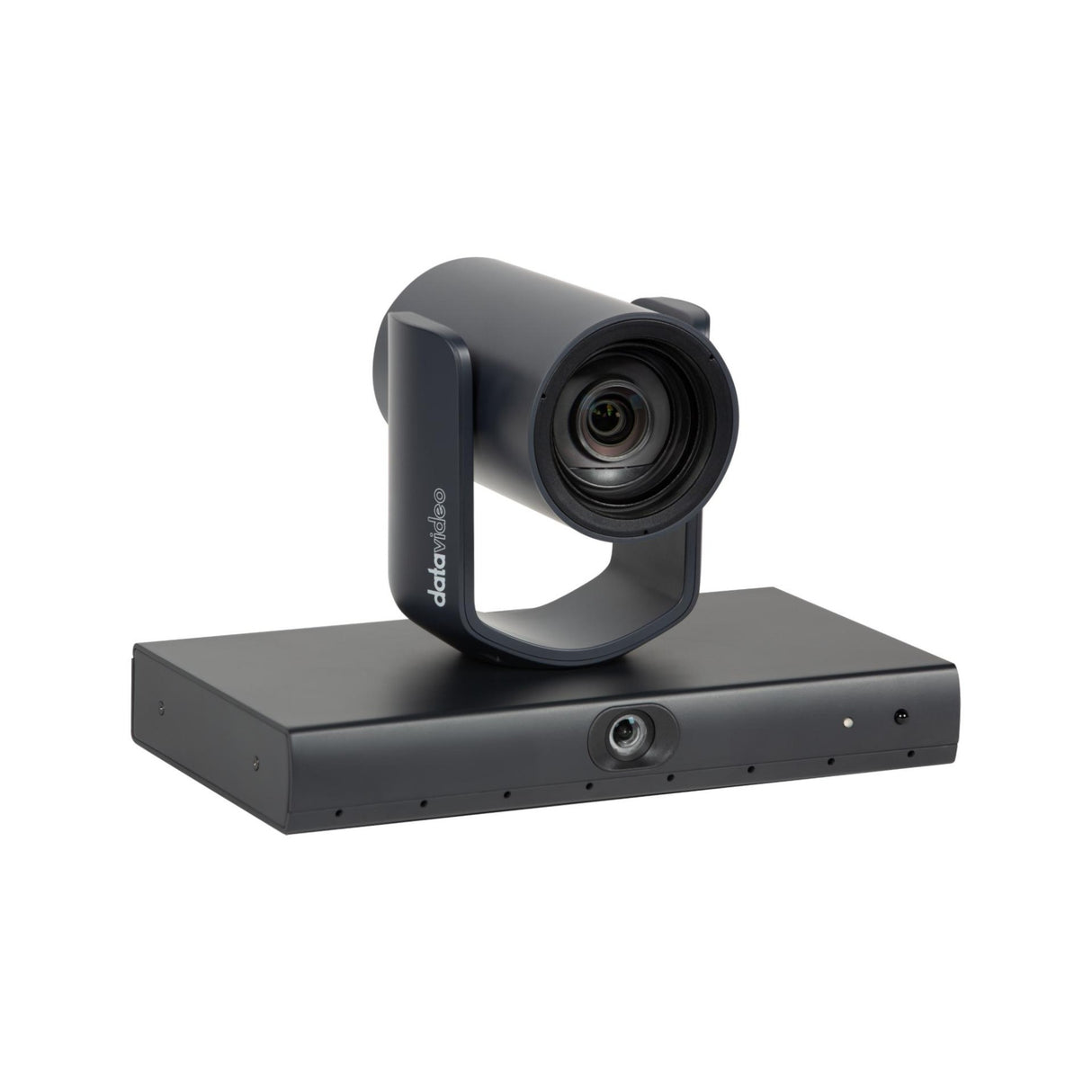

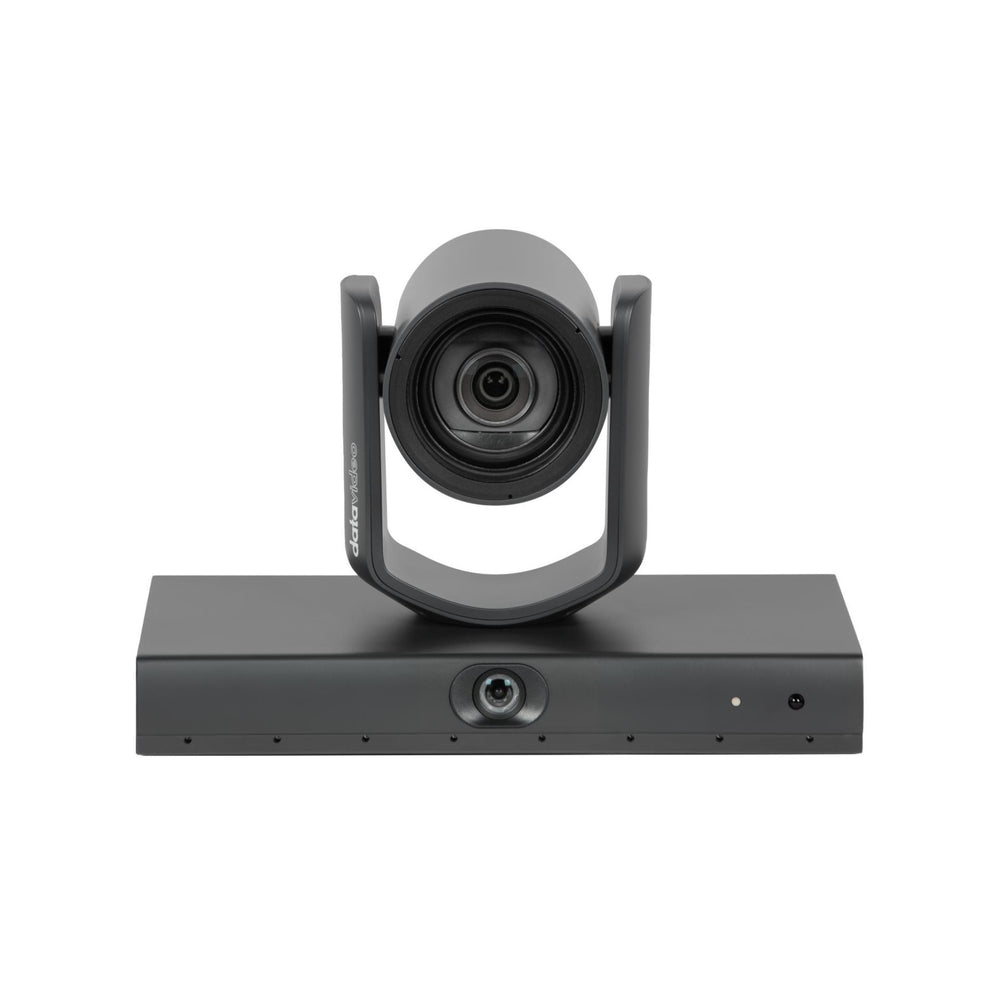

Datavideo VTC-100 Dual Lens Voice Tracking PTZ Camera with 12x Zoom

Datavideo VTC-100 Dual Lens AI Voice Tracking PTZ Camera

The Datavideo VTC-100 Dual Lens Voice Tracking PTZ Camera is an intelligent conferencing and presentation camera designed for modern hybrid collaboration environments. Powered by AI-driven voice tracking technology, the VTC-100 automatically detects and frames the active speaker in real time, ensuring professional, natural-looking video during meetings, lectures, and presentations. Its innovative dual-lens design combines a wide panoramic view with a high-performance PTZ lens to capture both room context and speaker close-ups without manual camera operation.

Engineered for professional AV installations, the VTC-100 features a Sony 1/2.8" CMOS sensor delivering crisp Full HD video up to 1080p60. The 12x optical zoom PTZ lens provides flexible framing for conference rooms, classrooms, houses of worship, and corporate presentations. With support for NDI®|HX3, RTSP, RTMP(S), SRT, and ONVIF streaming protocols, the camera integrates seamlessly into IP-based video production and live streaming workflows.

Designed for versatility and ease of deployment, the VTC-100 supports multiple video outputs including HDMI, 3G-SDI, USB (UVC), and IP streaming. PoE power support simplifies installation by enabling power and network connectivity through a single cable. With advanced auto-tracking, wide-angle panoramic coverage, and professional PTZ control protocols, the Datavideo VTC-100 delivers intelligent camera automation for conference systems, lecture capture, broadcast streaming, and corporate communication environments.

Key Features

• AI Voice Tracking and Auto Framing: Automatically detects and follows the active speaker using AI-powered voice tracking technology for professional meeting and presentation video.
• Dual Lens Camera Design: Combines a wide panoramic lens with a PTZ close-up lens to provide both room overview and speaker-focused framing.
• Full HD Video Performance: Sony 1/2.8" CMOS sensor delivers high-quality 1080p video at up to 60 frames per second.
• 12x Optical Zoom PTZ Lens: Capture detailed close-ups with smooth PTZ control and up to 16x digital zoom.
• Wide Panoramic Coverage: Dual-lens configuration provides up to 110° panoramic viewing angle and 70.2° main camera field of view.
• NDI®|HX3 Network Integration: Supports NDI-based video production workflows for flexible IP-based video distribution.
• Multiple Streaming Protocols: Compatible with RTSP, RTMP(S), ONVIF, Multicast, SRT, and NDI streaming environments.
• Flexible Video Outputs: HDMI, 3G-SDI, USB (UVC), and Ethernet outputs support conferencing systems, live streaming, and video production setups.
• PoE Network Power: IEEE 802.3af Power over Ethernet simplifies installation with single-cable power and network connectivity.
• Professional PTZ Control: Supports VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF, and DVIP control protocols.

Technical Specifications

• Image Sensor: Sony 1/2.8" CMOS
• Effective Pixels: Approx. 2.14 Megapixels
• Video Resolution: 1080p60/59.94/50/30/29.97/25, 720p60/59.94/50
• Optical Zoom: 12x
• Digital Zoom: 16x
• Minimum Illumination: 0.5 Lux (F1.6, AGC On)
• Shutter Speed: 1/25s – 1/10000s
• Lens Aperture: F1.6 (wide) – F2.8 (tele)
• Focal Length: 4.1 mm – 49.2 mm
• Field of View: 70.2° (Main Lens), 110° (Panorama)
• Pan Range: ±130°
• Tilt Range: +90° to -30°
• Pan Speed: 0.2 – 90°/sec
• Tilt Speed: 0.2 – 60°/sec
• Preset Positions: 254
• Video Compression: H.264, H.265, MJPEG (UVC)
• Audio Compression: AAC, PCM (UAC), G711 (ONVIF)
• Streaming Protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|HX3

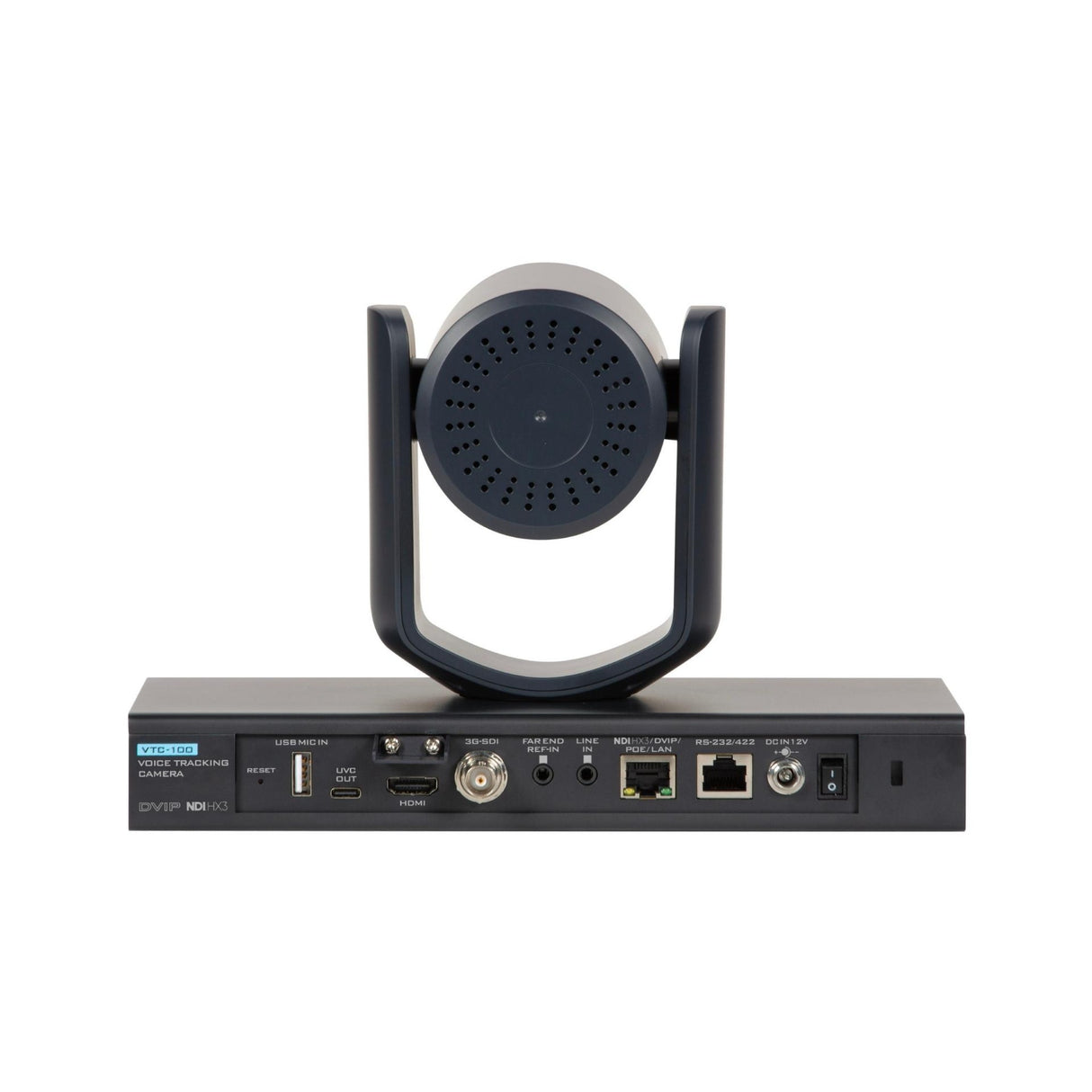

• Video Outputs: HDMI 1.4b ×1, 3G-SDI ×1, UVC ×1, RJ45 Ethernet ×1
• Audio Inputs: 3.5 mm Line In ×1, USB-A Mic Input ×1
• Power: DC 12V 2A (18W) or PoE IEEE 802.3af
• Operating Temperature: 32°F – 104°F
• Dimensions: 9.65 × 6.06 × 6.46 inches
• Weight: 4.41 lbs
• Mounting: 1/4"-20 Tripod Mount

What's Included

• Datavideo VTC-100 Dual Lens Voice Tracking PTZ Camera
• IR Remote Controller
• Power Cord
