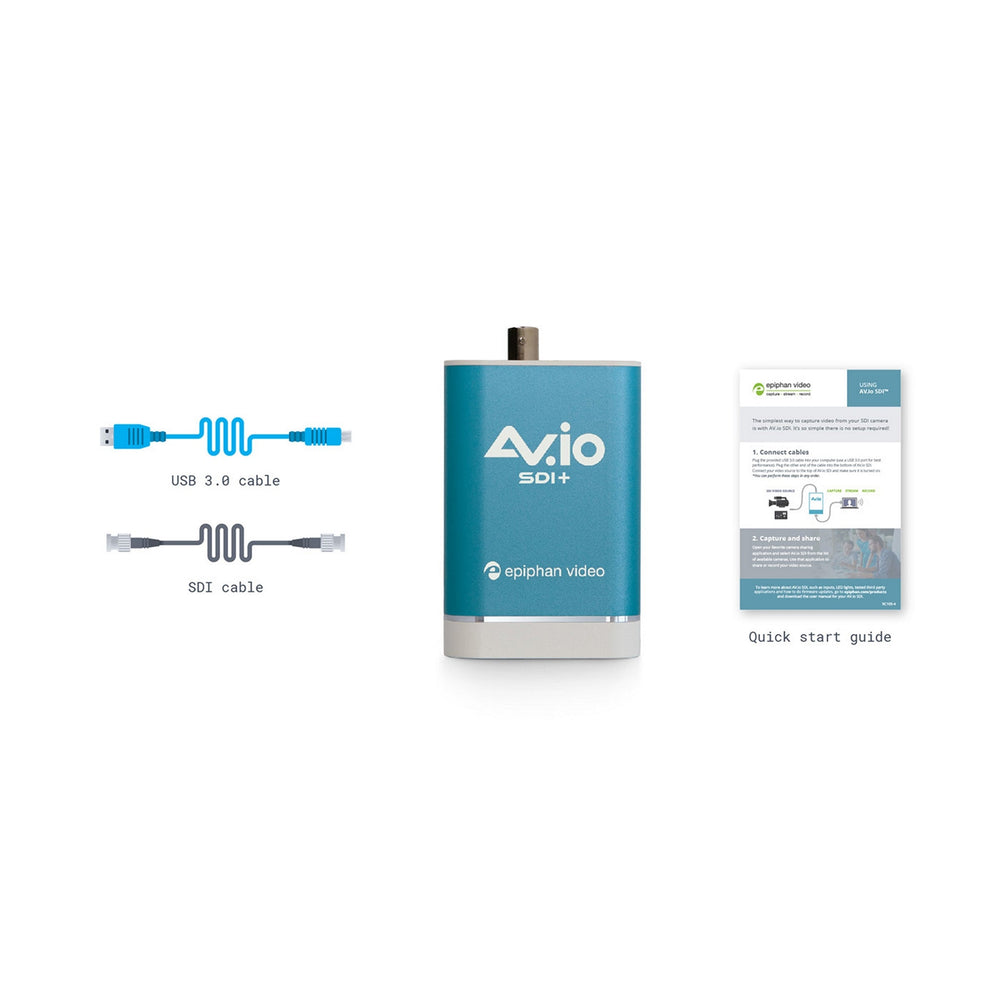

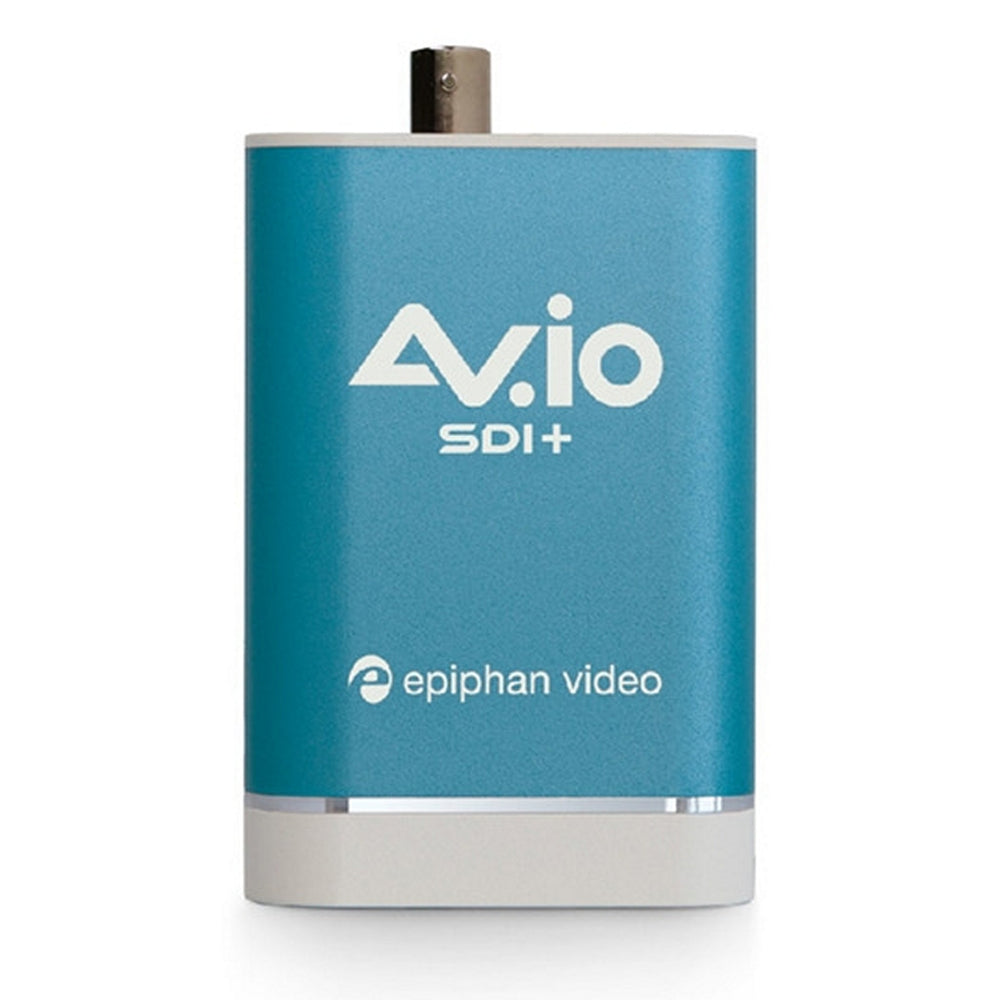

Epiphan AV.io SDI+ SDI to USB Video Capture Device
Epiphan | SKU: EPI-AVIOSDIPLUS-ESP1814
1
of
3
Loading...
$57995
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Product Description:

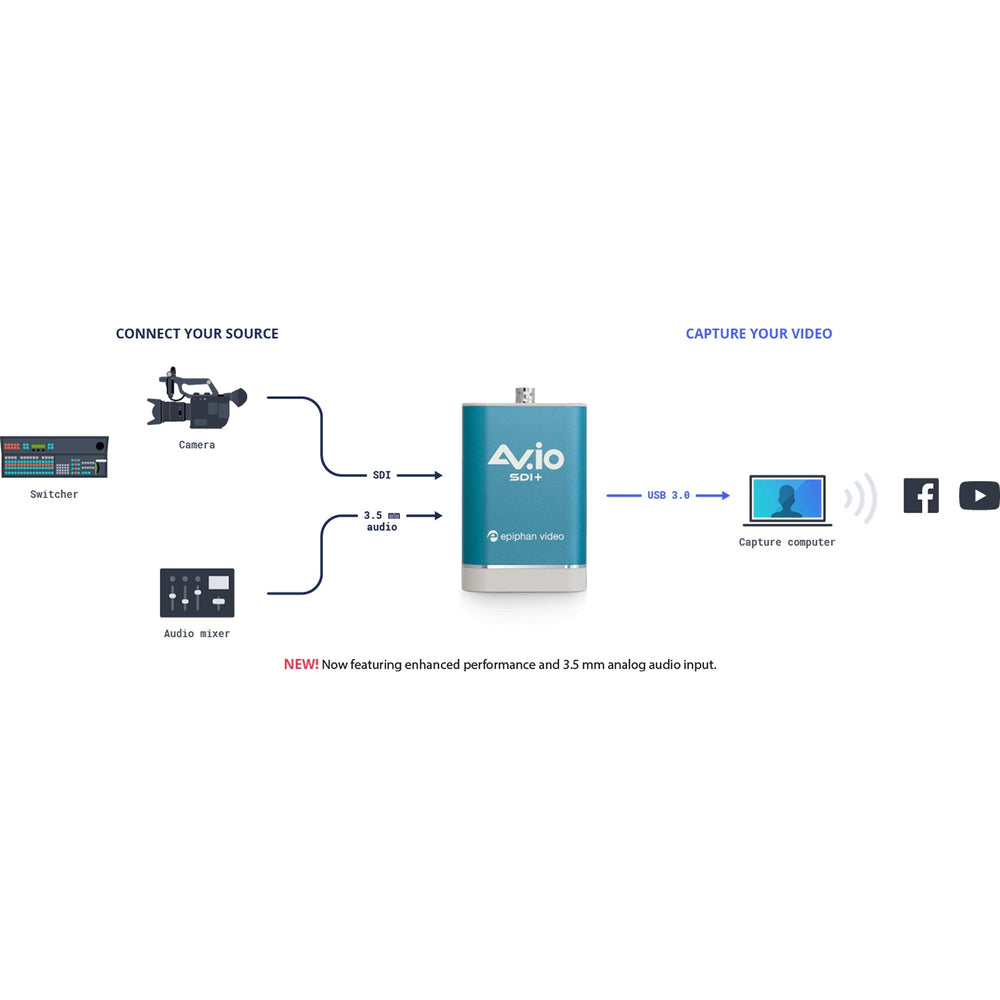

The Epiphan AV.io SDI+ is a high-performance SDI to USB video capture device that offers seamless connectivity and exceptional video quality. It allows you to effortlessly capture 1080p video from any SDI source with minimal latency, supporting audio input through HDMI, 3.5 mm, or both. Built on durable technology, this compact device ensures reliable performance, making it ideal for both professional and personal use.
Key Features:
- Plug-and-Play Convenience: Easy connection to SDI devices without the need for driver installation
- Compact and Portable: Lightweight design powered by USB for on-the-go video capture
- Automatic Scaling: Adjusts image based on software for superior video quality
- Wide Compatibility: Works with popular video conferencing and streaming software
- Low Latency: Near-zero capture delay for real-time video
Technical Specifications:
- Interface: USB 3.0, USB 2.0
- OS Drivers: UVC and UAC device
- Dimensions: 3.54” x 2.36” x 0.91” (90 mm x 60 mm x 23 mm)
- Connectors: SDI (BNC-style), USB 3.0 B-Type connector
- Input: 3G-SDI, HD-SDI, SD-SDI, 3.5 mm analog (audio)
- Input Resolution: Up to 1920x1080
- Output Formats: Various resolutions from 320x240 to 1920x1200, 5 fps to 60 fps
- Output Color Space: YUV 4:2:2
- Capture Latency: Near-zero
- SDI Audio (Input): 16-bit and 24-bit PCM encoded audio 48 kHz
- Audio Output: 16-bit 48 kHz stereo audio
- LED: Indicates status (power, readiness, operation)
- Power Consumption: < 400ma
- OS Support: Windows 10 and up, Mac OS X 10.10 and up, Linux kernel 3.5.0 or higher
