IC Realtime HDVR-MX0808-1U4K-AI3 8-Channel 4K AI Smart DVR

The IC Realtime HDVR-MX0808-1U4K-AI3 8-Channel 4K AI Smart DVR is a cutting-edge device offering advanced surveillance capabilities for both IP and coax camera inputs. Powered by a robust embedded processor and the ICR 4.0 operating system, this DVR ensures reliable and intelligent video recording with high accuracy in motion and face detection. Its AI-based features, flexible display options, and intelligent functions provide an exceptional security solution for diverse environments.

Equipped with advanced AI features such as intelligent motion detection and face recognition, the HDVR-MX0808-1U4K-AI3 enhances the accuracy of identifying motion and faces, making it a valuable tool for professional surveillance. The device supports multiple recording modes and integrates seamlessly with various network protocols, ensuring versatile applications across different security setups. Additionally, its compact 1U form factor and support for up to 10TB capacity per SATA disk offer substantial storage for extended recording periods.

The IC Realtime HDVR-MX0808-1U4K-AI3 also boasts compatibility with ONVIF and smart management software, facilitating easy integration with existing security systems. This DVR is designed to provide a robust, intelligent, and expandable solution for all your surveillance needs.

Key Features

• 4K Display Resolution: HDMI: 3840 × 2160, VGA: 1920 × 1080
• AI-Based Intelligent Functions: Tripwire, Intrusion, Perimeter Protection
• Supports up to 8 IP Camera Channels, each up to 8MP
• Internal Storage: 2 SATA Ports, up to 10TB per disk
• Power Consumption: <15W
• Ethernet Port: 10/100/1000M

Specifications

• Main Processor: Embedded Processor
• Operating System: ICR 4.0
• Display Interface: 1 HDMI, 1 VGA
• Display Resolution: VGA: 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• IVS: (Coax Channels Only)
• (8ch) Tripwire, Intrusion (50 objects max)
• (2ch) Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle
• (8ch) Intelligent Motion Detect (iMD): Motion detection alarm with human and vehicle recognition.
• (2ch) Face Recognition and detection
• Supported Camera Types: IP, Coax
• IP Camera Input: 8+8 Channel, each channel up to 8MP
• HDAVS input: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.
• Compression: G.711a; G.711u; PCM
• Two-way Talk: Yes (uses the same audio input as the first channel)
• Record Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Record Resolution: Main stream: 4K@(1fps–15 fps); 6 MP@(1fps–20 fps); 5 MP, 4K-N, 4 MP, 3 MP, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps)
• Internal HDD: 2 SATA Ports, up to 10TB capacity for each disk
• Ethernet: 1 RJ-45 port (10/100M/1000M)
• Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
• Compatibility: ONVIF 21.12; CGI
• Web Viewer: Chrome, IE, Firefox, Safari
• RS485: 1 Port, for PTZ Control
• USB: 2 ports (1 USB2.0, 1 USB3.0)

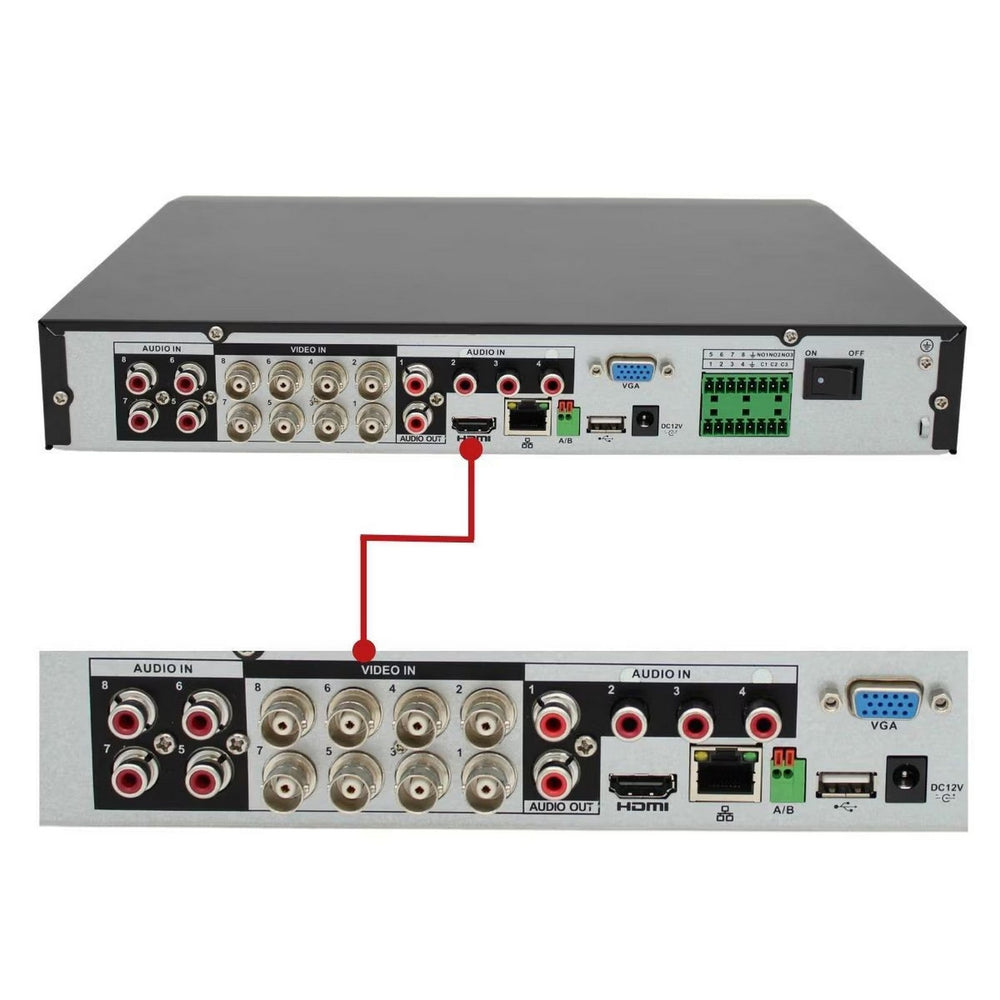

• Audio I/O: Input: 4-channel RCA, 8-channel BNC (Coaxial Audio)
• Output: 1 channel, RCA
• Power Supply: DC 12V/5A
• Power Consumption: <15W (Without HDD)
• Operating Conditions: +14°F ~ +131°F (-10°C ~ +55°C), 10~ 90% RH
• Installation: Rack or desktop
• Dimensions: 1U, 14.76'' × 11.30'' × 2.09''(375.0 mm × 287.0 mm × 53.0 mm)

Package Contents

• IC Realtime HDVR-MX0808-1U4K-AI3 DVR Unit
• Power Adapter (DC 12V/5A)
• Quick Start Guide
• Software CD
• Warranty Card
