IC Realtime MNVR-EL04-1TB 4-Channel Mobile Network Video Recorder

Introducing the IC Realtime MNVR-EL04-1TB, a versatile mobile network video recorder engineered for top-tier surveillance in demanding environments. This sleek, compact device supports up to four IP cameras, providing advanced video recording, playback, and management functionalities. Ideal for transportation, remote monitoring, and other mobile applications, the device is powered by a dual-core embedded processor and runs on an embedded Linux operating system. It excels in both wired and wireless networking and comes loaded with intelligent features like face detection and recognition, making it a reliable choice for dynamic video surveillance needs.

The unit's display capabilities are equally noteworthy, supporting multiple resolutions and display split modes. It features both VGA and HDMI outputs, making integration with existing systems seamless. Offering a variety of video resolutions—including 4K, 5MP, and 3MP—the system efficiently records high-definition video while optimizing storage through H.265/H.264 compression. With a maximum incoming bandwidth of 200Mbps and impressive throughput, it sustains peak performance even under heavy loads. The recorder’s internal SATA port supports up to 1TB of storage, perfect for extensive video archiving.

Ease of access defines the MNVR-EL04-1TB. It allows up to 128 simultaneous user connections via popular web browsers like Chrome, Safari, and Firefox. Mobile access is facilitated through the IC View+ app, compatible with both iOS and Android platforms. GPS functionality is built-in, enhancing its suitability for vehicle-based and mobile surveillance. PoE support for four cameras minimizes wiring complexity, streamlining installation. This device also boasts remarkable environmental resilience, operating efficiently in extreme temperatures from -31°F (-35°C) to +140°F (60°C), with an optional heater for colder conditions.

Key Features

• Dual-core embedded processor with embedded Linux operating system for optimal performance
• Supports 4 IP cameras with sophisticated intelligent functions like face detection and recognition
• High-definition recording with H.265/H.264 compression, supporting up to 4K resolution
• Flexible monitoring with a variety of display resolutions and split modes
• PoE support for four cameras, reducing wiring and installation effort
• Seamless video playback enabled by time/date search, motion detection search, and smart search
• Remote management and monitoring through mobile and web browser compatibility
• Integrated GPS functionality for location-based tracking
• Compact, robust design for reliable use in mobile environments

Specifications

• Main Processor: Dual-core embedded processor
• Operating System: Embedded LINUX

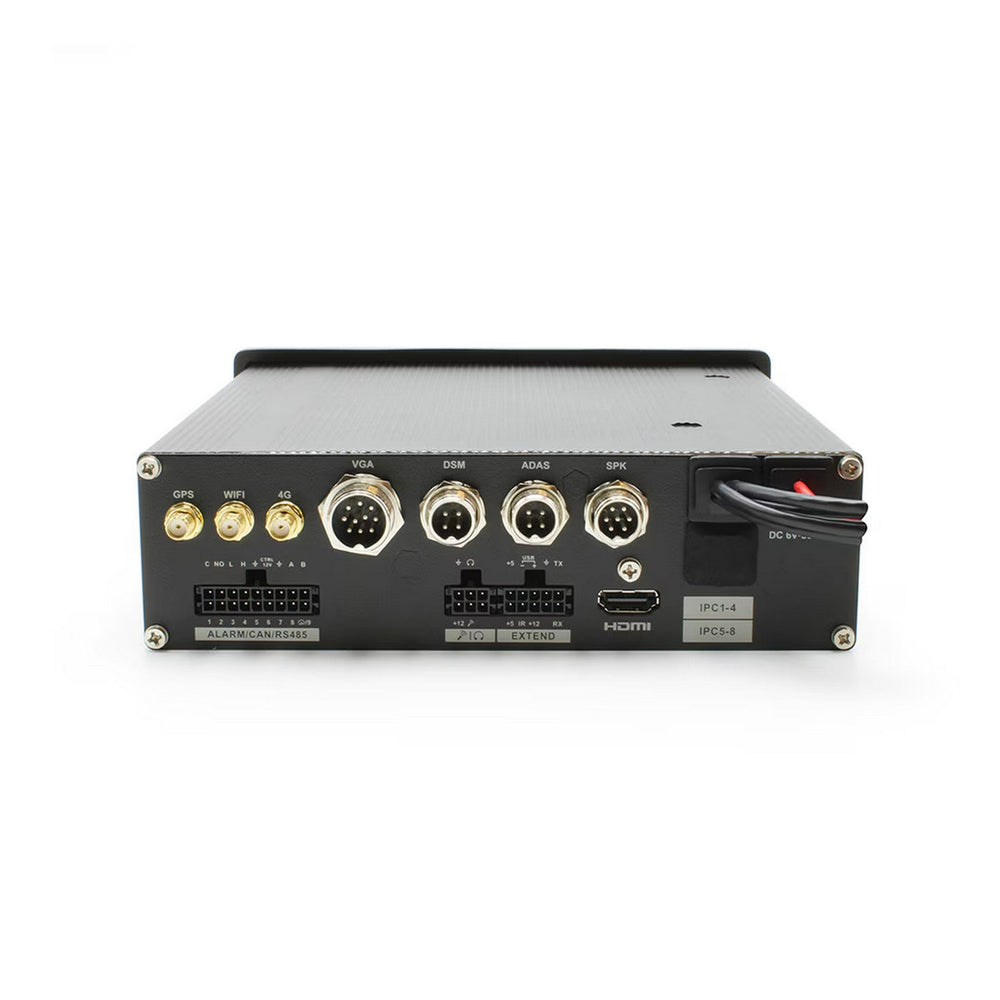

• Display Interface: 1 VGA, 1 HDMI
• Display Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
• Display Split: 1/4
• Advanced Intelligent Functions: Supported by Camera, Face Detection, Face Recognition
• Supported Camera Types: IP
• IP Camera Input: 4
• Trigger Events: Recording, PTZ, Tour, Alarm out, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection: Motion Detection, MD Zones: 396 (22×18), Video Loss & Blank Camera Channel
• Playback: 1/4
• Search Mode: Time/Date, Alarm, Motion Detection & Exact search (accurate to second), Smart search
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Bit Rate: 48~8192 Kb/s Per Channel
• Compression: G.711/PCM
• Two-way Talk: Supported
• Record Compression: H.265/H.264
• Record Resolution: 4K/ 5MP/ 3MP/ 1080P (1920×1080)/ 720P (1280×720)/ D1 (704×576/704×480)/ HD1 (352×576/352×480)/ 2CIF (704×288/704×240) CIF (352×288/352×240)/ QCIF (176×144/176×120)
• Record Bit Rate: 48~8192 Kb/s Per Channel
• Incoming Bandwidth: 200Mbps
• Throughput: 200Mbps
• Internal HDD: 1 SATA Port, Up to 1 TB capacity
• Ethernet: 1 RJ-45 Port (10/100/1000 Mbps)
• Protocol: TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
• Wifi: Supported
• Compatibility: ONVIF 2.3
• Max. User Access: 128 users
• Web Viewer: IE, Chrome, Safari, Firefox, Edge
• Management Software: IC Now, DSS
• Smart Phone: iOS, Android (IC View+)
• GPS: Supported
• PoE: 4
• RS232: 2 Ports, for PC Communication and Keyboard
• RS485: 1 Port, for PTZ Control
• USB: 2 Ports, USB 2.0
• Audio I/O: 1 Channel Mic in, 1 Channel Mic out
• Memory Slot: 1 SD Slot
• Power Supply: DC 6V~36V
• Power Consumption: <15W (without HDD)
• Operating Conditions: -31°F (-35°C) (heater optional) ~ +140°F (60°C) / 10%~95%RH / 86~106 kpa
• Installation: Mobile
• Dimensions: 7.48" x 8.26" x 2.36"
• Weight: 1.54 lbs

Package Contents

• MNVR-EL04-1TB Network Video Recorder
• Power Adapter
• USB Mouse
• CD with Software
• Quick Installation Guide
