Marshall Electronics V 1055 BNC CCIR Ultra Compact Low Light Camera

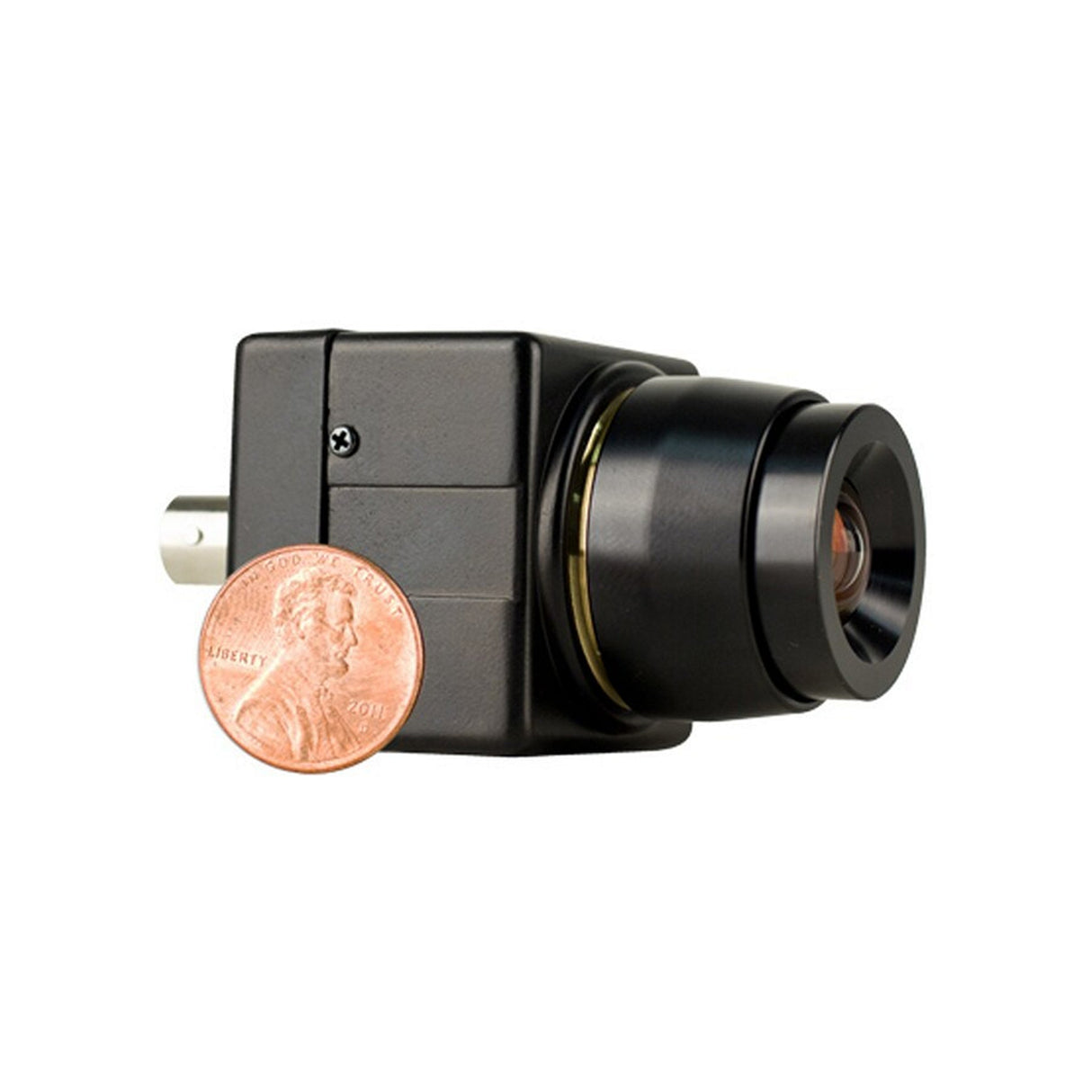

V-1055-BNC-CCIR World's Smallest C/CS Mount Camera

The V-1055-BNC-CCIR is a state-of-the-art, ultra-compact CCD camera designed for exceptional performance in low-light conditions. Measuring just 1.5 inches square, this micro-sized camera delivers 380 horizontal TV lines of resolution and features a built-in C/CS mount, making it compatible with a wide range of miniature, standard, and microscope lenses. With an impressive low-light sensitivity of 0.05 lux, this camera outperforms human vision in near-total darkness, making it ideal for applications such as machine vision, robotics, computer imaging, and security monitoring.

Engineered for versatility, the V-1055-BNC-CCIR operates on 12 VDC at 100 mA and includes an electronic iris that automatically adjusts to varying lighting conditions, ensuring clear images even in high-contrast environments. Its compact size and lightweight design (weighing only 3 ounces) make it perfect for hidden camera setups or installations in tight spaces where standard cameras cannot fit. Whether for industrial, scientific, or security purposes, this camera offers reliable performance and adaptability in a wide range of environments.

Key Features

• Ultra-compact design: Measures just 1.5" × 1.5" × 1" for easy installation in tight spaces.
• Low-light sensitivity: Operates at 0.05 lux, enabling monitoring in near-total darkness.
• High resolution: Delivers 380 horizontal TV lines for clear and detailed images.
• Electronic iris: Automatically adjusts to varying lighting conditions with low smear and anti-blooming.
• Versatile lens compatibility: Built-in C/CS mount supports a variety of lens options.
• Durable and lightweight: Weighs only 3 ounces and operates in temperatures from -4°F to +131°F.

Technical Specifications

• Imager: 1/3" CCD
• Resolution: 380 horizontal TV lines
• Scanning: 525 lines, 60 fields/sec
• Picture elements: 510(H) × 492(V), 250,000 pixels
• Chip size: 6.0mm H × 4.96mm V
• Unit cell size: 9.6µm H × 7.3µm V
• Signal-to-noise ratio: Better than 48 dB
• Minimum illumination: 0.05 lux @ f1.6
• Gamma: y=0.45
• Power requirements: 12 VDC, 100 mA, 1.2 W
• Video output: 1V p-p composite, 75 ohms impedance
• Connectors: Video: BNC, Power: 2.1mm plug
• Operating temperature: -20°C to +55°C (-4°F to +131°F)
• Humidity: Within 95% RH

What's in the Box

• V-1055-BNC-CCIR CCD Camera

Dimensions

• Size: 1.5" × 1.5" × 1"
• Weight: 3 ounces (86 grams)
