Marshall Electronics V 1055 Compact Low Light CCD Camera, C/CS Mount

Compact Low-Light CCD Camera with C/CS Mount

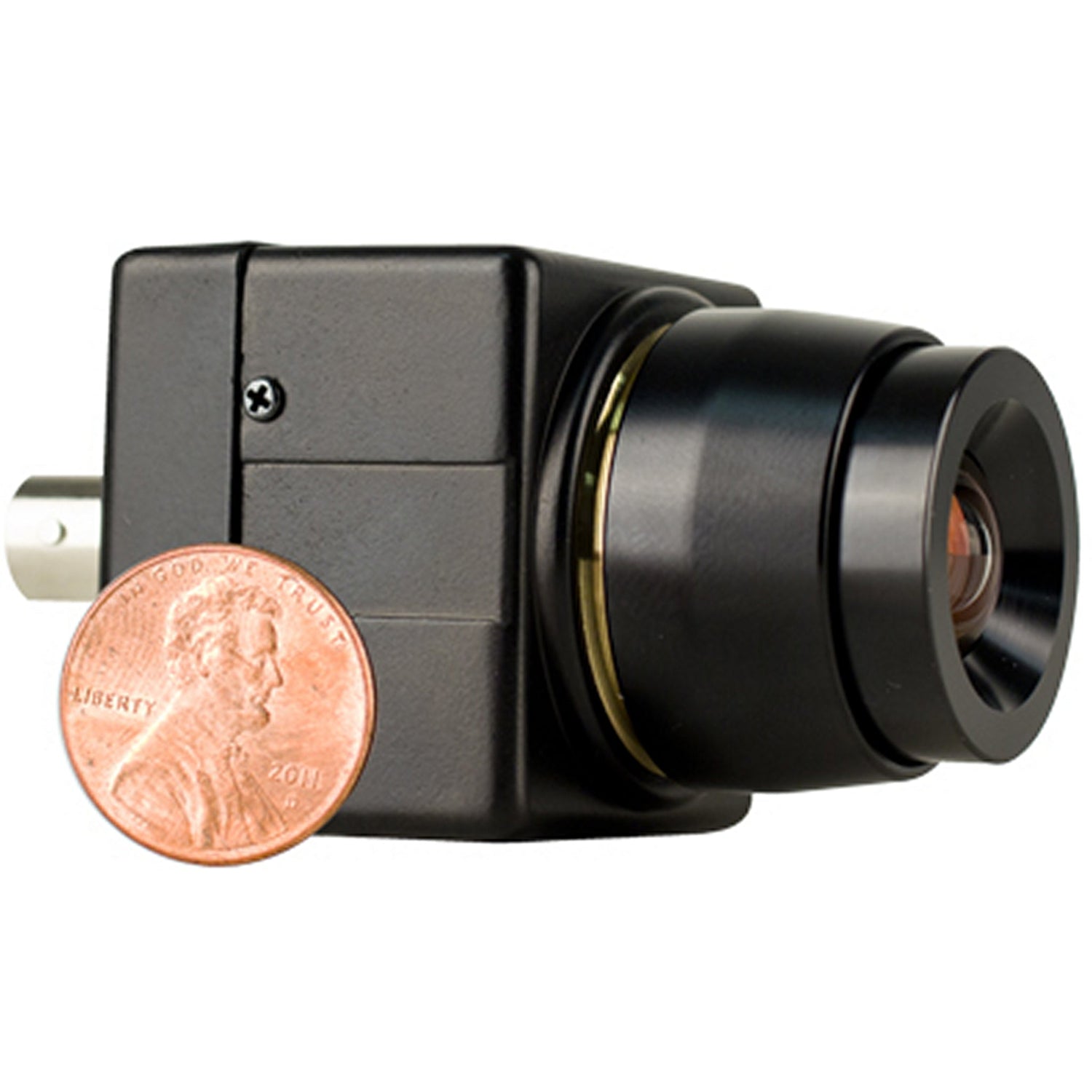

The V-1055 micro-sized CCD camera is a state-of-the-art imaging solution designed for applications requiring high performance in a compact form factor. Measuring just 1.5 inches square, this camera delivers exceptional low-light performance with a minimum illumination of 0.05 lux, outperforming human vision in dim conditions. Featuring a built-in "C/CS" mount, it supports a wide range of miniature, standard, and microscope lenses, making it ideal for machine vision, robotics, and computer imaging applications. With 380 horizontal TV lines of resolution and an electronic iris for automatic adjustment to varying light conditions, this camera ensures clear, high-quality images even in challenging environments.

Operating on 12 VDC at 100 mA, the V-1055 is perfect for security and safety monitoring, as well as hidden camera setups where space is limited. Its electronic iris minimizes smear and anti-blooming effects under high-contrast lighting, ensuring reliable performance in diverse conditions. The camera's robust design supports a wide temperature range of -4°F to +131°F, making it suitable for both indoor and outdoor use. Whether for industrial, scientific, or surveillance purposes, this compact camera offers unmatched versatility and reliability.

Key Features

• Compact Design: Measures only 1.5" × 1.5" × 1" and weighs 3 ounces, allowing for easy installation in tight spaces.
• Low-Light Performance: Requires just 0.05 lux at f1.6, making it ideal for dimly lit environments.
• High Resolution: Delivers 380 horizontal TV lines for clear and detailed imaging.
• Electronic Iris: Automatically adjusts to varying light conditions, reducing smear and anti-blooming effects.
• Versatile Lens Compatibility: Built-in "C/CS" mount supports a variety of lens options for different applications.
• Durable and Reliable: Operates in temperatures ranging from -4°F to +131°F and up to 95% relative humidity.

Technical Specifications

• Imager: 1/3" CCD
• Resolution: 380 horizontal TV lines
• Scanning: 525 lines, 60 fields/sec
• Picture Elements: 510(H) × 492(V), 250,000 pixels
• Chip Size: 6.0mm H × 4.96mm V
• Unit Cell Size: 9.6µm H × 7.3µm V
• Signal to Noise Ratio: Better than 48 dB
• Minimum Illumination: 0.05 lux @ f1.6
• Gamma: y=0.45
• Power Requirements: 12 VDC, 100 mA, 1.2 W
• Connectors: Video: BNC, Power: 2.1mm plug
• Environmental Temperature Range: -20°C to +55°C (-4°F to +131°F)
• Humidity: Within 95% RH

What's in the Box

• V-1055 Compact CCD Camera

Dimensions

• Size: 1.5"w × 1.5"h × 1"d
• Weight: 3 ounces (86 grams)
