Marshall Electronics V 1205 Low Light Board Camera, 0.05 Lux
Marshall Electronics V 1205 Low Light Board Camera, 0.05 Lux
Free Shipping
Marshall V-1205 Low Light Board Camera
The Marshall V-1205 is a groundbreaking low-cost board camera designed to perform exceptionally well in low-light conditions, surpassing human vision with its impressive 0.05 lux sensitivity. Equipped with a 3.6mm f2.0 lens and an electronic auto-iris shutter, this compact camera delivers sharp and clear images even in challenging lighting environments. Its M12 miniature lens mount is compatible with Marshall M12 4300, 4400, and 4700 Series lenses, offering flexibility for various applications. The lens can be adjusted to focus as close as 1/2 inch, making it ideal for precision imaging tasks.
With a resolution of 400 TV lines and a signal-to-noise ratio of over 48dB, the V-1205 ensures high-quality image output. Its compact size and lightweight design make it perfect for integration into custom systems, surveillance setups, or other specialized applications. Powered by 12V DC with a low power consumption of 100mA, this camera is both efficient and reliable for continuous operation.
Key Features
- Low Light Performance: 0.05 lux sensitivity for exceptional imaging in dim environments.
- High Resolution: 400 TV lines for clear and detailed visuals.
- Adjustable Lens: 3.6mm f2.0 lens with a focus distance as close as 1/2 inch.
- Electronic Iris Control: Ensures optimal exposure in varying light conditions.
- Compact Design: Small form factor for easy integration into custom systems.
- Flexible Lens Mount: M12 miniature lens mount compatible with Marshall M12 4300, 4400, and 4700 Series lenses.
Technical Specifications
- Resolution: 400 TV Lines
- Picture: 542H × 492V
- Signal to Noise Ratio: >48dB
- Minimum Illumination: 0.05 Lux
- Iris Control: Electronic
- Lens: 3.6mm f2.0

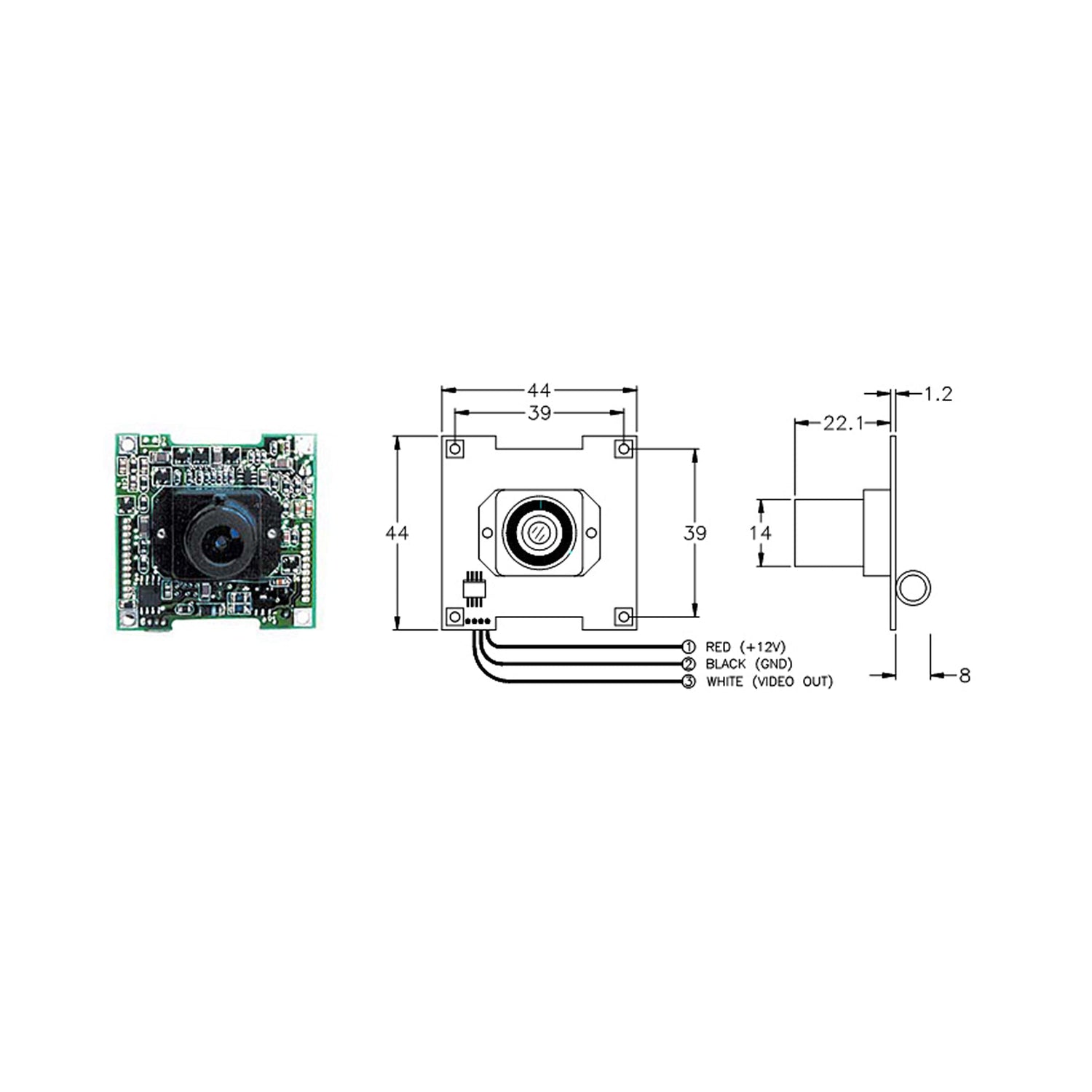

- Connectors: 3 wire plug-in (video, power, ground)
- Power: 12V DC, 100mA
- Dimensions: 1.73" × 1.75" × 1.22"
What's in the Box
- Marshall V-1205 Low Light Board Camera
- 3.6mm f2.0 Lens (pre-installed)
- 3 Wire Plug-in Connector (video, power, ground)
