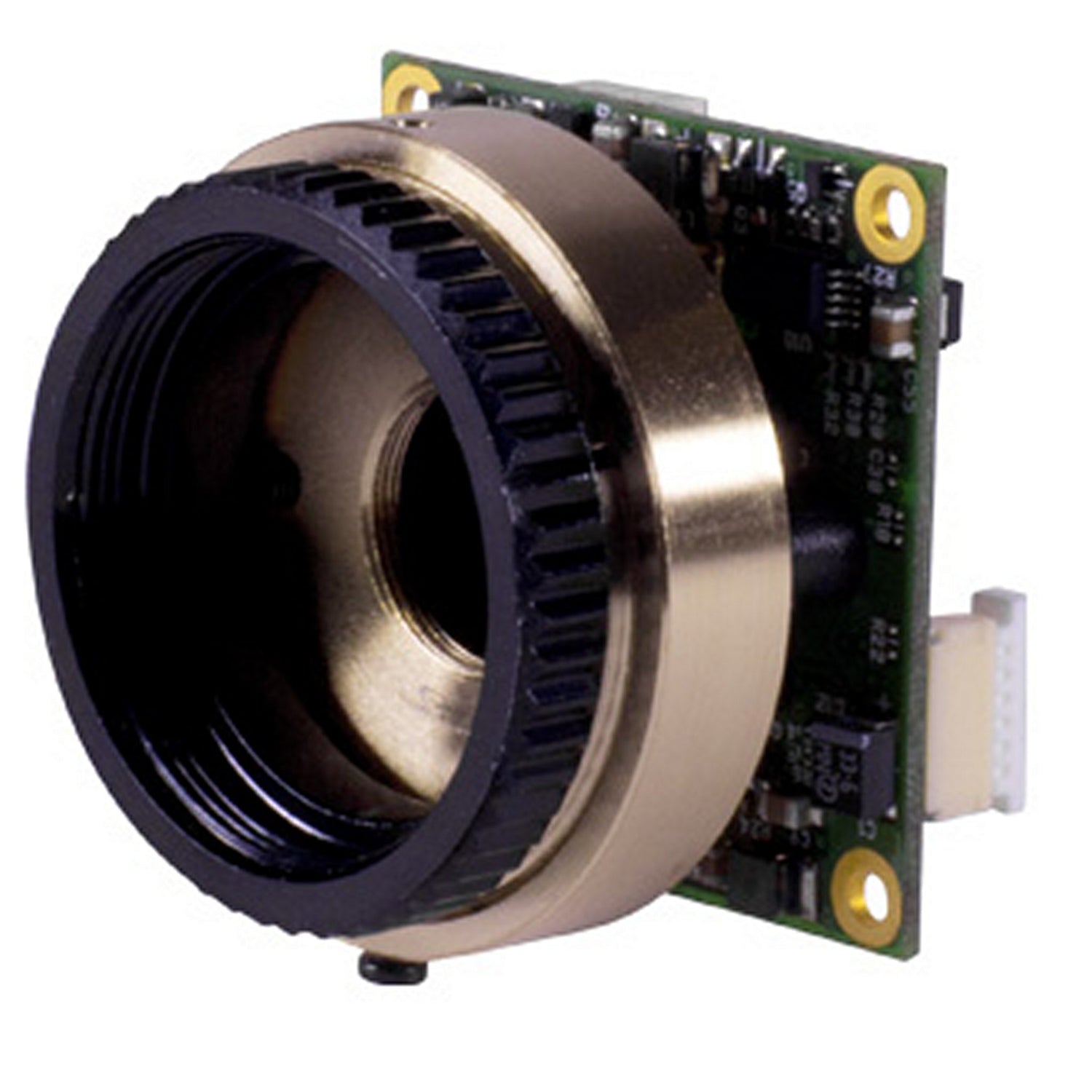

Marshall V-1217-C/CS 1/3 CCD Sensor Single Board B&W Camera

The Marshall V-1217-C/CS is a high-performance single board black-and-white camera designed for a wide range of professional applications, including OEM, industrial processes, test and measurement, law enforcement, military, medical, scientific, and security uses. Featuring a 1/3-inch CCD image sensor with 420 TV lines of resolution, this camera delivers exceptional image quality even in low-light conditions, with a minimum illumination of just 0.03 lux at F1.2. Its Near IR imaging capabilities make it ideal for machine vision, medical imaging, and scientific research.

This compact camera measures just 32mm x 32mm, making it perfect for integration into tight spaces. It features a C/CS lens mount, offering compatibility with a wide variety of lenses to suit any application (lens not included). Additional features include Auto Gain Control, a switchable mirror function, 2X digital zoom, and an electronic shutter with a range of 1/60 to 1/120,000 seconds. The V-1217-C/CS is powered by a low 12 VDC input, consuming only 1.2W, ensuring energy efficiency and reliability in demanding environments.

Key Features

• Image Sensor: 1/3-inch CCD Image Sensor
• Resolution: 420 TV lines
• Minimum Illumination: 0.03 lux at F1.2
• Lens Mount: C/CS for versatile lens options
• Digital Zoom: 2X switchable
• Electronic Shutter: 1/60 to 1/120,000 seconds
• Auto Gain Control: Enabled
• Mirror Function: Switchable
• Video Output: Composite 1.0V p-p at 75 ohm
• Power Supply: DC12V ±10%, 1.2W
• Operating Temperature: -20° to +50° C
• Operational Humidity: Within 85% RH

Technical Specifications

• Part Number: V-1217-C/CS
• TV System: EIA
• CCD Total Pixels: 537(H) x 505(V)
• Scanning System: 525 lines, 60 fields/sec
• Sync System: Internal
• S/N Ratio: 52dB (min) / 60dB (typ) (AGC off)
• Gamma Correction: 0.45
• Auto Iris: A.E.S.

What's in the Box

• Marshall V-1217-C/CS Single Board B&W Camera

Dimensions

• Board Size: 32mm x 32mm (1.26 inches x 1.26 inches)
