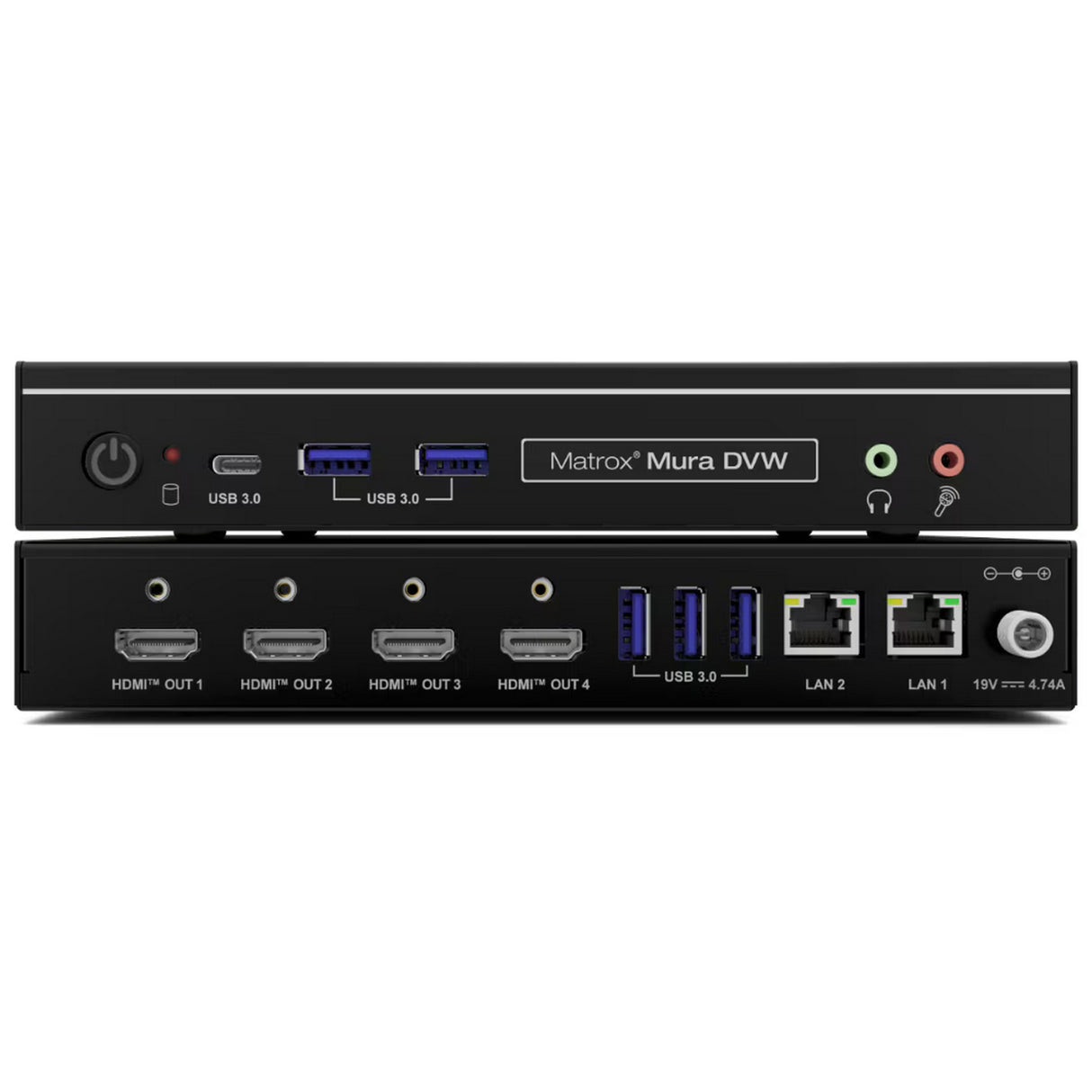

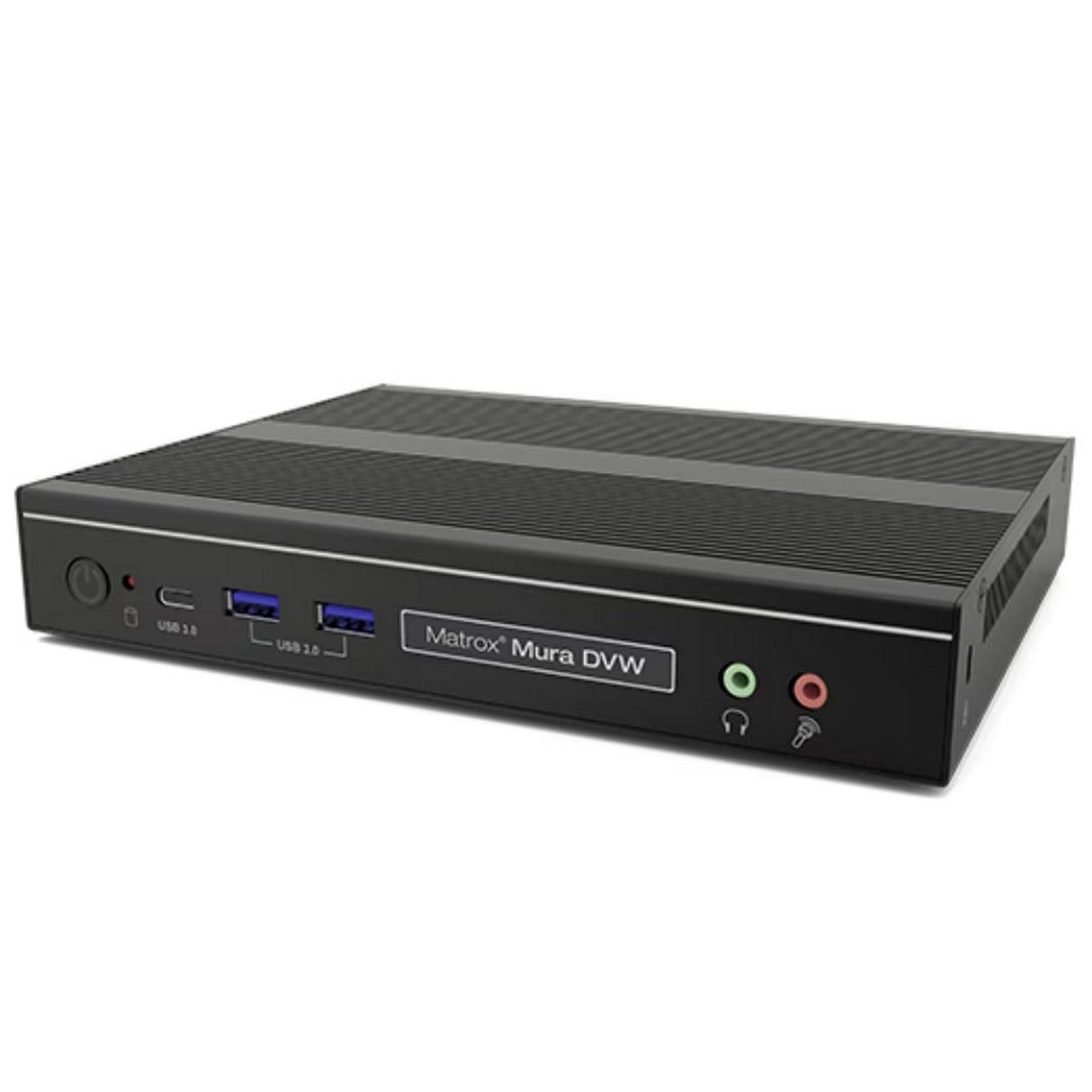

Matrox DVW-Q4KY-NA Mura DVW IP Based Distributed Video Wall Appliance
Matrox Mura DVW is an IP-based distributed video wall appliance designed for synchronized multi-display installations. It enables decoding and display of IP video streams across scalable video wall configurations for control rooms and visualization environments. This makes it ideal for secure, large-format video walls where synchronization and reliability are critical.
The system operates as a standalone appliance with integrated networking, decoding, and graphics processing. It synchronizes multiple units using IP-based PTP frame locking to eliminate tearing across displays. Video streams are decoded and composed locally without the need for a centralized server.
This design supports flexible and scalable video wall deployments of varying sizes. It allows operators to combine multiple appliances to expand display surfaces while maintaining synchronization. Built-in security mechanisms protect content and system access.
Key Features
- Distributed Video Wall Appliance: Enables scalable IP-based video wall deployments
- PTP Frame Synchronization: Supports synchronized playback across multiple appliances
- High-Density Stream Decoding: Handles multiple simultaneous H.264 and H.265 streams
- Serverless Architecture: Operates without a dedicated external server
- Secure IP Operation: Uses encrypted communication and authenticated access
Technical Specifications
Product TypeIP-based distributed video wall appliance
Form Factor
Standalone appliance
1U half-rack horizontal mounting
Video Outputs
4 × HDMI outputs with locking mechanism
Maximum resolution 4096 × 2160 at 60 Hz
Network Interface
Ethernet 10 / 100 / 1000 / 2.5G Base-T
RJ45 connector
IPv4 and IPv6 support
Unicast and multicast distribution
Streaming Protocols
RTSP
SRT
MPEG-2 TS
Control Protocols
HTTPS
Telnet
Supported Codecs
H.264 / MPEG-4 AVC up to Level 5.2
H.265 / HEVC up to Level 6.2
4:2:0 and 4:4:4 support
Decode Capacity
1 × 8K60
6 × 4K60
12 × 4K30
18 × 1080p60
34 × 1080p30
72 × 720p30
Color Formats
RGB 8:8:8 and 10:10:10
YUV 4:4:4 and 4:2:0
Video Processing
Composite
Key
Blend
Crop
Mirror
Flip
Cooling
Dual ball bearing fan
Power
Power supply 19 V 90 W
Typical consumption 45 W
Operating Conditions
Temperature 0 to 40 °C
Humidity 10 to 90 percent non-condensing
Dimensions
7.48" × 5.83" × 1.18"
190 × 148 × 30 mm
Warranty
2 Years
What's in the Box
(1) Matrox Mura DVW IP Based Distributed Video Wall Appliance(1) VESA Mount Bracket
