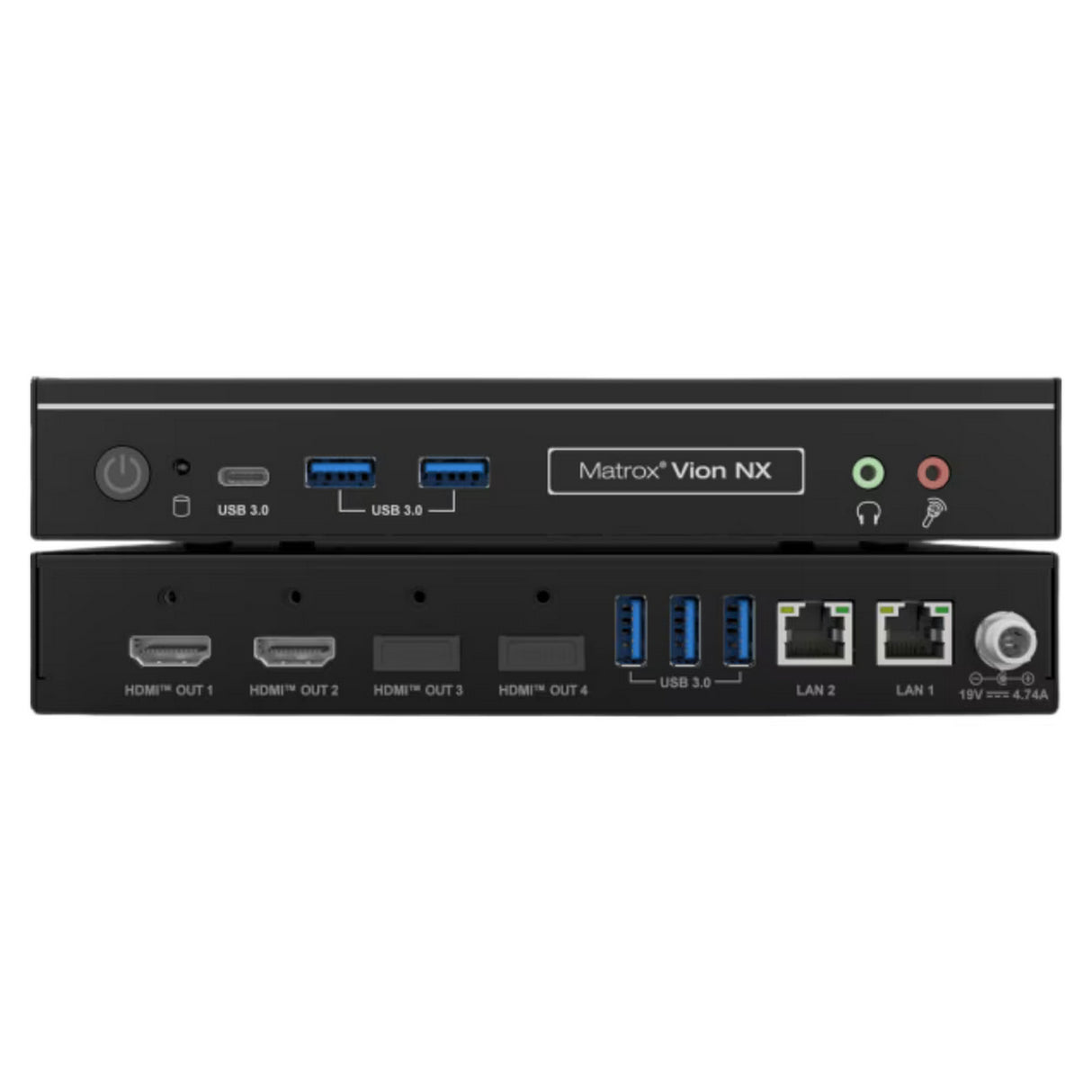

Matrox VION-NXY-NA NX Compact IP Video Gateway with IP Inputs
Matrox Vion NX is a compact IP video gateway designed for professional media processing and IP-based workflows. It enables multi-channel encoding, decoding, transcoding, and cross-conversion of IP video streams for broadcast, production, and collaboration environments. This makes it ideal for live production and IP routing scenarios where format flexibility and signal integrity are critical.
The unit operates as a network-based video processing platform supporting multiple IP codecs and streaming protocols. It manages video compression, color space conversion, and stream routing while maintaining low-latency performance. Configuration and monitoring are handled through network-based user interfaces and control APIs.
This design supports scalable IP infrastructures for local or cloud-based deployments. It allows concurrent processing of multiple streams while preserving visual detail. Compatibility with open standards enables integration into evolving production ecosystems.
Key Features
- Multi-Channel IP Video Gateway: Supports encoding, decoding, transcoding, and cross-conversion
- Broad Codec Support: Handles H.264, HEVC, JPEG XS, and NDI formats
- Open Standards Compatibility: Supports IPMX and SMPTE ST 2110-22 workflows
- High Color Precision: Supports 4:2:2 and 4:4:4 10-bit video processing
- Compact Network-Based Design: Optimized for IP-only video routing and processing
Technical Specifications
Product TypeCompact IP video gateway for media processing and conversion
Video Processing Functions
Encoding
Decoding
Transcoding
Cross-conversion
Supported Codecs
H.264 / MPEG-4 AVC 4:2:0 8-bit up to 100 Mbps
H.265 / HEVC 4:2:0 8/10-bit
H.265 / HEVC 4:2:2 8/10-bit
H.265 / HEVC 4:4:4 8/10-bit up to 100 Mbps
JPEG XS 4:2:2 and 4:4:4 up to 2000 Mbps
NDI6 SpeedHQ up to 300 Mbps
NDIHX3 H.264 / H.265 up to 100 Mbps
Supported Streaming Formats
RTP / RTSP
SRT
MPEG-2 TS
NDI6
NDIHX3
IPMX with JPEG XS
SMPTE ST 2110-22 with JPEG XS
Encode Decode Performance
JPEG XS: 1 Ć 4Kp60 or 4 Ć 1080p60
NDI6: 1 Ć 4Kp60 or 4 Ć 1080p60
H.264: 2 Ć 4Kp60 or 8 Ć 1080p60
H.265 4:2:0 and 4:4:4: 2 Ć 4Kp60 or 8 Ć 1080p60
H.265 4:2:2 10-bit: 2 Ć HD
Transcode Capabilities
JPEG XS to and from NDI, H.264, H.265
NDI to and from H.264 and H.265
H.264 to and from H.265
Multiple simultaneous encode and transcode operations supported
Color Space Conversion
YUV 4:2:0 8/10-bit
YUV 4:2:2 8/10-bit
RGB 4:4:4 8/10-bit
Scaling and Frame Rate Conversion
Upscaling and downscaling HD to 4K
Deinterlacing and interlace to progressive conversion
Frame rate conversion
Video Outputs
2 Ć HDMI Type A
8 channels embedded audio per input
Audio Outputs
Unbalanced output via 3.5 mm TRS
Network Interfaces
LAN 1: 1000 / 2500 Base-T RJ45
LAN 2: 100 / 1000 Base-T RJ45
USB Interfaces
5 Ć USB 3.0 Type A
1 Ć USB-C
Power Requirements
Input voltage: 120ā240 V
Power supply: 90 W
Power input: 19 V up to 4.5 A
Operating Conditions
Temperature range: 0 to 35 Ā°C
Dimensions
7.48 Ć 5.83 Ć 1.18"
190 Ć 148 Ć 30 mm
Weight
2.2 lbs (1.0 kg)
What's in the Box
(1) Matrox Vion NX IP Video Gateway(1) Power Supply
Mounting Plate with Screws
