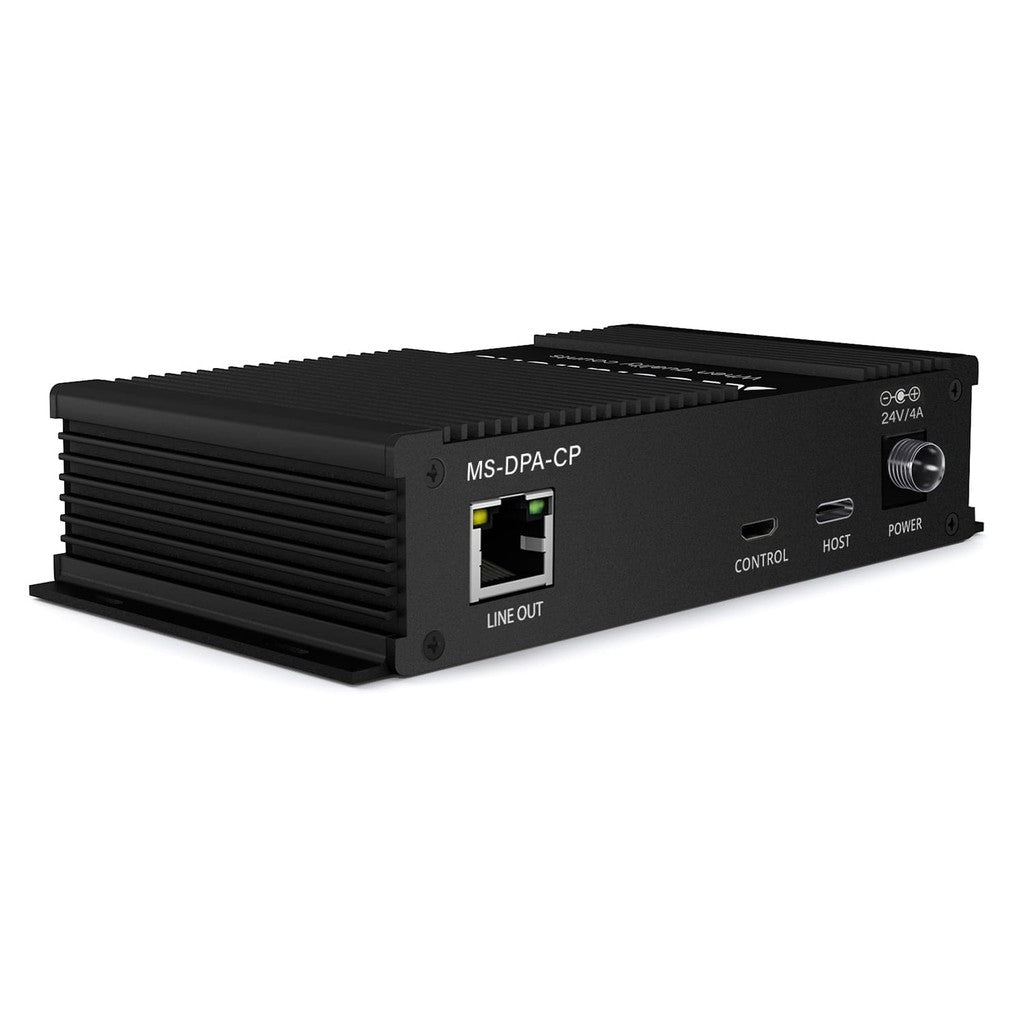

The MSolutions MS-DPA-CP USB-C DP Alt Mode extender set carries 4K video, USB data, and laptop charging up to 328 feet over one CAT6A cable. It supports DisplayPort Alternate Mode video up to 4K 60Hz 4:4:4 with 18 Gbps bandwidth while supplying up to 60W of charging power.

Designed for conference rooms, classrooms, workstations, and professional AV installations, this long-distance USB-C extender reduces cable clutter between computers, displays, and remote peripherals. Buyers seeking a USB-C extender with laptop charging gain video, data, control, and power through one category-cable connection without installing drivers or software.

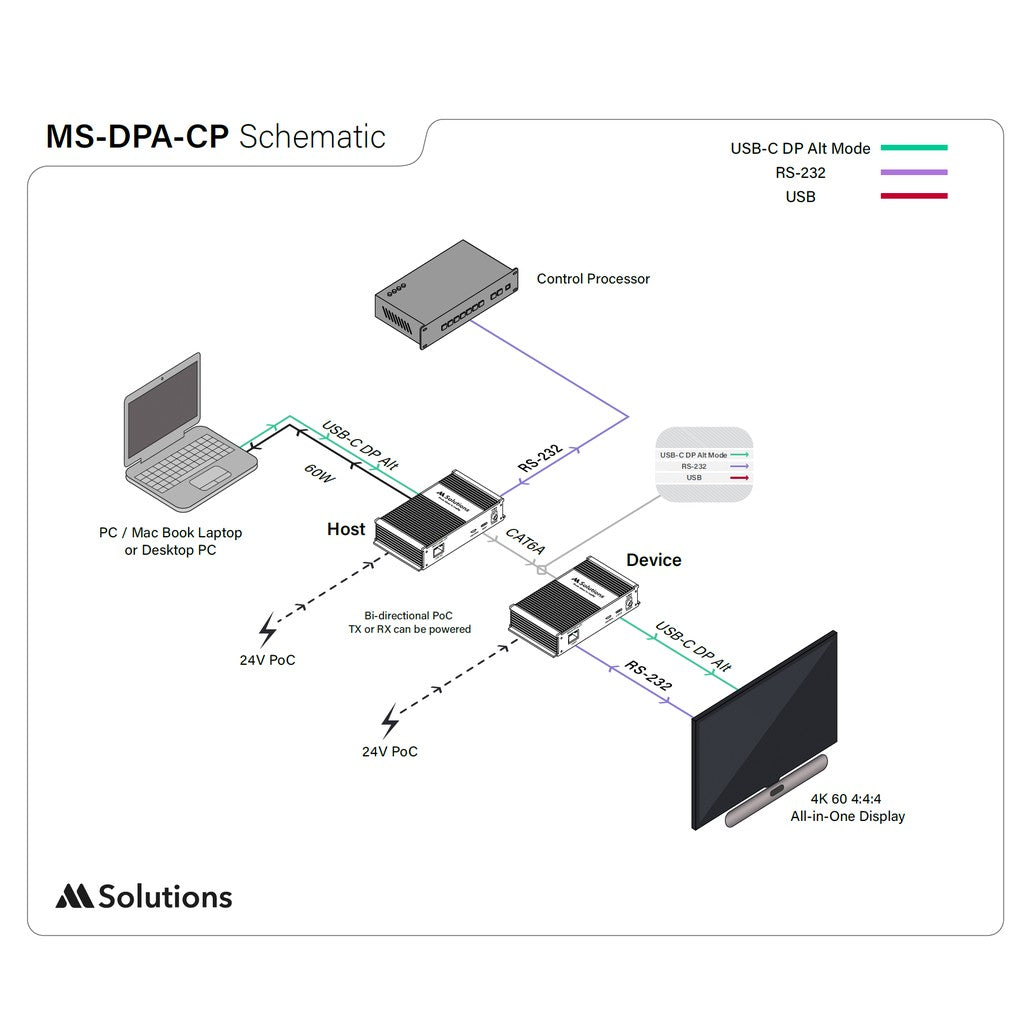

The system supports two-lane and four-lane DisplayPort Alt Mode operation, HDCP 2.2-protected content, and both Mac and Windows devices. Bidirectional RS-232 enables serial control integration, while bidirectional 24V Power over Cable allows flexible power placement. Micro-USB service ports support product updates, cloud control, and system monitoring.

Key Features

• 328-Foot USB-C Extension: Extends DisplayPort Alt Mode video and USB data over one CAT6A or higher cable.
• 4K 60Hz Video: Supports 4K 60Hz 4:4:4 output with bandwidth up to 18 Gbps.
• 60W Laptop Charging: Supplies charging power to a connected laptop through the host unit.
• Two-Lane and Four-Lane Support: Accommodates compatible USB-C DisplayPort Alternate Mode configurations.
• Bidirectional RS-232: Carries serial control signals between the host and device locations.
• Bidirectional 24V PoC: Sends operating power across the category cable for flexible installation.
• Driver-Free Operation: Provides plug-and-play connectivity without applications or driver installation.
• Cross-Platform Compatibility: Works with compatible Mac and Windows devices.

Technical Specifications

• Product Type: USB-C DisplayPort Alternate Mode extender set
• DisplayPort Alt Mode Support: Two-lane and four-lane operation through USB Type-C
• Maximum Video Format: 4K 60Hz 4:4:4
• Maximum Video Bandwidth: 18 Gbps
• Maximum Extension Distance: 328 feet
• Transmission Cable: Single CAT6A cable or higher
• Extended Signals: USB-C DisplayPort Alternate Mode video and USB data
• HDCP Compliance: HDCP 2.2
• Device Compatibility: Compatible Mac and Windows devices

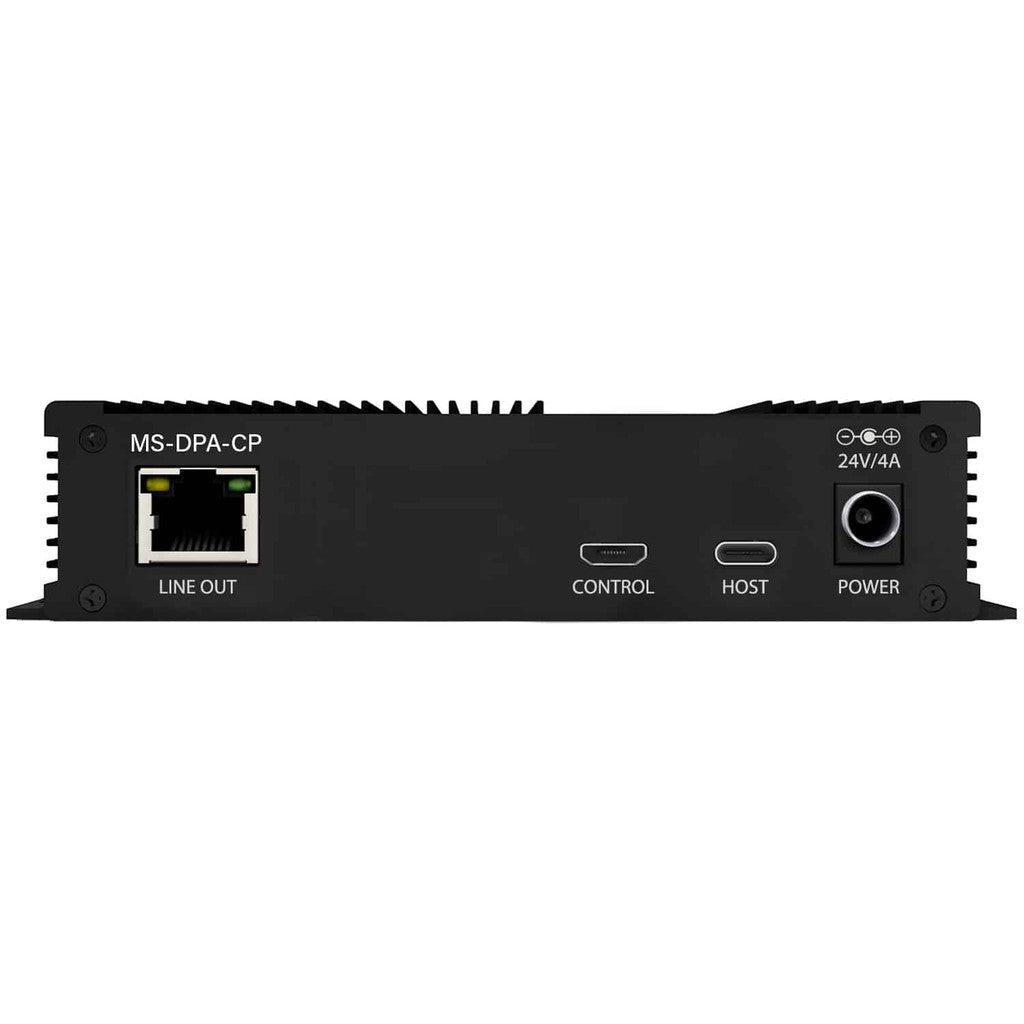

• Host/TX Link Connection: 1 x RJ45 output
• Host/TX USB-C Connection: 1 x USB-C female for data and video
• Device/RX Link Connection: 1 x RJ45 input
• Device/RX USB-C Connection: 1 x USB-C female for data and video
• Service Connectivity: Micro-USB on host and device units for product updates, cloud control, and monitoring

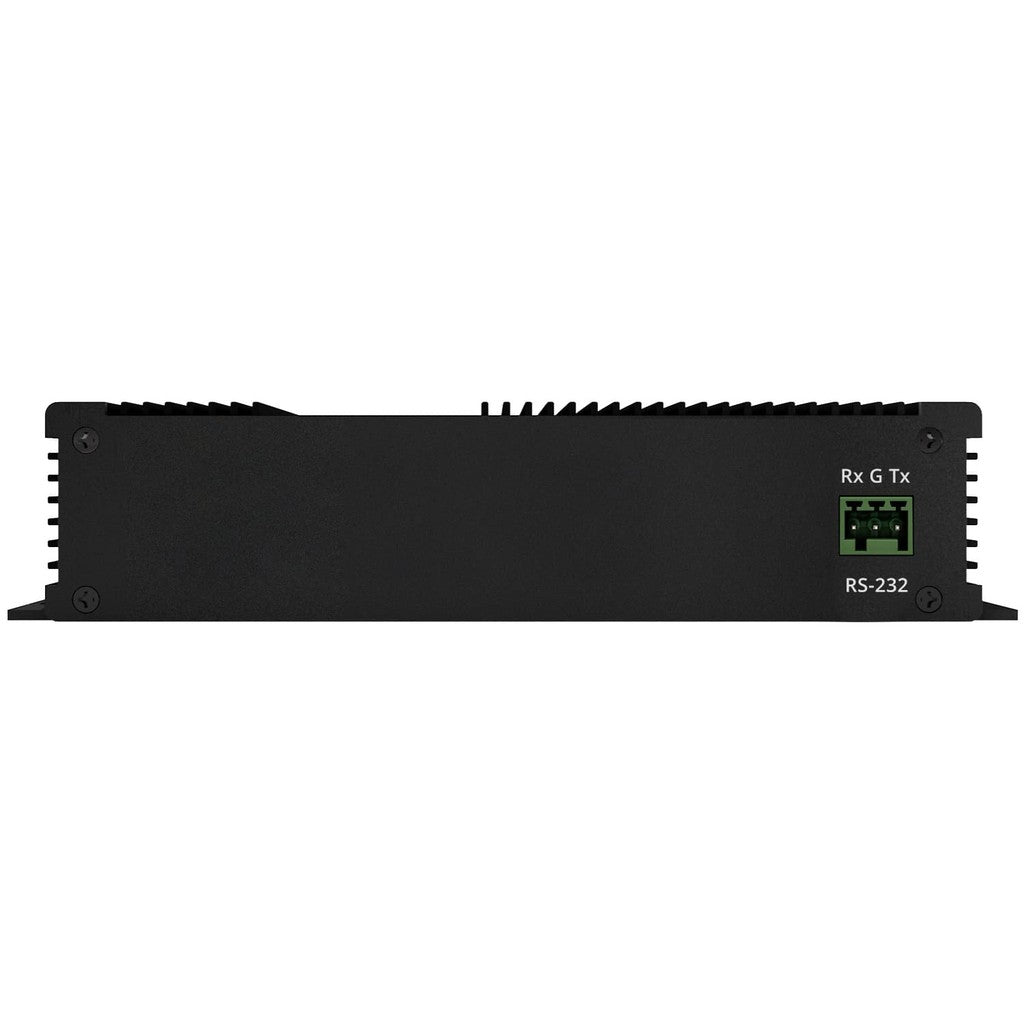

• RS-232 Connectivity: 1 x three-pin Phoenix connector on host and device units; connector block included
• RS-232 Direction: Bidirectional serial pass-through
• USB Topology: Occupies one USB tier
• Power Supply: 24V DC, 4A
• Power over Cable: Bidirectional 24V PoC
• Power Consumption: 10W
• Charging Power: 60W
• Individual Unit Dimensions: 5.31" W x 2.76" D x 1.22" H
• Individual Unit Weight: 0.53 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 2.20 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing
