MSolutions MS-DPA-P USB-C 4K DP Alt Mode Extender with 60W Charging

MSolutions MS-DPA-P USB-C 4K DP Alt Mode Extender with 60W Charging

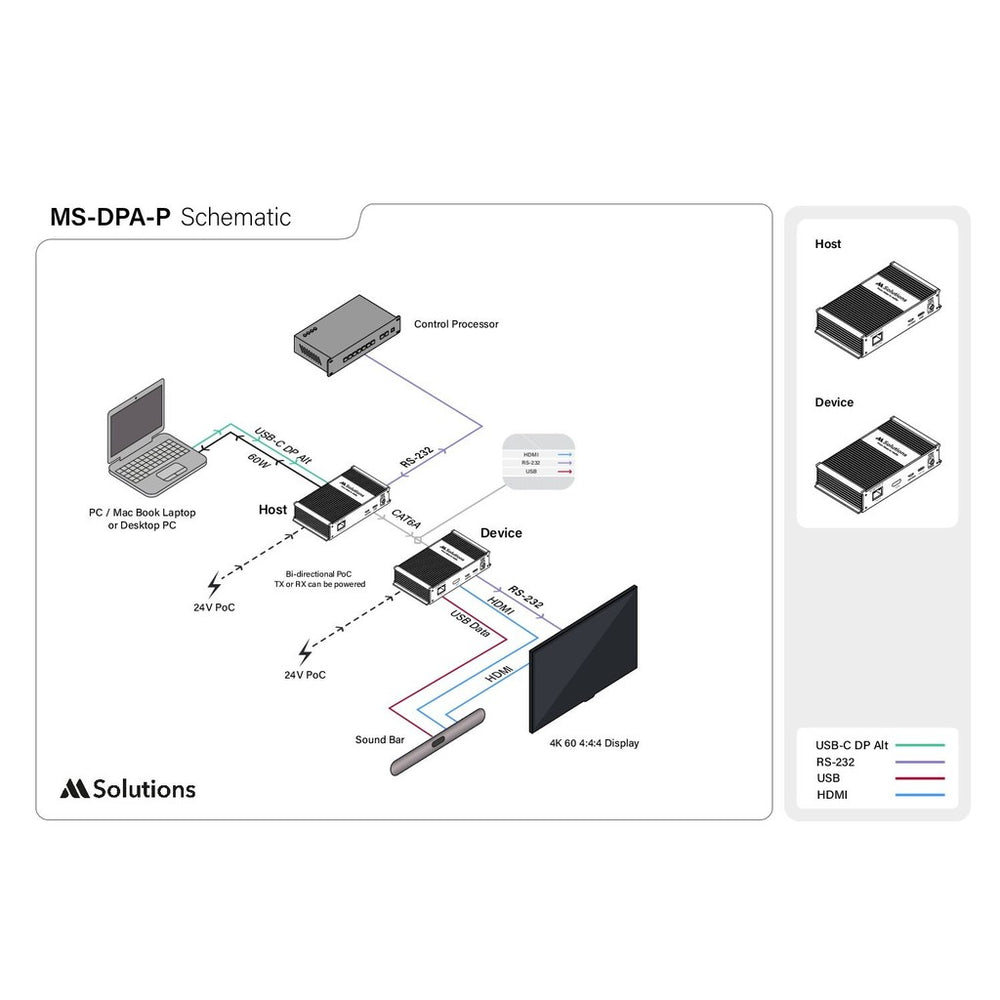

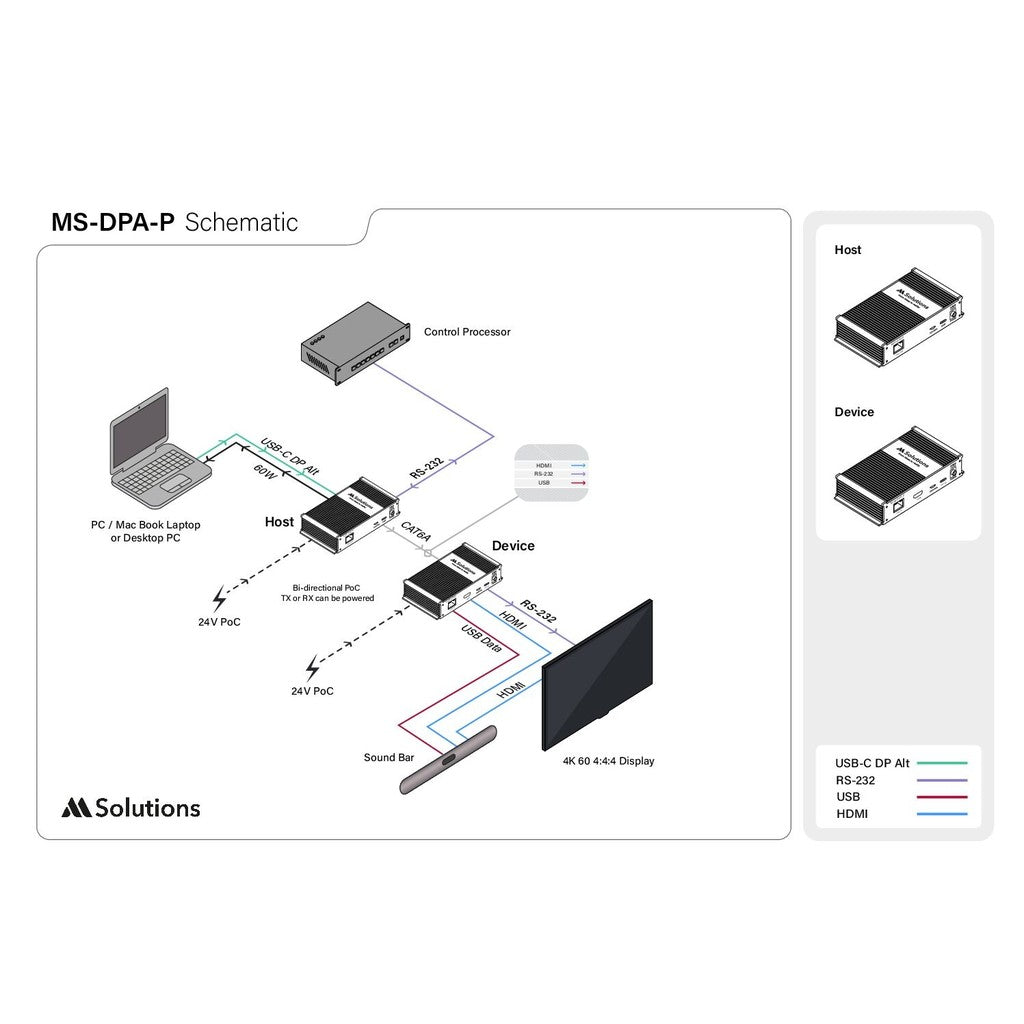

The MSolutions MS-DPA-P USB-C DP Alt Mode extender carries 4K video and USB data up to 328 feet over one CAT6A cable. It supports DisplayPort Alternate Mode video up to 4K 60Hz 4:4:4 at 18 Gbps, while the host unit provides up to 60W of laptop charging power.

Designed for conference rooms, classrooms, workstations, and professional AV systems, the MS-DPA-P separates video and peripheral connectivity at the remote device location. A dedicated HDMI output connects a display, while a separate USB-C port handles data. This arrangement simplifies long-distance USB-C presentation systems without requiring drivers or additional applications.

The extender supports two-lane and four-lane DisplayPort Alt Mode configurations and works with compatible Mac and Windows devices. Bidirectional RS-232 enables serial control integration, while bidirectional 24V Power over Cable allows flexible power-supply placement. Micro-USB service connections support product updates, cloud control, and system monitoring.

Key Features

• 328-Foot Signal Extension: Carries USB-C DisplayPort Alt Mode video and USB data over one CAT6A cable.
• 4K 60Hz Video: Supports video resolutions up to 4K 60Hz 4:4:4 with 18 Gbps bandwidth.
• Separate Remote Outputs: Provides one HDMI port for video and one USB-C port for data at the device unit.
• 60W Laptop Charging: Supplies charging power to a compatible laptop through the host-side USB-C connection.
• Two-Lane and Four-Lane Support: Accommodates compatible DisplayPort Alternate Mode configurations over USB Type-C.
• Bidirectional RS-232: Passes serial control signals between the host and remote device locations.
• Bidirectional 24V PoC: Transfers operating power over the category cable for flexible installation.
• Plug-and-Play Operation: Works without driver installation or additional software applications.

Technical Specifications

• Product Type: USB-C DisplayPort Alternate Mode extender
• DisplayPort Alt Mode Support: Two-lane and four-lane operation through USB Type-C
• Maximum Video Resolution: 4K 60Hz 4:4:4
• Maximum Video Bandwidth: 18 Gbps
• Maximum Extension Distance: 328 feet
• Required Transmission Cable: CAT6A or higher
• Extended Signals: USB-C DisplayPort Alternate Mode video and USB data
• HDCP Compliance: HDCP 2.2
• Computer Compatibility: Mac and Windows devices

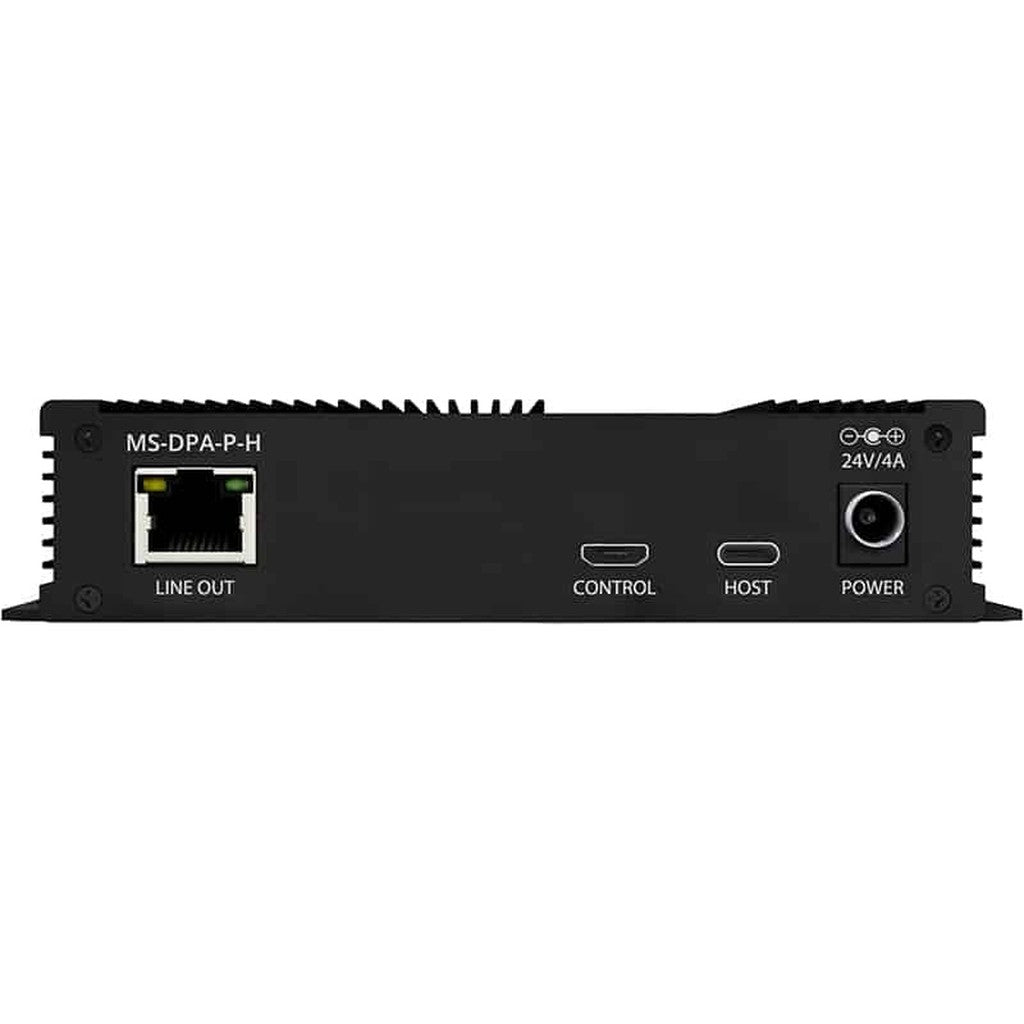

• Host Unit Link Connection: 1 x RJ45 output
• Host Unit USB-C Connection: 1 x USB-C female for data, video, and laptop charging

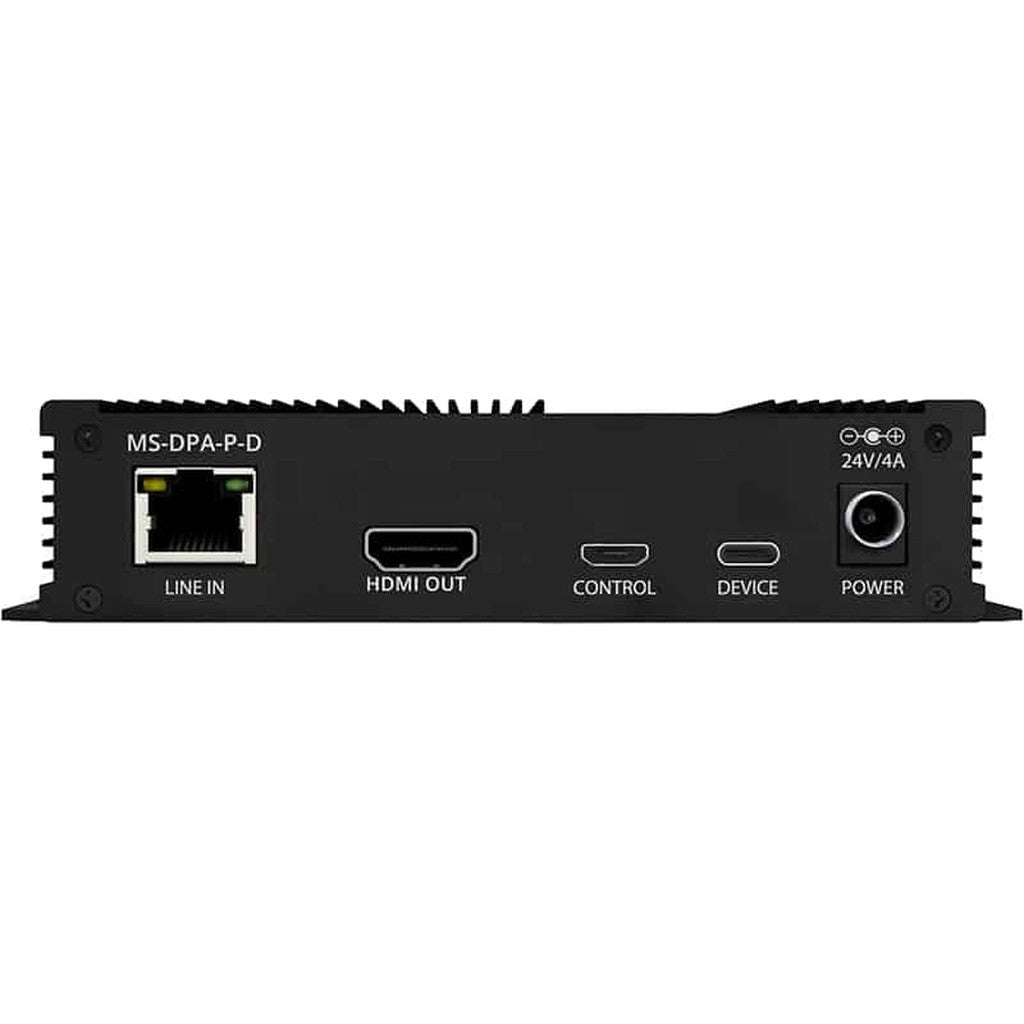

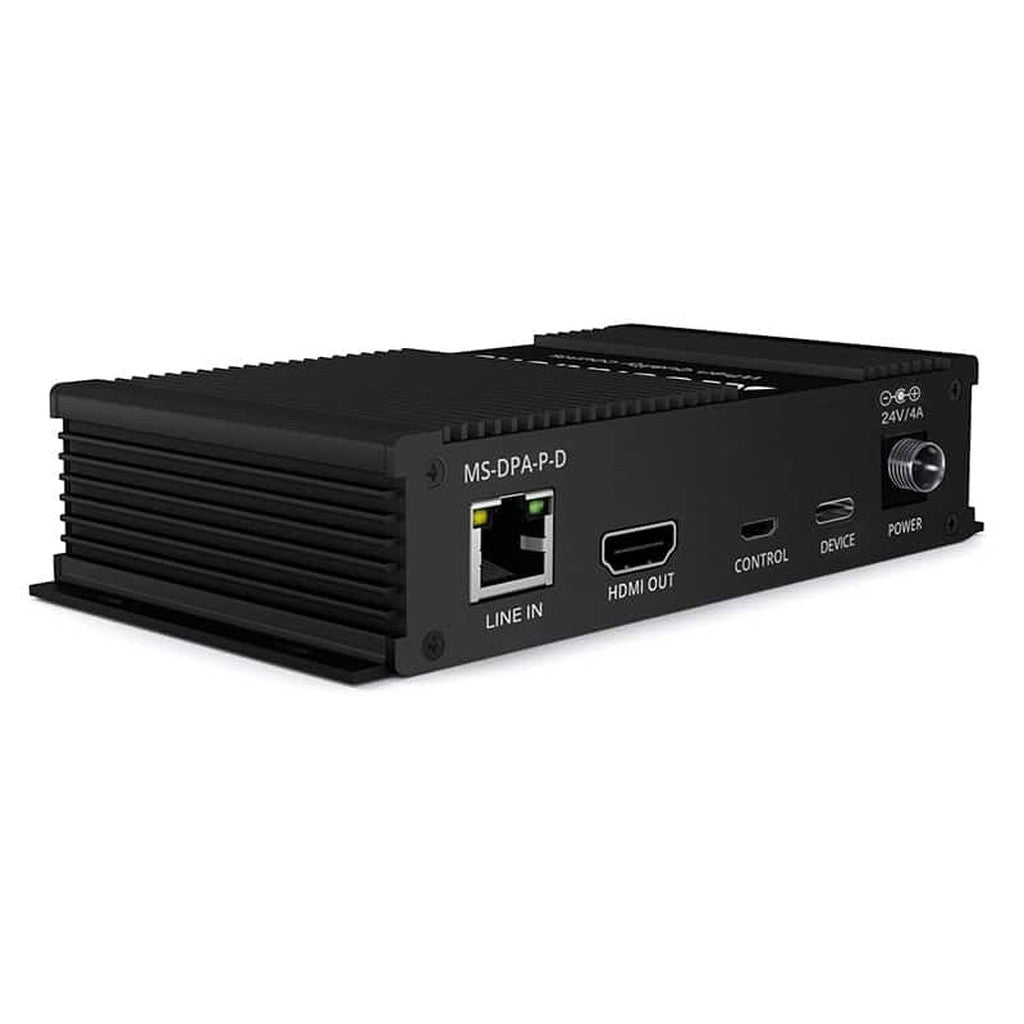

• Device Unit Link Connection: 1 x RJ45 input
• Device Unit Video Output: 1 x HDMI
• Device Unit Data Connection: 1 x USB-C female
• Service Connectivity: Micro-USB on host and device units for product updates, cloud control, and monitoring

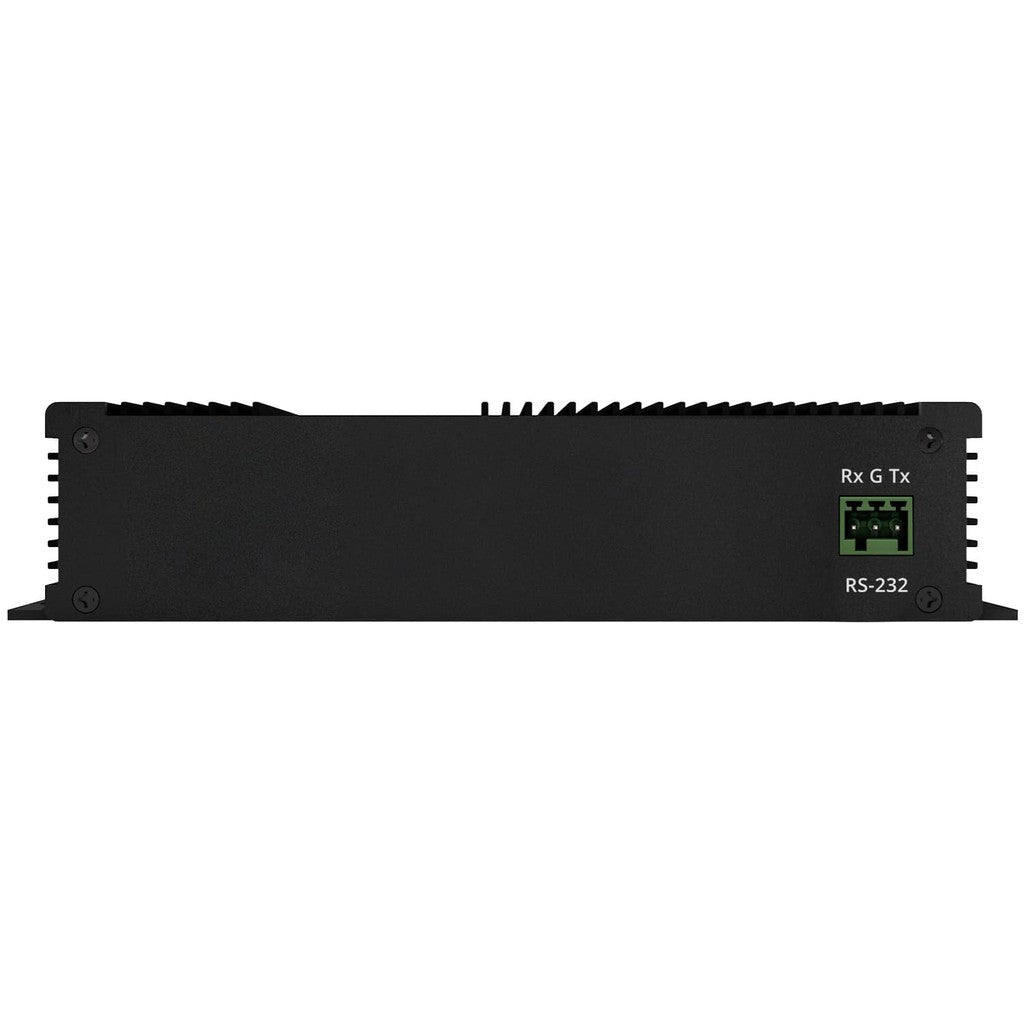

• RS-232 Connectivity: 1 x 3-pin Phoenix connector on the host and device units; connector block included
• RS-232 Direction: Bidirectional serial pass-through
• USB Topology: Occupies one USB tier

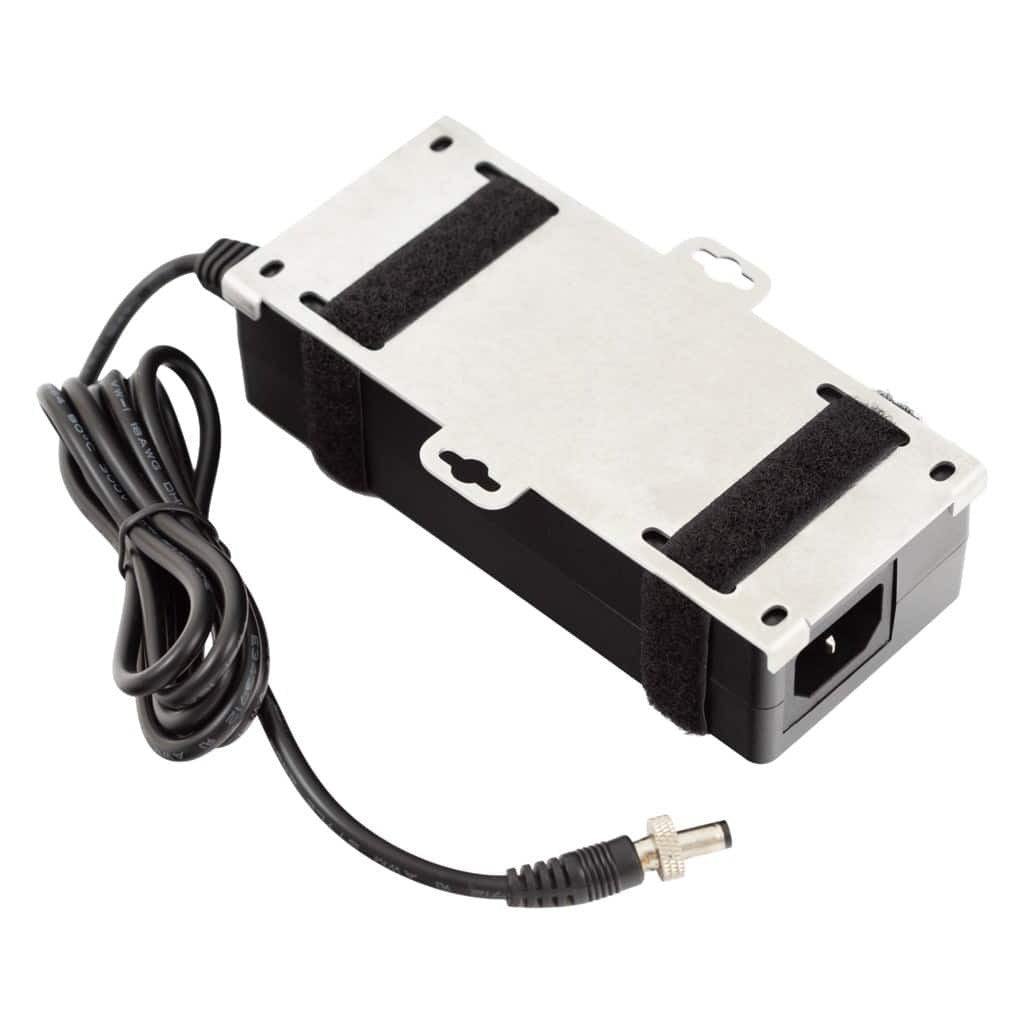

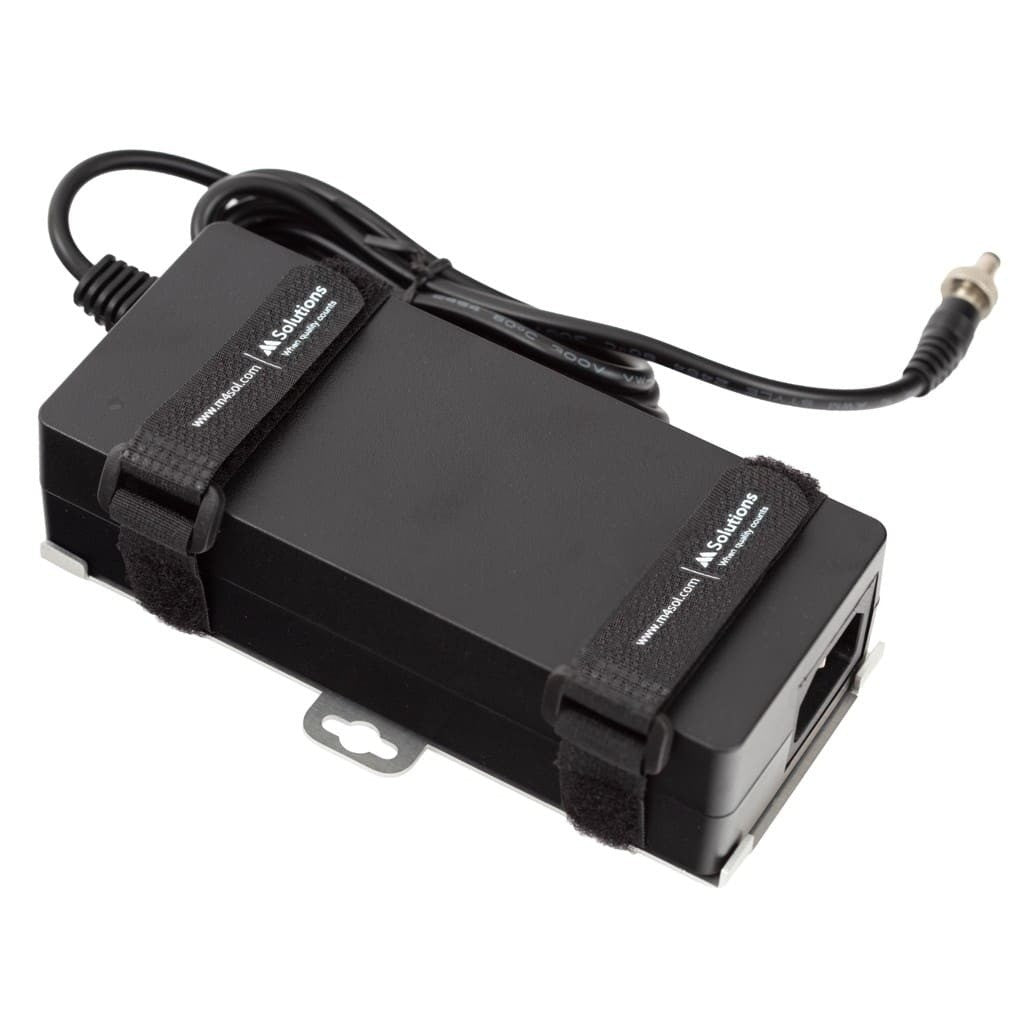

• Power Supply: 24V DC, 4A
• Power over Cable: Bidirectional 24V PoC
• Power Consumption: 10W
• Laptop Charging Power: 60W
• Individual Unit Dimensions: 5.31" W x 2.76" D x 1.22" H
• Individual Unit Weight: 0.53 lbs
• Package Dimensions: 6.42" W x 5.79" D x 3.35" H
• Package Weight: 2.20 lbs
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 0% to 80%, non-condensing
