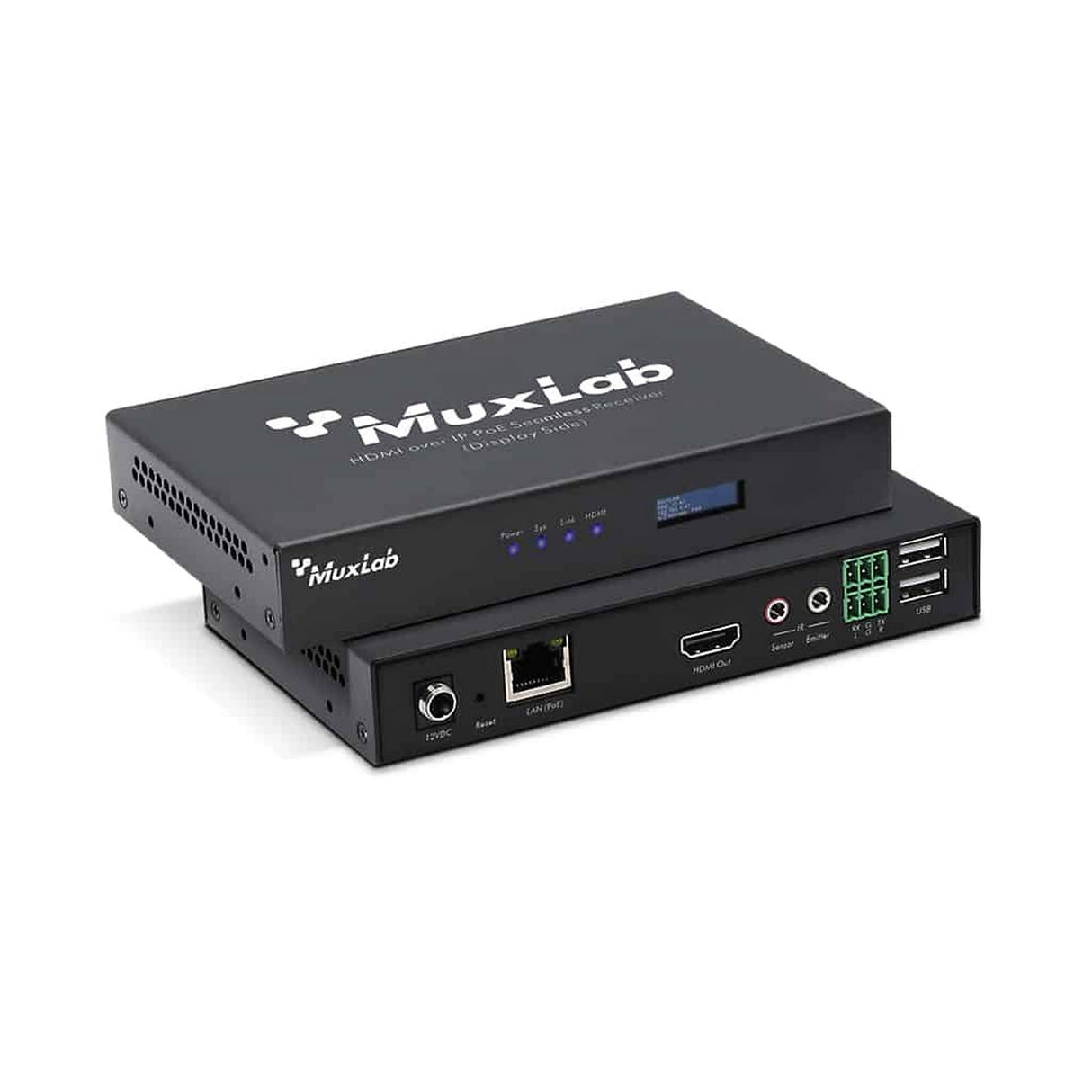

MuxLab 500864 HDMI Over IP PoE Seamless Transmitter and Receiver 1080P for AV Over IP Systems - RX
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
MuxLab 500864 HDMI Over IP PoE Seamless Transmitter and Receiver 1080P for AV over IP Systems
The HDMI over IP PoE Seamless Transmitter and Receiver 1080P allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 1080P at 60Hz resolution via Cat5e or Cat6 cable. It is compatible with MuxLab 500864 series devices to support point to point, point to multipoint, and multipoint to multipoint configurations. This solution enables Video Wall and Multiview capabilities in a low bandwidth expandable and cost effective manner.
The exceptionally low bandwidth requirements allow audio and video content to be streamed over a local network, over WiFi, and over the Internet for distributed installations. The transmitter accepts 1080P video at 60Hz and streams the content to an H.264 or H.265 receiver to be displayed on a 1080P monitor. The devices support PoE and may be powered by a PoE Ethernet Switch.
Designed for professional AV environments, this system supports seamless switching, multiview layouts, and video wall creation. Centralized management is supported via compatible network controllers for flexible control and monitoring. This makes it well suited for commercial, educational, and medical information systems.
Key Features
- 1080P60 Video Support: Supports up to 1080P at 60Hz video streams.
- Efficient Video Compression: Supports H.264 and H.265 video codec, excellent for LAN and Internet transmission.
- Seamless Switching: Supports seamless switching.
- Advanced Display Control: Supports Video Wall and Multiview with up to 4 windows per screen.
- Remote Device Control: Supports RS232, USB and infrared for control of end devices.
- PoE Powered: Powered via PoE Ethernet Switch.
Technical Specifications
EnvironmentHDMI 1.4
Devices
Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI.
Signal Protocol Standard
HDMI 1.4 and HDCP 1.4
Video Resolution
Up to 1080P 60
Audio
Phoenix connector Line in or HDMI audio
Latency
80 to 120ms
Network Bandwidth
Up to 12Mbps
Protocols
Supports Multicast, RTSP, RTMP
Compression
Supports H.264 265
Indicators
Power Power indicator
Sys System indicator
Link LAN cable connection indicator
HD HDMI signal status
OLED Screen
Showing the Model, ID, IP, status
Video
1 x HDMI Type A
Control Ports
1 x RS232 phoenix connector
1 x 3.5mm IR Sensor
1 x 3.5mm IR Emitter
Audio Ports
1 x phoenix connector Input or Output depending on unit
LAN
1 x RJ45 PoE
USB
TX: 1 x USB B ports for PC host
RX: 2 x USB A ports for Keyboard and Mouse
Power
12VDC 1A
Control
Muximus Network Controller
3rd Party Control by TCP UDP
Windows PC software Android iOS APP
Power Source
This device supports PoE PD an external power supply is not included It is intended to be powered via a PoE PSE Ethernet Switch If required an optional power supply 500988 may be purchased separately
Power Consumption
less than 10W
Temperature
Operating 0 to 40 C
Storage minus 20 to 85 C
Humidity Up to 90 percent non condensing
Dimensions
155mm x 95mm x 25mm
Weight
1.2lbs / 0.54kg
Compliance
Regulatory FCC CE RoHS
Flammability 94V0
Warranty
2 years
What's in the box
(1) 500864 HDMI over IP PoE Seamless Transmitter or Receiver (depending on selected variant)
