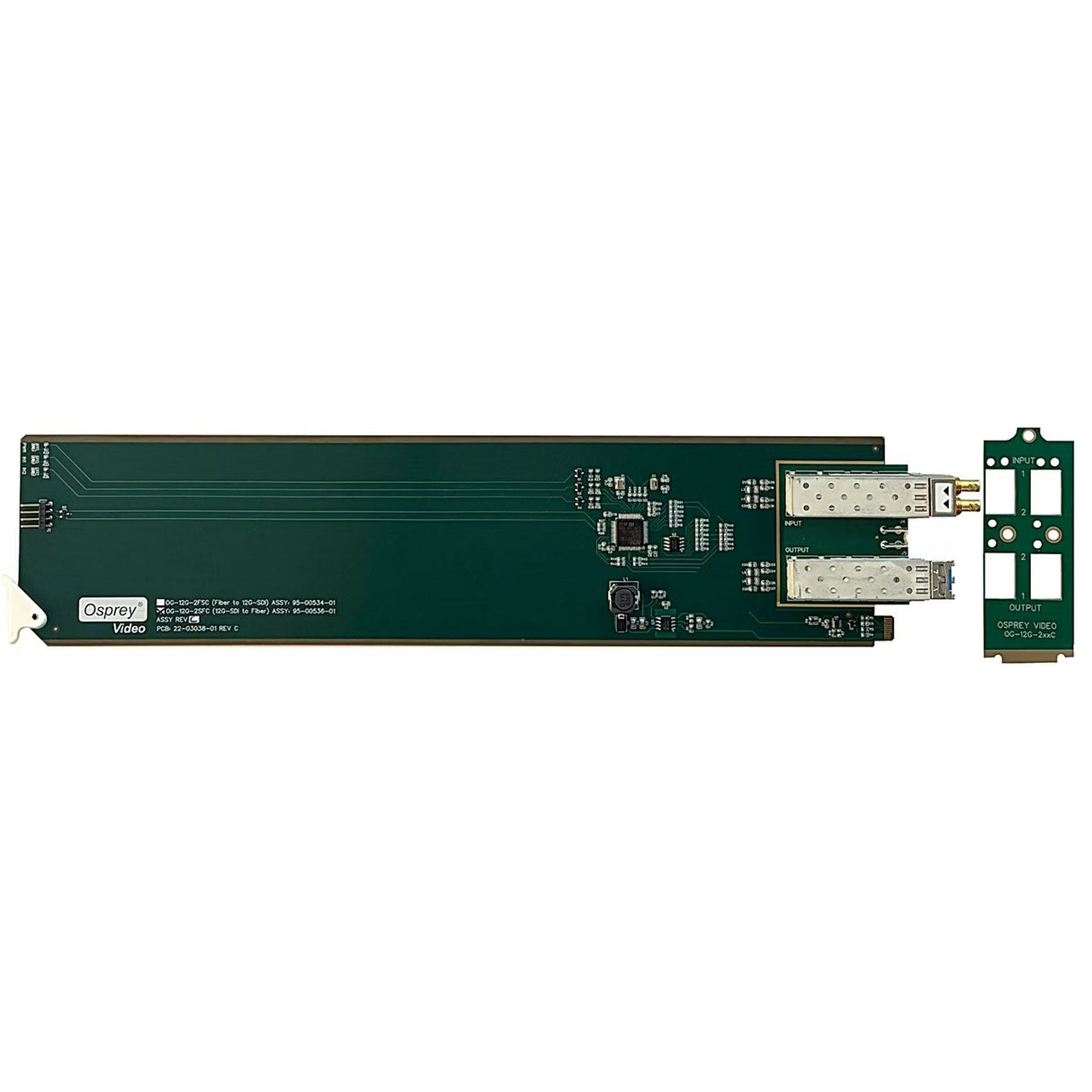

Osprey OG-12G-2SFC Dual 12G SDI to Fiber Converter
OG 12G 2SFC is a dual 12G SDI to fiber converter designed for openGear systems. It provides two 12G SDI inputs and converts them to two single mode fiber outputs using duplex LC connectors. The module includes an integrated reclocker and supports SMPTE fiber and SDI standards including HDR. Front LEDs show power and signal lock status.
The converter supports 1310nm wavelength with optical power minimum -5dBm and extinction ratio higher than 6dB. Cable equalization distances for Belden 1694A include 50m at 12Gbps, 100m at 6Gbps, 150m at 3Gbps, 265m at 1.5Gbps, and 330m at 270Mbps. It fits in a standard openGear single slot configuration.
Environmental ratings include operating temperatures from 0 to 40 C and storage temperatures from -40 to 60 C. The module is compatible with OGx and OG3 frames supporting up to 20 cards per frame, and with DFR8321 frames supporting up to 10 cards per frame. It includes the openGear card, rear module, and mounting hardware.
Key Features
- Dual SDI inputs: 2 x 12G SDI HD BNC
- Fiber outputs: 2 x LC single mode fiber outputs
- Integrated reclocker: Stabilized SDI signal handling
- Front LEDs: Indicators for power and signal lock
- Standard openGear size: Single slot module
Technical Specifications
- Video Inputs: 2 x 12G SDI HD BNC
- Video Outputs: Single mode fiber 9um/125um, duplex LC connector
- Wavelength: 1310nm
- Optical Power: Minimum -5dBm
- Extinction Ratio: Higher than 6dB
- Standards: SMPTE 259, 292, 424, 2081, 2082, DVB ASI, HDR support
- Reclocking: Integrated reclocker
- Cable Equalization (Belden 1694A): 12Gbps 50m; 6Gbps 100m; 3Gbps 150m; 1.5Gbps 265m; 270Mbps 330m
- Power: 3W max
- Size: openGear standard, single slot
- Operating Temperature: 0 to 40 C (32 to 104 F)
- Storage Temperature: -40 to 60 C (-40 to 140 F)
- Humidity: 10 to 90 percent non condensing
- Altitude: Less than 3000m
- User Interface: openGear Dashboard control for Windows, Linux, macOS; signal lock status; card state; frame connection state; manufacturer and product info
- Compatibility: OGx and OG3 up to 20 cards per frame; DFR8321 up to 10 cards per frame
