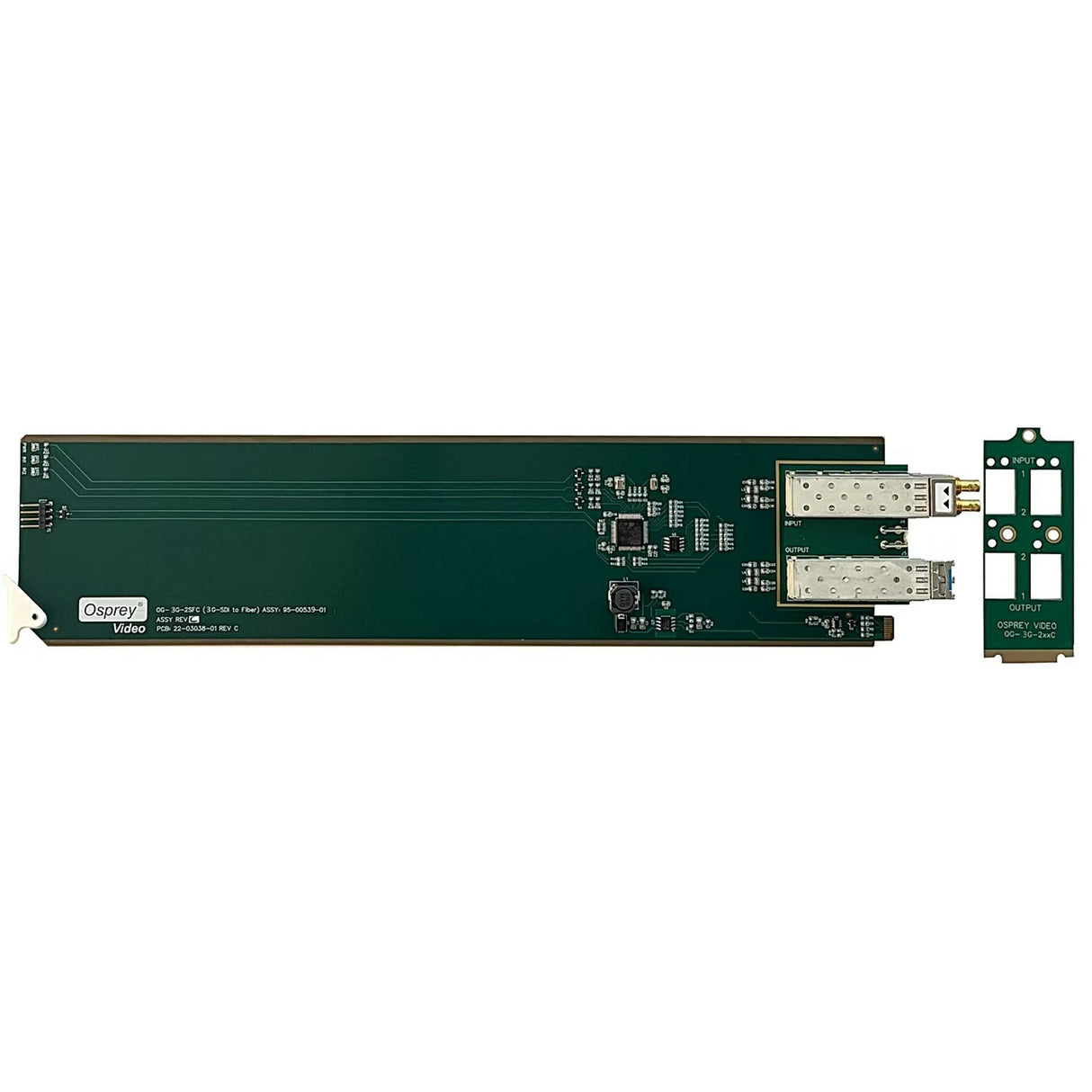

Osprey OG-3G-2SFC Dual 3G SDI to Fiber Converter
OG 3G 2SFC is a dual 3G SDI to fiber converter designed for openGear systems. It supports two 3G SDI inputs and converts them to two single mode fiber outputs using duplex LC connectors. The module includes an integrated reclocker and front LEDs for power and signal lock status.
The converter uses single mode fiber with 9um and 125um core sizes and supports 1310nm wavelength. Optical power minimum is -5dBm with extinction ratio higher than 7dB. Cable equalization distances for Belden 1694A include 150m at 3Gbps, 265m at 1.5Gbps, and 350m at 270Mbps.
Environmental ratings include operating temperatures from 0 to 40 C and storage temperatures from -40 to 60 C. The module is compatible with OGx and OG3 frames supporting up to 20 cards per frame, and with DFR8321 frames supporting up to 10 cards per frame. It includes the openGear card, rear module, and mounting hardware.
Key Features
- Dual SDI inputs: 2 x 3G SDI HD BNC
- Fiber outputs: 2 x LC single mode fiber outputs
- Integrated reclocker: Stabilized SDI signal handling
- Front LEDs: Indicators for power and signal lock
- Single slot design: Supports two cards per rear module
Technical Specifications
- Video Inputs: 2 x 3G SDI HD BNC
- Video Outputs: Single mode fiber 9um and 125um, duplex LC connector
- Wavelength: 1310nm
- Optical Power: Minimum -5dBm
- Extinction Ratio: Higher than 7dB
- Standards: SMPTE 259, 292, 424, DVB ASI, HDR support
- Reclocking: Integrated reclocker
- Cable Equalization (Belden 1694A): 3Gbps 150m; 1.5Gbps 265m; 270Mbps 350m
- Visual Indicators: Front LEDs for power and signal lock status
- Power: 3W max
- Size: openGear standard, single slot
- Operating Temperature: 0 to 40 C (32 to 104 F)
- Storage Temperature: -40 to 60 C (-40 to 140 F)
- Humidity: 10 to 90 percent non condensing
- Altitude: Less than 3000m
- User Interface: openGear Dashboard control for Windows, Linux, macOS; signal lock status; card state; frame connection state; manufacturer and product information
- Compatibility: OGx and OG3 up to 20 cards per frame; DFR8321 up to 10 cards per frame
